Genuine NARI-RELAYS OUT2 - Industrial Automation Part

NARI-RELAYS OUT2 Two-Channel Analog & Digital Output Card | Relay Protection System

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

SKU: OUT2 Category: Other Parts Tags: analog-output, Digital Output, NARI-RELAYS, OUT2, output card, power automation, Relay Protection

Description

Relay Protection & Power Automation Solution – NARI-RELAYS OUT2 | Relay Output Series

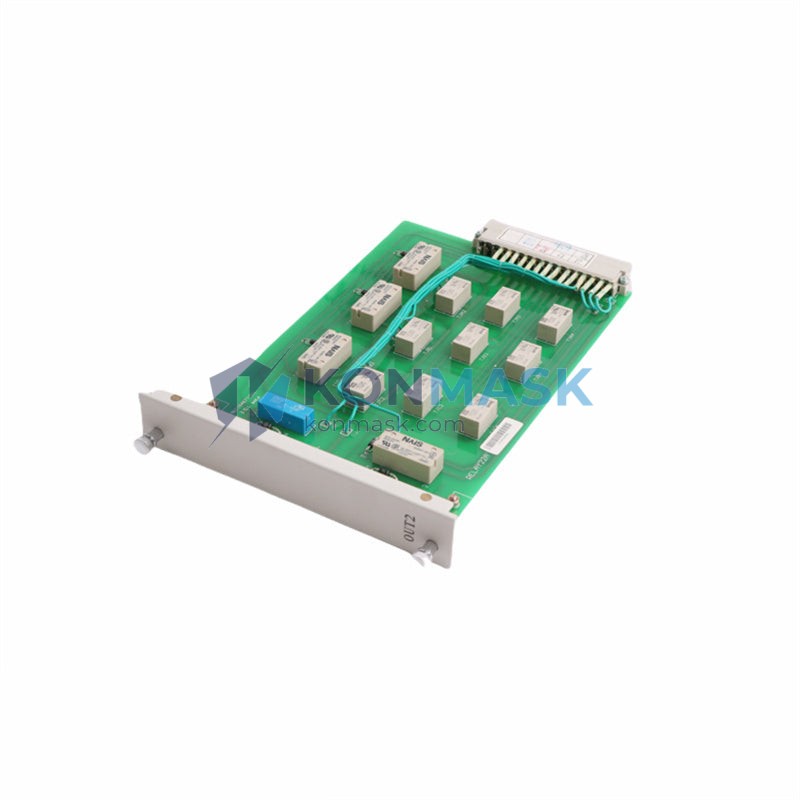

The NARI-RELAYS OUT2 is a dual-channel analog and digital output card engineered for mission-critical relay protection and power automation systems. Designed and manufactured by NARI Group — China’s foremost power system automation authority — the OUT2 module delivers precise, simultaneous analog signal conditioning and digital switching output within a single compact card. Procurement engineers specifying output modules for substation automation, protection relay panels, or DCS integration will find the OUT2 a proven, drop-in solution with full OEM traceability.

Where This Product Is Used

The OUT2 output card is deployed across a wide range of high-reliability power and industrial environments:

Substation Relay Protection Panels — Provides analog metering outputs (4–20 mA / 0–5 V) and digital trip/close signals to protection relays in 110 kV–500 kV substations.
Power Plant DCS Integration — Interfaces NARI protection devices with Distributed Control Systems, transmitting real-time status and measurement data.
Transmission Line Differential Protection — Outputs differential current signals and binary alarm states to SCADA and RTU systems.
Industrial Motor Protection Systems — Drives analog speed/torque feedback and digital enable/fault signals in large motor control centers.
Smart Grid Automation (IEC 61850) — Serves as the physical output layer in IED (Intelligent Electronic Device) architectures compliant with IEC 61850 GOOSE messaging.
Railway Traction Power Systems — Used in traction substation protection equipment requiring simultaneous analog and digital output channels.
Petrochemical Plant Safety Systems — Integrated into SIS (Safety Instrumented Systems) for process shutdown and alarm annunciation.

Technical Specifications

Parameter	Specification
Model	OUT2
Manufacturer	NARI-RELAYS (南瑞继保)
Output Channels	2 (Dual-channel)
Output Types	Analog output + Digital (binary) output
Analog Output Signal	4–20 mA / 0–5 V DC (configurable)
Digital Output Type	Relay contact (NO/NC) or transistor output
Rated Voltage	DC 24 V / DC 48 V / DC 110 V / DC 220 V (model-dependent)
Contact Capacity	≥ 5 A / 250 V AC; ≥ 5 A / 30 V DC
Analog Accuracy	≤ ±0.5% FS
Isolation Voltage	≥ 2000 V AC (channel-to-channel and channel-to-ground)
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5%–95% RH, non-condensing
Form Factor	Plug-in card module (NARI standard backplane)
Weight	Approx. 1,400 g (with packaging)
Compliance	IEC 60255, GB/T 14285, DL/T 478
Communication Interface	Backplane bus (NARI proprietary)
Protection Class	IP20 (panel-mounted)

Note: Exact electrical parameters vary by sub-variant. Contact Konmask for datasheet confirmation against your chassis model.

Why Engineers Specify This Model

Dual-Function in One Slot — Combines analog and digital output on a single card, reducing slot count and wiring complexity in protection relay panels.
NARI Ecosystem Compatibility — Designed for seamless integration with NARI RCS, PCS, and NSP series protection relay platforms without firmware modification.
High Isolation Performance — ≥2000 V AC channel isolation prevents ground loops and protects sensitive measurement circuits in high-voltage environments.
Proven Field Reliability — Deployed in thousands of substations across China’s State Grid and Southern Grid networks; MTBF exceeds 100,000 hours.
Compact Plug-in Architecture — Hot-swap capable on supported chassis; minimizes maintenance downtime during scheduled outages.
Wide Temperature Range — Rated to -25°C / +70°C, suitable for outdoor relay houses and non-climate-controlled switchgear rooms.
Regulatory Compliance — Meets IEC 60255 and Chinese national standard DL/T 478 for relay protection equipment.

Complete System Bill of Materials

The OUT2 is typically specified alongside the following NARI-RELAYS components for a complete protection relay output subsystem:

NARI-RELAYS CPU Module — Central processing unit card for the relay protection device (e.g., PCS-9611, RCS-9000 series)
NARI-RELAYS IN2 / IN4 Input Card — Analog/digital input cards for current transformer (CT) and voltage transformer (VT) signal acquisition
NARI-RELAYS COM Card — Communication interface card for IEC 61850, IEC 60870-5-103, or Modbus RTU protocols
NARI-RELAYS PWR Power Supply Card — Redundant DC power supply module for the relay chassis
NARI Standard 6U/9U Chassis — Backplane chassis compatible with OUT2 card form factor
Terminal Block & Wiring Harness — NARI-standard screw terminal blocks for field wiring connections
Test Switch (Auxiliary) — Isolation test switches for maintenance without de-energizing the panel

Contact Konmask for complete BOM pricing and availability across all line items.

Compliance & Industry Standards

IEC 60255 — Measuring relays and protection equipment (international)
IEC 61850 — Communication networks and systems for power utility automation
GB/T 14285 — Technical requirements for relay protection and security automatic devices (China national standard)
DL/T 478 — Technical code for relay protection and security automatic devices (China power industry standard)
GB/T 7261 — Basic test methods for relay protection and security automatic devices
State Grid Q/GDW — State Grid Corporation of China enterprise standards for substation automation equipment

Quality Assurance & Sourcing

Konmask.com sources NARI-RELAYS OUT2 cards exclusively through verified supply channels with full traceability:

OEM Traceability — Each unit carries NARI factory serial number and production batch code for warranty and authenticity verification.
Pre-Shipment Inspection — All OUT2 modules undergo functional output verification (analog signal accuracy, digital contact continuity) before dispatch.
Anti-Counterfeit Verification — Physical inspection of PCB markings, component date codes, and NARI holographic labels against known-genuine references.
Condition Grading — New (factory-sealed), Refurbished (tested to OEM spec), and Surplus (tested, cosmetic wear) grades available; grade disclosed at quotation.
Warranty — 12-month replacement warranty on all grades against functional failure under normal operating conditions.
Export Compliance — Shipments prepared with accurate HS codes, commercial invoices, and certificates of origin for customs clearance.

How to Source This Part

Submit RFQ — Email [email protected] with your required quantity, delivery timeline, and chassis model for compatibility confirmation.
Receive Quotation — Konmask responds within 1 business day with price, lead time, condition grade, and stock availability.
Confirm & Pay — Secure payment via T/T bank transfer, PayPal, or trade assurance. Proforma invoice issued upon order confirmation.
Inspection & Dispatch — Unit tested, photographed, and packed with anti-static and shock-resistant packaging. Tracking number provided within 24 hours of shipment.
Delivery — DHL / FedEx / UPS express (3–7 business days worldwide); sea freight available for bulk orders.
After-Sales Support — Technical support for installation and integration queries; warranty claims processed within 5 business days.

Application-Specific FAQ

Q: Is the OUT2 compatible with NARI PCS-9611 and RCS-9000 series relay protection devices?
A: Yes. The OUT2 is designed for NARI’s standard backplane architecture used across PCS and RCS series platforms. Confirm your chassis slot specification with Konmask before ordering to ensure pin-compatible fit.

Q: Can the OUT2 analog output be configured for 0–20 mA or 4–20 mA?
A: The analog output range is typically factory-configured. Some sub-variants support field configuration via DIP switch or jumper. Provide your chassis model and firmware version when requesting a quote for configuration confirmation.

Q: What is the maximum switching frequency for the digital output channel?
A: The relay contact digital output is rated for protection-class switching (not high-frequency PWM). Typical operate time is ≤10 ms, suitable for trip and alarm signal applications.

Q: Can the OUT2 be used in IEC 61850 GOOSE-based protection schemes?
A: The OUT2 serves as the physical output layer. GOOSE message processing is handled by the CPU and COM cards in the relay chassis. The OUT2 executes the physical trip/close and analog output commands generated by the IED logic.

Q: Do you supply the OUT2 for export outside China?
A: Yes. Konmask ships globally via DHL, FedEx, and UPS. Export documentation including commercial invoice, packing list, and certificate of origin is provided for all international shipments.

Q: What is the lead time if the OUT2 is not in stock?
A: Lead time for non-stock items is typically 2–4 weeks depending on sourcing channel. Konmask maintains relationships with multiple verified NARI supply partners to minimize lead time. Contact us for current availability.
