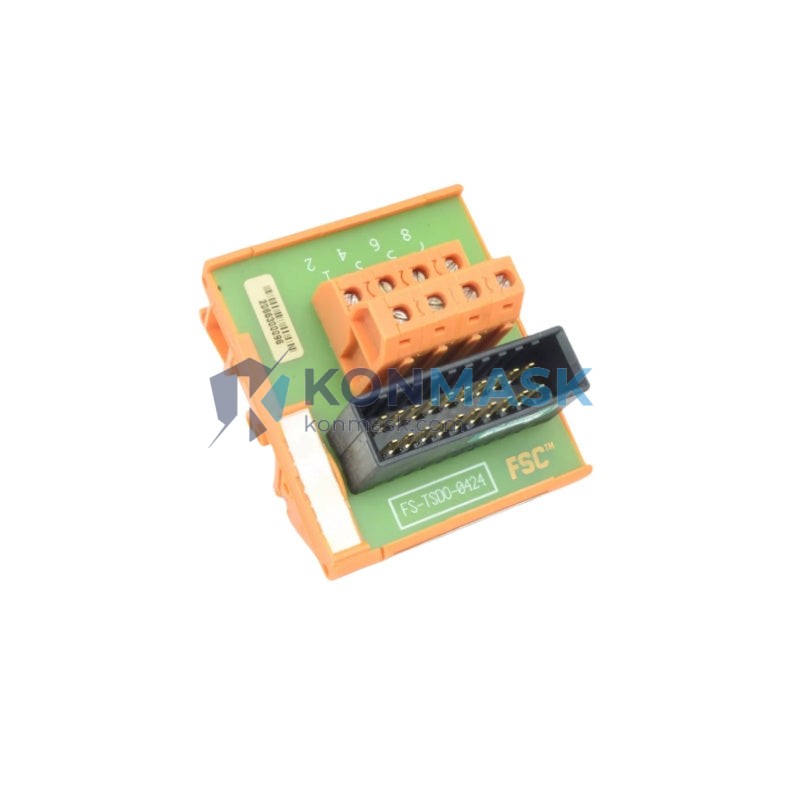

Honeywell FS-TSDO-0424 Safe Digital Output Module | Replacement, Equivalent & Selection Guide
The Honeywell FS-TSDO-0424 is a Safe Digital Output Module designed for use in the Honeywell Safety Manager SC (formerly FSC) safety instrumented system. It provides SIL 2-certified digital output channels for critical process safety applications in oil & gas, petrochemical, power generation, and industrial automation environments. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams.
Technical Specifications
- Part Number: FS-TSDO-0424
- Module Type: Safe Digital Output (SDO)
- Safety Integrity Level: SIL 2 (IEC 61508 certified)
- Output Channels: 4 channels
- Output Voltage: 24 VDC
- Output Current: Up to 0.5 A per channel
- Output Type: Solid-state transistor (sourcing)
- Diagnostic Coverage: High (internal self-test and cross-checking)
- Communication: Internal Safety Manager SC backplane bus
- Operating Temperature: 0°C to +60°C
- Mounting: DIN rail / rack-mount in Safety Manager SC chassis
- Certifications: IEC 61508, TÜV, CE
- Platform: Honeywell Safety Manager SC (FSC)
- Weight: Approx. 200 g
Compatible Replacement & Equivalent Models
When the FS-TSDO-0424 is unavailable or end-of-life, the following models may serve as functional equivalents or replacements depending on system configuration. Always verify compatibility with your Safety Manager SC revision before substitution.
- FS-TSDO-0824 — 8-channel SDO variant; same platform, higher channel density
- FS-TSDI-0424 — Safe Digital Input counterpart; used for paired I/O loops
- FS-TSDO-0424R — Redundant-rated variant (if available in your system revision)
- Triconex 3805E / 3806E — Schneider Electric Triconex DO modules; cross-platform alternative for SIL 2 DO applications (requires system migration)
- HIMA F3 DO 8/8 01 — HIMA HIMatrix series SIL 2 digital output; alternative for greenfield projects
- Pilz PSSu E F DO 4 — Pilz PSSuniversal SIL 2 DO module; suitable for smaller safety loops
Note: Cross-brand replacements require full SIL validation and system re-engineering. Konmask.com recommends using OEM-equivalent modules wherever possible.
Why Choose the Original FS-TSDO-0424
- ✅ Certified SIL 2 performance — factory-validated for IEC 61508 functional safety requirements
- ✅ Seamless integration — plug-and-play within existing Safety Manager SC chassis; no re-engineering required
- ✅ Proven field reliability — widely deployed in oil & gas, LNG, and refinery SIS applications globally
- ✅ Honeywell lifecycle support — firmware updates, spare parts, and technical documentation available through Honeywell Process Solutions
- ✅ Reduced validation cost — retains existing SIL 2 loop validation records; no re-certification needed
Typical Applications
- Emergency Shutdown Systems (ESD) — valve actuator control and solenoid driver outputs
- Fire & Gas (F&G) systems — alarm and suppression output activation
- Burner Management Systems (BMS) — fuel valve and igniter control
- High-Integrity Pressure Protection Systems (HIPPS)
- Compressor and turbine safety shutdown loops
- Offshore platform and FPSO safety instrumented systems
System Compatibility
- Primary Platform: Honeywell Safety Manager SC (FSC) — all chassis revisions
- Compatible Chassis: FS-CHASSIS-04, FS-CHASSIS-08, FS-CHASSIS-16 (verify slot type)
- Compatible Controllers: FS-TSC-0001, FS-TSC-0002 series Safety Manager SC CPUs
- Engineering Tool: Honeywell Safety Builder / FSC Engineering Tool
- Not compatible with: Honeywell HC900, Experion PKS standard I/O, or non-FSC platforms without hardware migration
Selection Guide
Use the following criteria to confirm the FS-TSDO-0424 is the correct module for your application:
- Channel count needed: 4 DO channels → FS-TSDO-0424 ✓ | 8 channels → consider FS-TSDO-0824
- Output voltage: 24 VDC sourcing → FS-TSDO-0424 ✓
- SIL requirement: SIL 1 or SIL 2 → FS-TSDO-0424 ✓ | SIL 3 → consult Honeywell for TMR configuration
- Platform: Safety Manager SC → FS-TSDO-0424 ✓ | Other platform → contact Konmask for cross-reference
- Redundancy: Simplex → FS-TSDO-0424 ✓ | Redundant → verify -R suffix availability
Not sure which module fits your system? Contact our selection team with your chassis model and SIL loop diagram.
Quality Assurance & Sourcing
- Source: Authorized distributor stock and verified surplus channels
- Inspection: All modules undergo visual, functional, and firmware-version inspection before shipment
- Authenticity: Honeywell OEM labeling, serial number traceability, and original packaging where available
- Warranty: 12-month replacement warranty on all stocked units
- Documentation: Datasheet, test report, and certificate of conformance available on request
- Export compliance: ECCN classification and export licensing support available for international orders
How to Order
- Confirm your Safety Manager SC chassis revision and available slot type
- Verify required channel count and output voltage (4-ch / 24 VDC for FS-TSDO-0424)
- Add to cart or contact support@konmask.com for bulk pricing and lead time
- Provide PO number, delivery address, and any export documentation requirements
- Receive order confirmation with tracking and CoC within 1 business day
📞 Phone / WhatsApp: +0086 19859288691
📧 Email: support@konmask.com
🌐 Web: https://konmask.com
Replacement & Compatibility FAQ
Q: Can I replace FS-TSDO-0424 with FS-TSDO-0824 without re-engineering?
A: The FS-TSDO-0824 uses the same platform but has 8 channels. Slot and firmware compatibility must be verified; partial channel use is possible but requires Safety Builder configuration update.
Q: Is FS-TSDO-0424 still in production?
A: Honeywell periodically revises Safety Manager SC module availability. Contact Konmask for current stock status and OEM lead time alternatives.
Q: Can this module be used in a SIL 3 loop?
A: The FS-TSDO-0424 is SIL 2 rated in simplex configuration. SIL 3 requires a redundant (1oo2 or 2oo3) architecture — consult your SIL verification engineer.
Q: Do you provide a certificate of conformance?
A: Yes. CoC, inspection report, and datasheet are available upon request for all shipped units.
Q: What is the lead time for FS-TSDO-0424?
A: In-stock units ship within 3–5 business days. For out-of-stock items, typical lead time is 4–8 weeks depending on sourcing channel.
