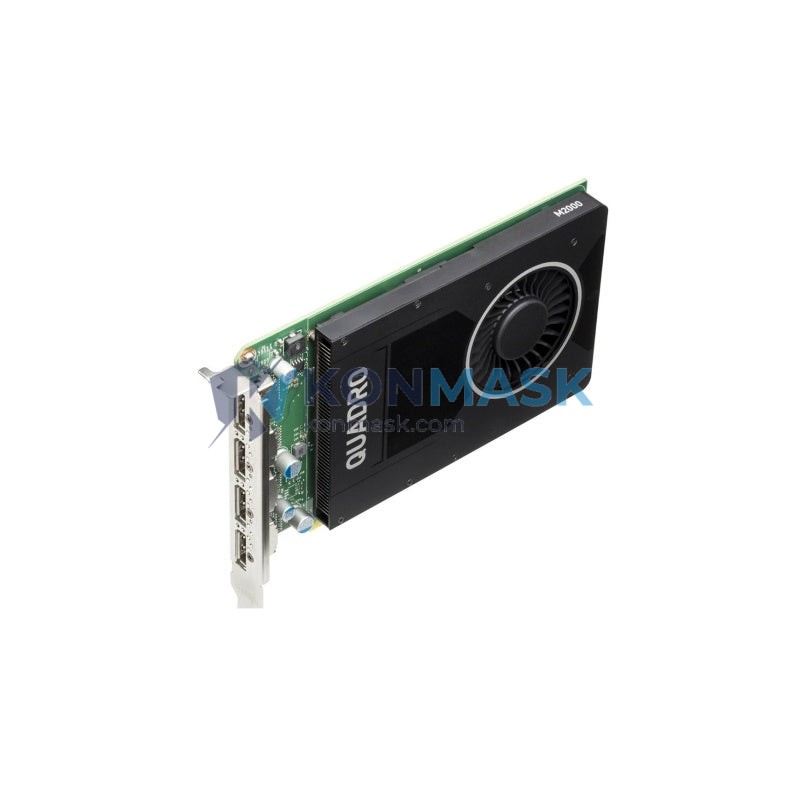

NVIDIA Quadro M2000 4GB GDDR5 Professional GPU | Workstation Graphics Card

CAD & Industrial Visualization Solution – NVIDIA Quadro M2000 | Maxwell Series

The NVIDIA Quadro M2000 (4GB GDDR5) is a professional-grade workstation GPU engineered for engineers, designers, and industrial automation specialists who demand certified OpenGL/DirectX performance, ECC memory reliability, and ISV-validated stability in mission-critical environments. With 768 CUDA cores and a 128-bit memory interface, it delivers the computational throughput required for complex 3D modeling, real-time simulation, and multi-display industrial HMI setups.

Where This Product Is Used

• CAD / CAM Engineering Workstations — Autodesk AutoCAD, Inventor, SolidWorks, CATIA; certified drivers eliminate rendering artifacts in large assembly files.
• Building Information Modeling (BIM) — Revit and Navisworks large-model navigation with smooth viewport performance.
• Industrial HMI & SCADA Visualization — Multi-monitor (up to 4× DisplayPort) operator consoles for process control rooms and MES dashboards.
• Simulation & Digital Twin — FEA/CFD pre/post-processing in ANSYS, Abaqus, and Siemens NX; ECC memory prevents silent data corruption in long-running solves.
• Medical Imaging Workstations — DICOM-compliant rendering for radiology review stations requiring color-accurate, flicker-free output.
• Broadcast & Video Production — Real-time color grading and multi-stream decode in DaVinci Resolve and Adobe Premiere Pro.
• GIS & Geospatial Analysis — ArcGIS Pro and QGIS large raster/vector dataset rendering.

Technical Specifications

• Model / SKU: NVIDIA Quadro M2000 | SKU: M2000
• GPU Architecture: Maxwell (GM206)
• CUDA Cores: 768
• Memory: 4 GB GDDR5 ECC
• Memory Bandwidth: 106.6 GB/s
• Memory Interface: 128-bit
• Display Outputs: 4× DisplayPort 1.2 (max 4 simultaneous displays)
• Max Resolution: 5120 × 3200 @ 60 Hz per display
• Form Factor: Single-slot, low-profile capable
• TDP / Power: 75 W (bus-powered, no auxiliary connector required)
• PCIe Interface: PCIe 3.0 ×16
• API Support: OpenGL 4.5, DirectX 12, Vulkan, CUDA, OpenCL
• ISV Certifications: Autodesk, Dassault Systèmes, PTC, Siemens PLM, ANSYS
• Weight: 323 g
• Operating Temperature: 0 °C – 95 °C (storage)

Why Engineers Specify This Model

• ECC Memory: Error-correcting code memory prevents bit-flip errors in simulation and rendering — critical for aerospace, automotive, and medical applications.
• Single-Slot / Low-Profile: Fits space-constrained industrial workstations and compact chassis without sacrificing performance.
• Bus-Powered (75 W): No auxiliary PCIe power connector needed — simplifies integration into certified medical and industrial systems with strict power budgets.
• 4× DisplayPort: Drives four independent 4K monitors from a single card — ideal for multi-screen SCADA, HMI, and control room deployments.
• ISV-Certified Drivers: Validated by major CAD/CAM/CAE ISVs for driver stability and rendering correctness — reduces support risk in production environments.
• Maxwell Architecture Efficiency: Superior performance-per-watt vs. consumer GPUs at equivalent compute levels.

Complete System Bill of Materials

• NVIDIA Quadro M2000 4GB GDDR5 GPU (this unit)
• PCIe 3.0 ×16 workstation motherboard (e.g., Intel C236 / C612 chipset)
• ECC-registered DDR4 system RAM (16 GB minimum recommended)
• DisplayPort 1.2 cables (4× for full multi-monitor setup)
• Certified workstation chassis with adequate airflow (75 W TDP)
• NVIDIA Quadro certified driver package (download from NVIDIA.com)
• ISV application license (AutoCAD, SolidWorks, ANSYS, etc.)

Compliance & Industry Standards

• RoHS 2 Compliant (Directive 2011/65/EU)
• CE Marked
• FCC Class B
• UL Listed
• ENERGY STAR compatible workstation configurations
• ISV Certification Program: Autodesk, Dassault, Siemens, PTC, ANSYS

Quality Assurance & Sourcing

Every Quadro M2000 unit offered through Konmask.com undergoes the following verification process before dispatch:

• Visual inspection for physical damage, bent pins, and capacitor integrity
• GPU-Z / TechPowerUp verification of GPU die, VBIOS version, and memory configuration
• Burn-in stress test (FurMark / Quadro Diagnostic Tool) — minimum 2-hour stability run
• Display output test across all 4× DisplayPort connectors
• ECC functionality verification
• Anti-static packaging with humidity indicator card

Units are sourced from verified enterprise decommission channels, authorized distributors, and OEM surplus — never grey-market or counterfeit supply chains.

How to Source This Part

1. Add to cart and complete checkout — we accept T/T bank transfer, PayPal, and major credit cards.
2. For bulk orders (5+ units) or project-based procurement, contact support@konmask.com for a formal quotation with lead time and warranty terms.
3. Expedited shipping available via DHL Express, FedEx International Priority, and SF Express (China domestic).
4. Export documentation (commercial invoice, packing list, CO) provided for international customs clearance.

Application-Specific FAQ

Q: Is the Quadro M2000 compatible with SolidWorks 2024/2025?
A: Yes. NVIDIA maintains active ISV certification for SolidWorks through the Quadro M-series. Use the NVIDIA Quadro Certified Driver matched to your SolidWorks version from the NVIDIA driver portal.

Q: Can this card drive 4 monitors simultaneously at 4K?
A: Yes — all 4× DisplayPort 1.2 outputs support up to 4096 × 2160 @ 60 Hz simultaneously, making it ideal for multi-screen SCADA and HMI operator stations.

Q: Does it require an external PCIe power connector?
A: No. The M2000 is fully bus-powered at 75 W via the PCIe ×16 slot — no 6-pin or 8-pin auxiliary connector required.

Q: Is ECC memory enabled by default?
A: ECC can be toggled via the NVIDIA Control Panel or nvidia-smi. When enabled, usable memory is slightly reduced (~3.5 GB effective) but data integrity is guaranteed — recommended for simulation and medical imaging workloads.

Q: What is the warranty and return policy?
A: All units carry a 90-day functional warranty from Konmask.com. DOA units are replaced within 5 business days. Contact support@konmask.com with your order number and GPU-Z screenshot for RMA initiation.

---
