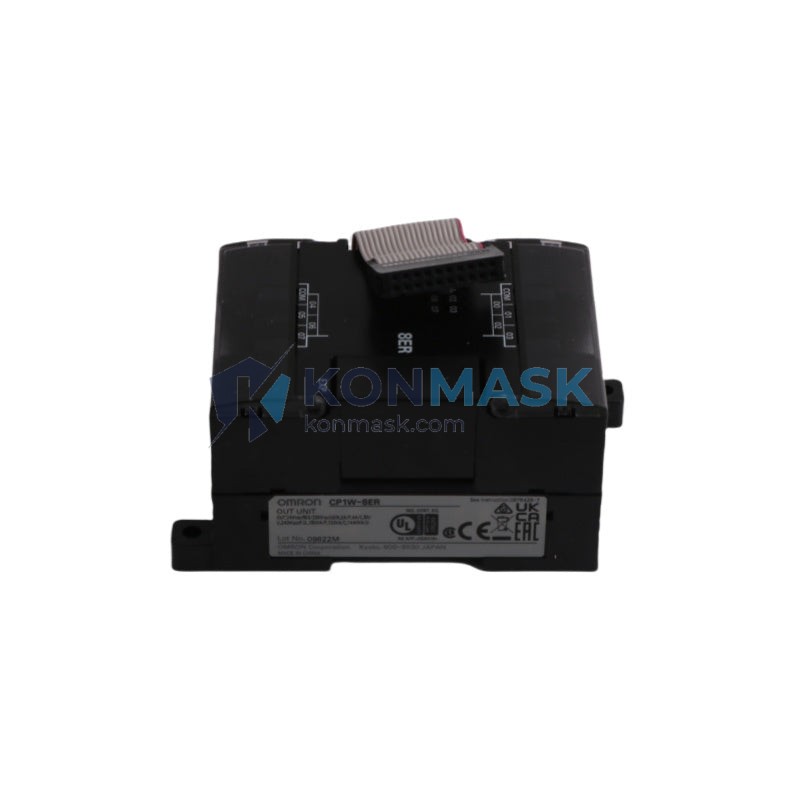

Genuine OMRON CP1W-8ER CP1W Expansion Unit - Industrial Automation Part

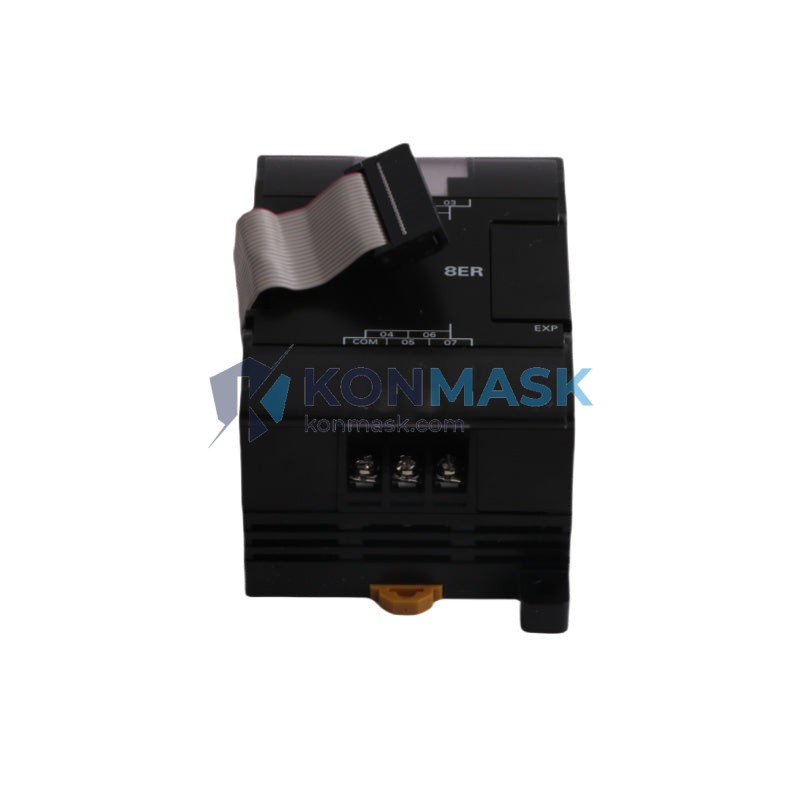

OMRON CP1W-8ER CP1W Expansion Unit - Front Panel and Connectivity View

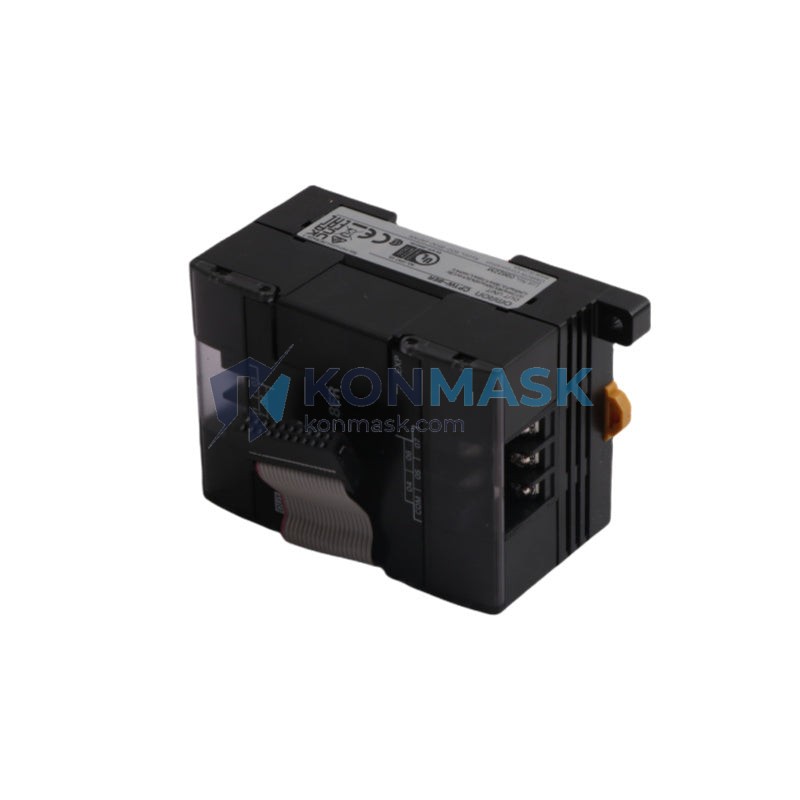

OMRON CP1W-8ER CP1W Expansion Unit - Technical Label and Specifications

OMRON CP1W-8ER Relay Output Expansion Unit – CP1W Series

Request a Fast Quote Email Directly

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

Category: OMRON Tags: CP1W Series, CP1W-8ER, Industrial Automation, OMRON, PLC Expansion Unit

Description

OMRON CP1W-8ER Relay Output Expansion Unit – CP1W Series

Imagine a production line where a critical relay output point fails mid-shift — conveyors halt, actuators freeze, and the entire downstream process grinds to a stop. Without a reliable expansion unit like the CP1W-8ER, engineers face unplanned downtime, costly emergency sourcing, and hours of rewiring. The OMRON CP1W-8ER Relay Output Expansion Unit is the precision component that keeps discrete control signals flowing, ensuring every output command from your CP1-series PLC reaches its destination without compromise.

Within the CP1W expansion family, the CP1W-8ER occupies a focused, high-reliability position: 8 relay output points in a compact DIN-rail form factor, purpose-built to extend the I/O capacity of OMRON CP1L and CP1H PLCs. As OMRON’s CP1 series has become one of the most widely deployed compact PLC platforms globally — trusted in packaging, food processing, material handling, and building automation — the CP1W-8ER serves as a foundational building block for scalable machine control architectures worldwide.

Technical Specifications

Model: CP1W-8ER
Brand: OMRON
Series: CP1W Expansion Unit
Output Type: Relay Output
Number of Output Points: 8 points
Compatible PLCs: OMRON CP1L, CP1H series
Mounting: DIN Rail
Weight: Approx. 160 g
Manufacturer: OMRON Corporation (Japan)

Note: Full electrical ratings (voltage, current, response time) should be verified against the official OMRON CP1W-8ER datasheet prior to installation.

Key Features & Benefits

8 Relay Output Points: Provides flexible discrete output expansion for controlling solenoids, motors, indicators, and other field devices.
Seamless CP1L/CP1H Integration: Plug-and-play expansion with no additional programming overhead — recognized automatically by the host PLC.
Compact DIN-Rail Design: Space-efficient form factor minimizes panel footprint while maximizing I/O density.
Relay Contact Outputs: Suitable for both AC and DC load switching, offering versatility across diverse field device types.
Proven OMRON Reliability: Built to OMRON’s stringent manufacturing standards, ensuring long service life in demanding industrial environments.
Scalable Architecture: Multiple CP1W expansion units can be stacked to meet growing I/O requirements without replacing the base PLC.

Industry & Equipment Applications

Packaging Machinery: Controlling conveyor drives, sealing actuators, and reject mechanisms.
Food & Beverage Processing: Switching pumps, valves, and filling station outputs.
Material Handling: Managing sorter gates, lift actuators, and indicator lamps.
Building Automation: HVAC control, lighting relay switching, and access control outputs.
Assembly Lines: Coordinating robotic end-effectors and fixture clamping outputs.
Water Treatment: Pump and valve relay control in process automation panels.

System Integration & Compatible Parts

The CP1W-8ER is designed to work within the OMRON CP1W expansion ecosystem. Compatible and commonly paired components include:

Host PLCs: OMRON CP1L-L, CP1L-M, CP1H-X, CP1H-XA, CP1H-Y series
Other CP1W Expansion Units: CP1W-8ED (digital input), CP1W-16ER (16-point relay output), CP1W-AD041 (analog input), CP1W-DA021 (analog output)
Programming Software: OMRON CX-Programmer, Sysmac Studio
Communication Units: CP1W-CIF01 (RS-232C), CP1W-CIF11 (RS-422A/485)

Always consult the OMRON CP1W Expansion Unit Installation Guide to confirm maximum expansion unit count and total I/O limits for your specific CP1L/CP1H configuration.

Our Quality Assurance Process

At Konmask.com, every OMRON CP1W-8ER unit undergoes a rigorous multi-stage quality verification process before shipment:

Authenticity Verification: Units are sourced from authorized channels and verified against OMRON’s genuine product markings, labels, and serial number formats.
Visual Inspection: Each unit is inspected for physical integrity — connector pins, housing, terminal blocks, and labeling.
Functional Pre-check: Where applicable, units are bench-tested to confirm basic operational readiness.
Secure Packaging: Anti-static packaging with moisture protection ensures safe transit to your facility.
Documentation: Shipments include relevant product documentation and traceability records upon request.

How to Order

Submit an inquiry via the Contact / RFQ form on this page with your required quantity and delivery timeline.
Our technical sales team will respond within 1 business day with availability confirmation and a formal quotation.
Upon order confirmation, we arrange secure packaging and international shipping with full tracking.
For urgent requirements, please indicate “URGENT” in your inquiry subject line for priority handling.

Why Choose Konmask.com?

Industrial Automation Specialists: We focus exclusively on industrial control components — PLCs, DCS modules, drives, and automation hardware.
Global B2B Supply: Serving OEMs, system integrators, and MRO buyers across Asia, Europe, the Americas, and the Middle East.
Fast Inquiry Response: Dedicated technical sales team with <24-hour response commitment.
Competitive Pricing: Direct sourcing relationships enable us to offer market-competitive pricing on genuine parts.
Reliable Logistics: Partnerships with DHL, FedEx, and UPS for secure, trackable international delivery.
After-Sales Support: Technical guidance available post-purchase to assist with installation and integration questions.

Frequently Asked Questions

Q: Is the CP1W-8ER compatible with OMRON CP1E PLCs?: A: No. The CP1W expansion units are designed for the CP1L and CP1H series. The CP1E uses a different expansion connector and is not compatible with CP1W units. Please verify your PLC model before ordering.
Q: How many CP1W-8ER units can I connect to a single CP1L PLC?: A: The maximum number of expansion units depends on the specific CP1L model. Refer to the OMRON CP1L hardware manual for the maximum expansion unit count and total I/O point limits for your configuration.
Q: What is the lead time for the CP1W-8ER?: A: Lead time varies by stock availability. Please submit an inquiry and our team will confirm current stock status and estimated delivery timeline within 1 business day.
Q: Do you provide a warranty on OMRON CP1W-8ER units?: A: Yes. All units supplied by Konmask.com are covered by our quality assurance guarantee. Please contact [email protected] for warranty terms specific to your order.
Q: Can I request a datasheet or technical documentation?: A: Yes. Contact us at [email protected] and our team will provide the relevant OMRON technical documentation for the CP1W-8ER.
