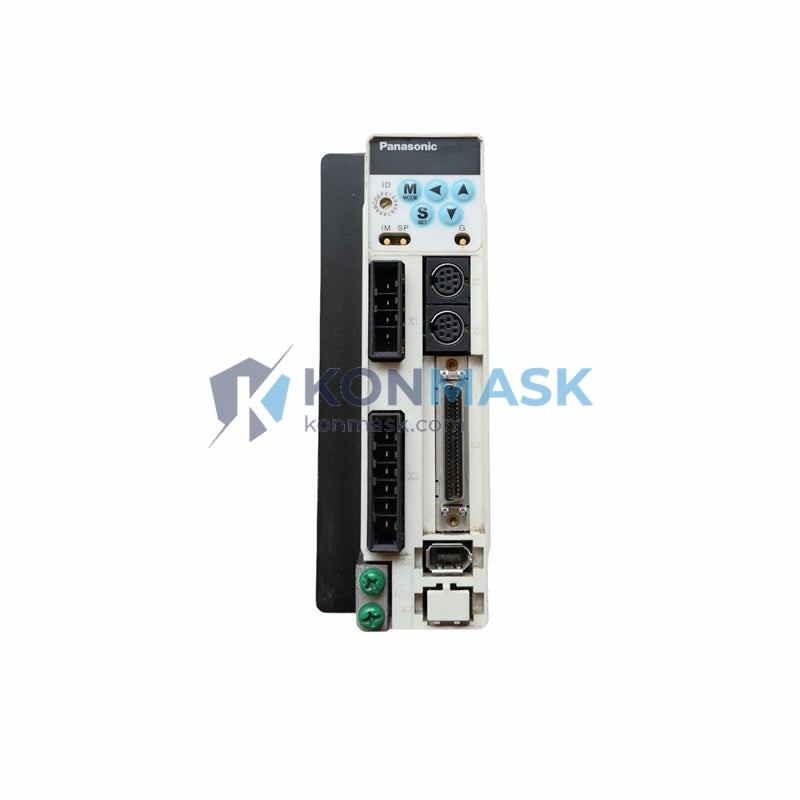

Panasonic MBDDT2210053 AC Servo Motor & Driver Unit | Replacement, Equivalent & Selection Guide
The Panasonic MBDDT2210053 is a compact AC servo motor and driver integrated unit from Panasonic’s MINAS series, designed for precision motion control in industrial automation applications. This page provides full technical specifications, compatible replacement models, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number / SKU: MBDDT2210053
- Brand: Panasonic (Matsushita Electric)
- Series: MINAS A / MINAS A5 Servo Series
- Type: AC Servo Motor & Driver Integrated Unit
- Rated Output: 200W (typical for MBDDT2210 series)
- Input Voltage: Single-phase / Three-phase 200–230 VAC
- Encoder: Incremental / Absolute encoder compatible
- Control Mode: Position / Speed / Torque control
- Communication Interface: RS-232 / RS-485 / MECHATROLINK (model-dependent)
- Protection Class: IP65 (motor), IP20 (driver)
- Operating Temperature: 0–55°C (driver), 0–40°C (motor)
- Weight: Approx. 4.46 kg
- Compliance: CE, UL, RoHS
Note: Always verify specifications against the official Panasonic datasheet before final selection.
Compatible Replacement & Equivalent Models
The following models are commonly referenced as functional equivalents or drop-in replacements for the MBDDT2210053. Compatibility depends on your specific application parameters — consult our team for confirmation.
- Panasonic MBDDT2210: Base model without suffix options; same core driver platform
- Panasonic MDDDT5540: Higher-power equivalent (400W) for upgraded capacity needs
- Panasonic MADDT1207: Lower-power alternative (100W) for lighter-duty applications
- Mitsubishi MR-J4-20A: Cross-brand equivalent with similar torque/speed profile
- Yaskawa SGDV-2R8A01A: Alternative servo driver with comparable I/O compatibility
- Delta ASD-A2-0221-M: Cost-effective replacement option for budget-sensitive projects
⚠ Important: Mechanical mounting dimensions, encoder wiring, and parameter settings must be verified before substitution. Contact [email protected] for a free compatibility check.
Why Choose the Original Panasonic MBDDT2210053
- ✅ Proven reliability in high-cycle industrial environments
- ✅ Seamless integration with Panasonic MINAS series motion controllers
- ✅ Factory-tuned parameters — no re-commissioning required
- ✅ Full OEM support and spare parts availability
- ✅ Certified compliance (CE / UL / RoHS) for global deployment
- ✅ Compact integrated design reduces panel space and wiring complexity
Typical Applications
- CNC machine tools and machining centers
- Semiconductor and electronics assembly equipment
- Packaging and labeling machinery
- Robotic arms and pick-and-place systems
- Printing and textile machinery
- Conveyor and material handling automation
System Compatibility
The MBDDT2210053 is compatible with the following Panasonic control platforms and third-party systems:
- Panasonic FP Series PLCs (FP0R, FP-X, FP7) via pulse train or network interface
- Panasonic MINAS A5 / A6 Series motion controllers
- MECHATROLINK-II / III network-based motion systems
- EtherCAT master controllers (with appropriate driver variant)
- Third-party PLCs (Mitsubishi, Siemens, Omron) via pulse/direction or analog ±10V interface
Selection Guide
Use the following criteria to confirm the MBDDT2210053 is the right choice — or to identify the best alternative:
- Step 1 — Power requirement: Confirm rated output (W) matches your load torque and speed profile
- Step 2 — Voltage supply: Verify single-phase or three-phase 200V AC availability at your panel
- Step 3 — Encoder type: Match incremental vs. absolute encoder to your positioning accuracy needs
- Step 4 — Control interface: Confirm pulse train, analog, or fieldbus (MECHATROLINK/EtherCAT) compatibility with your controller
- Step 5 — Mounting & dimensions: Check motor flange size and driver DIN rail / panel mount requirements
- Step 6 — Environment: Verify IP rating and operating temperature range for your installation site
📩 Need help selecting? Email [email protected] with your application details for a free recommendation.
Quality Assurance & Sourcing
- 🔍 100% authenticity guaranteed — all units sourced from authorized distributors or verified surplus channels
- 📦 Pre-shipment inspection including visual check, label verification, and functional test where applicable
- 📄 Documentation provided: Certificate of Origin, packing list, and test report on request
- 🌐 Global shipping with DHL / FedEx / UPS express options; export customs clearance supported
- 🔄 30-day return policy for unused items in original packaging
How to Order
- Click Add to Cart or Buy Now on this page
- For bulk orders (>5 units) or urgent requirements, email [email protected]
- Provide your PO number, delivery address, and required delivery date for priority processing
- Payment accepted: T/T (Bank Transfer), PayPal, Credit Card, and LC (for large orders)
- Lead time: In-stock items ship within 1–3 business days; sourced items within 7–15 business days
Replacement & Compatibility FAQ
Q: Can I replace MBDDT2210053 with a newer Panasonic MINAS A6 series driver?
A: In most cases yes, but parameter migration and wiring adaptation are required. Contact us for a migration checklist.
Q: Is the MBDDT2210053 still in production?
A: This model may be at end-of-life or limited availability. We maintain stock of new, refurbished, and equivalent units — contact us to check current availability.
Q: What is the difference between MBDDT2210 and MBDDT2210053?
A: The suffix “053” typically denotes a specific regional or OEM configuration variant. Core electrical specifications remain the same; connector pinouts and parameter defaults may differ.
Q: Do you provide a warranty?
A: Yes — all units carry a minimum 90-day warranty against manufacturing defects. Extended warranty available on request.
Q: Can you source discontinued or obsolete Panasonic servo parts?
A: Yes. Konmask specializes in obsolete and hard-to-find industrial automation components. Submit your part number at [email protected].
