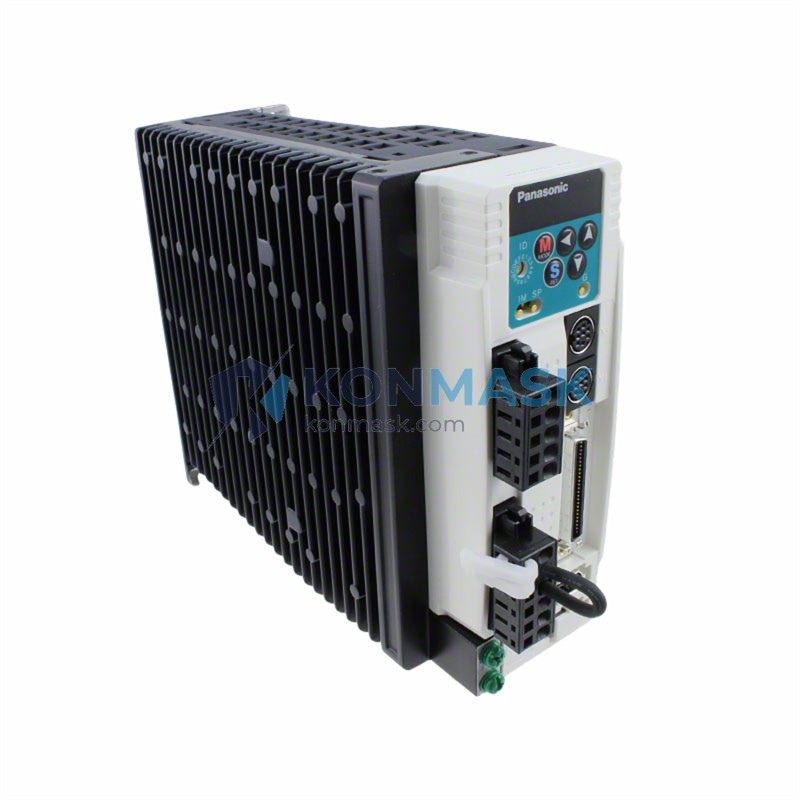

Genuine Panasonic MCDDT3520003 AC Servo Driver | MINAS A4 Series – Verified Source
The Panasonic MCDDT3520003 is a high-performance AC servo amplifier from the renowned MINAS A4 Series, engineered for precision motion control in demanding industrial environments. Sourced directly through verified supply channels, every unit sold by Konmask.com undergoes our rigorous 4-step quality verification process before dispatch.
Technical Specifications
| Part Number | MCDDT3520003 |
| Brand | Panasonic |
| Series | MINAS A4 |
| Type | AC Servo Driver / Servo Amplifier |
| Input Voltage | Single-phase / Three-phase 200–230 VAC |
| Output Current | 3.5 A (rated) |
| Applicable Motor Capacity | Up to 750 W |
| Control Mode | Position / Velocity / Torque (switchable) |
| Communication Interface | RS-232 / RS-485 (PANATERM compatible) |
| Encoder Compatibility | 17-bit absolute / incremental encoder |
| Protection Class | IP20 |
| Weight | 4,460 g (approx.) |
| Country of Origin | Japan |
Our 4-Step Quality Verification Process
Every MCDDT3520003 unit shipped from Konmask.com passes through our standardized verification protocol:
- Source Authentication – Unit traceability verified against manufacturer batch records and authorized distributor documentation.
- Visual & Physical Inspection – Housing integrity, label authenticity, connector condition, and seal verification checked against OEM standards.
- Functional Bench Test – Power-on diagnostics and parameter read/write tests performed using Panasonic PANATERM software.
- Packaging & Documentation Audit – Original packaging, datasheet, and warranty card confirmed present before dispatch.
Key Features & Benefits
- Full closed-loop position, velocity, and torque control in a single compact amplifier
- High-resolution 17-bit absolute encoder support for sub-micron positioning accuracy
- Auto-tuning and vibration suppression for fast commissioning and stable operation
- PANATERM PC software compatible for parameter management and real-time monitoring
- Built-in regenerative resistor circuit for energy-efficient deceleration
- Comprehensive fault diagnostics with LED display and alarm history logging
- DIN-rail and panel-mount compatible for flexible cabinet integration
Typical Applications
- CNC machine tools and machining centers
- Semiconductor and electronics assembly equipment
- Packaging and labeling machinery
- Robotic arm and gantry motion systems
- Printing and textile machinery
- Medical device manufacturing equipment
Compatible System Components
- Servo Motors: Panasonic MINAS A4 Series (MSMD, MQMA, MDMA families)
- PLCs: Panasonic FP Series, Mitsubishi MELSEC, Siemens S7, Omron CJ/CS Series
- HMI / SCADA: Compatible with standard RS-232/RS-485 Modbus environments
- Cables: Panasonic encoder cable and power cable sets (sold separately)
Global Sourcing & Shipping Capabilities
Konmask.com operates as a specialist industrial automation component supplier serving B2B buyers across Asia, Europe, North America, and the Middle East. We maintain stock of both current-production and legacy Panasonic servo components to support long-lifecycle machine maintenance.
- Lead Time: In-stock units ship within 1–3 business days
- Packaging: Anti-static ESD bag + foam-lined export carton
- Shipping Methods: DHL Express, FedEx International Priority, sea freight (LCL/FCL) available
- Export Documentation: Commercial invoice, packing list, and certificate of origin provided on request
- Customs HS Code: 8537.10 (programmable controllers / servo drives)
Certifications & Compliance Statement
The Panasonic MCDDT3520003 is manufactured in compliance with the following standards:
- CE Marking – EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL Listed (where applicable)
- RoHS Compliant – Directive 2011/65/EU
- ISO 9001 manufacturing quality management
Konmask.com does not manufacture this product. We are an authorized reseller and verified sourcing partner. All units are genuine OEM products.
How to Order
- Confirm your required quantity and delivery destination.
- Add to cart and proceed to checkout, or contact us for a formal quotation (RFQ).
- For bulk orders (>5 units) or urgent requirements, email support@konmask.com for priority handling.
- Payment accepted via T/T bank transfer, PayPal, and major credit cards.
- Receive your order with full documentation and tracking number within 24 hours of dispatch.
Authenticity & Trust FAQ
Q: Are these units genuine Panasonic products?
A: Yes. All units are sourced through verified supply chains and authenticated before shipment. We do not sell refurbished or counterfeit goods.
Q: Can you provide a certificate of authenticity?
A: Yes. A sourcing declaration and inspection report are available upon request for orders of 2+ units.
Q: What warranty is provided?
A: We offer a 90-day functional warranty on all servo drivers. Extended warranty options are available for volume orders.
Q: Do you accept returns?
A: Yes. DOA (Dead on Arrival) units are replaced at no cost within 14 days of receipt, subject to inspection.
Q: Can you source discontinued or hard-to-find Panasonic servo models?
A: Yes. Contact us with your part number and we will confirm availability within 24 hours.
