CNC & Precision Motion Control Solution – Panasonic MSMD012P1U | MINAS A5 Series
Where This Product Is Used

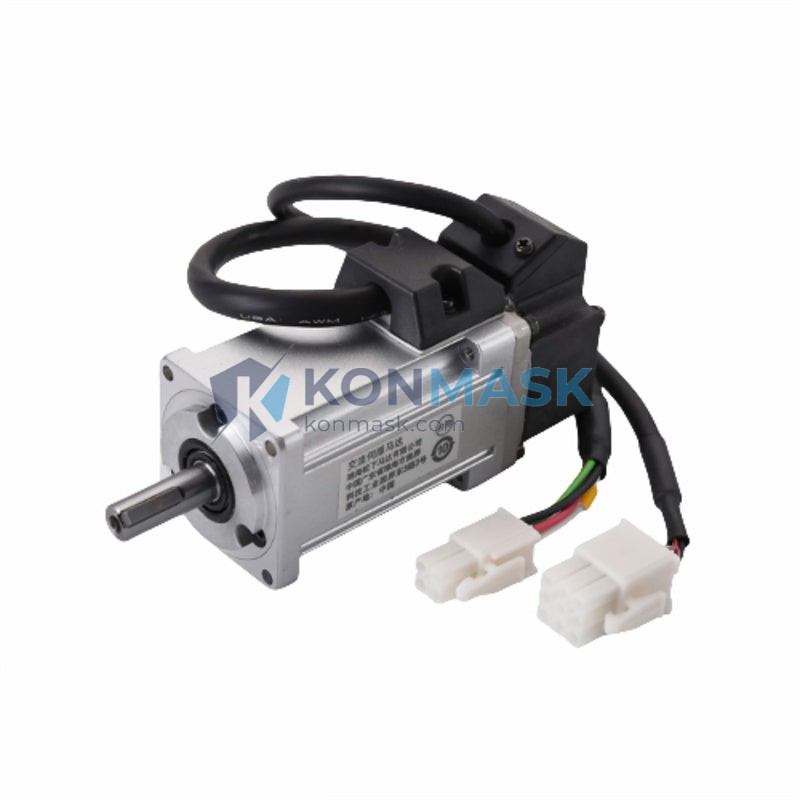

The Panasonic MSMD012P1U is a 100W compact AC servo motor engineered for high-precision motion control across demanding industrial environments. Engineers and system integrators specify this model in:
- CNC Machining Centers – Axis feed drives requiring tight positional accuracy and smooth velocity control
- Robotic Arms & Collaborative Robots – Joint actuation where low inertia and fast dynamic response are critical
- Packaging & Labeling Machines – High-speed indexing, pick-and-place, and film tension control
- Semiconductor & Electronics Assembly – PCB handling, die bonding, and wafer transport stages
- Medical & Laboratory Automation – Pipetting robots, sample handlers, and precision dispensing systems
- Textile & Printing Machinery – Tension control and register correction on web-fed lines
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | MSMD012P1U |
| Brand | Panasonic |
| Series | MINAS A5 |
| Rated Output Power | 100 W |
| Rated Speed | 3,000 rpm |
| Rated Torque | 0.32 N·m |
| Peak Torque | 0.95 N·m |
| Voltage | 200–240 V AC, Single-phase / Three-phase |
| Encoder | 17-bit Absolute / Incremental (2,500 P/R) |
| Inertia | 0.0277 × 10⁻⁴ kg·m² |
| Protection Class | IP65 (shaft seal) |
| Flange Size | 60 mm |
| Weight | Approx. 1.16 kg |
| Shaft Type | Straight shaft with key |
| Brake | Without brake (standard) |
| Matching Driver | MADHT1505 / MADLT05SF |
Why Engineers Specify This Model
- Ultra-compact 60 mm flange – Fits space-constrained machine designs without sacrificing torque density
- 17-bit absolute encoder – Eliminates homing routines on power-up, reducing machine cycle time
- Low rotor inertia – Enables rapid acceleration/deceleration for high-throughput indexing applications
- IP65 shaft seal – Resists coolant splash and dust ingress in machine tool environments
- MINAS A5 ecosystem compatibility – Seamless integration with Panasonic A5 servo drives via dedicated connector pinout
- Proven field reliability – Widely deployed in Asian and European OEM machine platforms since 2010
Complete System Bill of Materials
For a fully operational servo axis using the MSMD012P1U, the following components are typically required:
- Servo Motor: MSMD012P1U (this item)
- Servo Driver: MADHT1505 or MADLT05SF (100W, single/three-phase)
- Encoder Cable: MFECA0030EAM (3 m) or custom length
- Power Cable: MFMCA0030EAM (3 m) or custom length
- Regenerative Resistor: External unit if duty cycle exceeds driver internal capacity
- 24 VDC Control Power Supply: For driver logic and I/O
- Safety Relay / STO Module: For IEC 62061 / ISO 13849 compliant safety circuits
Compliance & Industry Standards
- CE Marking – EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL Listed – UL 1004 (Motor) / UL 508C (Drive)
- RoHS Compliant – Directive 2011/65/EU
- IP65 – IEC 60529 (shaft end)
- Insulation Class: F (155°C)
- Vibration Resistance: 49 m/s² (5–200 Hz)
Quality Assurance & Sourcing
Konmask.com sources the MSMD012P1U exclusively through authorized industrial distribution channels and verified OEM surplus networks. Every unit undergoes the following before dispatch:
- Visual inspection for label integrity, connector condition, and shaft runout
- Encoder signal verification (where test equipment permits)
- Anti-static packaging with desiccant for long-term storage protection
- Serial number documentation for traceability
We do not sell counterfeit, refurbished-as-new, or grey-market units. All products are shipped with original manufacturer packaging where available.
How to Source This Part
Ready to order or need a formal quotation for your procurement team?
- Online: Add to cart directly on this page for immediate checkout
- Email RFQ: support@konmask.com – include quantity, required delivery date, and destination country
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead Time: In-stock units ship within 1–3 business days; ex-factory orders 2–4 weeks
- Shipping: DHL Express, FedEx International Priority, and sea freight available
- Payment: T/T (wire transfer), PayPal, and major credit cards accepted
Application-Specific FAQ
Q: Can the MSMD012P1U be used with a third-party servo drive (e.g., Mitsubishi, Delta)?
A: Technically possible with encoder signal conversion, but Panasonic strongly recommends pairing with MINAS A5 series drives (MADHT1505/MADLT05SF) to ensure full parameter auto-tuning, safety function, and warranty coverage.
Q: Is an absolute encoder version available?
A: Yes. The MSMD012P1U ships with a 17-bit absolute encoder as standard. No battery backup is required for single-turn absolute position retention.
Q: What is the maximum cable length between motor and driver?
A: Panasonic specifies a maximum of 20 m for standard encoder cables. For longer runs, use the long-distance encoder cable option and consult Panasonic’s wiring guidelines.
Q: Can this motor operate in a vertical axis application?
A: Yes, with appropriate counterbalance or brake mechanism. The standard MSMD012P1U does not include a holding brake; specify the brake variant (MSMD012P1B) if gravity load retention is required at rest.
Q: What is the IP rating for the motor body (not just the shaft)?
A: The motor body is rated IP54; the shaft end with oil seal is IP65. For full IP65 body protection, consult Panasonic for the sealed variant.
