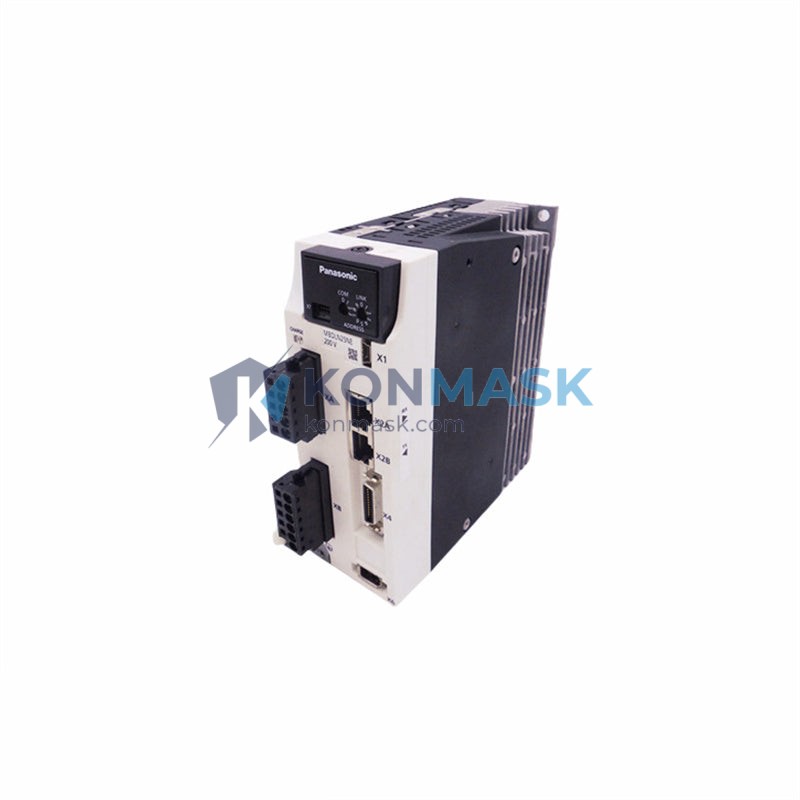

Panasonic MDDDT5540003 AC Servo Drive 750W | Replacement, Equivalent & Selection Guide
Technical Specifications
- Model / SKU: MDDDT5540003
- Brand: Panasonic
- Series: MINAS A5
- Type: AC Servo Drive (Amplifier)
- Rated Output Power: 750 W
- Input Voltage: 3-Phase / Single-Phase 200–240 V AC, 50/60 Hz
- Rated Output Current: 5.5 A
- Control Mode: Position / Velocity / Torque (switchable)
- Encoder Interface: 17-bit absolute / incremental encoder
- Communication: RS-232 / RS-485 / USB (PANATERM compatible)
- Regenerative Resistor: Built-in
- Protection Class: IP20
- Operating Temperature: 0–55 °C
- Weight: Approx. 380 g
- Dimensions (W × H × D): 55 × 170 × 165 mm (approx.)
- Compliance: CE, UL, RoHS
Compatible Replacement & Equivalent Models
The MDDDT5540003 can be replaced or cross-referenced with the following models depending on your system requirements:
- Panasonic MDDDT5540 / MDDDT5540001 / MDDDT5540002 — Earlier revisions of the same 750 W MINAS A5 drive; pin-compatible in most installations.
- Panasonic MBDDT2210 (400 W) — Step-down alternative when load requirements allow derating.
- Panasonic MFDDTA390 (MINAS A6 Series) — Next-generation successor with enhanced vibration suppression and EtherCAT option; requires firmware and wiring review.
- Yaskawa SGDV-7R6A01A — Third-party equivalent at 750 W; requires adapter cable and parameter remapping.
- Mitsubishi MR-J4-70A — Functional equivalent at 700 W; different connector pinout, parameter reconfiguration required.
Always verify motor nameplate data, encoder type, and bus voltage before substituting drives. Contact Konmask for a free compatibility check.
Why Choose the Original MDDDT5540003
- Drop-in replacement — identical connector layout and parameter defaults to previous revisions.
- Proven reliability — MINAS A5 platform with millions of units deployed globally in precision automation.
- Full PANATERM support — native USB tuning, auto-gain, and vibration suppression without third-party tools.
- Absolute encoder ready — 17-bit multi-turn absolute encoder eliminates homing cycles after power loss.
- Compact footprint — 55 mm wide profile suits dense panel layouts.
Typical Applications
- CNC machining centers and milling machines
- Semiconductor wafer handling and pick-and-place equipment
- Packaging and labeling machinery
- Textile and printing machines
- Robotic arms and SCARA systems
- Electronic assembly and SMT lines
System Compatibility
The MDDDT5540003 pairs with Panasonic MINAS A5 series servo motors (MSMD, MQMA, MDMA families) rated at 750 W. Verified compatible motor models include:
- MSMD082G1U / MSMD082G1S
- MQMA082A1G
- MDMA082G1G
Compatible PLCs and motion controllers: Panasonic FP-X / FP0R, Mitsubishi Q/L/iQ-R series, Siemens S7-1200/1500, Omron NJ/NX series (via pulse or analog interface).
Selection Guide
Select the correct MINAS A5 drive by motor rated power:
- 100 W — MADDT1207 / MADDT1207003
- 200 W — MBDDT2210 / MBDDT2210003
- 400 W — MCDDT3520 / MCDDT3520003
- 750 W — MDDDT5540 / MDDDT5540003 (this model)
- 1.0 kW — MEDDT7364 / MEDDT7364003
- 1.5 kW — MFDDTA390 / MFDDTA390003
- 2.0 kW — MGDDTB3A2 / MGDDTB3A2003
Suffix “003” denotes the standard international variant with built-in regenerative resistor.
Quality Assurance & Sourcing
- Authenticity verified — all units sourced from authorized Panasonic distributors or factory-sealed stock.
- Original packaging — shipped in OEM anti-static packaging with full documentation.
- Warranty: 12-month warranty against manufacturing defects.
- Pre-shipment testing — each drive is powered-on tested before dispatch.
- Traceability — batch records and serial numbers available on request.
How to Order
- Add MDDDT5540003 to cart and proceed to checkout.
- For bulk orders (>5 units) or urgent requirements, contact us directly for lead time and pricing.
- Provide your motor model number if you need a compatibility confirmation before ordering.
- OEM / integrator accounts: request a wholesale quote via support@konmask.com.
Replacement & Compatibility FAQ
Q: Is MDDDT5540003 the same as MDDDT5540001?
A: Yes — the last three digits denote the hardware revision. MDDDT5540003 is the latest revision and is backward-compatible with motors and cables used with 001/002 variants.
Q: Can I use MDDDT5540003 with a 400 W motor?
A: Technically possible but not recommended. Use the correctly rated MCDDT3520003 for 400 W motors for optimal performance and thermal management.
Q: Does this drive support EtherCAT?
A: No. The MINAS A5 series uses pulse/analog and RS-485 interfaces. For EtherCAT, consider the MINAS A6 (MFDDTA390) with the EtherCAT option card.
Q: What software is needed for parameter setup?
A: Panasonic PANATERM software (free download from Panasonic FA). Connect via USB cable (mini-B) to the drive front port.
Q: Can Konmask provide a repair service for faulty MDDDT5540003 units?
A: Yes — contact us with the fault code and we will advise on repair vs. replacement options.
