Panasonic FP2-PP41 Positioning Module | Replacement, Equivalent & Selection Guide

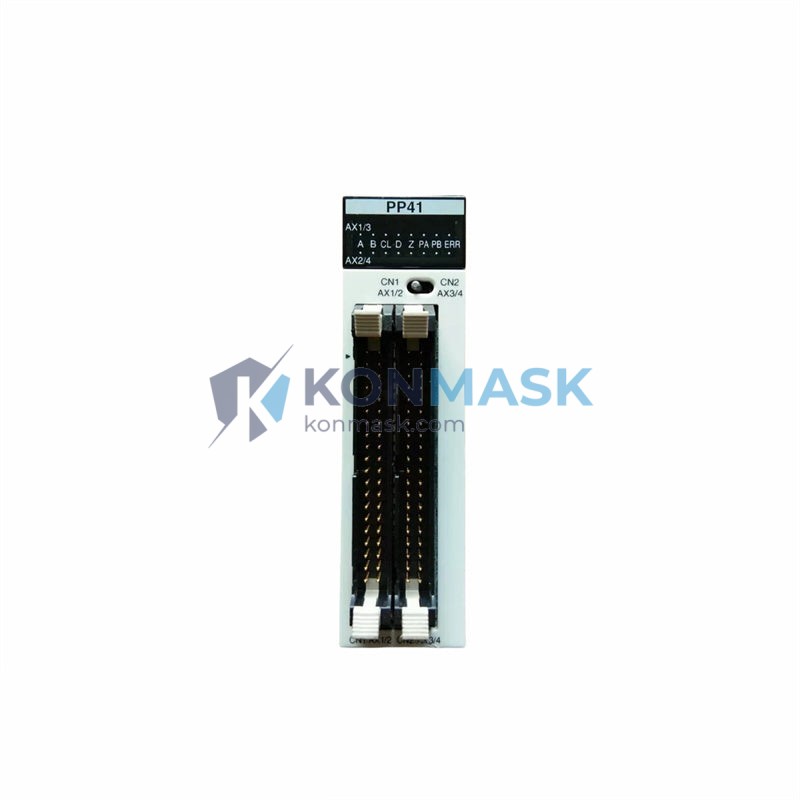

The Panasonic FP2-PP41 is a high-performance 4-axis pulse output positioning module designed for the FP2 / FP2SH PLC series. It delivers precise motion control for industrial automation systems requiring synchronized multi-axis positioning. At Konmask.com, we specialize in sourcing, cross-referencing, and supplying original and equivalent automation components for global industrial buyers.
Technical Specifications
- Model: FP2-PP41
- Manufacturer: Panasonic / Nais
- Series: FP2 / FP2SH
- Module Type: Positioning / Pulse Output Module
- Number of Axes: 4 axes (independent control)
- Output Type: Pulse train (open collector)
- Max Pulse Output Frequency: 200 kpps per axis
- Control Method: Position control, speed control, home return
- Interface: FP2 backplane bus
- Power Supply: Supplied via FP2 backplane (5 VDC internal)
- Weight: Approx. 360 g
- Operating Temperature: 0°C to 55°C
- Standards: CE, UL compliant
Compatible Replacement & Equivalent Models
When the FP2-PP41 is unavailable or discontinued, the following models may serve as functional replacements depending on your system configuration. Always verify electrical and mechanical compatibility before substitution.
- Panasonic FP2-PP22 — 2-axis version; suitable if only 2-axis control is required
- Panasonic FP2SH-PP41 — Enhanced version for FP2SH CPU; pin-compatible upgrade
- Mitsubishi QD75P4 — 4-axis positioning module for Q-series; requires rewiring and reprogramming
- Omron CJ1W-NC413 — 4-axis pulse output unit for CJ1/CJ2 series; functional equivalent with different bus
- Keyence KV-H20G — High-speed positioning unit; compatible with KV-7000 series only
Note: Cross-brand replacements require full system re-engineering. Contact our team for a compatibility assessment.
Why Choose the Original FP2-PP41
- ✅ Drop-in compatibility with all FP2 / FP2SH backplanes — no hardware modification
- ✅ Native GPC (Global PC) software support — seamless programming with FPWIN Pro
- ✅ Proven reliability in high-cycle industrial environments (automotive, packaging, semiconductor)
- ✅ Synchronized 4-axis interpolation — linear and circular interpolation supported
- ✅ Compact form factor — single slot occupancy on FP2 backplane
Typical Applications
- CNC machine tool axis control
- Automated assembly line positioning
- Semiconductor wafer handling systems
- Packaging and labeling machinery
- Robotic arm joint coordination
- Conveyor indexing and pick-and-place systems
System Compatibility
- Compatible CPUs: FP2-C1, FP2-C2, FP2-C3, FP2SH-C1, FP2SH-C2, FP2SH-C3
- Compatible Backplanes: FP2-BP08, FP2-BP16, FP2SH-BP08, FP2SH-BP16
- Programming Software: FPWIN Pro 6 / FPWIN Pro 7 (Windows 7/10/11)
- Communication: Via CPU unit (RS232C, RS485, Ethernet depending on CPU model)
- Not compatible with: FP0, FP-X, FP7 series (different bus architecture)
Selection Guide
Use the following criteria to determine if the FP2-PP41 is the right module for your application:
- Axes required: Choose FP2-PP41 for 4-axis; FP2-PP22 for 2-axis applications
- Speed requirement: Max 200 kpps — suitable for stepper and servo drives with pulse/direction input
- Existing PLC platform: Must be FP2 or FP2SH series — do not use with FP7 or FP0R
- Drive interface: Confirm your servo/stepper driver accepts open-collector pulse train input
- Slot availability: Requires 1 free slot on FP2 backplane
- Budget vs. new platform: If upgrading to FP7, consider native FP7 positioning units instead
Quality Assurance & Sourcing
All units supplied by Konmask.com undergo the following quality process:
- 🔍 Visual inspection — PCB, connectors, labeling, and housing integrity check
- ⚡ Power-on functional test — verified against Panasonic factory test parameters
- 📦 Anti-static packaging — ESD-safe bags with moisture barrier for international shipping
- 📄 Documentation included — datasheet, test report, and certificate of conformity on request
- 🏭 Source traceability — authorized distributor stock and factory-surplus channels only
How to Order
- Add the FP2-PP41 to your cart and proceed to checkout
- For bulk orders (5+ units), contact us for a volume discount quote
- Specify required documentation (COC, test report, datasheet) in the order notes
- Lead time: In-stock units ship within 1–3 business days; sourced units 7–15 business days
- Payment: T/T, PayPal, credit card, and trade assurance accepted
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use FP2-PP41 with an FP7 CPU?
A: No. The FP7 series uses a different backplane bus. You need FP7-specific positioning modules.
Q: Is FP2-PP41 discontinued?
A: Panasonic has transitioned focus to the FP7 platform, but FP2-PP41 remains available as a service part. Konmask.com maintains stock for legacy system support.
Q: Can FP2-PP41 control servo motors directly?
A: It outputs pulse train signals (open collector). Your servo driver must accept pulse/direction or CW/CCW pulse input. It does not provide analog ±10V output.
Q: What is the difference between FP2-PP41 and FP2-PP22?
A: The PP41 supports 4 independent axes; the PP22 supports 2 axes. Both share the same pulse output technology and backplane interface.
Q: Do you provide a warranty?
A: Yes — all units carry a 90-day functional warranty. DOA units are replaced or refunded within 7 business days of confirmed fault.
