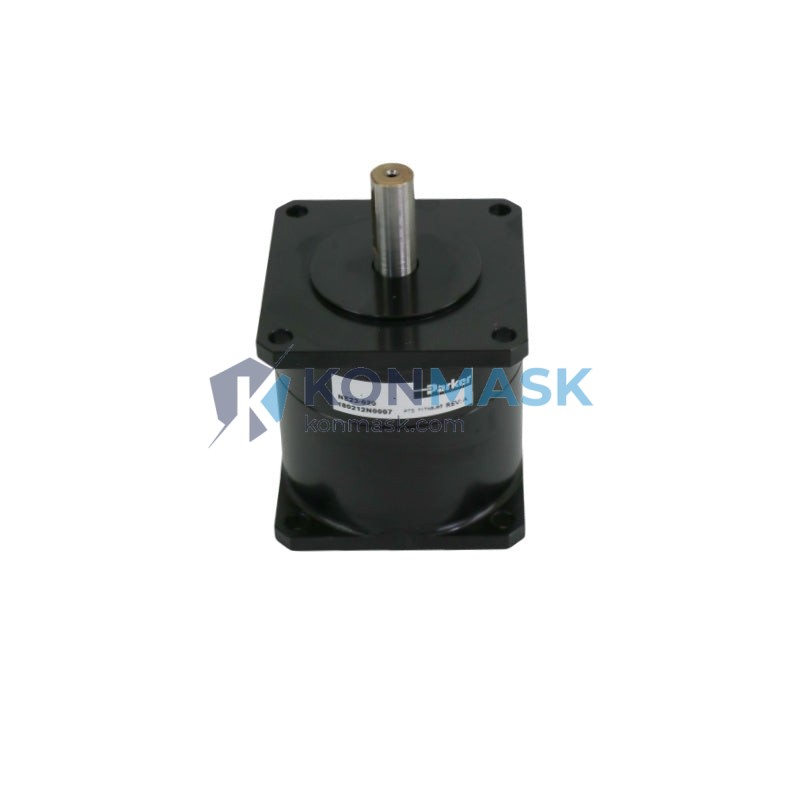

PARKER NE23-020 Gearhead (P/N 54020146 / 930Y2NO/NCFSFFMA / 100016885) | Replacement, Equivalent & Selection Guide
The Parker NE23-020 is a precision planetary gearhead designed for NEMA 23 servo and stepper motor frames. Part numbers 54020146, 930Y2NO/NCFSFFMA, and 100016885 all refer to the same unit within Parker’s NE-Series gearhead family. This page provides full technical specifications, compatible replacement models, equivalent alternatives, and a structured selection guide to help engineers and procurement teams make the right choice.
Technical Specifications
- Manufacturer: Parker Hannifin
- Series: NE-Series Planetary Gearhead
- Model: NE23-020
- Part Numbers: 54020146 / 930Y2NO/NCFSFFMA / 100016885
- Frame Size: NEMA 23 (57 mm)
- Gear Ratio: 20:1
- Gear Stages: 2-stage planetary
- Output Shaft: Solid shaft with keyway (standard)
- Backlash: ≤ 15 arcmin (typical for NE-Series)
- Max Input Speed: 4,000 RPM
- Rated Output Torque: Refer to Parker NE-Series datasheet
- Mounting Interface: NEMA 23 motor flange
- Weight: Approx. 360 g
- Lubrication: Grease-lubricated, maintenance-free
- Operating Temperature: -10 °C to +90 °C
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in compatible with the Parker NE23-020 for most servo and stepper motor applications:
- Parker NE23-020 (OEM original — all P/N variants: 54020146, 930Y2NO/NCFSFFMA, 100016885)
- Neugart PLE60-020 — NEMA 23 planetary, 20:1, comparable backlash spec
- Apex Dynamics AF060-020 — NEMA 23 frame, 2-stage, 20:1 ratio
- Shimpo VRS-020 — inline planetary, NEMA 23 compatible
- Wittenstein alpha LP 070-020 — premium alternative, lower backlash
- Rexnord Planetgear NEMA 23 20:1 — industrial-grade equivalent
Note: Always verify shaft diameter, keyway dimensions, and flange bolt pattern before substituting. Contact support@konmask.com for compatibility confirmation.
Why Choose the Original Parker NE23-020
- Factory-certified precision: backlash and efficiency tested to Parker’s NE-Series standard
- Guaranteed dimensional compatibility with Parker servo motor families (SM, MPP, BE series)
- Traceable part numbers (54020146 / 930Y2NO/NCFSFFMA / 100016885) for MRO and OEM procurement
- Grease-lubricated, sealed design for long service life in demanding environments
- Backed by Parker Hannifin global support and documentation
Typical Applications
- CNC machine tool axes and rotary tables
- Robotic arm joints and end-effector drives
- Conveyor and indexing systems
- Packaging and labeling machinery
- Semiconductor and electronics assembly equipment
- Medical device positioning stages
System Compatibility
The NE23-020 is designed to mount directly onto NEMA 23 (57 mm) frame servo and stepper motors. Confirmed compatible motor families include:
- Parker SM232 / SM233 / SM234 Series
- Parker MPP Series (NEMA 23 frame)
- Parker BE Series (NEMA 23 frame)
- Third-party NEMA 23 motors with standard 4-bolt flange pattern
For non-standard motor shafts or flanges, an adapter plate may be required. Contact us for custom coupling solutions.
Selection Guide
Use the following criteria to confirm the NE23-020 is the right gearhead for your application:
- Motor frame: NEMA 23 (57 mm) ✔
- Required gear ratio: 20:1 ✔
- Backlash tolerance: ≤ 15 arcmin acceptable ✔
- Input speed: ≤ 4,000 RPM ✔
- Environment: Indoor / light industrial, -10 °C to +90 °C ✔
- Need lower backlash (< 5 arcmin)? → Consider Wittenstein alpha or Neugart PLFE series
- Need higher torque? → Step up to Parker NE34 series (NEMA 34 frame)
- Need a different ratio? → Parker NE23-005 (5:1), NE23-010 (10:1), NE23-050 (50:1)
Quality Assurance & Sourcing
- All units sourced from authorized Parker distributors or verified surplus channels
- Each unit inspected for shaft runout, backlash, and housing integrity before shipment
- Original Parker packaging and documentation preserved where available
- Traceability records available on request (lot number, date code)
- 30-day return policy for unused, uninstalled units
How to Order
- Confirm your motor frame size and shaft diameter
- Verify the required gear ratio (20:1 for NE23-020)
- Add to cart or contact support@konmask.com for bulk pricing
- Reference P/N 54020146 or NE23-020 in your purchase order
- Shipping: DHL / FedEx international; lead time 1–5 business days for in-stock units
Replacement & Compatibility FAQ
Q: Are P/N 54020146, 930Y2NO/NCFSFFMA, and 100016885 the same part?
A: Yes. These are all Parker internal part number variants for the NE23-020 gearhead. They are interchangeable.
Q: Can I use the NE23-020 with a non-Parker motor?
A: Yes, provided the motor has a standard NEMA 23 flange and a compatible shaft diameter. Verify the motor shaft length and keyway before ordering.
Q: What is the backlash of the NE23-020?
A: Typically ≤ 15 arcmin for the standard NE-Series. Contact us if you require a low-backlash variant.
Q: Is the Neugart PLE60-020 a direct drop-in replacement?
A: In most cases yes for NEMA 23 motors, but verify the output shaft diameter and bolt circle before installation.
Q: Do you offer warranty on replacement units?
A: Yes — 12-month warranty on all new OEM units. Refurbished units carry a 90-day warranty.
