Multi-Axis Servo Motion Control Solution — Allen-Bradley 2094-BC07-M05-M | Kinetix 6000
Where This Product Is Used

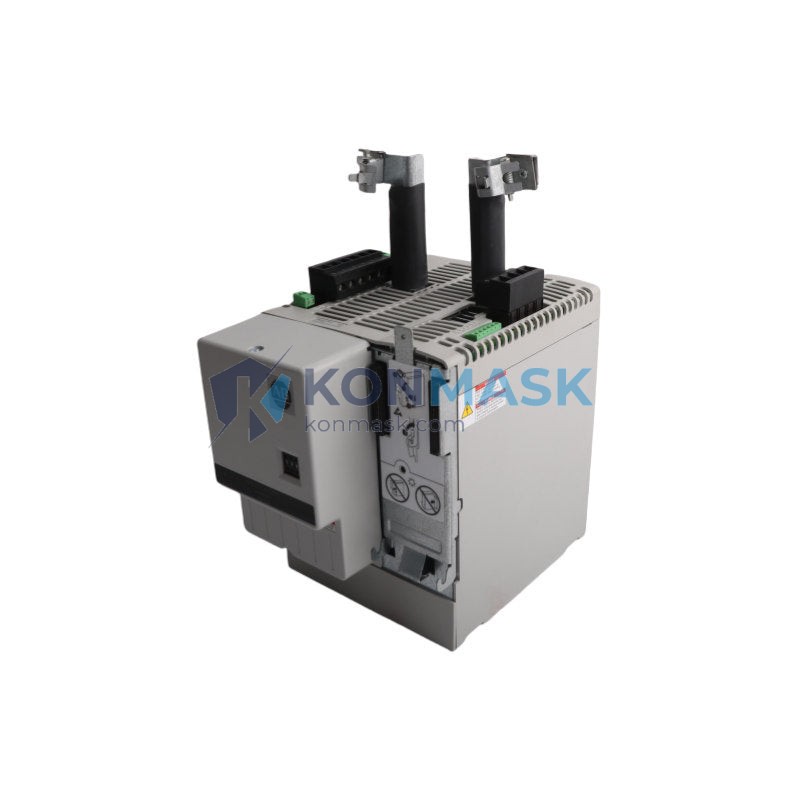

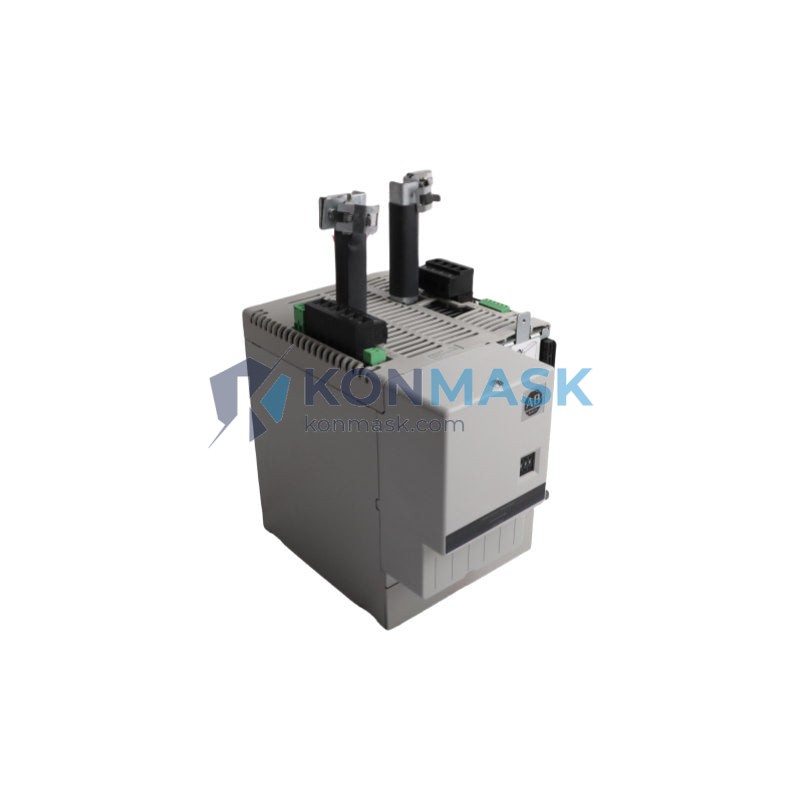

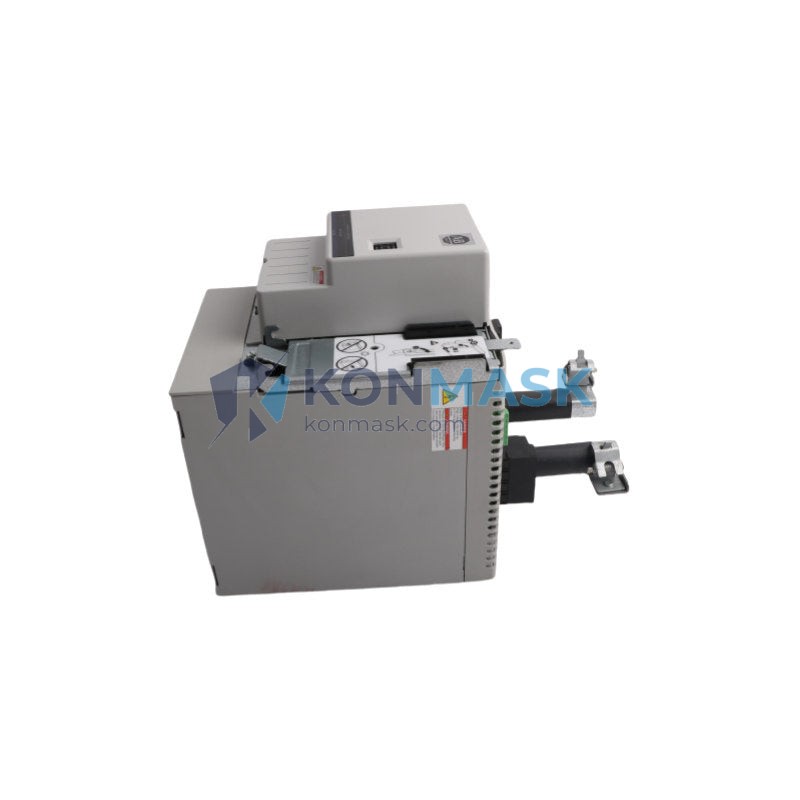

The Allen-Bradley 2094-BC07-M05-M Integrated Axis Module (IAM) is the power and control backbone of Kinetix 6000 multi-axis servo drive systems. It is widely deployed in demanding industrial environments where precise, synchronized motion is critical:
- CNC Machining Centers — Coordinates X/Y/Z axis servo loops for high-speed, high-accuracy cutting and milling operations.
- Robotic Assembly Lines — Drives servo motors in articulated robot arms requiring tight torque and velocity control across multiple joints.
- Packaging Machinery — Synchronizes pick-and-place, form-fill-seal, and labeling axes on high-throughput packaging lines.
- Printing & Converting Equipment — Maintains web tension and registration accuracy across multi-roll printing and slitting machines.
- Semiconductor & Electronics Manufacturing — Provides the micron-level positioning accuracy required for wafer handling and PCB assembly.
- Material Handling & Conveyors — Controls gantry cranes, automated storage/retrieval systems (AS/RS), and precision conveyor indexing.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | 2094-BC07-M05-M |
| Series | Kinetix 6000 |
| Module Type | Integrated Axis Module (IAM) |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Converter Output Current | 7A RMS |
| Inverter Output Current | 5A RMS |
| Input Voltage | 400–480V AC, 3-Phase |
| Input Frequency | 47–63 Hz |
| Communication Interface | SERCOS II (fiber optic ring) |
| Compatible Controller | Logix 5000 (ControlLogix / CompactLogix) |
| Backplane Compatibility | 2094-BL02, 2094-BL75S-M, 2094-XL75S-C |
| Enclosure Rating | IP20 (panel-mount) |
| Weight (approx.) | 10.2 kg |
Why Engineers Specify This Model
- Integrated Converter + Inverter — The IAM combines the AC-to-DC converter and the first servo inverter axis in a single module, reducing panel footprint and wiring complexity versus standalone drive architectures.
- Shared DC Bus Architecture — Regenerative energy from decelerating axes is shared across the bus to adjacent Axis Modules (AM), improving overall system energy efficiency by up to 30%.
- SERCOS II High-Speed Communication — Deterministic fiber-optic ring communication at 4 or 8 Mbps ensures sub-millisecond synchronization across all axes — essential for coordinated multi-axis motion profiles.
- Native Logix 5000 Integration — Fully programmed via Studio 5000 Logix Designer using Motion Instruction Set (MIS), eliminating the need for separate drive commissioning software.
- Safe Torque Off (STO) — Integrated SIL 2 / PLd safety function enables safe machine stop without full power removal, reducing downtime during guarding events.
Complete System Bill of Materials
A typical Kinetix 6000 multi-axis system built around the 2094-BC07-M05-M includes:
- 2094-BC07-M05-M — Integrated Axis Module (IAM) (this unit)
- 2094-AM01 / 2094-AM02 / 2094-AM03 — Axis Modules (AM) for additional servo axes
- 2094-BL02 / 2094-BL75S-M — Power Rail / Backplane
- 2090-XXNFMF-Sxx — Motor Power Cable (flex or standard)
- 2090-XXNFMF-Sxx — Feedback Cable (encoder/resolver)
- MPL / MPM / VPL Series — Allen-Bradley Compatible Servo Motors
- 1756-M08SE / 1756-M16SE — SERCOS Motion Module (ControlLogix)
- 2094-PRF — Drive Mounting Bracket (if required)
Compliance & Industry Standards
- CE Marked — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL Listed — UL 508C (Power Conversion Equipment)
- RoHS Compliant — Directive 2011/65/EU
- Functional Safety — IEC 62061 SIL 2 / ISO 13849-1 PLd (Safe Torque Off)
- SERCOS II — IEC 61491 compliant motion bus
Quality Assurance & Sourcing
Every 2094-BC07-M05-M unit offered by Konmask.com undergoes a documented inspection process:
- Visual inspection for physical damage, corrosion, and counterfeit indicators
- Label and date-code verification against Allen-Bradley factory records
- Functional power-on test with load simulation where applicable
- Anti-static packaging with humidity indicator card
- Traceable documentation available upon request (test report, COC)
We source from authorized distribution channels, certified surplus, and direct OEM returns — never grey-market or unverified brokers.
How to Source This Part
Ready to order or need a formal quotation?
- 📧 Email: support@konmask.com
- 📞 Phone / WhatsApp: +0086 19859288691
- 🌐 Website: https://konmask.com
Lead time, quantity pricing, and export documentation (commercial invoice, packing list, COO) available on request. We ship worldwide via DHL, FedEx, and UPS with full tracking.
Application-Specific FAQ
Q: Can the 2094-BC07-M05-M replace a 2094-BC07-M05 (without the trailing -M)?
A: The “-M” suffix denotes the module includes the Safe Torque Off (STO) safety option. Verify your machine’s safety circuit requirements before substituting. In most cases the -M variant is a drop-in upgrade.
Q: How many Axis Modules (AM) can be connected to this IAM?
A: The Kinetix 6000 power rail supports up to 8 axes total (1 IAM + up to 7 AMs), subject to total bus power budget. Consult Rockwell Publication 2094-UM001 for power sizing calculations.
Q: What servo motors are compatible?
A: Allen-Bradley MPL, MPM, MPF, MPS, and VPL series motors with SERCOS feedback are natively compatible. Third-party motors with resolver or incremental encoder feedback can be used with appropriate feedback adapter modules.
Q: Is this module compatible with Studio 5000 v30 and later?
A: Yes. The Kinetix 6000 drive profile is supported in all Studio 5000 Logix Designer versions. Ensure your RSLogix/Studio 5000 Add-On Profile (AOP) for Kinetix 6000 is updated to the latest revision.
Q: Do you provide warranty?
A: Yes — all units carry a minimum 90-day functional warranty. Extended warranty options are available. Contact us for details.
