Factory Automation & SCADA Solution — Pro-face PFXPP170CA66K00N00 | GP-Pro EX Series
Where This Product Is Used

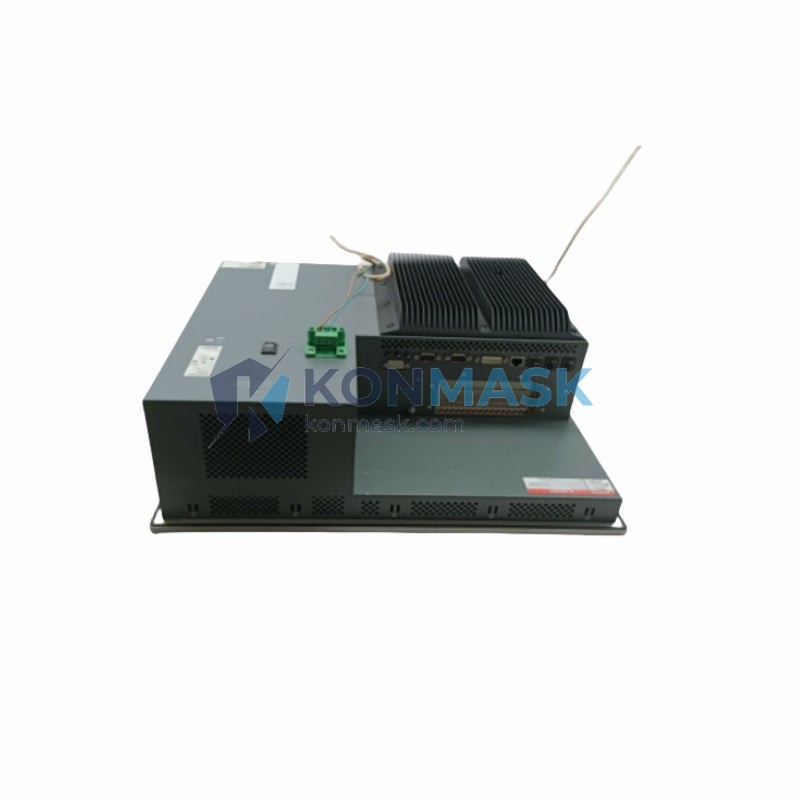

The Pro-face PFXPP170CA66K00N00 is an industrial-grade panel PC engineered for demanding automation environments. Engineers and system integrators deploy this unit across a wide range of applications:
- Discrete Manufacturing: Machine tool control, robotic cell HMI stations, and assembly line supervision panels.
- Process Industries: Chemical plant DCS operator workstations, water treatment SCADA terminals, and oil & gas skid-mounted control interfaces.
- Food & Beverage: Hygienic-zone production monitoring, batch recipe management, and CIP cycle visualization.
- Automotive: Press line control, paint shop environmental monitoring, and end-of-line test station HMI.
- Building Automation: HVAC supervisory control, energy management dashboards, and BMS operator interfaces.
- Logistics & Warehousing: Conveyor system control panels and sortation line supervisory terminals.
Technical Specifications
| Part Number | PFXPP170CA66K00N00 |
| Brand | Pro-face (Schneider Electric) |
| Series | GP-Pro EX / SP5000 Series Industrial Panel PC |
| Form Factor | Industrial Panel PC (Fanless) |
| Display | 17-inch TFT LCD, 1280 × 1024 (SXGA) |
| Touch Interface | Resistive / Projected Capacitive (model-dependent) |
| Processor | Intel® Core™ i5 / i7 (generation per revision) |
| Operating System | Windows 10 IoT Enterprise LTSC |
| Storage | SSD (solid-state, vibration-resistant) |

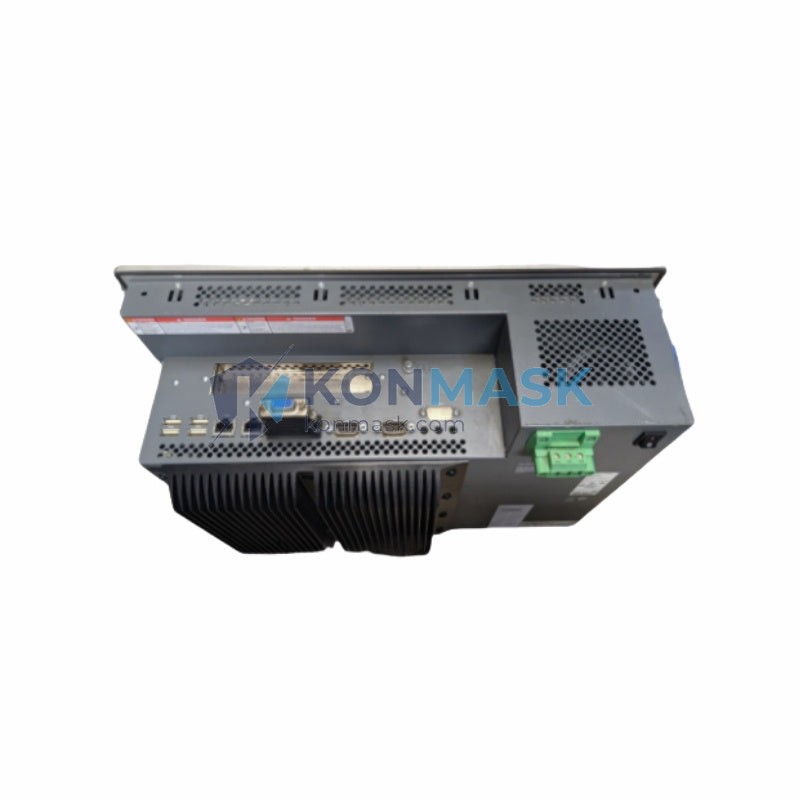

| Communication Ports | RS-232C, RS-422/485, USB 3.0, Ethernet (RJ-45 ×2) |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | 0 °C to +50 °C |
| Power Supply | 24 VDC |
| Mounting | Panel cut-out, VESA compatible |
| Weight | Approx. 19 kg |
| Certifications | CE, UL, cUL, RoHS |
Why Engineers Specify This Model
- Fanless Thermal Design: Eliminates moving parts, reducing MTTR and extending MTBF in dusty or vibration-prone environments.
- GP-Pro EX Software Ecosystem: Native compatibility with Pro-face’s GP-Pro EX HMI development environment enables rapid screen development, tag import from major PLC brands (Mitsubishi, Siemens, Allen-Bradley, Omron), and built-in recipe/alarm management.
- Dual Ethernet Isolation: Supports simultaneous connection to plant-floor device networks and corporate IT/OT networks without bridging risk.
- IP65 Front Panel: Withstands washdown, coolant splash, and high-humidity environments without additional enclosure engineering.
- Long-lifecycle Windows IoT LTSC: 10-year support commitment aligns with typical machine lifecycle, reducing OS migration costs.
- Wide 24 VDC Input: Directly powered from standard PLC cabinet power rails — no additional PSU required.
Complete System Bill of Materials
For a complete operator workstation based on the PFXPP170CA66K00N00, engineers typically specify:
- Pro-face PFXPP170CA66K00N00 — Industrial Panel PC (this unit)
- GP-Pro EX Software License — HMI development & runtime
- Pro-face CA3-USBCB-01 — USB programming cable
- Panel cut-out gasket kit (model-specific)
- 24 VDC DIN-rail power supply (e.g., Phoenix Contact QUINT series)
- Industrial Ethernet switch (managed, DIN-rail mount)
- UPS module for panel PC (recommended for process-critical applications)
Compliance & Industry Standards
- CE Marking — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL / cUL Listed — UL 508 (Industrial Control Equipment)
- RoHS Compliant — Directive 2011/65/EU (restriction of hazardous substances)
- IP65 — IEC 60529 ingress protection (front panel)
- Vibration & Shock — IEC 60068-2-6 / IEC 60068-2-27
Quality Assurance & Sourcing
Konmask.com sources the Pro-face PFXPP170CA66K00N00 through verified industrial distribution channels. Every unit undergoes:
- Visual inspection and packaging integrity check upon receipt
- Serial number verification against manufacturer records
- Functional power-on test prior to shipment
- Anti-static packaging with humidity indicator cards for international freight
We provide full traceability documentation upon request, including country of origin certificates and conformity declarations.
How to Source This Part
- Request a Quote: Email support@konmask.com with your required quantity and delivery timeline.
- Lead Time: In-stock units ship within 3–5 business days. Ex-factory orders: 4–8 weeks (subject to manufacturer availability).
- Global Shipping: DHL Express, FedEx International Priority, and sea freight consolidation available.
- Payment: T/T (bank transfer), PayPal, and major credit cards accepted.
- OEM / Volume Pricing: Contact us for project-based pricing on orders of 5+ units.
Application-Specific FAQ
Q: Can the PFXPP170CA66K00N00 connect directly to a Mitsubishi MELSEC PLC?
A: Yes. GP-Pro EX includes native Mitsubishi MELSEC-Q/L/iQ-R drivers. Communication is established via Ethernet or RS-232C without third-party middleware.
Q: Is this unit suitable for outdoor kiosk installations?
A: The front panel is IP65-rated for splash and dust protection, but the unit is not rated for direct UV exposure or temperatures below 0 °C. An appropriate NEMA 4X enclosure is recommended for outdoor deployments.
Q: What is the maximum resolution supported?
A: The integrated display supports 1280 × 1024 (SXGA). External display output capability depends on the specific hardware revision — confirm with Konmask before ordering if extended display is required.
Q: Can we run third-party SCADA software (e.g., Wonderware, iFIX) on this panel PC?
A: Yes. As a Windows 10 IoT Enterprise LTSC platform, it supports standard x86/x64 SCADA and HMI runtime software. Verify minimum hardware requirements with your SCADA vendor.
Q: Is a warranty included?
A: Konmask provides a 12-month warranty against manufacturing defects on all new units. Extended warranty and on-site support contracts are available upon request.
