Machine Automation Solution – Mitsubishi Electric FX1N-40MR-001 | FX1N Series

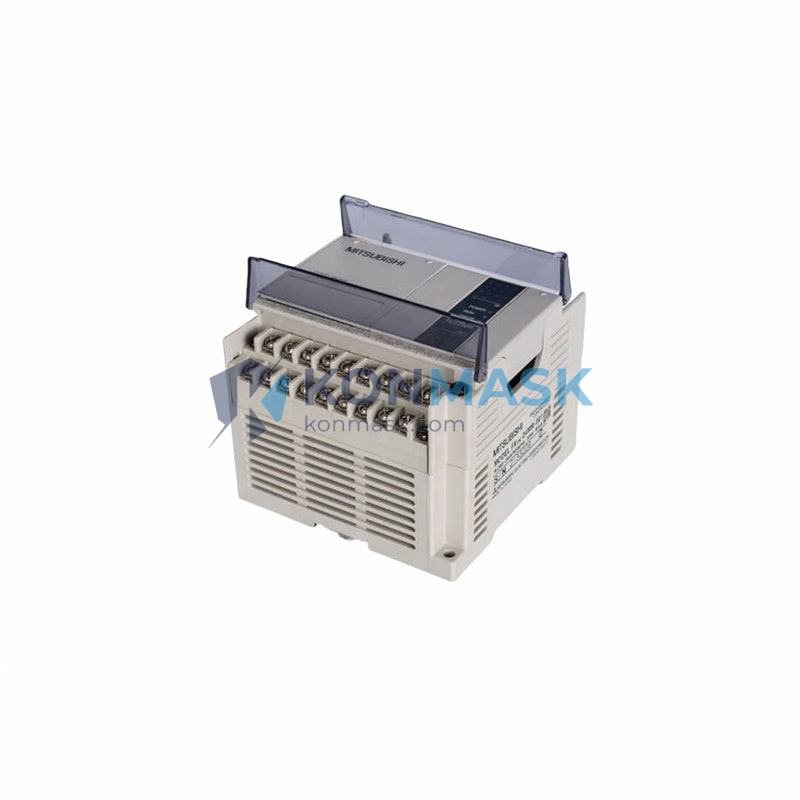

The Mitsubishi FX1N-40MR-001 is a compact, high-performance programmable logic controller from the renowned FX1N Series, engineered for demanding industrial automation environments. With 24 DC inputs and 16 relay outputs (40 I/O total), this PLC delivers reliable discrete control for a wide range of machine and process applications.
Where This Product Is Used
The FX1N-40MR-001 is specified by engineers across multiple industries for its proven reliability and flexible I/O capacity:
- Conveyor & Material Handling Systems – Sequencing, speed control, and fault detection on production lines
- Packaging Machinery – Coordinating filling, sealing, labeling, and reject mechanisms
- Injection Molding Machines – Cycle timing, mold clamping, and temperature interlock logic
- HVAC & Building Automation – Fan/pump sequencing, damper control, and alarm management
- Water Treatment & Pump Stations – Level control, dosing pump sequencing, and remote monitoring
- Food & Beverage Processing – Hygienic machine control with relay output isolation
- Textile & Printing Equipment – Step-motion control and register correction logic
Technical Specifications
- Model: FX1N-40MR-001
- Series: Mitsubishi FX1N
- Manufacturer: Mitsubishi Electric
- I/O Configuration: 24 Inputs (DC 24V) / 16 Outputs (Relay)
- Total I/O Points: 40
- Output Type: Relay (MR) – suitable for AC/DC loads
- Program Memory: 8,000 steps
- Processing Speed: 0.55–0.7 μs/basic instruction
- Built-in Functions: High-speed counters, pulse output, interrupt inputs
- Communication: RS-422 programming port; expandable via FX series adapters
- Power Supply: AC 100–240V, 50/60Hz
- Operating Temperature: 0°C to 55°C
- Weight: 890 g
- Certifications: CE, UL, cUL
Why Engineers Specify This Model
- Relay Output Versatility – MR variant drives both AC and DC loads without additional interface relays, reducing panel BOM cost
- Proven FX1N Platform – Millions of units deployed globally; extensive third-party HMI and SCADA compatibility
- Compact DIN-Rail Form Factor – Minimizes control cabinet footprint without sacrificing I/O density
- Expandable Architecture – Supports FX series expansion modules for analog I/O, communication, and additional digital points
- Long-Term Parts Availability – Mitsubishi Electric maintains global spare-parts support for FX1N series
- Simple Programming – GX Works2/GX Developer compatible; ladder logic, SFC, and structured text supported
Complete System Bill of Materials
For a fully operational FX1N-40MR-001 control system, engineers typically specify:
- FX1N-40MR-001 – Base PLC unit (this item)
- FX1N-232-BD or FX1N-485-BD – Serial communication board
- FX2N-4AD / FX2N-4DA – Analog input/output expansion modules
- FX1N-CNV-BD – Connector conversion board for expansion
- GOT1000 / GOT2000 Series HMI – Mitsubishi touch panel operator interface
- SC-09 or USB-SC09-FX – Programming cable
- GX Works2 – Programming software (Mitsubishi Electric)
- 24VDC DIN-rail power supply (e.g., Meanwell DR-60-24)
Compliance & Industry Standards
- CE Marking – Compliant with EU Low Voltage Directive and EMC Directive
- UL 508 – Listed for industrial control equipment (USA/Canada)
- IEC 61131-3 – Programming language standard compliance
- RoHS – Restriction of Hazardous Substances compliant
- IP20 – Enclosure protection rating (panel-mount installation required)
Quality Assurance & Sourcing
Konmask.com sources the FX1N-40MR-001 through verified industrial distribution channels. Every unit undergoes:
- Visual inspection for physical damage and label authenticity
- Firmware/version verification against Mitsubishi Electric documentation
- Functional power-on test prior to dispatch
- Anti-static packaging with humidity indicator card
We supply genuine Mitsubishi Electric components only. Counterfeit or grey-market units are not accepted in our supply chain.
How to Source This Part
- In-Stock Orders: Add to cart and check out — ships within 1–3 business days from our warehouse
- Bulk / Project Quotes: Email [email protected] with your BOM and required delivery date
- Urgent Requirements: Call/WhatsApp +0086 19859288691 for same-day quotation
- OEM / System Integrator Accounts: Contact us to discuss volume pricing and dedicated account support
Application-Specific FAQ
Q: Can the FX1N-40MR-001 control a servo drive directly?
A: The MR (relay) output variant is not recommended for high-frequency pulse output to servo drives. For servo/stepper control, specify the FX1N-40MT-001 (transistor output) instead.
Q: How many expansion modules can be connected?
A: The FX1N base unit supports up to 8 expansion modules, allowing up to 128 additional I/O points.
Q: Is GX Works3 compatible with this PLC?
A: No. The FX1N series requires GX Works2 or the legacy GX Developer software. GX Works3 supports iQ-R and iQ-F series only.
Q: What is the maximum program memory?
A: 8,000 steps of ladder/SFC program memory, with optional memory cassette for data retention.
Q: Can I use this PLC with a third-party HMI (e.g., Weintek, Weinview, Proface)?
A: Yes. The FX1N-40MR-001 communicates via RS-422 and is supported by most major HMI brands through Mitsubishi FX protocol drivers.
