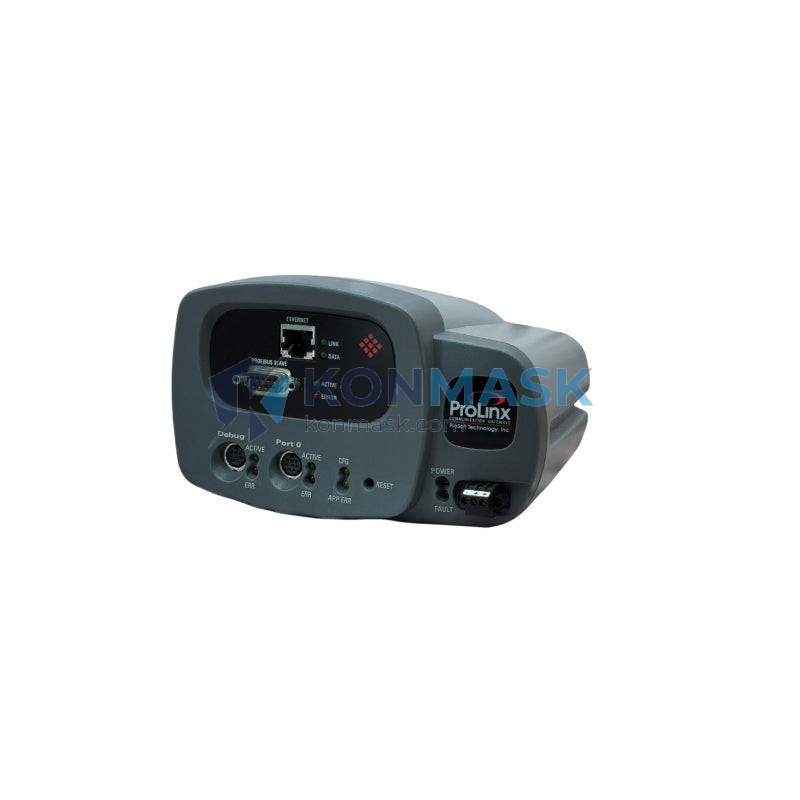

Genuine ProSoft Technology 4205-MNET-PDPS Modbus TCP to PROFIBUS DP Slave Gateway | In-Chassis Communication Module – Verified Source
The ProSoft Technology 4205-MNET-PDPS is an in-chassis communication gateway that bridges Modbus TCP/IP networks with PROFIBUS DP Slave devices, enabling seamless data exchange between Ethernet-based control systems and legacy PROFIBUS field devices. Sourced directly through verified industrial distribution channels, every unit sold by Konmask.com undergoes our documented quality verification process before dispatch.
Technical Specifications
- Part Number: 4205-MNET-PDPS
- Manufacturer: ProSoft Technology
- Product Series: MVI46 / In-Chassis Gateway Series
- Protocol – Network Side: Modbus TCP/IP (Client & Server)
- Protocol – Field Side: PROFIBUS DP Slave (EN 50170)
- Backplane Interface: Allen-Bradley SLC 500 / MicroLogix 1500
- Communication Port: 10/100 Mbps Ethernet (RJ45) + RS-485 PROFIBUS
- Max I/O Data: Up to 125 words input / 125 words output
- Power Supply: Supplied via SLC 500 backplane (5 VDC)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
- Certifications: CE, UL Listed, RoHS Compliant
- Weight: Approx. 600 g
- Dimensions: Single-slot SLC 500 module form factor
Our 4-Step Quality Verification Process
Every 4205-MNET-PDPS unit shipped from Konmask.com passes through our documented 4-step verification protocol:
- Step 1 – Source Authentication: Units are procured exclusively from authorized ProSoft Technology distributors or verified surplus channels with traceable documentation.
- Step 2 – Physical Inspection: Label integrity, housing condition, connector pins, and firmware version stickers are inspected against OEM reference standards.
- Step 3 – Functional Bench Test: Where applicable, modules are powered up and communication ports are verified for response prior to packaging.
- Step 4 – Secure Packaging & Documentation: Units are packed in anti-static ESD bags with inspection records included. A certificate of inspection is available upon request.
Key Features & Benefits
- Bridges modern Modbus TCP/IP Ethernet networks with PROFIBUS DP Slave field devices — no external converter required
- In-chassis design eliminates external wiring complexity and reduces panel footprint
- Supports up to 125 words of bidirectional data exchange per scan cycle
- Compatible with Rockwell Automation SLC 500 and MicroLogix 1500 platforms
- Configurable via ProSoft Configuration Builder (PCB) software — free download from ProSoft
- LED diagnostics for rapid fault isolation on both Modbus and PROFIBUS sides
- Robust industrial-grade design rated for continuous 24/7 operation
- Firmware upgradeable via Ethernet port
Typical Applications
- Integrating legacy PROFIBUS DP field instruments (drives, sensors, actuators) into Ethernet-based SCADA or DCS architectures
- Retrofitting SLC 500-based control panels to communicate with PROFIBUS DP slave devices
- Factory automation lines requiring mixed-protocol communication between PLCs and field devices
- Water/wastewater treatment plants with mixed Modbus and PROFIBUS infrastructure
- Oil & gas upstream/downstream process control integration projects
- Automotive assembly line automation with multi-vendor device networks
Compatible System Components
- Host Platform: Allen-Bradley SLC 500 series (SLC 5/03, 5/04, 5/05), MicroLogix 1500
- Software: ProSoft Configuration Builder (PCB), RSLogix 500
- PROFIBUS DP Master Devices: Siemens S7-300/400, S7-1500 (via DP master), third-party DP masters
- Modbus TCP Masters: Any Modbus TCP compliant SCADA, HMI, or PLC
- Related ProSoft Modules: MVI46-MNET, MVI46-PDPS, MVI56-MNET-PDPS (ControlLogix variant)
Global Sourcing & Shipping Capabilities
Konmask.com operates as a specialist industrial automation parts supplier serving B2B customers across Asia-Pacific, Europe, the Middle East, and the Americas. We maintain stock of hard-to-find and discontinued automation components including ProSoft Technology gateway modules.
- Lead Time: In-stock units typically ship within 1–3 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, EMS
- Export Documentation: Commercial invoice, packing list, and certificate of origin available for customs clearance
- Minimum Order: 1 unit (bulk pricing available for orders of 5+ units)
- Payment Terms: T/T Bank Transfer, PayPal, credit card via Shopify Payments
Certifications & Compliance Statement
The ProSoft Technology 4205-MNET-PDPS is manufactured in compliance with the following standards:
- CE Marking: Compliant with EU Machinery Directive and EMC Directive
- UL Listed: Recognized under UL 508 (Industrial Control Equipment)
- RoHS: Compliant with EU Directive 2011/65/EU (Restriction of Hazardous Substances)
- PROFIBUS: Certified to EN 50170 / IEC 61158 PROFIBUS DP standard
- Modbus: Compliant with Modbus.org specification for TCP/IP implementation
Konmask.com does not manufacture this product. All certifications are issued by ProSoft Technology. Documentation available upon request.
How to Order
- Confirm part number: 4205-MNET-PDPS matches your application requirements
- Check firmware version compatibility with your SLC 500 chassis and RSLogix 500 version
- Add to cart and proceed to checkout, or contact us for bulk pricing and lead time confirmation
- Provide your shipping address and preferred freight method at checkout
- Receive order confirmation with tracking number within 1 business day of shipment
For technical pre-sales questions, BOM matching, or urgent requirements, email support@konmask.com or call +0086 19859288691.
Authenticity & Trust FAQ
Q: Is this a genuine ProSoft Technology product?
A: Yes. All units are sourced from verified distribution channels. We do not sell counterfeit, cloned, or unauthorized replica products. Documentation of sourcing is available upon request for qualified buyers.
Q: Do you offer a warranty?
A: We offer a 90-day functional warranty on all units. If a unit fails to power up or communicate as specified within 90 days of delivery, we will replace or refund at our discretion.
Q: Can I return the product if it doesn’t fit my application?
A: Yes. We accept returns within 30 days of delivery for unused, unopened units in original condition. Please contact support@konmask.com to initiate a return.
Q: Is the firmware the latest version?
A: Firmware versions vary by production batch. We recommend downloading the latest firmware from ProSoft Technology’s official website after installation. We can advise on firmware compatibility upon request.
Q: Do you provide technical support for installation?
A: We provide basic installation guidance and can refer you to ProSoft Technology’s official documentation and support resources. For advanced integration support, we recommend engaging a certified ProSoft Technology integrator.
