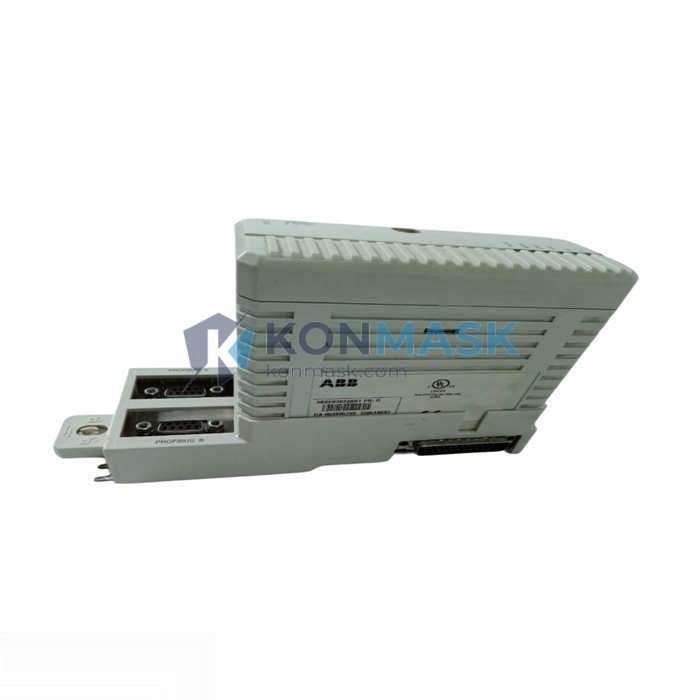

ABB CI854AK01 3BSE030220R1 – PROFIBUS DP Communication Interface Module | AC 800M Controller Platform
Engineering Background
When a PROFIBUS DP communication interface fails or goes missing in an ABB AC 800M-based DCS architecture, the consequences cascade immediately: cyclic I/O polling to remote slaves halts, drives lose their setpoints, smart positioners go blind, and the entire process segment falls back to manual or safe-state operation. In power generation, oil & gas, and chemical processing environments, even a 30-minute unplanned outage can translate to six-figure production losses. The CI854AK01 — ABB order code 3BSE030220R1 — is the factory-specified PROFIBUS DP interface module for the AC 800M platform, and there is no drop-in substitute that preserves native System 800xA diagnostic integration.
Product Positioning
The CI854AK01 occupies a unique position in ABB’s AC 800M communication module lineup: it is the only module that delivers full DP-V0 cyclic exchange and DP-V1 acyclic Class 1 & Class 2 master services within a single backplane slot, without requiring an external gateway or OPC bridge. For procurement engineers managing spare-parts inventories for AC 800M systems, this module is a Tier-1 critical spare — its lead time from ABB’s factory can exceed 12 weeks, making pre-positioned stock at a reliable distributor essential to plant availability commitments.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | CI854AK01 |
| ABB Order Code | 3BSE030220R1 |
| Module Type | PROFIBUS DP Communication Interface |
| Protocol | PROFIBUS DP-V0 / DP-V1 |
| DP Role | Master (Class 1 & Class 2) / Slave |
| Compatible Controllers | AC 800M: PM851, PM856, PM860, PM861, PM864, PM866 |
| Max DP Slaves per Segment | 125 |
| Baud Rate | 9.6 kbps – 12 Mbps (auto-detect) |
| Physical Interface | RS-485, 9-pin D-Sub female connector |
| Cyclic Data Exchange | DP-V0 |
| Acyclic Services | DP-V1 MS1 (Class 1) & MS2 (Class 2) |
| Redundancy Support | Yes — bumpless switchover in redundant PM8xx pairs |
| Hot-Swap | Supported in redundant configurations |
| Backplane Interface | CEX-Bus (AC 800M internal bus) |
| Power Supply | Via AC 800M backplane (5 VDC internal) |
| Power Consumption | ≤ 2.5 W |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Weight | 470 g |
| Certifications | CE, UL, cUL, ATEX Zone 2 (approved enclosure) |
| Country of Origin | Germany |
Proven Application Environments
- Power Generation: Gas and steam turbine control systems using AC 800M as the primary controller, with CI854AK01 managing PROFIBUS DP segments to ABB ACS drives, smart positioners, and remote I/O clusters.
- Oil & Gas (Upstream & Downstream): Offshore platform DCS architectures and onshore refinery units where AC 800M controllers govern safety-instrumented and process-control loops over a single PROFIBUS segment.
- Pulp & Paper: Distributed motor control centers (MCC) and variable-speed drives integrated via PROFIBUS DP for coordinated line-speed and tension control across paper machine sections.
- Chemical & Petrochemical Processing: Reactor and distillation column automation with DP-V1 acyclic access enabling online parameterization of Endress+Hauser, Siemens SITRANS, and Yokogawa field devices.
- Water & Wastewater Treatment: SCADA-integrated pump station and aeration basin control, with CI854AK01 managing remote I/O clusters at geographically distributed lift stations.
- Metals & Mining: Rolling mill and conveyor drive systems requiring deterministic PROFIBUS DP polling at 12 Mbps for high-dynamic drive coordination.
Engineering Advantages
- Native System 800xA Integration: Full asset monitoring, alarm management, and PROFIBUS device diagnostics surfaced directly in ABB’s 800xA HMI — no additional OPC gateway, PROFIBUS proxy server, or third-party middleware required.
- DP-V1 Class 2 Master (MS2): Enables an 800xA engineering station to perform online device parameterization (e.g., re-ranging a transmitter, adjusting a positioner’s travel limits) without interrupting cyclic process data exchange — a critical capability for zero-downtime maintenance strategies.
- Auto Baud-Rate Detection: The CI854AK01 automatically negotiates the segment baud rate during startup, eliminating manual DIP-switch configuration and reducing commissioning errors on mixed-speed segments.
- Redundant Communication Path: When paired with a redundant PM8xx controller pair, the module participates in bumpless switchover — the PROFIBUS segment remains active and slaves continue cyclic exchange during controller failover.
- Hot-Swap Module Replacement: In redundant AC 800M configurations, a failed CI854AK01 can be replaced under power without shutting down the controller or the PROFIBUS segment, minimizing planned maintenance windows.
- Single-Slot Footprint: Occupies one CEX-Bus slot, preserving backplane space for additional I/O or communication modules in high-density controller cabinets.
- GSD File Compatibility: Standard PROFIBUS GSD file support ensures interoperability with any certified DP slave device, regardless of manufacturer.
System Architecture & Signal Flow
The CI854AK01 is inserted into a standard slot on the AC 800M controller unit’s CEX-Bus backplane. ABB Control Builder M software assigns the module as a DP master and configures the slave device list, I/O mapping, and polling cycle. At runtime, the module autonomously manages the PROFIBUS DP token ring: it polls each configured slave in sequence, exchanges cyclic I/O data, and transfers the results to the controller’s application task via the CEX-Bus at the configured task cycle time (typically 10–100 ms).
DP-V1 acyclic requests — initiated either by the controller application program or by an 800xA engineering station acting as a Class 2 master — are handled asynchronously in parallel with cyclic polling, without disrupting the deterministic I/O exchange cycle.
Typical Signal Path:
AC 800M PM8xx Controller → CEX-Bus Backplane → CI854AK01 → RS-485 PROFIBUS Segment (up to 1200 m @ 93.75 kbps / 200 m @ 1.5 Mbps) → DP Slaves (Remote I/O Stations, Variable-Speed Drives, Smart Positioners, Analyzers, MCCs)
For networks exceeding single-segment limits, PROFIBUS repeaters or optical fiber links (via OLM modules) extend the topology while the CI854AK01 continues to function as the single DP master for the entire logical network.
Sourcing & Quality Verification
- Every CI854AK01 unit processed by Konmask.com undergoes a structured incoming inspection: physical integrity check, ABB holographic serial label verification, firmware revision documentation, and connector pin inspection.
- Units are supplied in original ABB packaging where available, or in anti-static ESD-safe bags with desiccant and foam cushioning for international shipment.
- Batch traceability records — including serial number, hardware revision, firmware revision, inspection date, and inspector ID — are maintained and available upon request for regulated industries (nuclear, pharmaceutical, SIL-rated systems).
- Warranty: 12 months from date of shipment against manufacturing defects, with advance replacement available for qualified accounts.
- Export compliance: all shipments are processed in accordance with applicable export control regulations. End-user declaration may be required for certain destinations.
Procurement Process
- Step 1 — RFQ Submission: Email support@konmask.com or contact via WhatsApp/WeChat +0086 19859288691 with your required quantity, target delivery date, and destination port.
- Step 2 — Formal Quotation: Receive a quotation with unit price (HKD/USD), confirmed stock availability, lead time, and Incoterms options (EXW, FOB, CIF) within 24 business hours.
- Step 3 — Purchase Order: Issue your PO referencing part number CI854AK01 and ABB order code 3BSE030220R1. Proforma invoice issued upon PO receipt.
- Step 4 — Payment & Dispatch: Accepted payment methods: T/T (bank transfer), PayPal, platform checkout. Dispatch within 1–3 business days of payment confirmation.
- Step 5 — Shipping Documentation: Commercial invoice, packing list, and inspection report provided as standard. Certificate of Origin (Germany), material safety data, and customs HS code documentation available on request.
Technical FAQ
Q: Is the CI854AK01 compatible with AC 800M High Integrity (HI) safety controllers?
A: The CI854AK01 is qualified for standard AC 800M controllers. For SIL 1/2/3-rated AC 800M HI applications, consult ABB’s safety system documentation and approved module list — safety-rated communication modules have separate qualification requirements.
Q: Can the CI854AK01 operate simultaneously as both a DP master and a DP slave?
A: No. The module operates in one role at a time — either as a DP master (Class 1 & 2) or as a DP slave — as configured in ABB Control Builder M. Role switching requires a controller download.
Q: What is the maximum PROFIBUS segment cable length?
A: Segment length depends on baud rate: 1200 m at 93.75 kbps, 400 m at 500 kbps, 200 m at 1.5 Mbps, and 100 m at 12 Mbps. PROFIBUS repeaters or OLM fiber modules extend the network beyond a single segment.
Q: Does Konmask supply PROFIBUS connectors and cable?
A: Yes, upon request. We can source compatible PROFIBUS Type A shielded cable and 9-pin D-Sub connectors (e.g., Siemens 6ES7972-0BA52-0XA0 with integrated termination). Please include accessory requirements in your RFQ.
Q: What firmware revision is supplied, and can a specific revision be requested?
A: Firmware revision is confirmed and documented at inspection. If your project requires a minimum or specific firmware revision (e.g., for compatibility with a particular Control Builder M version), please specify in your RFQ and we will confirm availability.
Q: Is expedited international shipping available?
A: Yes. DHL Express, FedEx International Priority, and UPS Worldwide Express are available. Estimated transit time: 3–5 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East.
Q: Can Konmask provide a test report or functional verification certificate?
A: A visual inspection and label authenticity report is provided as standard. Functional bench testing (power-on, self-diagnostic pass) is available for an additional fee — please request at RFQ stage.
