SCADA & Substation Automation Solution – ProSoft Technology MVI69-104S | IEC 60870-5-104 Ethernet Server

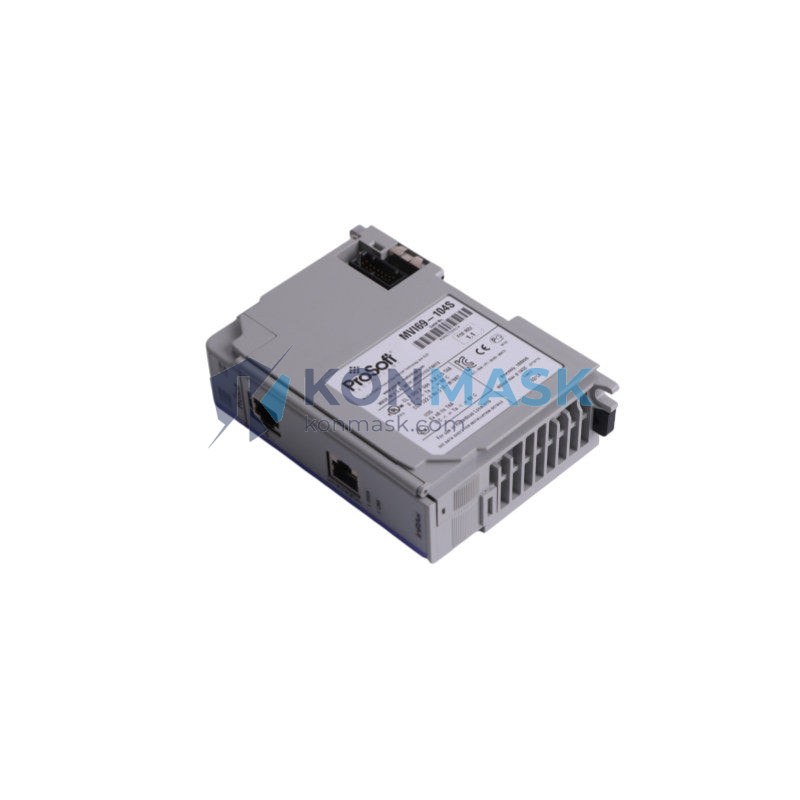

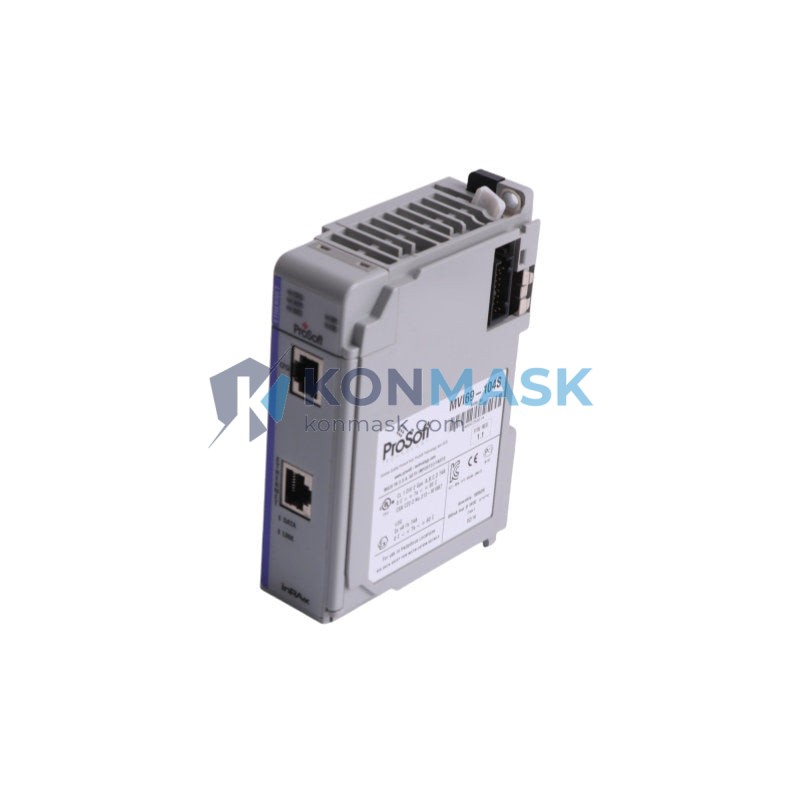

The ProSoft Technology MVI69-104S is a high-performance IEC 60870-5-104 Ethernet Server communication module designed for seamless integration into Allen-Bradley CompactLogix and MicroLogix 1500 backplanes. Purpose-built for SCADA, substation automation, and smart grid applications, this module enables reliable TCP/IP-based telecontrol communication between field devices and control centers — without additional gateways or middleware.
Where This Product Is Used
The MVI69-104S is specified by automation engineers across the following industries and scenarios:
- Electric Utility Substations: Acts as an IEC 104 server endpoint, reporting real-time breaker status, transformer data, and protection relay events to SCADA master stations over Ethernet.
- Smart Grid & Distribution Automation: Integrates CompactLogix PLCs into IEC 60870-5-104 telecontrol networks for remote monitoring and control of distribution feeders, reclosers, and capacitor banks.
- Water & Wastewater Treatment Plants: Connects pump stations, lift stations, and treatment facility PLCs to centralized SCADA systems using the IEC 104 protocol over existing LAN/WAN infrastructure.
- Oil & Gas Pipeline Monitoring: Provides IEC 104 server functionality at remote terminal units (RTUs) and compressor stations, enabling supervisory control from central dispatch.
- Renewable Energy (Wind/Solar Farms): Interfaces inverter controllers and energy management systems with grid operators’ SCADA platforms via standardized IEC 60870-5-104 messaging.
- Industrial Process Control: Bridges legacy CompactLogix automation systems into modern IEC 104-based control architectures during plant modernization projects.
Technical Specifications
| Part Number | MVI69-104S |
| Manufacturer | ProSoft Technology |
| Protocol | IEC 60870-5-104 (Ethernet Server / Slave) |
| Compatible Platform | Allen-Bradley CompactLogix, MicroLogix 1500 |

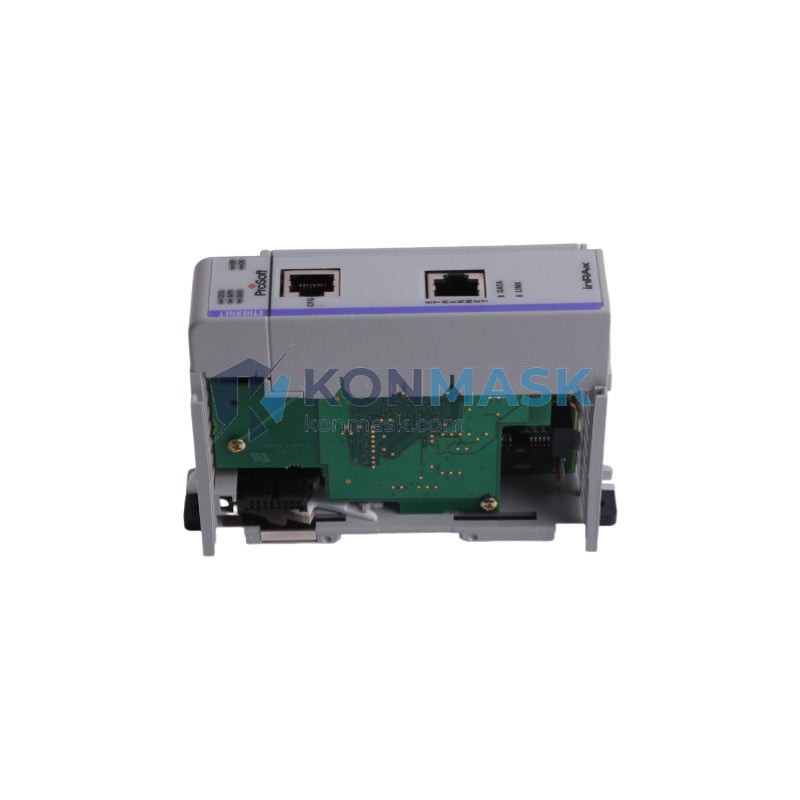

| Network Interface | Dual RJ-45 Ethernet ports, 10/100 Mbps |
| Server Connections | Up to 4 simultaneous IEC 104 client connections |
| Data Points | Up to 5,000 I/O data points |
| Backplane Interface | CompactLogix / MicroLogix 1500 side-mount |
| Power Consumption | 800 mA @ 5 VDC (from backplane) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | 180 g |
| Certifications | CE, UL Listed, RoHS Compliant |
| Configuration Tool | ProSoft Configuration Builder (PCB) — free download |
Why Engineers Specify This Model
- Native CompactLogix Integration: Mounts directly in the CompactLogix backplane — no external power supply, no DIN-rail gateway, no additional wiring. Reduces panel footprint and installation time.
- Dual Ethernet Ports: Supports daisy-chain or ring topologies for network redundancy, critical in substation and utility environments where uptime is non-negotiable.
- Up to 4 Simultaneous Client Connections: Allows multiple SCADA masters, HMI systems, or historian servers to poll the same module concurrently — ideal for multi-tier SCADA architectures.
- 5,000 Data Point Capacity: Handles large I/O maps typical of substation automation without requiring multiple modules or complex data segmentation.
- Free Configuration Software: ProSoft Configuration Builder (PCB) provides a graphical interface for mapping PLC tags to IEC 104 information objects — no custom ladder logic required for protocol configuration.
- Proven IEC 60870-5-104 Compliance: Fully implements the IEC 104 application layer including spontaneous transmission, general interrogation, clock synchronization, and command handling.
Complete System Bill of Materials
A typical CompactLogix + MVI69-104S SCADA integration requires the following components:
- Allen-Bradley CompactLogix L-series CPU (e.g., 1769-L33ER)
- ProSoft MVI69-104S — IEC 60870-5-104 Ethernet Server Module
- 1769 CompactLogix power supply (e.g., 1769-PA2)
- Managed Ethernet switch (e.g., Cisco IE-2000 or Hirschmann RS20)
- ProSoft Configuration Builder (PCB) software — free download from ProSoft
- Studio 5000 Logix Designer (for PLC programming and tag mapping)
- SCADA master software with IEC 60870-5-104 client support (e.g., Ignition, WinCC, AVEVA)
Compliance & Industry Standards
- IEC 60870-5-104: Full compliance with the TCP/IP adaptation of the IEC 60870-5-101 telecontrol standard
- CE Marking: Compliant with EU EMC and Low Voltage Directives
- UL Listed: Recognized for use in industrial control panels per UL 508
- RoHS Compliant: Restriction of Hazardous Substances Directive (EU 2011/65/EU)
- IEEE 802.3: Ethernet physical and data link layer compliance
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels with full traceability
- Pre-shipment inspection: visual check, label verification, and firmware version confirmation
- Original manufacturer packaging preserved where available
- Counterfeit-prevention: serial number and hologram verification on every unit
- 30-day return policy; 12-month warranty on all stocked units
- Export compliance screening for all international orders
How to Source This Part
To place an order or request a quote for the ProSoft MVI69-104S:
- Email: [email protected]
- Phone / WhatsApp: +0086 19859288691
- Website: https://konmask.com
- Provide your required quantity, delivery timeline, and destination country for a tailored quote
- Expedited shipping available for urgent project requirements
Application-Specific FAQ
Q: Can the MVI69-104S act as both IEC 104 server and client simultaneously?
A: No. The MVI69-104S is a dedicated server (slave) module. For client (master) functionality, use the ProSoft MVI69-104C.
Q: How many SCADA masters can connect to the MVI69-104S at the same time?
A: Up to 4 simultaneous TCP/IP client connections are supported, allowing multiple SCADA systems or historians to poll the module concurrently.
Q: Is the MVI69-104S compatible with ControlLogix (1756 chassis)?
A: No. For ControlLogix, use the ProSoft MVI56-104S. The MVI69-104S is designed exclusively for the CompactLogix (1769) and MicroLogix 1500 platforms.
Q: Does the module support IEC 60870-5-104 spontaneous transmission (Class 1 data)?
A: Yes. The module supports spontaneous (event-driven) transmission, general interrogation, clock synchronization, and command processing per the IEC 104 standard.
Q: What configuration software is required?
A: ProSoft Configuration Builder (PCB) is used for module configuration and is available as a free download from the ProSoft Technology website. Studio 5000 is required for PLC-side tag mapping.
Q: Can this module be used in a redundant network topology?
A: Yes. The dual Ethernet ports support daisy-chain and ring topologies, enabling network-level redundancy for high-availability applications.
