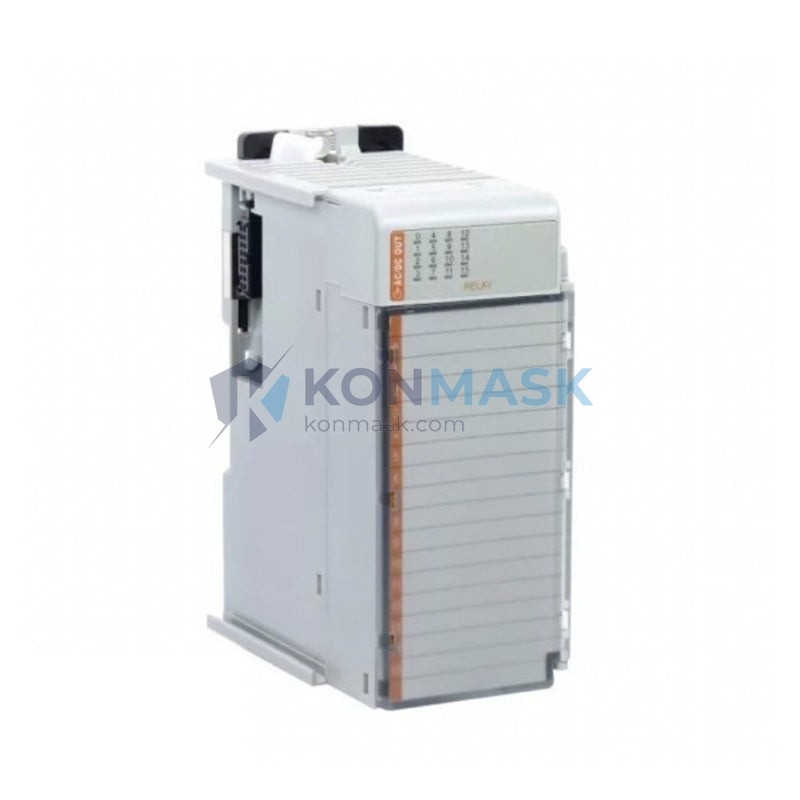

Genuine Allen-Bradley 1769-OW16 16-Point Relay Output Module | CompactLogix 1769 Series — Verified Source
Konmask.com is a dedicated industrial automation components supplier specializing in genuine Allen-Bradley / Rockwell Automation parts. The 1769-OW16 is a 16-point relay output module designed for the CompactLogix 1769 I/O system, delivering reliable discrete control in demanding industrial environments. Every unit we supply passes our 4-step verification process before shipment.
Technical Specifications
- Part Number: 1769-OW16
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Series: CompactLogix 1769 Compact I/O
- Module Type: Discrete Output — Relay
- Number of Output Points: 16
- Output Type: Relay (Form A / SPST-NO)
- Output Voltage Range: 5–265V AC / 5–125V DC
- Maximum Output Current: 2A per point (resistive load)
- Surge Current: 7.5A for 43ms max
- Isolation: 250V AC continuous, channel-to-channel and channel-to-bus
- Backplane Current Draw: 120mA @ 5V DC
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Dimensions (H × W × D): 118 × 35 × 87 mm (approx.)
- Weight: ~400g
- Certifications: UL, CE, CSA, RCM
Our 4-Step Quality Verification Process
Every Allen-Bradley 1769-OW16 unit shipped from Konmask.com undergoes the following verification before dispatch:
- Step 1 — Source Authentication: Units are sourced exclusively from authorized distributors or verified surplus channels with traceable supply chain documentation.
- Step 2 — Physical Inspection: Label integrity, housing condition, connector pins, and firmware revision markings are inspected against OEM specifications.
- Step 3 — Functional Bench Test: Where applicable, modules are bench-tested for backplane communication and output relay actuation prior to packaging.
- Step 4 — Secure Packaging: Anti-static packaging with desiccant, serial number logging, and tamper-evident sealing for safe international transit.
Key Features & Benefits
- ✅ 16 isolated relay output points — ideal for mixed AC/DC load control
- ✅ Wide voltage range (5–265V AC / 5–125V DC) for flexible field wiring
- ✅ Compact 1769 form factor — right-side or left-side bus compatible
- ✅ High surge tolerance — handles inductive and motor loads reliably
- ✅ LED status indicators per output point for fast field diagnostics
- ✅ Removable terminal block — simplifies wiring and module replacement
- ✅ RoHS compliant — meets global environmental standards
Typical Applications
- Motor starter and contactor control in conveyor and packaging lines
- Valve and actuator switching in process automation
- Pilot light and alarm annunciator control panels
- HVAC and building automation relay switching
- Discrete output control in food & beverage, automotive, and water treatment plants
- Machine safety interlock and permissive circuits
Compatible System Components
- Controllers: 1769-L16ER, 1769-L18ER, 1769-L24ER, 1769-L27ERM, 1769-L30ER, 1769-L33ER, 1769-L36ERM
- Power Supplies: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
- End Caps: 1769-ECR (right end cap), 1769-ECL (left end cap)
- Programming Software: Studio 5000 Logix Designer v21.00 or later
- Communication Adapters: 1769-ADN (DeviceNet), 1769-SDN (DeviceNet Scanner)
Contact us to confirm compatibility with your specific system revision and firmware version.
Global Sourcing & Shipping Capabilities
- Stock Location: China (Mainland) — ships globally
- Lead Time: In-stock units typically ship within 1–3 business days
- Shipping Methods: DHL Express, FedEx International, UPS, SF Express, sea freight for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin available upon request
- Customs Support: HS Code 8537.10 — we assist with export classification documentation
- Minimum Order Quantity: 1 unit (bulk pricing available for 5+ units)
- Regions Served: Asia-Pacific, Middle East, Europe, North America, Southeast Asia
