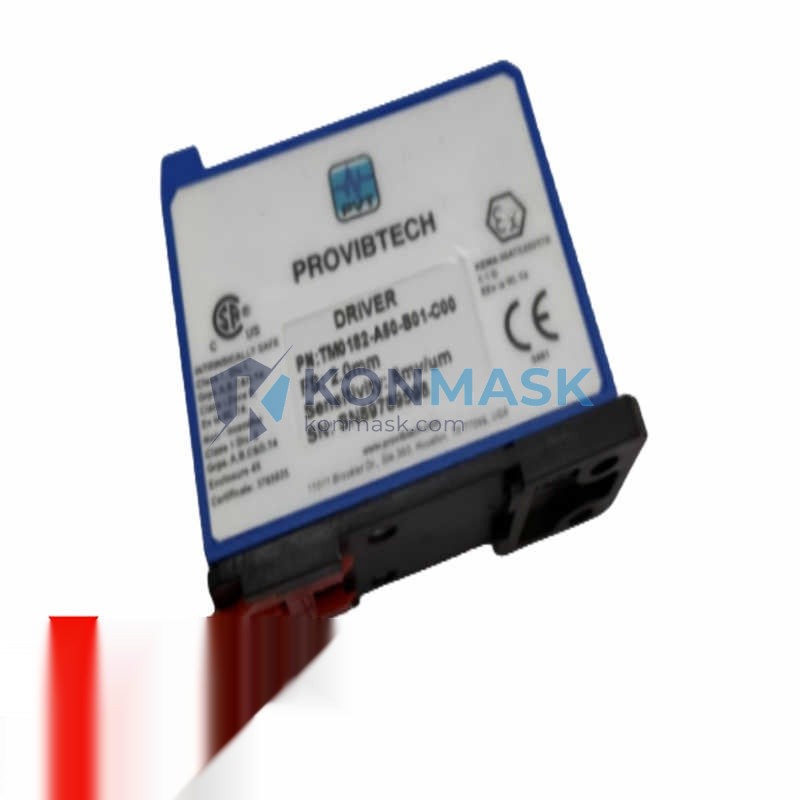

PROVIBTECH TM0182-A50-B01-C00 – Transducer Driver | Vibration Signal Conditioning Platform
Engineering Background
The PROVIBTECH TM0182 series is engineered for continuous-duty vibration monitoring in rotating machinery protection systems. Designed to interface directly with eddy-current proximity probes and velocity transducers, the TM0182-A50-B01-C00 provides precision signal conditioning that meets the stringent requirements of API 670-compliant machinery protection architectures. It is a field-proven component deployed across turbomachinery, compressor trains, and critical rotating equipment worldwide.
Product Positioning
The TM0182-A50-B01-C00 occupies the signal-path layer between raw transducer output and the monitoring/protection system. Its role is to buffer, amplify, and condition the raw vibration signal to a standardized output suitable for direct input to vibration monitors, DCS analog input cards, or safety instrumented systems (SIS). Procurement engineers specifying this module gain a drop-in replacement path for legacy PROVIBTECH installations without re-engineering the signal chain.
Complete Technical Specifications
| Part Number | TM0182-A50-B01-C00 |
| Series | TM0182 |
| Manufacturer | PROVIBTECH |
| Function | Transducer Driver / Vibration Signal Conditioner |
| Compatible Transducers | Eddy-current proximity probes, velocity transducers |
| Output Signal | Conditioned analog voltage/current (per variant suffix) |
| Supply Voltage | –24 VDC (nominal, per PROVIBTECH standard) |
| Operating Temperature | –40 °C to +85 °C |
| Enclosure / Form Factor | DIN-rail mountable module |
| Weight | 240 g |
| Compliance | API 670 compatible signal chain |
| SKU | TM0182 TM0182-A50-B01-C00 |
Note: Full electrical specifications (bandwidth, sensitivity, output impedance) are available in the PROVIBTECH TM0182 datasheet. Contact support@konmask.com to request documentation.
Proven Application Environments
- Steam & Gas Turbines – Shaft vibration and eccentricity monitoring in power generation trains
- Centrifugal Compressors – Radial and axial displacement signal conditioning for API 670 protection panels
- Pumps & Fans – Bearing vibration monitoring in balance-of-plant rotating equipment
- Gearboxes – High-frequency vibration signal buffering for gear mesh analysis
- Petrochemical & Refinery – Continuous operation in hazardous-area adjacent installations
- Power Generation – Integration with existing PROVIBTECH TM series monitoring racks
Engineering Advantages
- Drop-in Compatibility – Direct replacement for existing TM0182 series installations; no re-wiring or re-calibration of the monitoring system required
- Signal Integrity – Low-noise buffering preserves transducer signal fidelity across long cable runs
- Wide Temperature Range – Rated for –40 °C to +85 °C, suitable for outdoor and high-ambient machinery enclosures
- API 670 Signal Chain – Supports compliant machinery protection architectures for critical and essential machinery classifications
- Compact DIN-Rail Form Factor – Minimizes panel space; integrates cleanly into existing PROVIBTECH monitoring racks
- Long Service Life – Industrial-grade components rated for continuous-duty operation in demanding plant environments
System Architecture & Signal Flow
The TM0182-A50-B01-C00 sits at the transducer interface layer of a typical API 670 machinery protection system:
- Transducer (eddy-current probe / velocity sensor) → raw signal output
- TM0182-A50-B01-C00 Transducer Driver → signal buffering, amplification, and conditioning
- Vibration Monitor / Protection System (e.g., PROVIBTECH TM series rack) → alarm, trip, and trending
- DCS / SIS Analog Input → process historian and safety logic
This architecture ensures that the raw transducer signal is never loaded by downstream instrumentation, preserving measurement accuracy and protecting the transducer from impedance mismatch.
Sourcing & Quality Verification
- Source: Konmask.com sources TM0182-A50-B01-C00 units from authorized industrial distributors and verified surplus channels with full traceability documentation
- Inspection: Each unit undergoes visual inspection, label verification, and functional pre-shipment checks
- Documentation: Certificate of conformance, original manufacturer labeling, and shipment photos provided upon request
- Warranty: 90-day warranty against defects in materials and workmanship; extended warranty available — contact sales
- Counterfeit Risk Mitigation: All units sourced with verifiable provenance; we do not source from unverified grey-market channels
Procurement Process
- Confirm Part Number – Verify TM0182-A50-B01-C00 against your BOM or existing installation nameplate
- Request Quote – Contact support@konmask.com with quantity, required delivery date, and destination port
- Review Datasheet – Request the PROVIBTECH TM0182 datasheet for full electrical specification review by your instrumentation engineer
- Place Order – Purchase via Konmask.com checkout or issue a PO to support@konmask.com
- Shipment & Documentation – Units ship with packing list, inspection report, and tracking; export documentation available for international orders
- Incoming Inspection – Recommended: verify part number, serial/lot markings, and functional check against PROVIBTECH datasheet specifications upon receipt
Technical FAQ
Q: Is the TM0182-A50-B01-C00 compatible with third-party eddy-current probe systems (e.g., Bently Nevada)?
A: The TM0182 is designed for PROVIBTECH probe systems. Compatibility with third-party probes depends on bias voltage and sensitivity matching — consult your instrumentation engineer and request the datasheet before specifying.
Q: What does the suffix A50-B01-C00 indicate?
A: PROVIBTECH uses an alphanumeric suffix to encode configuration options (e.g., output range, connector type, housing variant). Contact us for the full option matrix for the TM0182 series.
Q: Can this module be used as a direct replacement for an older TM0182 variant with a different suffix?
A: Suffix differences may indicate different output ranges or connector configurations. Cross-referencing is recommended before substitution — our technical team can assist.
Q: What is the lead time for this part?
A: Lead time varies by stock availability. Contact support@konmask.com for real-time availability and expedited shipping options.
Q: Do you provide export documentation for international shipments?
A: Yes. We provide commercial invoice, packing list, and can arrange certificate of origin and other export documents upon request.
