Bently Nevada 330905-00-13-05-02-00 3300 NSv Proximity Probe | Replacement, Equivalent & Selection Guide

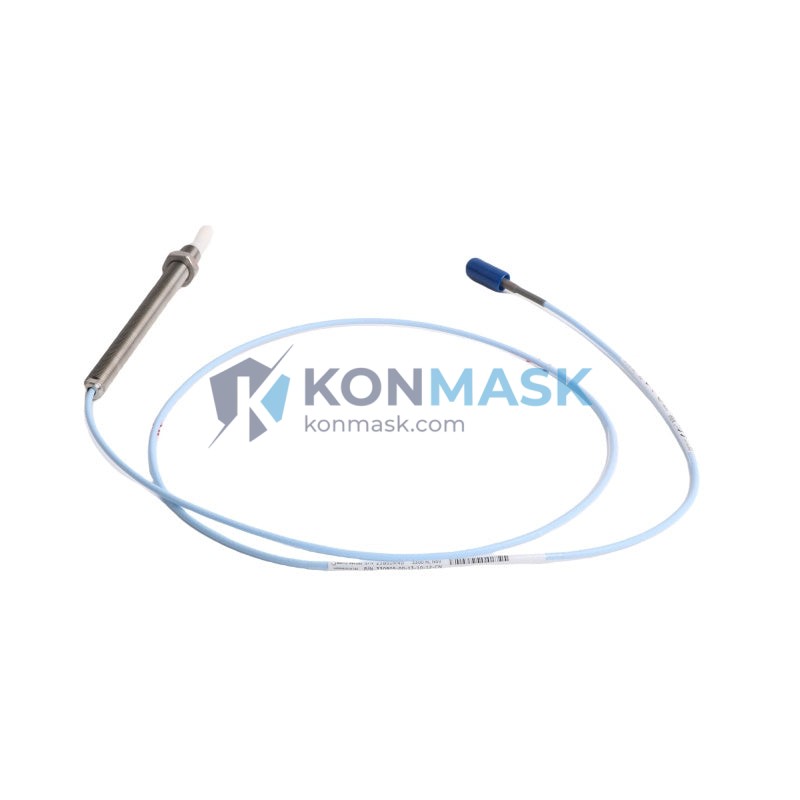

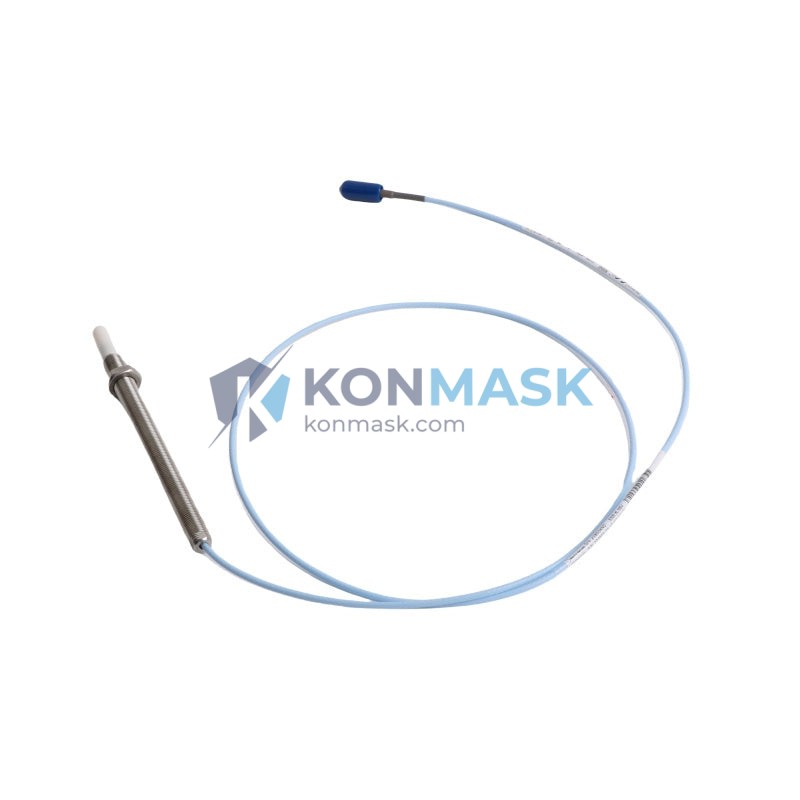

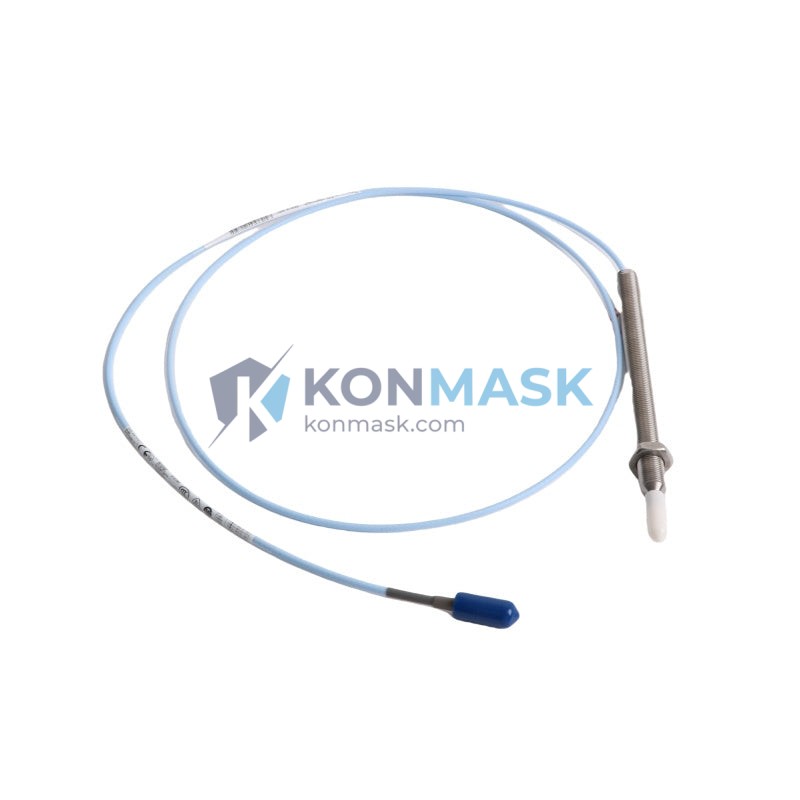

The Bently Nevada 330905-00-13-05-02-00 is a factory-calibrated eddy-current proximity probe from the 3300 NSv Series, designed for continuous non-contact vibration and position measurement on rotating machinery. Konmask.com supplies genuine and verified-compatible units with full traceability for MRO, OEM, and plant-shutdown applications.
Technical Specifications
| Part Number | 330905-00-13-05-02-00 |
| Series | Bently Nevada 3300 NSv |
| Probe Type | Eddy-Current Proximity Probe |
| Tip Diameter | 5 mm (0.197 in) |
| Cable Length | 1.3 m (5 ft) |
| Connector | 2-pin MIL-C-26482 (02) |
| Temperature Range | -35°C to +177°C |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm – 2.54 mm (10–100 mil) |
| Supply Voltage | -24 VDC (nominal) |
| Output | Voltage proportional to gap distance |
| Approvals | CE, CSA, FM (Intrinsically Safe) |
| Weight | Approx. 80 g |
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or direct replacements for the 330905-00-13-05-02-00. Always verify system configuration before substitution:
| Part Number | Tip Dia. | Cable Length | Notes |
|---|---|---|---|
| 330905-00-13-05-02-05 | 5 mm | 1.3 m | Alternate connector variant |
| 330905-00-13-10-02-00 | 5 mm | 3.0 m | Longer cable version |
| 330905-00-08-05-02-00 | 5 mm | 0.8 m | Shorter cable version |
| 330180-91-00 | 5 mm | — | 3300 XL 5mm probe (legacy gen) |
| 330730-040-00-00 | 8 mm | — | Upgrade to 8mm tip (verify driver) |
⚠️ Replacement probes must be paired with a matched extension cable and proximitor from the same 3300 NSv system to maintain calibrated output and API 670 compliance.
Why Choose the Original Model
- Factory-calibrated at 7.87 V/mm — no field recalibration required.
- Intrinsically safe (FM/CSA) for hazardous-area installations (Zone 0/1, Div. 1/2).
- NSv architecture delivers superior noise immunity in high-EMI plant environments.
- Matched system design: probe + extension cable + proximitor calibrated as a set for API 670 compliance.
- Long service life with no moving parts and hermetically sealed tip construction.
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Compressor rotor position and thrust measurement
- Pump and motor bearing vibration surveillance
- Gearbox differential expansion monitoring
- API 670 machinery protection systems
System Compatibility
The 330905-00-13-05-02-00 operates within the Bently Nevada 3300 NSv Monitoring System. Confirm compatibility with the following components before ordering:
- Extension Cable: 330130-XXXX-XX-00 series (matched length required)
- Proximitor / Driver: 3300 NSv Proximitor (e.g., 330180-X1-05)
- Monitor Cards: 3300/16 Radial Vibration Monitor, 3300/20 Thrust Position Monitor
- Rack: Bently Nevada 3300 Rack System
⚠️ Do not mix 3300 NSv probes with standard 3300 XL proximitors — the NSv system uses a different supply voltage and sensitivity curve.
Selection Guide
Use the part number structure to select the correct variant:
330905 - 00 - [Cable] - [Tip] - [Connector] - [Option]
13=1.3m 05=5mm 02=MIL-C 00=Standard
08=0.8m
10=3.0m
- 0.8 m cable (330905-00-08-05-02-00): Minimal probe-to-junction-box distance.
- 1.3 m cable (330905-00-13-05-02-00): Standard field installation — most common.
- 3.0 m cable (330905-00-13-10-02-00): Large-frame turbines with extended probe-to-rack distance.
- 8mm tip (330730 series): Higher sensitivity; requires 8mm-matched proximitor.
Quality Assurance & Sourcing
- ✅ Sourced from authorized distributors and verified MRO channels
- ✅ Each unit inspected and tested prior to shipment
- ✅ Original packaging and documentation preserved
- ✅ Traceability records available upon request
- ✅ Export compliance (ECCN / HTS) documentation available
Konmask.com specializes in industrial automation components for power generation, oil & gas, and process industries. We maintain stock of critical Bently Nevada spare parts to minimize plant downtime.
How to Order
- Confirm part number: 330905-00-13-05-02-00
- Verify matched extension cable and proximitor model numbers from your system documentation.
- Add to cart or contact us for bulk pricing and lead time.
- Provide your PO number and shipping address at checkout.
- Expedited shipping available for critical plant shutdowns.
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I use the 330905-00-13-05-02-00 with my existing 3300 XL system?
A: No. The 3300 NSv series uses a different supply voltage. Mixing NSv probes with standard 3300 XL proximitors will result in incorrect output and potential system faults.
Q: What extension cable do I need?
A: A 330130-series extension cable matched to achieve the correct total system cable length. Probe cable (1.3 m) plus extension must equal the calibrated system length in your proximitor documentation.
Q: Is this probe suitable for hazardous areas?
A: Yes. The 330905-00-13-05-02-00 carries FM and CSA intrinsic safety approvals for Class I, Division 1 & 2 hazardous locations.
Q: Can Konmask.com supply the full 3300 NSv system (probe + cable + proximitor)?
A: Yes. Contact us with your system requirements for a complete matched-set quotation.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items: typical lead time 2–4 weeks. Contact us for current availability.
