RELIANCE GV3000E-AC005-AA-DBU-RFI AC Drive Module | Replacement, Equivalent & Selection Guide

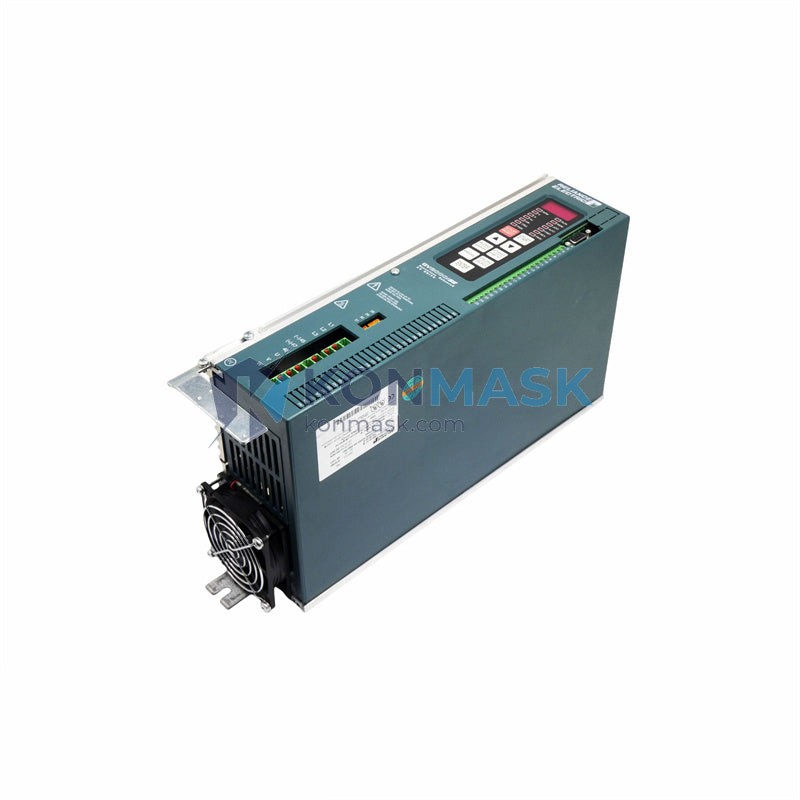

The RELIANCE GV3000E-AC005-AA-DBU-RFI is a high-performance AC variable frequency drive (VFD) module from the GV3000/SE series, designed for demanding industrial motor control applications. This page provides full technical specifications, compatible replacement options, cross-reference equivalents, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Manufacturer: Reliance Electric (Rockwell Automation)
- Series: GV3000/SE
- Part Number: GV3000E-AC005-AA-DBU-RFI
- Drive Type: AC Variable Frequency Drive (VFD)
- Output Power: 0.5 HP / 0.37 kW (nominal)
- Input Voltage: 115V AC, Single Phase
- Output Voltage: 0–115V AC, Three Phase
- Control Mode: Volts/Hz (V/Hz) open-loop vector
- Suffix -DBU: Dynamic Braking Unit included
- Suffix -RFI: Built-in RFI/EMC filter
- Enclosure: Open chassis (panel mount)
- Weight: Approx. 2.78 kg
- Communication: Compatible with GV3000/SE network options
- Standards: CE, UL listed
Compatible Replacement & Equivalent Models
The following models are commonly used as direct or functional replacements for the GV3000E-AC005-AA-DBU-RFI. Always verify voltage, power rating, and control interface before substitution.
- RELIANCE GV3000E-AC005-AA-DBU — Same drive without RFI filter; add external EMC filter if required
- RELIANCE GV3000/SE AC005 — Base model; confirm suffix options match your application
- Rockwell PowerFlex 4 (22A-A1P5N104) — Modern Allen-Bradley equivalent for 0.5 HP / 115V single-phase input
- Rockwell PowerFlex 40 (22B-A1P5N104) — Enhanced replacement with DeviceNet/EtherNet/IP option
- ABB ACS355-01E-02A4-2 — Cross-brand equivalent; 0.37 kW, 1-phase 200V input
- Siemens SINAMICS V20 (6SL3210-5BB12-5UV1) — Alternative for retrofit projects requiring IEC compliance
Note: Cross-brand replacements may require parameter re-configuration and mechanical adaptation. Contact our technical team for application-specific guidance.
Why Choose the Original Model
- Proven reliability in legacy GV3000/SE installations with decades of field history
- Drop-in compatibility — no rewiring or parameter migration for existing GV3000/SE systems
- Integrated DBU — built-in dynamic braking unit reduces panel space and BOM cost
- Integrated RFI filter — meets CE EMC requirements without external components
- OEM-grade sourcing — Konmask supplies tested, traceable units with full documentation
Typical Applications
- Conveyor and material handling systems
- Pump and fan speed control
- Packaging machinery
- HVAC and building automation retrofit
- Light industrial motor control panels
- Legacy GV3000/SE system maintenance and spare parts
System Compatibility
- Compatible PLC platforms: Allen-Bradley PLC-5, SLC 500, ControlLogix (via GV3000/SE network card)
- Network options: DeviceNet, Profibus-DP, Remote I/O (with appropriate GV3000/SE option card)
- HMI: Compatible with PanelView terminals via supported network
- Motor types: Standard NEMA/IEC induction motors, 3-phase output
- Braking: Internal DBU supports external braking resistor connection
Selection Guide
Use the table below to select the correct GV3000E variant for your application:
- Power rating: AC005 = 0.5 HP. Other ratings: AC010 (1 HP), AC020 (2 HP), AC030 (3 HP)
- Input voltage suffix: AA = 115V single-phase input. AB = 230V single-phase. Other = 3-phase
- Options suffix -DBU: Include if dynamic braking is required (motor deceleration, hoists)
- Options suffix -RFI: Include if CE EMC compliance or sensitive environments require built-in filter
- Replacement path: For new designs, consider PowerFlex 4/40 for modern network and safety features
Not sure which model fits your system? Contact our engineers with your motor nameplate data and existing drive part number.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment functional inspection and visual QC
- Original packaging and documentation preserved where available
- Traceability records maintained for industrial and regulated applications
- Warranty: 90-day replacement guarantee on all stocked units
How to Order
- Confirm part number: GV3000E-AC005-AA-DBU-RFI
- Specify quantity and required lead time
- Contact us via email or phone for pricing and availability
- Receive proforma invoice and arrange payment
- Shipment with tracking and full documentation
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace GV3000E-AC005-AA-DBU-RFI with a PowerFlex 4?
A: Yes, functionally. The PowerFlex 4 (22A-A1P5N104) covers the same power and voltage range. You will need to re-program parameters and verify terminal wiring. Network cards are not interchangeable.
Q: Is the RFI filter required for CE compliance?
A: The -RFI suffix includes an integrated EMC filter meeting CE requirements. Without it, an external filter must be added to the input line.
Q: Can the DBU be used without an external braking resistor?
A: No. The -DBU suffix provides the internal chopper circuit; an external resistor sized to your application must be connected to the BR terminals.
Q: Do you supply new or refurbished units?
A: We supply both. All units are clearly labeled and inspected. Contact us to specify your preference.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically 2–4 weeks. Contact us for current availability.
