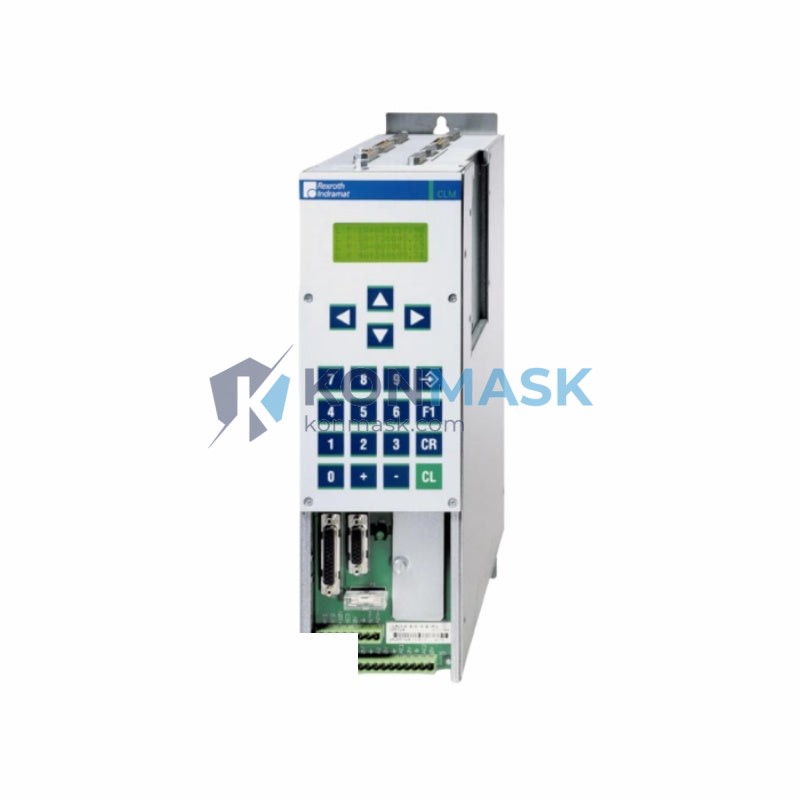

Cam Logic Motion Control Solution – Bosch Rexroth CLM01.4-N-E-4-B-FW | CLM1.4 Series
Where This Product Is Used
The Rexroth CLM01.4-N-E-4-B-FW is a dedicated cam logic motion control module engineered for high-speed, precision-critical industrial applications. Engineers specify this module across the following sectors:
- Packaging Machinery: Synchronizing multi-axis cam profiles on form-fill-seal machines, cartoners, and case packers where repeatable positioning at high cycle rates is mandatory.
- Printing & Converting: Electronic cam control for register mark tracking, web tension management, and cut-to-length operations on rotary printing presses and slitter-rewinders.
- Textile & Weaving Machines: Coordinating loom shed timing, weft insertion, and take-up roller motion with sub-millisecond synchronization.
- Automotive Assembly Lines: Press transfer systems and robotic cell coordination requiring deterministic cam-based motion profiles.
- Food & Beverage Processing: Hygienic-area conveyors and portioning equipment demanding reliable, firmware-driven motion without external PLC overhead.
- Semiconductor & Electronics Manufacturing: Pick-and-place and die-bonding equipment where electronic cam tables replace mechanical cams for rapid changeover.
Technical Specifications
- Part Number: CLM01.4-N-E-4-B-FW
- Firmware: FWA-CLM1.4-LA1-01VRS-MS
- Series: CLM1.4 (Cam Logic Module)
- Manufacturer: Bosch Rexroth AG
- Module Type: Electronic Cam Logic / Motion Control Module
- Interface: SERCOS / Analog (per variant suffix -E-4)
- Axis Count: Up to 4 axes (suffix -4)
- Communication: Fieldbus-ready; integrates with Rexroth DIAX04 / IndraDrive drive families
- Firmware Version: LA1-01VRS (Version 01, MS = Multi-axis Synchronization)
- Mounting: DIN rail / panel mount
- Weight: approx. 300 g
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Compliance: CE, UL (per Rexroth platform certification)
Why Engineers Specify This Model
- Firmware-Embedded Cam Tables: The FWA-CLM1.4-LA1-01VRS-MS firmware stores cam profiles directly on the module, eliminating PLC scan-cycle latency and enabling deterministic motion execution.
- Electronic Cam Replacement: Replaces mechanical cams with software-defined profiles — changeover in minutes, not hours, with zero mechanical wear.
- Multi-Axis Synchronization: The -MS firmware variant provides tight cross-axis synchronization, critical for flying-shear, registration, and gantry applications.
- Rexroth Ecosystem Compatibility: Designed to pair natively with Rexroth DIAX04 and IndraDrive C/M/Cs drive families, reducing integration risk.
- Proven Platform: CLM1.4 series has decades of field deployment in demanding OEM machinery worldwide.
Complete System Bill of Materials
For a complete CLM1.4-based motion control system, engineers typically specify:
- CLM01.4-N-E-4-B-FW — Cam Logic Module (this unit)
- FWA-CLM1.4-LA1-01VRS-MS — Firmware module (included / pre-loaded)
- Rexroth IndraDrive C (HCS) or IndraDrive M (HMS/HMD) — Servo drives
- Rexroth IndraDyn S (MSK) or IndraDyn T (MKD/MKE) — Servo motors
- Rexroth CSB01 or CSE02 — Control section for drive
- Rexroth RKL / RKG — Encoder and power cables
- 24 VDC power supply (SITOP or equivalent)
- SERCOS fiber optic ring cable (if SERCOS topology)
Compliance & Industry Standards
- CE Marking — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL Listed — per Bosch Rexroth platform certification
- RoHS Compliant
- ISO 13849 / EN 954-1 — Safety category compatibility (application-dependent)
- IEC 61800-3 — Adjustable speed electrical power drive systems
Quality Assurance & Sourcing
All units offered through Konmask.com are sourced from verified industrial supply channels. Each CLM01.4-N-E-4-B-FW module undergoes the following before dispatch:
- Visual and mechanical inspection against Rexroth OEM specifications
- Firmware version verification (FWA-CLM1.4-LA1-01VRS-MS confirmed)
- Functional power-on check where applicable
- Anti-static packaging with humidity indicator card
- Traceable documentation provided on request
We supply both new surplus and refurbished / tested units. Condition is clearly stated at time of quotation.
How to Source This Part
To request a quote or confirm availability for the Rexroth CLM01.4-N-E-4-B-FW / FWA-CLM1.4-LA1-01VRS-MS:
- Email: [email protected]
- Phone / WhatsApp: +0086 19859288691
- Website: https://Konmask.com
Please include your required quantity, delivery timeline, and destination country for fastest response. Bulk orders and OEM integrator pricing available.
Application-Specific FAQ
Q: Can the CLM01.4-N-E-4-B-FW replace an older CLM01.3 module?
A: In most cases yes, but firmware compatibility and drive parameter sets must be verified. Contact us for a compatibility assessment.
Q: Is the FWA-CLM1.4-LA1-01VRS-MS firmware pre-loaded on the module?
A: Yes. Units listed with this firmware designation have the firmware pre-installed. Field re-flashing is possible via Rexroth IndraWorks toolchain.
Q: What programming environment is used to configure cam profiles?
A: Cam tables are configured via Bosch Rexroth IndraWorks DS or IndraWorks MLD, using the CLM function library. IEC 61131-3 structured text is supported.
Q: Do you provide a warranty?
A: Yes. We offer a standard 90-day functional warranty on all tested units. Extended warranty options are available — contact us for details.
Q: Can you supply multiple units for a production line retrofit?
A: Yes. We maintain stock and can source multiple units. Contact us with your BOM for a consolidated quote.
