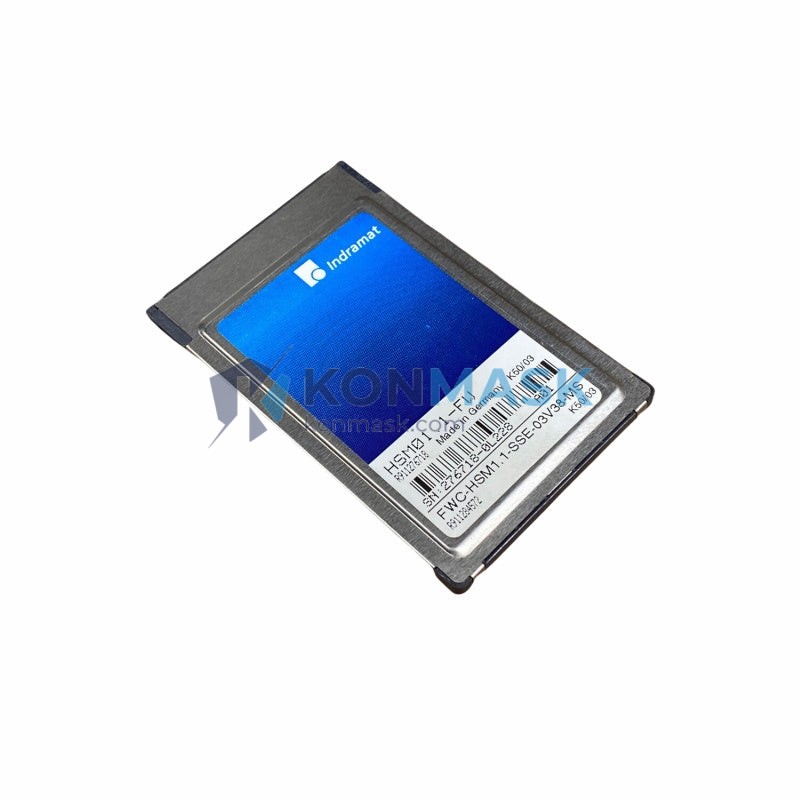

Bosch Rexroth HSM01.1-FW – Firmware Memory Card | IndraDrive Platform
Engineering Background
The Bosch Rexroth IndraDrive platform is one of the most widely deployed servo drive families in precision manufacturing, packaging, and motion-control applications worldwide. Firmware integrity is mission-critical: a corrupted or missing firmware card renders the drive inoperable and halts production. The HSM01.1-FW is the OEM-specified memory card that stores and delivers drive firmware directly to IndraDrive C, M, and Cs series units.
Product Positioning
Designed for maintenance engineers, system integrators, and OEM rebuild teams who require a verified, plug-and-play firmware storage solution. The HSM01.1-FW eliminates the need for laptop-based firmware flashing during field replacement, reducing drive commissioning time and minimising unplanned downtime risk.
Complete Technical Specifications
| Part Number (SKU) | HSM01.1-FW |
| Manufacturer | Bosch Rexroth AG |
| Product Series | IndraDrive (HSM01 Memory Module Family) |
| Function | Firmware storage memory card for IndraDrive servo drives |
| Compatible Drive Series | IndraDrive C (HCS), IndraDrive M (HMS/HMD), IndraDrive Cs (HCS01) |
| Card Type | Proprietary Rexroth HSM memory module |
| Firmware Content | IndraDrive FW (drive operating firmware) |
| Country of Origin | Germany |
| Weight | approx. 100 g (packaged) |
| Condition | New / Surplus New / Refurbished (specify at inquiry) |
| Warranty | 12 months Konmask quality guarantee |
Proven Application Environments
- CNC machining centres and multi-axis servo systems using IndraDrive C/M/Cs
- Packaging and labelling lines requiring rapid drive swap-out during maintenance windows
- Injection moulding machines with Rexroth servo axes
- Printing and converting machinery with synchronised multi-drive configurations
- Robotics and gantry systems built on IndraDrive platform
- Spare-parts kits for OEM machine builders and authorised service centres
Engineering Advantages
- Zero-laptop commissioning: Firmware is pre-loaded on the card; insert and power-on to restore drive operation.
- OEM-specified component: Exact Rexroth part — no compatibility risk from third-party alternatives.
- Firmware version traceability: Card label identifies FW revision for documentation and audit compliance.
- Hot-swap capable: Designed for field replacement without drive disassembly on supported IndraDrive variants.
- Compact form factor: Minimal footprint; stores cleanly in drive spare-parts kit.
System Architecture & Signal Flow
Within the IndraDrive architecture, the HSM01.1-FW card interfaces directly with the drive’s internal memory bus at power-up. The drive’s boot sequence reads firmware from the HSM card, loads it into volatile memory, and initialises the control and power sections. If the card is absent or corrupted, the drive enters a fault state (F8xxx class) and refuses to enable. Replacing the HSM01.1-FW with a correctly versioned card restores normal boot and parameter-loading sequences. Parameter data (MLD projects, axis parameters) is stored separately on the drive’s parameter memory card (e.g., HSM01.1-PM) and is not affected by firmware card replacement.
Sourcing & Quality Verification
- All units sourced from authorised distribution channels or verified OEM surplus inventory.
- Each card inspected for physical integrity, label legibility, and connector condition prior to dispatch.
- Firmware version confirmed and documented with shipment.
- Anti-static packaging with humidity indicator card for safe international transit.
- Full traceability documentation available on request (batch records, test reports).
Procurement Process
- Confirm compatibility: Provide your IndraDrive model number (e.g., HCS02.1E-W0054) and current firmware version if known.
- Request quotation: Contact [email protected] or use the on-site enquiry form.
- Order confirmation: Pro-forma invoice issued within 1 business day.
- Dispatch: In-stock units ship within 2–3 business days via DHL Express / FedEx International Priority.
- Documentation: Commercial invoice, packing list, and certificate of conformity included.
Technical FAQ
Q: Can I use HSM01.1-FW to upgrade my drive firmware to a newer version?
A: Only if the card contains the target firmware version. Konmask can advise on available FW versions. Firmware upgrades must be compatible with your drive hardware revision.
Q: What is the difference between HSM01.1-FW and HSM01.1-PM?
A: The FW card stores drive operating firmware; the PM card stores axis parameters and MLD application programs. Both are required for full drive operation.
Q: Will replacing the firmware card erase my axis parameters?
A: No. Parameters reside on the PM card and are unaffected by firmware card replacement.
Q: Is this card compatible with IndraDrive Mi (KSM/KMS) drives?
A: IndraDrive Mi uses a different memory architecture. Please confirm your exact drive model before ordering.
Q: What fault codes indicate a failed or missing firmware card?
A: Typical faults include F8010, F8011, and related boot-sequence errors. Consult your IndraDrive troubleshooting guide (Rexroth doc R911320190) for full fault code reference.
