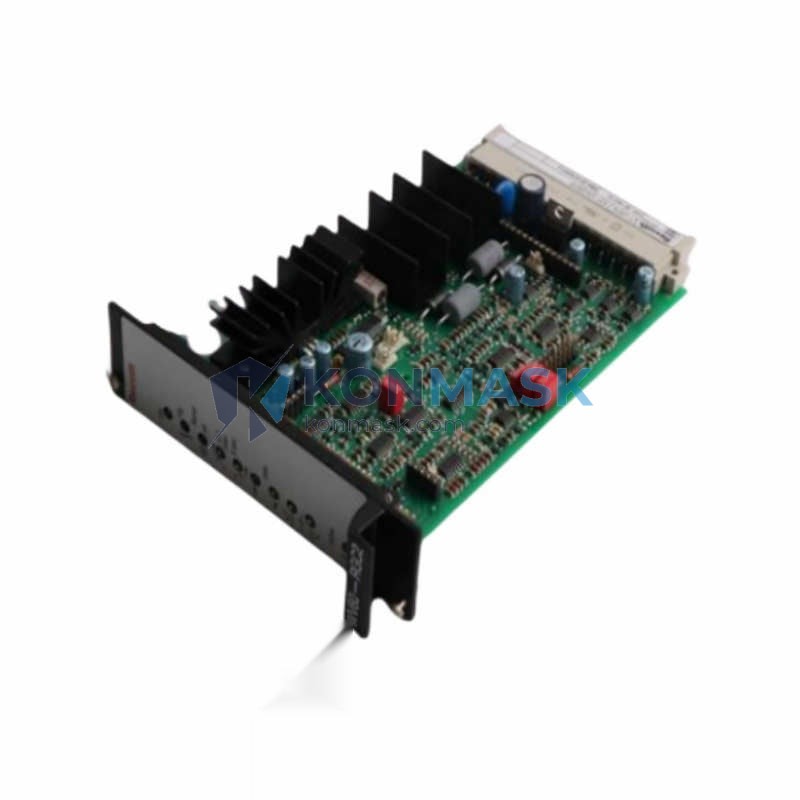

REXROTH VT-VSPA1-1-F10 Proportional Valve Amplifier – VT-VSPA1 Series
Imagine a high-speed injection molding line mid-cycle, or a steel mill’s rolling press holding critical tonnage — and the proportional valve loses its command signal. Without a precision amplifier card like the VT-VSPA1-1-F10, the valve defaults to an undefined state: pressure spikes, actuators drift, and the entire process halts. Unplanned downtime in heavy industry doesn’t just cost minutes — it costs thousands per hour. The REXROTH VT-VSPA1-1-F10 is the electronic intelligence that stands between controlled motion and catastrophic process failure.
The VT-VSPA1-1-F10 is a single-axis proportional valve amplifier card from Bosch Rexroth’s VT-VSPA1 series — a benchmark product line in industrial electrohydraulic control. Designed to drive proportional directional control valves and pressure/flow valves, this amplifier card delivers stable, repeatable analog command processing with integrated enable logic and ramp function generation. It occupies a trusted position in global hydraulic automation, deployed across press machinery, die casting, marine systems, and process industry installations worldwide.
Technical Specifications
- Manufacturer: Bosch Rexroth AG
- Part Number / SKU: VT-VSPA1-1-F10
- Series: VT-VSPA1
- Type: Proportional Valve Amplifier Card (Single Axis)
- Form Factor: Plug-in card (Euro card format)
- Supply Voltage: 24 V DC (nominal)
- Command Input: ±10 V analog signal
- Output: Current-controlled solenoid driver output
- Enable Input: Digital enable logic
- Ramp Function: Adjustable ramp-up / ramp-down via onboard potentiometers
- Compatible Valve Types: Rexroth proportional directional, pressure, and flow control valves
- Operating Temperature: 0 °C to +50 °C
- Weight: Approx. 8.8 kg (packaged)
Note: All specifications are sourced from Rexroth published datasheets. Konmask.com does not fabricate or modify technical parameters. For the latest revision datasheet, contact our technical team.
Key Features & Benefits
- Precision Analog Command Processing: Accepts ±10 V differential command signals with high linearity, ensuring accurate valve positioning across the full stroke range.
- Integrated Ramp Generator: Independent ramp-up and ramp-down adjustment prevents hydraulic shock and pressure surges during valve transitions — critical for protecting actuators and piping.
- Digital Enable Logic: Clean enable/disable switching eliminates valve hunting at startup and shutdown, improving system safety and repeatability.
- Compact Euro Card Format: Designed for standard rack-mount enclosures, simplifying integration into existing Rexroth VT-series control cabinets without additional hardware.
- Robust Industrial Design: Built to Rexroth’s industrial-grade standards for continuous-duty operation in demanding factory environments.
- Direct Solenoid Drive: Current-regulated output compensates for solenoid coil resistance variation due to temperature, maintaining consistent valve response.
Industry & Equipment Applications
- Plastics & Rubber: Injection molding machines, blow molding, extrusion lines — precise pressure and flow control during mold filling and holding phases.
- Metal Processing: Hydraulic presses, forging presses, rolling mills — force and position control under high-load conditions.
- Die Casting: Shot control and intensification phase management in aluminum and zinc die casting cells.
- Marine & Offshore: Steering gear, stabilizer fin control, hatch actuator systems requiring reliable proportional valve drive.
- Mobile Hydraulics: Industrial vehicles and cranes where smooth, proportional motion control is essential for operator safety.
- Process Industry: Chemical and petrochemical flow control loops integrating electrohydraulic actuation.
System Integration & Compatible Parts
The VT-VSPA1-1-F10 is designed to integrate seamlessly within Rexroth’s VT-series amplifier ecosystem. Compatible and commonly paired components include:
- Rexroth VT-VSPA1 series rack enclosures and power supply cards
- Rexroth 4WRPH / 4WRPEH series proportional directional control valves
- Rexroth DBEM / DREM series proportional pressure/flow valves
- Rexroth VT-HNC100 / VT-HACD axis controllers (for closed-loop upgrades)
- External PLC analog output modules (±10 V, e.g., Siemens S7, Allen-Bradley ControlLogix)
If you require assistance confirming compatibility with your existing hydraulic circuit or control architecture, our engineers are available to review your system documentation.
Our Quality Assurance Process
Every REXROTH VT-VSPA1-1-F10 unit sourced and supplied by Konmask.com undergoes a structured verification process before dispatch:
- Origin Verification: Units are traced to authorized Rexroth distribution channels or verified surplus stock with documented provenance.
- Visual & Physical Inspection: Boards are inspected for component integrity, connector condition, and absence of physical damage or unauthorized repair.
- Functional Test (where applicable): Available test-bench verification on request for critical orders.
- Secure Packaging: Anti-static packaging with moisture barrier and shock-absorbing materials for international freight.
- Documentation: Shipment includes packing list, inspection record, and available datasheet references.
How to Order
- Submit an inquiry via the Contact Us page or email support@konmask.com with your required quantity and delivery timeline.
- Our team will confirm stock availability, lead time, and provide a formal quotation within 1 business day.
- Upon PO confirmation, we arrange secure packaging and international freight (DHL / FedEx / sea freight as required).
- Tracking information and shipping documents (commercial invoice, packing list) are provided upon dispatch.
For urgent requirements or large-volume orders, please call us directly at +0086 19859288691.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC modules, DCS components, and industrial drive/control hardware — not a generalist marketplace.
- Global B2B Supply: Serving OEMs, system integrators, and MRO procurement teams across Asia, Europe, the Middle East, and the Americas.
- Technical Expertise: Our team includes engineers with hands-on experience in Rexroth hydraulic systems — we speak your language.
- Responsive Quotation: Inquiry-to-quote turnaround within 24 hours for standard parts.
- Reliable Sourcing: Established supplier network with traceability for critical automation components.
Frequently Asked Questions
Q: What is the difference between VT-VSPA1-1-F10 and VT-VSPA1-2-F10?
A: The suffix “1” and “2” typically denote single-axis and dual-axis configurations respectively within the VT-VSPA1 series. The VT-VSPA1-1-F10 is a single-axis card. Please confirm your valve circuit requirements before ordering.
Q: Can the VT-VSPA1-1-F10 be used with non-Rexroth proportional valves?
A: In principle, the card outputs a current-regulated signal compatible with many proportional solenoids. However, Rexroth designs and validates this card for use with their own valve range. Compatibility with third-party valves must be verified against solenoid coil specifications.
Q: Do you supply the matching rack enclosure and power supply?
A: Yes. We can source compatible VT-VSPA1 series rack hardware. Please include your full system requirements in your inquiry.
Q: What is the typical lead time for this part?
A: Lead time depends on current stock levels. In-stock units ship within 3–5 business days internationally. For out-of-stock items, lead time is typically 2–4 weeks. Contact us for real-time availability.
Q: Can you provide a datasheet or wiring diagram?
A: Yes. Official Rexroth documentation references are available upon request. Contact support@konmask.com.
