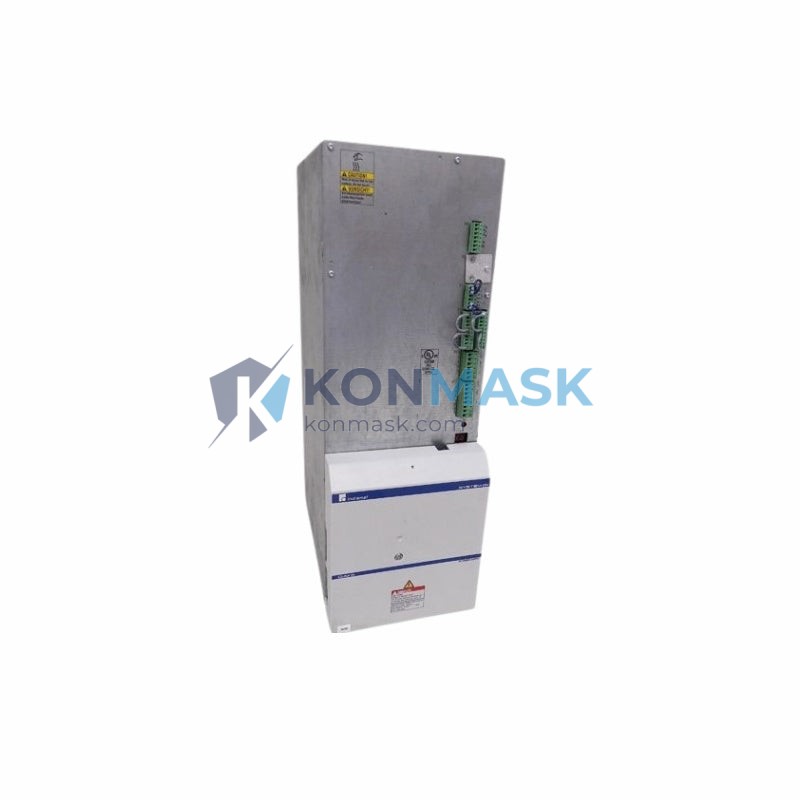

Bosch Rexroth HVR02.2-W025N – Regenerative Power Supply Unit | IndraDrive HVR Series
Engineering Background
The HVR02.2-W025N is a regenerative mains supply unit from Bosch Rexroth’s IndraDrive platform — one of the most widely deployed servo drive architectures in precision manufacturing, packaging, and process automation. Designed to feed DC bus power to multiple IndraDrive axis modules simultaneously, this unit eliminates the need for individual power supplies per axis, dramatically reducing panel footprint and wiring complexity.
Product Positioning
Targeted at OEM machine builders and system integrators operating multi-axis servo systems, the HVR02.2-W025N delivers 25 kW of continuous DC bus power with active regeneration — returning braking energy to the mains rather than dissipating it as heat. This makes it the preferred choice for high-cycle applications where energy efficiency and thermal management are critical design constraints.
Complete Technical Specifications
| Part Number | HVR02.2-W025N |
| Series | IndraDrive HVR (Regenerative Supply) |
| Manufacturer | Bosch Rexroth AG |
| Continuous Output Power | 25 kW |
| Supply Voltage | 3 × AC 380–480 V ±10% |
| Supply Frequency | 50 / 60 Hz |
| DC Bus Voltage | 750 V DC (nominal) |
| Regeneration | Active (4-quadrant operation) |
| Cooling Method | Forced air (internal fan) |
| Protection Class | IP20 |
| Ambient Temperature | 0 °C to +40 °C (operating) |
| Storage Temperature | −25 °C to +70 °C |
| Relative Humidity | ≤ 95%, non-condensing |
| Weight | approx. 8 kg |
| Country of Origin | Germany |
| Certifications | CE, UL, cUL |
| Compatible Axis Modules | IndraDrive HCS, HMD, HMS series |
| Communication Interface | SERCOS III / PROFIBUS / EtherCAT (via axis modules) |
Proven Application Environments
- CNC Machining Centers – Multi-axis coordinated motion with high regenerative braking cycles
- Packaging Machinery – High-speed pick-and-place and form-fill-seal lines requiring compact drive cabinets
- Printing & Converting – Tension-controlled web handling with frequent deceleration events
- Plastics Injection Molding – All-electric machines demanding energy recovery during clamp and ejection phases
- Semiconductor & Electronics Assembly – Cleanroom-compatible servo systems with strict thermal budgets
- Robotics & Gantry Systems – Coordinated multi-axis motion with shared DC bus architecture
Engineering Advantages
- Active Regeneration: Returns up to 100% of braking energy to the mains grid — reduces energy consumption by 20–40% vs. resistive braking in high-cycle applications
- Shared DC Bus: One HVR02.2-W025N can power multiple IndraDrive axis modules simultaneously, minimizing cabinet space and BOM cost
- Low Harmonic Distortion: Active front-end topology reduces mains THD, protecting sensitive plant equipment and meeting IEEE 519 requirements
- Integrated Diagnostics: On-board status LEDs and error code output compatible with Rexroth IndraWorks engineering software
- Hot-swap Ready: Designed for rapid field replacement without full system shutdown in supported configurations
- Wide Input Voltage Range: 380–480 V AC ±10% accommodates global mains variations without external transformers
System Architecture & Signal Flow
The HVR02.2-W025N operates as the mains interface node in an IndraDrive multi-axis topology:
- Mains Input (L1/L2/L3): 3-phase AC power enters through the line filter and EMC choke
- Active Rectifier & PWM Front-End: IGBT-based active rectifier converts AC to regulated 750 V DC bus with sinusoidal current draw
- DC Bus Distribution: Internal bus bars distribute DC power to all connected HCS/HMD/HMS axis modules via the IndraDrive power bus connector
- Regeneration Path: During motor braking, axis modules feed energy back to the DC bus; the HVR front-end inverts excess energy back to the mains
- Control Interface: The unit communicates drive status and fault conditions to the master controller via the IndraDrive system bus
Sourcing & Quality Verification
All Rexroth HVR02.2-W025N units supplied by Konmask.com are sourced through verified industrial channels and subject to the following pre-shipment checks:
- Visual inspection: housing integrity, connector condition, label legibility
- Firmware version and serial number documentation
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Certificate of conformity available on request
We do not supply counterfeit, refurbished-as-new, or grey-market units. Every shipment is traceable to its procurement source.
Procurement Process
- Confirm Part Number: Verify HVR02.2-W025N matches your IndraDrive system BOM — check firmware compatibility with your axis modules if upgrading
- Request Quote: Contact us via support@konmask.com or +0086 19859288691 for volume pricing, lead time, and export documentation
- Order Placement: Purchase directly via this product page or via PO for B2B accounts
- Shipping: DHL Express / FedEx International Priority standard; sea freight available for bulk orders. Export documentation (commercial invoice, packing list, CO) included
- After-Sales: Technical support available for installation commissioning queries; warranty claims handled within 5 business days
Technical FAQ
Q: Can the HVR02.2-W025N replace an HVR02.2-W018N in an existing system?
A: Yes, provided the cabinet has adequate space and the mains supply can support the higher rated current. The DC bus interface is identical across the HVR02.2 family.
Q: Is a line reactor or EMC filter required?
A: Bosch Rexroth recommends a matched HNL line choke and HNF mains filter for full CE compliance and optimal harmonic performance. Contact us to source the matching filter set.
Q: What IndraWorks version is required for commissioning?
A: IndraWorks DS 14V08 or later is recommended. Firmware updates can be applied via the SERCOS interface during commissioning.
Q: Can this unit operate in a 60 Hz / 480 V North American installation?
A: Yes. The HVR02.2-W025N is rated for 380–480 V AC at 50/60 Hz and carries UL/cUL certification for North American markets.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–6 week lead time depending on sourcing channel. Contact us for real-time availability.
