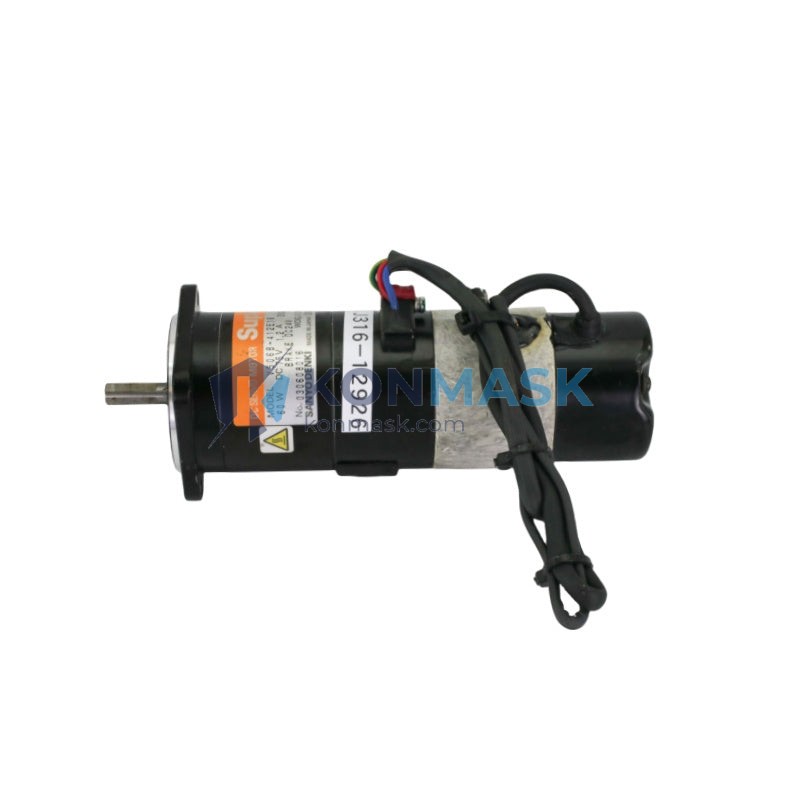

SANYO DENKI V506B-412E16 – SUPER V DC Servo Motor | SUPER V Series Platform
Engineering Background: The SANYO DENKI SUPER V series represents a mature, field-proven DC servo motor platform engineered for high-dynamic-response motion control in demanding industrial environments. Developed to meet the rigorous requirements of CNC machine tools, industrial robots, and precision automation lines, the SUPER V family delivers exceptional torque linearity, low cogging, and robust thermal management.
Product Positioning: The V506B-412E16 is a mid-frame DC servo motor optimized for axis drives requiring smooth velocity control and high positional repeatability. It is a direct fit for legacy and current SANYO DENKI servo drive systems, making it the preferred choice for OEM replacement and system upgrade projects. Cross-reference part numbers: HF10-937 / 1140-00620 / 62F / 096-15 / 211-64625.
Complete Technical Specifications
- Manufacturer: SANYO DENKI Co., Ltd.
- Series / Platform: SUPER V
- Part Number (Primary SKU): V506B-412E16
- Cross-Reference / OEM Codes: HF10-937 | 1140-00620 | 62F | 096-15 | 211-64625
- Motor Type: DC Brush Servo Motor
- Frame Size: 506 (approx. 60 mm frame class)
- Encoder / Feedback: Integrated encoder (E16 suffix — 16-bit resolution class)
- Shaft Configuration: Keyed shaft, standard flange mount
- Weight: 2.6 kg (nominal)
- Insulation Class: Class F (155 °C)
- Protection Rating: IP54 (standard; verify with nameplate)
- Country of Origin: Japan
- Condition: Genuine OEM — new surplus / refurbished available; specify on inquiry
Proven Application Environments
- CNC machining centers (X/Y/Z axis drives)
- Industrial robot joint actuators
- Semiconductor wafer handling equipment
- Precision grinding and milling machines
- Injection molding machine servo axes
- Automated assembly and pick-and-place systems
- Textile and printing machinery servo drives
Engineering Advantages
- High Torque Density: Compact frame delivers superior continuous and peak torque for its size class, reducing machine footprint.
- Low Cogging Torque: Skewed armature design minimizes velocity ripple, critical for surface-finish-sensitive machining.
- Thermal Stability: Class F insulation and optimized winding geometry sustain rated output under continuous duty cycles.
- High-Resolution Feedback: E16 encoder suffix provides fine position resolution for tight closed-loop bandwidth.
- Drop-in Compatibility: Mechanically and electrically compatible with SANYO DENKI SUPER V drive amplifiers; minimizes retrofit engineering time.
- Proven Longevity: SUPER V platform motors are documented in service for 15+ years in harsh factory environments.
System Architecture & Signal Flow
The V506B-412E16 operates within a closed-loop DC servo architecture:
- Command Input: ±10 V DC analog velocity reference or pulse-direction from CNC controller / PLC
- Drive Amplifier: SANYO DENKI SUPER V series servo amplifier (e.g., VS-4 / VS-6 family)
- Feedback Path: Encoder signals (A/B/Z differential) routed back to amplifier for velocity and position loop closure
- Power Stage: PWM-controlled H-bridge in amplifier drives motor armature; field supply separate (if applicable)
- Protection: Over-current, over-temperature, and encoder fault detection handled at amplifier level
Sourcing & Quality Verification
- All units sourced from verified industrial surplus channels, authorized distributors, or direct OEM inventory.
- Each unit undergoes visual inspection, nameplate verification, and shaft/encoder continuity check prior to shipment.
- Serialized traceability records maintained for B2B procurement compliance.
- Counterfeit-risk mitigation: SANYO DENKI holograms, date codes, and winding resistance benchmarks verified against OEM data.
- Certificate of Conformance (CoC) and test reports available upon request for qualified buyers.
Procurement Process
- Confirm Part Number: Verify V506B-412E16 against your machine’s nameplate or BOM. Cross-check with HF10-937 / 1140-00620 if needed.
- Request Quote: Contact [email protected] or call +0086 19859288691 for volume pricing, lead time, and condition specification.
- Order Confirmation: Purchase order accepted via email; proforma invoice issued within 1 business day.
- Shipping: DHL / FedEx / UPS express available; sea freight for bulk orders. Export documentation (commercial invoice, packing list, CoC) included.
- Warranty: 90-day functional warranty on all tested units; extended warranty available on request.
Technical FAQ
Q: Is V506B-412E16 compatible with my existing SANYO DENKI amplifier?
A: Yes, provided your amplifier is from the SUPER V series. Verify the amplifier model and motor code match. Contact us with your amplifier model for confirmation.
Q: What is the difference between V506B-412E16 and other V506B variants?
A: The suffix “412” denotes the winding specification (voltage/current rating), and “E16” indicates the encoder type. Different suffixes are not interchangeable without drive parameter adjustment.
Q: Can you supply a matching servo amplifier?
A: Yes. Konmask.com stocks a range of SANYO DENKI SUPER V amplifiers. Inquire for matched motor-drive sets.
Q: Do you offer repair or remanufacturing services?
A: We partner with certified servo repair facilities. Contact us for repair quotations on failed units.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–6 week lead time depending on sourcing channel.
