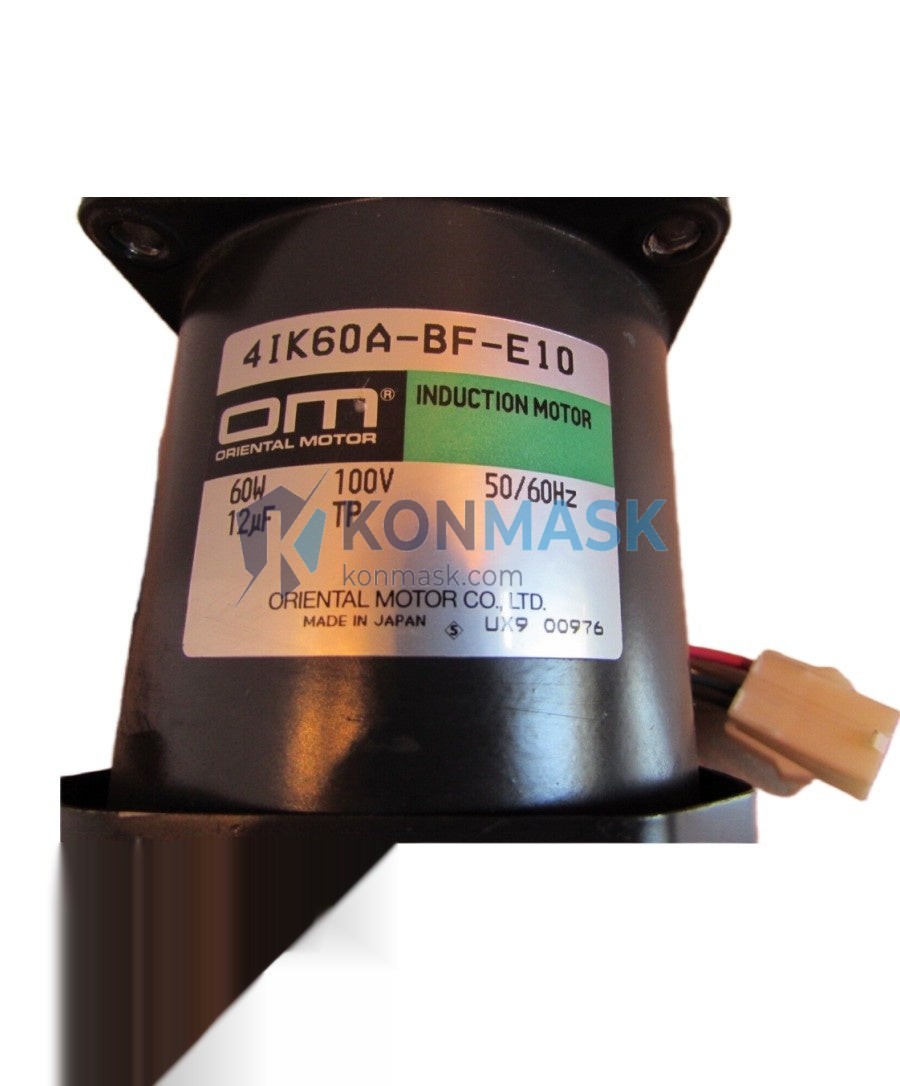

SASH 4IK60A-BF-E10 Induction Motor | Replacement, Equivalent & Selection Guide
The SASH 4IK60A-BF-E10 is a compact single-phase induction motor widely used in industrial automation, conveyor systems, and light-duty machinery. This page provides full technical specifications, verified compatible replacements, and a structured selection guide to help engineers and procurement teams source the right motor — whether original or equivalent.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 4IK60A-BF-E10 |
| Brand | SASH |
| Motor Type | Single-Phase Induction Motor |
| Output Power | 60 W |
| Voltage | 110V / 220V AC (50/60 Hz) |
| Speed (Synchronous) | 1300–1550 RPM (varies by frequency) |
| Frame Size | 4 (IEC/NEMA equivalent) |
| Shaft Diameter | 10 mm |
| Mounting | Flange (BF type) |
| Insulation Class | Class B / Class F |
| Protection Rating | IP44 |
| Weight | Approx. 2.92 kg |
| Rotation Direction | CW / CCW (reversible) |
| Capacitor | External run capacitor required |
Compatible Replacement & Equivalent Models
The following models are verified or commonly referenced as drop-in or near-equivalent replacements for the SASH 4IK60A-BF-E10. Always confirm shaft dimensions, mounting pattern, and voltage before substitution.
| Brand | Model | Power | Voltage | Notes |
|---|---|---|---|---|
| Oriental Motor | 4IK25GN-AW / 4IK60GN-AW | 60 W | 110/220V | Direct equivalent; same frame class |
| Bodine Electric | 42R-FX Series | 60 W | 115/230V | Flange mount; verify shaft dia. |
| Leeson | M1120xxx Series | 1/12 HP (~60W) | 115/230V | NEMA frame; adapter plate may be needed |
| Zhongda / ZD | 4IK60RGN-CF | 60 W | 220V | Chinese OEM equivalent; common in Asia |
| Luyang / LY | 4IK60A-AF | 60 W | 220V | Same frame; verify capacitor rating |
Note: Konmask.com stocks original SASH units and can assist with cross-reference verification. Contact us before ordering a substitute.
Why Choose the Original Model
- Guaranteed dimensional compatibility — original SASH 4IK60A-BF-E10 fits existing mounting holes and shaft couplings without modification.
- Validated performance — torque curve, thermal characteristics, and noise levels match OEM specifications.
- Warranty compliance — using original parts preserves machine warranty and CE/UL certification integrity.
- Reduced commissioning risk — no re-tuning of VFD parameters or capacitor sizing required.
- Long-term availability — Konmask.com maintains stock and can source on request for MRO and OEM customers.
Typical Applications
- Light conveyor belts and material handling lines
- Packaging machinery (labelers, sealers, feeders)
- Textile and garment equipment
- Food processing auxiliary drives
- Medical device sub-assemblies
- HVAC damper actuators and fan drives
- Laboratory and analytical instrument drives
System Compatibility
The 4IK60A-BF-E10 is compatible with the following control and drive configurations:
- Direct-on-line (DOL) start — suitable for low-inertia loads; requires external run capacitor (typically 4–6 µF).
- Speed control via external gearbox — pairs with SASH 4GN series gearheads (gear ratios 3:1 to 200:1 available).
- PLC-controlled relay switching — compatible with Siemens S7, Mitsubishi FX/Q, Omron CP/CJ, and Allen-Bradley Micro800 series via standard relay output modules.
- Soft-starter integration — compatible with standard single-phase soft starters for reduced inrush current applications.
Selection Guide
Use the following criteria to confirm the 4IK60A-BF-E10 is the correct motor for your application, or to identify the best alternative:
- Step 1 — Power requirement: Confirm load torque × speed ≤ 60 W continuous output. For higher loads, consider 4IK90A-BF or 4IK120A-BF.
- Step 2 — Voltage & frequency: Verify supply is 110V or 220V AC at 50 or 60 Hz. For 3-phase supply, consider the 4IK60A-SF equivalent.
- Step 3 — Mounting type: BF = flange mount. If round-body (foot) mount is needed, specify 4IK60A-AF instead.
- Step 4 — Shaft specification: E10 suffix = 10 mm shaft diameter. Confirm coupling bore matches. E8 (8 mm) and E12 (12 mm) variants available.
- Step 5 — Speed & gearing: Base motor runs at ~1300–1550 RPM. If output speed < 500 RPM is required, pair with a 4GN gearhead.
- Step 6 — Environment: Standard IP44 rating suits indoor, non-washdown environments. For wet or dusty areas, specify IP54 or IP65 variant.
Quality Assurance & Sourcing
- All SASH motors supplied by Konmask.com are sourced from authorized distributors or directly from the manufacturer.
- Each unit undergoes incoming inspection: nameplate verification, insulation resistance check (≥100 MΩ at 500V DC), and no-load run test.
- Traceability documentation (batch number, country of origin, test records) available on request for OEM and MRO customers.
- Lead time: in-stock units ship within 1–3 business days; non-stock items 7–21 days depending on origin.
How to Order
- Online: Add to cart directly on this page. Bulk pricing available for orders ≥ 5 units — contact us for a quote.
- Email: Send your BOM or part number to support@konmask.com for availability and lead time confirmation.
- Phone/WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Required information: Part number (4IK60A-BF-E10), quantity, required voltage (110V or 220V), and delivery address.
Replacement & Compatibility FAQ
Q: Can I use a 4IK60A-AF instead of the 4IK60A-BF-E10?
A: The AF suffix denotes a round-body (foot) mount versus the BF flange mount. Electrically identical, but mechanically incompatible without an adapter bracket.
Q: What capacitor value does the 4IK60A-BF-E10 require?
A: Typically 4–6 µF, 450V AC rated. Refer to the motor nameplate or SASH datasheet for the exact value for your supply frequency.
Q: Is the Oriental Motor 4IK60GN-AW a direct drop-in replacement?
A: In most cases yes — same frame, power, and shaft class. However, verify the shaft length and keyway specification before installation, as minor dimensional differences exist between manufacturers.
Q: Can this motor be used with a variable frequency drive (VFD)?
A: Standard induction motors of this class are not optimized for VFD operation. For variable-speed applications, consider a SASH brushless DC motor or a dedicated inverter-duty motor.
Q: Do you provide a certificate of conformity or test report?
A: Yes. COC and incoming inspection reports are available upon request for orders ≥ 1 unit. Contact support@konmask.com.
