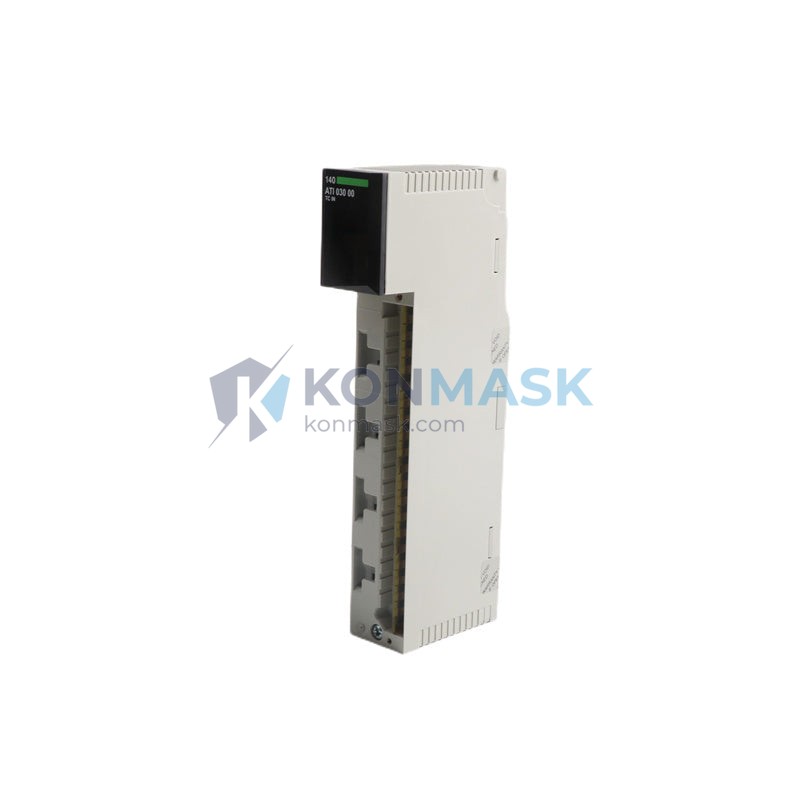

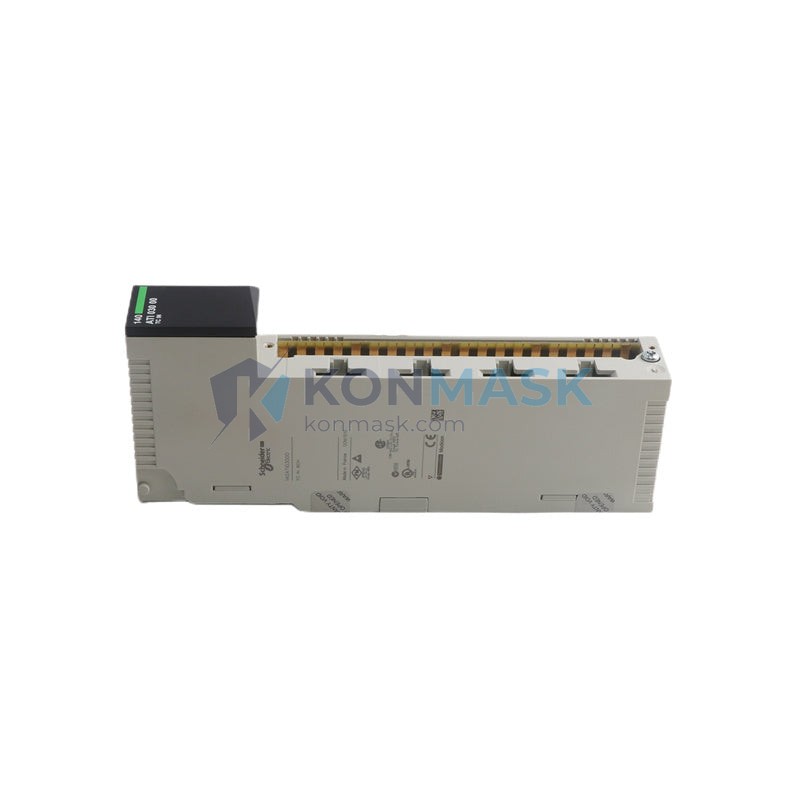

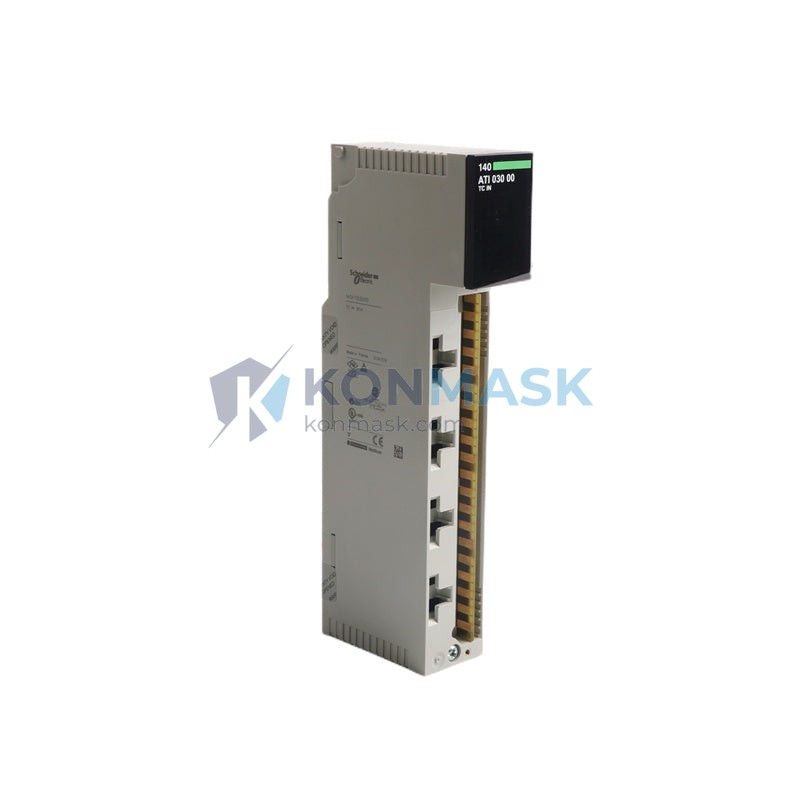

Schneider 140ATI03000 – 8-Channel Analog Input Module | Modicon Quantum Series
Engineering Background: The Modicon Quantum platform is Schneider Electric’s flagship high-availability PLC architecture, deployed across mission-critical infrastructure in petrochemical refining, power generation, and municipal water treatment. Within this architecture, the 140ATI03000 serves as the primary analog signal acquisition layer — converting field-level process variables (pressure, temperature, flow, level) into digital values that the CPU processes for closed-loop control. Its role is foundational: without accurate analog input, PID loops, alarm thresholds, and safety interlocks cannot function reliably.
Product Positioning: The 140ATI03000 is an 8-channel, non-isolated analog input module supporting both voltage (±10 V) and current (4–20 mA) signal types on a per-channel basis. It occupies a distinct position in the Quantum I/O lineup between the 4-channel 140AII33000 (isolated, high-precision) and the 16-channel 140AVI03000 (voltage-only). The 140ATI03000 is the preferred choice when channel density, mixed signal compatibility, and cost-per-point are the governing constraints — and when the application does not require channel-to-channel galvanic isolation.
Complete Technical Specifications
Electrical
- Number of Channels: 8 (configurable per channel)
- Input Signal Types: ±10 V (voltage) / 4–20 mA (current)
- Input Impedance (Voltage): ≥ 1 MΩ
- Input Impedance (Current): 250 Ω (internal shunt)
- Resolution: 12-bit (1 in 4096)
- Accuracy: ±0.1% of full scale at 25 °C
- Conversion Time: ≤ 10 ms per channel (all 8 channels)
- Bus Power Consumption: 800 mA @ 5 VDC (from backplane)
- Field Power: 24 VDC ± 10% (external, for transmitter loop supply)
- Overvoltage Protection: ±30 V continuous on voltage inputs
Mechanical
- Form Factor: Single-slot Quantum I/O module
- Connector: 40-pin removable terminal block (included)
- Dimensions (H × W × D): 130 × 30 × 120 mm (approx.)
- Weight: 320 g
- Mounting: Quantum backplane (local or remote drop)
Environmental
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 60068-2-6 (10–150 Hz, 1 g)
- Shock: IEC 60068-2-27 (15 g, 11 ms)
- Pollution Degree: 2
- Altitude: Up to 2000 m
Certifications
- IEC 61131-2 (Programmable Controllers — Equipment Requirements)
- CE Marking (EMC Directive 2014/30/EU)
- UL Listed (UL 508)
- CSA Certified
- RoHS Compliant
Data source: Schneider Electric 140ATI03000 Instruction Sheet (Ref. 31003950), Modicon Quantum Hardware Reference Manual (840 USE 100 00).
Proven Application Environments
- Petrochemical Refining — Crude distillation columns | Continuous 4–20 mA acquisition from pressure transmitters and thermocouple signal conditioners under 24/7 uninterrupted operation
- Power Generation — Gas turbine control panels | Monitoring of exhaust temperature and fuel flow via ±10 V outputs from signal converters, with sub-10 ms scan cycle requirements
- Municipal Water Treatment — Pump station SCADA systems | Multi-point pH, dissolved oxygen, and flow measurement using mixed voltage/current transmitters on a single module
- Offshore Oil & Gas — Wellhead control units | Operation in high-humidity, salt-laden environments within pressurized enclosures meeting IEC 60529 IP54 cabinet ratings
- Chemical Processing — Reactor temperature control loops | Closed-loop PID feedback using 4–20 mA RTD transmitters, where ±0.1% accuracy directly impacts product yield
- Pulp & Paper — Digester pressure management | High-channel-density analog acquisition replacing multiple single-channel modules to reduce backplane slot consumption
Engineering Advantages
- For mixed-signal field installations, this analog input module accepts both voltage and current inputs on a per-channel basis, because the signal type is software-configured via Unity Pro/Control Expert — eliminating the need for separate modules or external signal converters.
- For high-throughput scan cycles, this module delivers all 8 channels within ≤ 10 ms total conversion time, because the internal ADC architecture processes channels sequentially without inter-channel dead time accumulation.
- For maintenance-intensive environments, this module uses a removable 40-pin terminal block, because field wiring remains connected to the terminal block during module replacement — reducing MTTR to under 5 minutes without rewiring.
- For legacy system expansions, this module is backward-compatible with all Quantum backplane generations (140 XBP series), because the backplane bus protocol has remained unchanged across the Quantum product lifecycle.
- For cost-sensitive multi-loop applications, this module delivers 8 analog points per backplane slot, because the single-slot form factor maximizes I/O density without requiring additional remote drop hardware.
- For safety-instrumented system adjacency, this module operates within the same Quantum chassis as SIL-rated safety modules (140 CPS series), because the Quantum architecture supports mixed standard and safety I/O in a single rack under IEC 61511 guidelines.
System Architecture & Signal Flow
Signal Flow: Field transmitter → Terminal block (TB1) → Per-channel input conditioning (overvoltage clamp + RC filter) → Multiplexer → 12-bit ADC → Backplane bus → Quantum CPU (140 CPU series) → Unity Pro / Control Expert application program → PID / alarm / historian output.
Compatible Modules & Reason:
- 140 CPU 651 60 / 671 60 — Hot-standby CPU pair; the 140ATI03000 is fully supported in both primary and standby racks, with automatic bumpless transfer on CPU switchover.
- 140 CRP 931 00 — RIO head adapter; enables the module to operate as a remote drop over Modbus Plus or Ethernet RIO, extending reach to field junction boxes up to 1800 m.
- 140 XBP 016 00 — 16-slot local backplane; the module occupies any I/O slot (slots 2–16), with no slot-position restrictions.
- 140 ACI 03000 — Current-only analog input module; a direct substitute when all 8 channels are confirmed 4–20 mA and channel-to-channel isolation is not required.
Substitution Conditions: The 140ATI03000 can be replaced by the 140AII33000 when channel-to-channel isolation (> 500 V) is required (e.g., ground-loop-prone field wiring). It can be replaced by the 140AVI03000 when all channels are voltage-type and 16-point density is needed. Firmware version of the CPU must be ≥ V2.3 for full diagnostic register support.
Sourcing & Quality Verification
Stock is sourced from authorized Schneider Electric distribution channels and verified surplus from decommissioned industrial projects. Each unit undergoes the following 4-step inspection process before dispatch:
- Visual Inspection — Enclosure integrity, terminal block condition, label legibility, and absence of burn marks or corrosion on the backplane connector pins.
- Part Number & Date Code Verification — Cross-referenced against Schneider Electric’s published part number matrix to confirm revision level and manufacturing date code.
- Power-On Functional Test — Module inserted into a Quantum test rack; Unity Pro diagnostic screen confirms all 8 channels report valid engineering-unit values within ±0.2% of applied reference signal.
- Packaging & ESD Protection — Wrapped in anti-static bag, placed in foam-lined carton with desiccant pack; labeled with inspection pass date and technician ID.
Available Documentation: Test report (PDF), product datasheet, CE declaration of conformity, shipping manifest with serial number, and customs HS code declaration (HS 8537.10).
Procurement Process
- Submit Inquiry — Send part number, required quantity, and delivery timeline via the contact form or email at [email protected]. Responses are issued within 24 hours on business days.
- Receive Quotation & Stock Confirmation — A formal quotation including unit price (HKD/USD), lead time, and available inspection documentation is provided. Stock availability is confirmed against live inventory before quotation issuance.
- Order Confirmation & Dispatch — Upon payment confirmation, the unit is dispatched via tracked international courier (DHL / FedEx) with full export documentation. Typical dispatch time is 1–2 business days from payment receipt.
Technical support is available for installation guidance, Unity Pro configuration assistance, and compatibility verification with existing Quantum system configurations. Contact: +0086 19859288691.
Technical FAQ
Q1: Is the 140ATI03000 compatible with the Modicon M340 or M580 platform?
No. The 140ATI03000 uses the Quantum-specific backplane bus and 40-pin connector format, which is physically and electrically incompatible with M340 (BMX) and M580 (BME) I/O racks. For M580 applications, the equivalent module is the BMXAMI0810 (8-channel analog input, mixed signal).
Q2: Can the 140ATI03000 substitute for the 140ACI03000 directly?
Yes, with configuration adjustment. The 140ACI03000 is current-input only; the 140ATI03000 supports both current and voltage. When substituting, the Unity Pro I/O configuration must be updated to reflect the new module type and channel signal assignments. No hardware wiring changes are required if all existing channels are 4–20 mA.
Q3: Does this module carry SIL certification for use in safety-instrumented systems?
The 140ATI03000 is not independently SIL-rated. It is a standard (non-safety) analog input module. For SIL 2/3 applications under IEC 61511, a dedicated safety analog input module (e.g., Schneider Triconex or the Quantum Safety series) must be used in the safety loop. The 140ATI03000 may coexist in the same chassis as safety modules but must not be used as part of the safety function itself.
