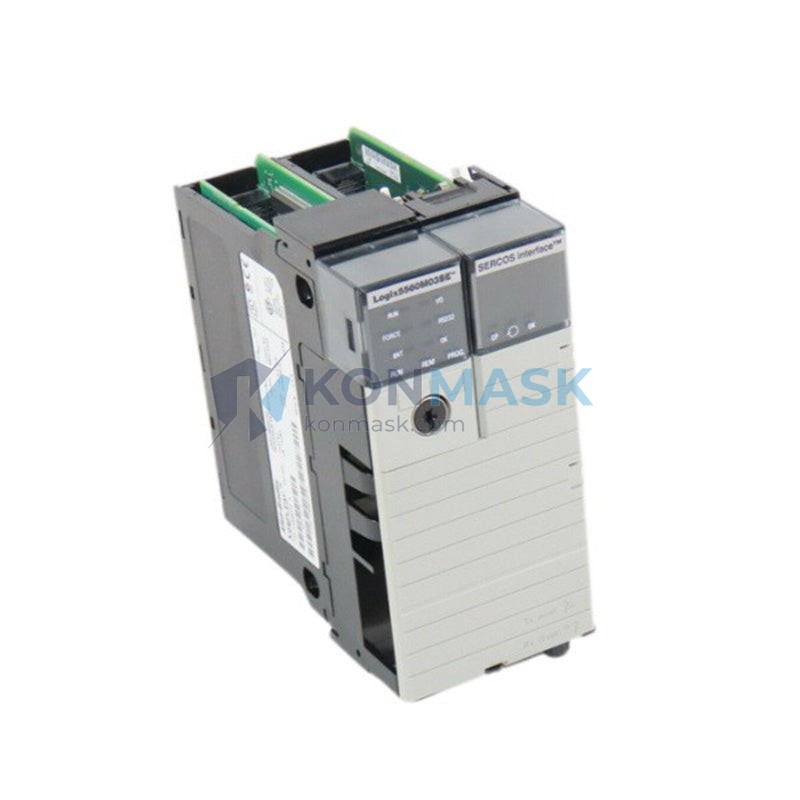

AB | 1756-L60M03SE | ControlLogix Scalable Controller Unit

Motion Control & Process Automation Solution — Allen-Bradley 1756-L60M03SE | ControlLogix L6 Series

In high-throughput manufacturing and continuous-process plants, uncoordinated motion axes and fragmented control architectures cost facilities an average of 3–8% in annual production yield. When a packaging line runs 24 axes of servo motion across three separate PLCs, synchronization drift accumulates to ±2 ms per cycle — enough to cause label misregistration, seal failures, and downstream rejects at rates exceeding 1,200 units per shift. Legacy controllers with fixed memory ceilings force engineers to split programs across chassis, multiplying network latency and maintenance overhead.

The Allen-Bradley 1756-L60M03SE eliminates this fragmentation at the architecture level. With 2 MB of user memory, native EtherNet/IP motion coordination for up to 128 axes, and an integrated SIL 2-capable safety backplane, this single controller consolidates what previously required multiple racks into one deterministic execution environment. Cycle times as low as 250 µs ensure that servo loops, process PID, and safety logic share a single time base — removing the inter-controller latency that drives yield loss on high-speed lines.

Where This Product Is Used

Automotive Body & Powertrain Assembly

• Robotic welding cells: coordinates 32+ servo axes per cell at 500 µs scan rates, meeting ANSI/RIA R15.06 safety integration requirements
• Transfer press lines: synchronizes die cushion, feed, and transfer axes under ISO 11161 multi-machine safety zones
• Engine assembly torque stations: manages CIP Motion profiles with ±0.01° repeatability across 12 simultaneous spindles

Food & Beverage Processing

• High-speed form-fill-seal packaging: 128-axis coordinated motion at up to 1,200 packs/min, IP69K wash-down environment compatibility via remote I/O
• Pasteurization and CIP skids: integrates PID temperature loops with safety PLR d/SIL 2 valve interlocks per EHEDG and 3-A Sanitary Standards
• Checkweigher and rejection systems: sub-millisecond I/O response for dynamic weight-based divert gates at 600 products/min

Oil & Gas Upstream/Midstream

• Wellhead control panels: redundant EtherNet/IP ring topology with DLR for <3 ms failover, meeting API 14C surface safety system requirements
• Compressor station automation: coordinates anti-surge, load-sharing, and ESD logic in a single controller per IEC 61511 SIL 2 functional safety
• Pipeline SCADA RTU replacement: 2 MB memory accommodates full pipeline segment logic with historian integration via CIP Data Table Access

Semiconductor & Electronics Manufacturing

• Wafer handling robots: 6-axis coordinated motion with <1 µm positional repeatability, cleanroom-compatible chassis in SEMI S2/S8 environments
• Automated optical inspection (AOI) gantries: synchronized X-Y-Z motion with vision trigger outputs at 250 µs deterministic timing
• Etch and deposition chamber control: multi-loop gas flow PID with recipe management and 21 CFR Part 11-compliant audit trails

Water & Wastewater Treatment

• Pump station control: manages VFD speed references, pressure PID, and SCADA Modbus/EtherNet/IP gateway in a single rack
• Chemical dosing systems: closed-loop flow-paced dosing with SIL 2 high-level shutoff per IEC 62061 and AWWA standards
• Membrane bioreactor (MBR) plants: coordinates aeration blowers, permeate pumps, and backwash sequences with 99.7% uptime targets

Pulp, Paper & Converting

• Winder/unwinder tension control: electronic line shaft with 64 axes of virtual gearing, replacing mechanical line shafts on 2,000 m/min paper machines
• Coating and laminating lines: register control with ±0.1 mm web tracking accuracy using CIP Motion camming profiles
• Boiler and recovery furnace BMS: SIL 2 burner management per NFPA 85 with integrated flame scanner I/O modules in the same 1756 chassis

Technical Specifications

Part Number	1756-L60M03SE
Series	ControlLogix L6 (Series B)
User Memory	2 MB — accommodates full machine programs with motion, safety, and process logic without external memory cards
I/O Memory	478 KB — supports large distributed I/O trees across multiple EtherNet/IP and ControlNet networks
Communication Ports	1× USB (programming), backplane only — requires 1756-EN2T/EN3TR for EtherNet/IP network access
Motion Axes Supported	Up to 128 axes via CIP Motion over EtherNet/IP — critical for multi-axis coordinated motion applications
Minimum RPI	250 µs — enables high-speed servo loop closure and sub-millisecond I/O response for reject/divert systems
Safety Integration	SIL 2 capable via 1756-S series safety modules in same chassis — eliminates separate safety PLC hardware
Redundancy	Compatible with 1756-RM2/A redundancy module — supports hot-standby for continuous process applications
Operating Temperature	0–60 °C (32–140 °F) — suitable for panel-mounted installations in standard industrial enclosures
Power Supply	Requires 1756-PA72 or 1756-PB72 chassis power supply (sold separately)
Chassis Compatibility	All 1756 chassis (4, 7, 10, 13, 17-slot) — scalable from compact cells to full process control racks
Programming Software	Studio 5000 Logix Designer v21.00 or later
Certifications	UL, CE, C-Tick, ATEX Zone 2 (with 1756-A7LXT chassis), cULus
Weight	Approx. 0.5 kg (controller module only)

Why Engineers Specify This Model

• In high-speed packaging applications, the 1756-L60M03SE delivers 128-axis coordinated motion because its CIP Motion implementation runs servo loops at 250 µs RPI, meeting OMAC PackML and IEC 61131-3 structured programming requirements.
• In oil & gas compressor stations, the 1756-L60M03SE delivers integrated SIL 2 safety and process control in a single chassis because the 1756-S series safety modules share the same backplane, meeting IEC 61511 functional safety requirements without a separate safety PLC.
• In automotive robotic welding cells, the 1756-L60M03SE delivers deterministic multi-robot coordination because EtherNet/IP with DLR topology provides <3 ms network recovery, meeting ANSI/RIA R15.06 robot safety integration requirements.
• In semiconductor wafer handling, the 1756-L60M03SE delivers sub-micron positional repeatability because CIP Motion camming and gearing profiles execute in hardware-synchronized time bases, meeting SEMI S2 equipment safety requirements.
• In water treatment pump stations, the 1756-L60M03SE delivers unified SCADA, PID, and VFD control because 2 MB of user memory accommodates full station logic with historian integration, meeting AWWA and IEC 62061 operational standards.
• In continuous paper machine winder applications, the 1756-L60M03SE delivers electronic line shaft performance across 64 virtual axes because CIP Motion virtual gearing eliminates mechanical coupling variability, meeting ISO 9001 process consistency requirements.

Complete System Bill of Materials

• 1756-L60M03SE — This controller (CPU); the central execution engine for all logic, motion, and safety tasks
• 1756-A10 / 1756-A17 — 10 or 17-slot chassis; physical backplane housing the controller and I/O modules
• 1756-PA72 or 1756-PB72 — AC or DC chassis power supply; mandatory for backplane power to the 1756-L60M03SE
• 1756-EN2T or 1756-EN3TR — EtherNet/IP communication module; provides network connectivity for I/O, motion, and HMI communications
• 1756-IB16 / 1756-OB16E — Digital input/output modules; field device interfacing for sensors, solenoids, and discrete actuators
• 1756-IF8 / 1756-OF8 — Analog I/O modules; 4–20 mA and 0–10 V process signal interfacing for transmitters and control valves
• 1756-L61S or 1756-L62S — GuardLogix safety controller (alternative); if SIL 3 is required instead of SIL 2 via safety modules
• 1756-RM2/A — Redundancy module pair; enables hot-standby controller redundancy for continuous process uptime requirements
• Kinetix 5700 / 5500 Servo Drives — CIP Motion-compatible servo drives; communicate directly with the 1756-L60M03SE over EtherNet/IP for coordinated axis control
• PanelView Plus 7 — HMI terminal; connects via EtherNet/IP for operator interface, alarm management, and recipe control
• Studio 5000 Logix Designer License — Programming software; required for all configuration, programming, and commissioning of the 1756-L60M03SE

Compliance & Industry Standards

• UL 508 / cULus — Underwriters Laboratories; confirms suitability for industrial control panel installation in North American markets, required by most OEM machine builders
• CE Marking (EN 61131-2) — European conformity; mandatory for equipment sold or installed within the EU/EEA, covering EMC and low-voltage directive compliance
• IEC 61131-3 — International standard for PLC programming languages; ensures portability of Ladder, FBD, ST, SFC, and IL programs across compliant platforms
• IEC 61511 / IEC 62061 (SIL 2) — Functional safety for process and machinery sectors; the 1756-L60M03SE with 1756-S safety modules achieves SIL 2 without a separate safety PLC
• ATEX Zone 2 / IECEx — Hazardous area certification (with 1756-A7LXT chassis); permits installation in Zone 2 gas atmospheres for oil & gas and chemical applications
• C-Tick (RCM) — Australian/New Zealand EMC compliance; required for equipment imported and operated in the ANZ market
• ODVA EtherNet/IP Conformance — Open DeviceNet Vendors Association; guarantees interoperability with any ODVA-certified EtherNet/IP device, protecting multi-vendor system investments

Quality Assurance & Sourcing

Sourcing Channels: Konmask.com sources the 1756-L60M03SE exclusively through authorized Allen-Bradley distributors, certified surplus channels with full traceability, and factory-refurbished stock carrying Rockwell Automation’s own warranty reinstatement documentation.

4-Step Inspection Process:

1. Visual & Physical Inspection — Enclosure integrity, label authenticity, connector pin condition, and firmware revision label verification against Rockwell Automation’s published revision history
2. Functional Power-On Test — Controller is powered in a 1756 chassis, Studio 5000 connection established, and self-diagnostic routines (Major/Minor Fault registers) confirmed clear
3. Memory & I/O Backplane Test — Full 2 MB user memory write/read cycle and backplane communication test with representative I/O modules to confirm slot addressing integrity
4. EtherNet/IP Network Validation — Controller connected to test network; CIP identity object queried, firmware version confirmed, and motion axis configuration test executed

Available Documentation: Certificate of conformance, inspection report, firmware revision record, original packaging photos, and Rockwell Automation product lifecycle status confirmation upon request.

How to Source This Part

1. Submit Your Requirement — Contact us via the product page inquiry form or email support@konmask.com with your part number (1756-L60M03SE), required quantity, and delivery timeline. We respond within 24 business hours with availability and pricing.
2. Review & Confirm — We provide a formal quotation with lead time, inspection documentation summary, and shipping options. For urgent plant-down situations, expedited air freight is available from Hong Kong stock.
3. Order & Ship — Payment confirmed → same-day or next-business-day dispatch from our Hong Kong warehouse. Global shipping via DHL Express, FedEx International Priority, or customer-nominated freight forwarder. Export documentation (commercial invoice, packing list, COO) included as standard.

📞 +0086 19859288691  |  ✉️ support@konmask.com  |  24-hour response guarantee on all technical and commercial inquiries.

Application-Specific FAQ

Q: Can the 1756-L60M03SE handle both motion control and process PID in the same controller for a packaging line application?
A: Yes. The 1756-L60M03SE executes CIP Motion servo loops (down to 250 µs RPI) and standard PID function blocks within the same Logix task structure. On packaging lines, this means form-fill-seal servo axes and temperature/pressure PID loops for sealing jaws share a single deterministic time base — eliminating the inter-controller communication latency that causes seal quality variation at speeds above 600 packs/min.

Q: Is the 1756-L60M03SE suitable for SIL 2 safety applications in oil & gas compressor station automation?
A: The 1756-L60M03SE itself is a standard (non-safety) controller, but when paired with 1756-IB16S/OB16S safety I/O modules in the same chassis, the system achieves SIL 2 per IEC 61511 for process safety applications. For compressor ESD and anti-surge applications requiring SIL 2, this architecture is widely deployed and TÜV-assessed. If SIL 3 is required, the GuardLogix 1756-L61S/L62S platform should be specified instead.

Q: What is the maximum number of servo axes this controller can coordinate in an automotive assembly line application, and what network infrastructure is required?
A: The 1756-L60M03SE supports up to 128 CIP Motion axes coordinated over EtherNet/IP. For an automotive body shop with 128 axes, Rockwell Automation recommends a dedicated motion EtherNet/IP network (separate from the plant network) using managed switches with IGMP snooping enabled. A 1756-EN2T or 1756-EN3TR module in the same chassis provides the EtherNet/IP port; the controller itself does not have an onboard Ethernet port.

---
