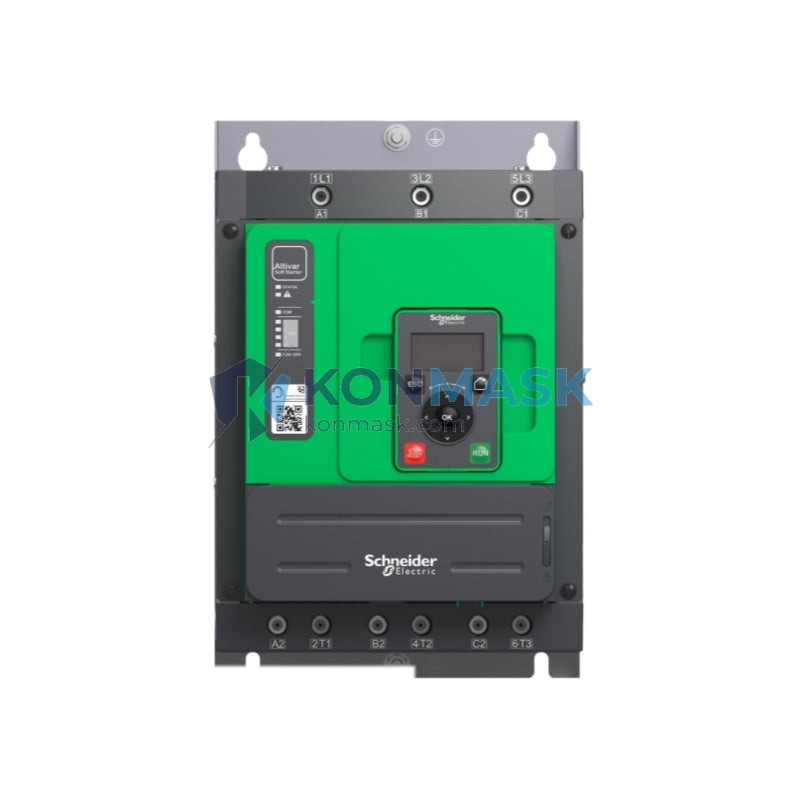

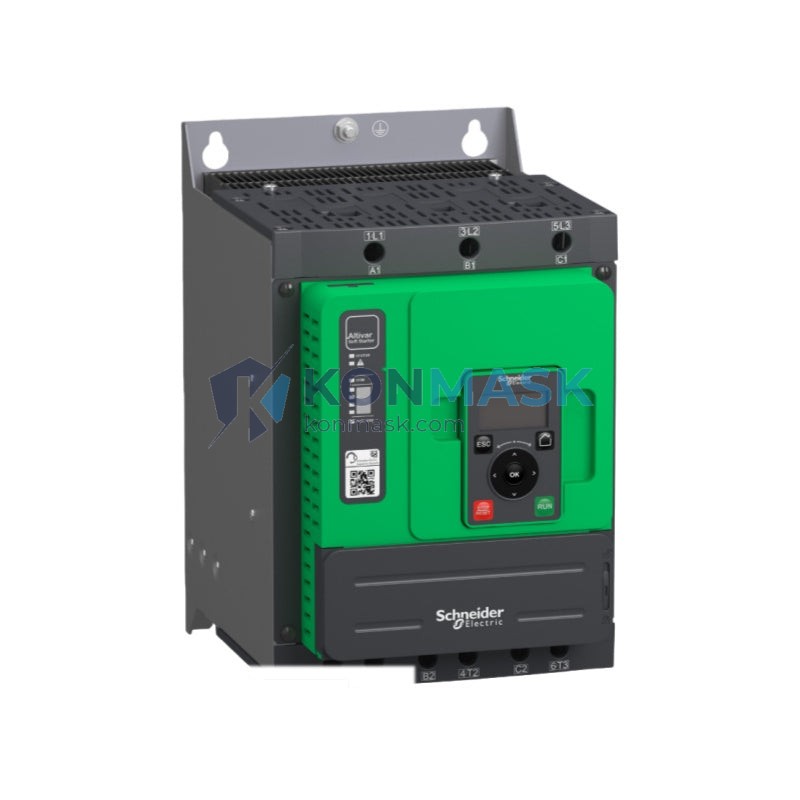

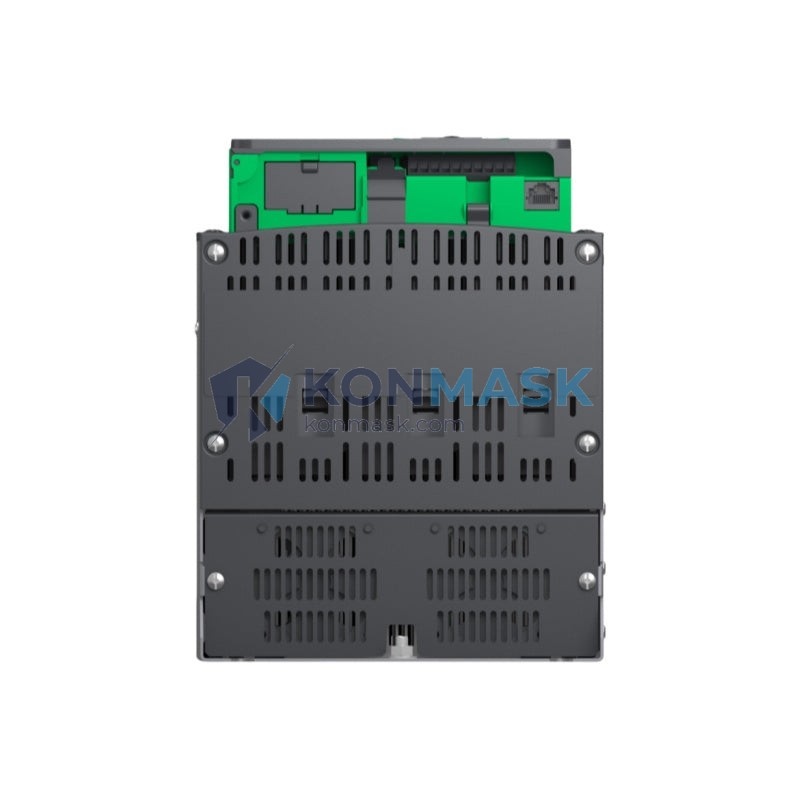

Schneider Electric ATS480D62Y Soft Starter 30kW 62A – Altivar Soft Starter Series
When a large induction motor starts across-the-line, the resulting inrush current — often 6 to 8 times the rated full-load current — sends shockwaves through your electrical infrastructure. Mechanical couplings slam, conveyor belts jerk, pump systems experience water hammer, and switchgear contacts erode prematurely. Without a properly rated soft starter, unplanned downtime becomes a recurring cost, and motor replacement cycles shorten dramatically. The Schneider Electric ATS480D62Y eliminates these failure modes by delivering precisely controlled voltage ramp-up, protecting both the motor and the driven load from the moment of energization.
The ATS480D62Y belongs to Schneider Electric’s Altivar ATS480 series — the flagship soft starter line engineered for demanding industrial environments. Rated at 30kW / 62A for standard applications (380–480V AC, 3-phase), this model occupies the mid-range power tier of the ATS480 family, making it the preferred choice for pumps, compressors, fans, conveyors, and mixers in process industries worldwide. The ATS480 series is recognized globally for its embedded bypass contactor, advanced motor protection algorithms, and seamless integration with Schneider’s EcoStruxure automation architecture — a combination that has made it a benchmark product in the industrial soft starter market.
Technical Specifications
- Model / SKU: ATS480D62Y
- Brand: Schneider Electric
- Series: Altivar ATS480
- Motor Power (400V): 30 kW
- Rated Current: 62 A
- Supply Voltage: 380–480 V AC, 3-phase, 50/60 Hz
- Control Voltage: 110–230 V AC (external control circuit)
- Starting Torque Control: Voltage ramp / current limiting / torque control
- Embedded Bypass Contactor: Yes (reduces heat dissipation in run mode)
- Communication: Modbus RTU (standard); optional fieldbus modules (PROFIBUS, DeviceNet, EtherNet/IP)
- Protection Degree: IP20 (panel mounting)
- Ambient Temperature: -10°C to +60°C (with derating above 40°C)
- Standards: IEC/EN 60947-4-2, UL, CE
- Weight: Approx. 8.3 kg
Key Features & Benefits
- Embedded Bypass Contactor: Eliminates thyristor heat losses during steady-state operation, reducing panel cooling requirements and extending device lifespan.
- Advanced Motor Protection: Built-in thermal overload, phase loss, phase imbalance, under/overvoltage, and locked rotor protection — reducing the need for external relay modules.
- Smooth Start & Stop: Configurable voltage ramp and current limit functions prevent mechanical shock on couplings, belts, and gearboxes.
- Energy Optimization: Motor energy saver function reduces magnetizing current at partial load, delivering measurable energy savings on lightly loaded motors.
- Compact Footprint: Space-efficient design simplifies panel layout in retrofit and new-build projects.
- EcoStruxure Ready: Native Modbus RTU and optional fieldbus cards enable integration into Schneider’s EcoStruxure Plant and Machine architectures.
- Intuitive HMI: Integrated display with plain-text diagnostics accelerates commissioning and fault diagnosis.
Industry & Equipment Applications
- Water & Wastewater: Centrifugal pumps, submersible pumps, blowers — eliminates water hammer and reduces pipe stress.
- Oil & Gas: Compressors, cooling fans, and transfer pumps in upstream and midstream facilities.
- Mining & Minerals: Conveyor drives, crushers, and ventilation fans requiring controlled acceleration.
- HVAC: Large air handling units, chiller compressors, and cooling tower fans.
- Food & Beverage: Mixers, agitators, and conveyor systems where gentle starting protects product integrity.
- Marine & Offshore: Deck machinery and auxiliary motor drives requiring compact, robust starters.
- General Manufacturing: Any 30kW induction motor application where reducing mechanical and electrical stress is a priority.
System Integration & Compatible Parts
The ATS480D62Y is designed to operate within a broader Schneider Electric automation ecosystem. Compatible and commonly paired components include:
- Communication Modules: VW3A3720 (PROFIBUS DP), VW3A3721 (DeviceNet), VW3A3722 (EtherNet/IP)
- Remote Keypad: VW3A1101 (remote display and programming terminal)
- Upstream Protection: Schneider GV2 / GV3 motor circuit breakers, iC60 MCBs
- PLC Integration: Modicon M221, M241, M340, M580 via Modbus RTU or optional fieldbus
- SCADA / EcoStruxure: EcoStruxure Machine Expert, EcoStruxure Power Monitoring Expert
If you require a complete motor control solution or need help selecting compatible upstream and downstream components, our engineering team is available to assist.
Our Quality Assurance Process
At Konmask.com, every unit of the ATS480D62Y undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: Products are sourced exclusively from authorized distributors and verified supply chains to ensure authenticity.
- Visual & Physical Inspection: Each unit is inspected for label integrity, housing condition, connector completeness, and correct model identification.
- Documentation Check: Serial numbers are cross-referenced against manufacturer records where applicable.
- Secure Packaging: Anti-static packaging with shock-absorbing materials protects units during international transit.
- Traceability: Full order and shipment records are maintained for post-sale support and warranty claims.
How to Order
- Submit your inquiry via the Contact / Request a Quote form on this page, specifying quantity and required delivery timeline.
- Our technical sales team will confirm availability, lead time, and provide a formal quotation within 1 business day.
- Upon order confirmation, we arrange secure packaging and international shipping via DHL, FedEx, or UPS — with full tracking provided.
- For bulk orders or long-term supply agreements, please contact us directly at [email protected] to discuss pricing and scheduling.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control components — PLCs, drives, soft starters, HMIs, and automation hardware from leading global brands.
- Global Shipping: We ship to over 80 countries with reliable international logistics partners and full export documentation support.
- Technical Expertise: Our team includes experienced automation engineers who can advise on product selection, compatibility, and system integration.
- Responsive Support: Fast response to inquiries, with dedicated after-sales support for every order.
- Competitive Pricing: Direct sourcing relationships allow us to offer competitive pricing on genuine products.
Frequently Asked Questions
- Q: What is the difference between ATS480D62Y and ATS480D62N?
- A: The suffix “Y” indicates the unit includes an embedded bypass contactor, while “N” variants typically do not. The bypass contactor reduces heat dissipation during normal run mode, improving efficiency and panel thermal management.
- Q: Can the ATS480D62Y be used in inside-delta (3-wire) connection?
- A: Yes. The ATS480 series supports inside-delta connection, which allows the soft starter to control a motor rated up to 52kW (at 400V) when wired in this configuration, effectively extending the power range.
- Q: What communication protocols does the ATS480D62Y support?
- A: The standard unit includes Modbus RTU via the RJ45 port. Optional fieldbus modules (sold separately) add PROFIBUS DP, DeviceNet, EtherNet/IP, and other protocols.
- Q: Is the ATS480D62Y suitable for ATEX / hazardous area applications?
- A: The ATS480D62Y itself is rated IP20 and is not ATEX certified for direct installation in hazardous zones. However, it can control ATEX-certified motors when installed in a safe area control panel.
- Q: What is the lead time for the ATS480D62Y?
- A: Lead time varies by stock availability. Please submit an inquiry and our team will confirm current stock status and estimated delivery within 1 business day.
