Motor Control Solution – Schneider Electric LC1D12M7C | TeSys D Series

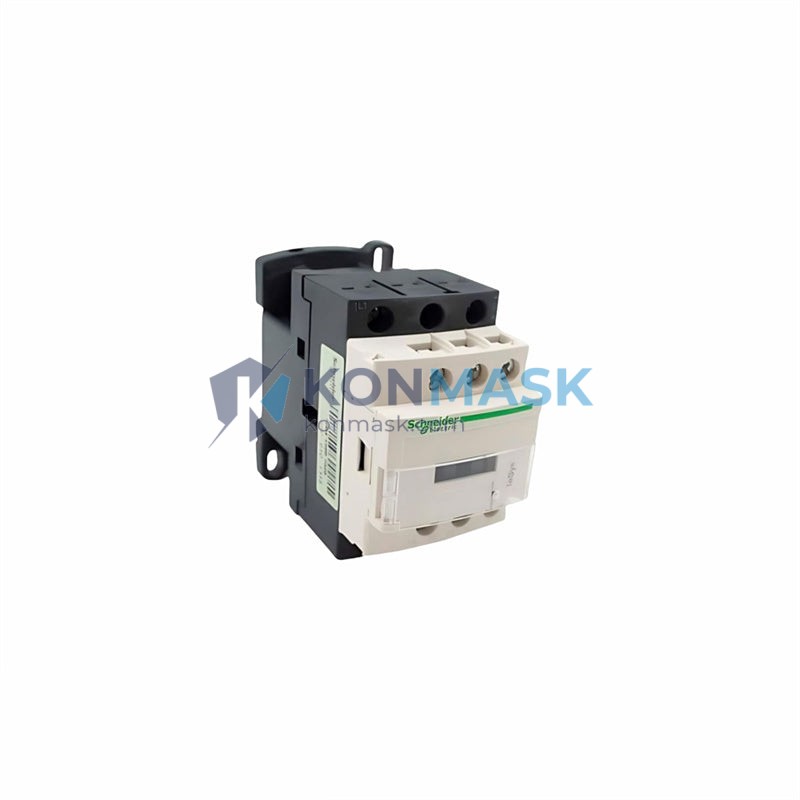

The Schneider Electric LC1D12M7C is a 3-pole AC contactor from the industry-proven TeSys D series, rated at 12A / 5.5 kW with a 220V AC coil (50–60 Hz). Engineered for reliable motor switching in demanding industrial environments, it is the go-to choice for OEM panel builders, system integrators, and MRO procurement teams worldwide.
Where This Product Is Used
The LC1D12M7C is deployed across a wide range of industrial and commercial motor control applications:
- HVAC Systems – Fan motor switching in air handling units, chillers, and rooftop units
- Pump Stations – Water supply, irrigation, and wastewater treatment pump control
- Conveyor & Material Handling – Belt conveyor drives in logistics centers and manufacturing lines
- Compressor Control – Air compressor and refrigeration compressor starters
- Machine Tools – Spindle motor control in CNC machining centers and lathes
- Building Automation – Lighting contactors and HVAC motor control panels
- Food & Beverage – Mixer, agitator, and conveyor motor switching in hygienic environments
- Packaging Machinery – Servo-assist and induction motor control in filling and sealing lines
Technical Specifications
| Parameter | Value |
|---|---|
| Model / SKU | LC1D12M7C |
| Brand | Schneider Electric |
| Series | TeSys D |
| Rated Current (AC-3) | 12 A |
| Motor Power @ 400V | 5.5 kW |
| Motor Power @ 230V | 3 kW |
| Poles | 3P (3NO) |
| Coil Voltage | 220V AC / 50–60 Hz |
| Auxiliary Contacts | 1NO + 1NC (integrated) |
| Utilization Category | AC-3, AC-4 |
| Rated Insulation Voltage | 690 V |
| Rated Impulse Voltage | 6 kV |
| Mechanical Endurance | 15 million operations |
| Electrical Endurance (AC-3) | 1 million operations |
| Mounting | 35 mm DIN rail / screw |
| Protection Degree | IP20 (open), IP40 (with cover) |
| Operating Temperature | -40°C to +60°C |
| Weight | ~1,210 g (with packaging) |
| Certifications | IEC/EN 60947-4-1, CE, UL, CSA, CCC, RoHS |
Why Engineers Specify This Model
- Proven TeSys D Platform – Over 30 years of global field reliability across millions of installations
- Tool-Free Wiring Option – Spring-clamp terminal reduces panel assembly time by up to 50%
- Compact Footprint – 45 mm wide body fits high-density panel layouts
- Reversing & Star-Delta Ready – Mechanically and electrically interlockable for reversing starters
- Wide Accessory Ecosystem – Compatible with TeSys D auxiliary contact blocks, surge suppressors, and mechanical interlocks
- Global Certifications – IEC, UL, CSA, CCC — accepted by inspectors and AHJs worldwide
Complete System Bill of Materials
Build a complete motor starter around the LC1D12M7C with these compatible TeSys D accessories:
- Overload Relay: LRD16C (9–13A) or LRD21C (12–18A)
- Auxiliary Contact Block: LADN11C (1NO+1NC side mount)
- Surge Suppressor: LAD4RC (RC circuit, 110–240V AC)
- Mechanical Interlock: LAD9R3 (for reversing starter)
- Enclosure: NSYPLM32G (Spacial S3D, 300×200×160 mm)
- Push Button: XB4BA31 (Green, NO) + XB4BA42 (Red, NC)
- Control Transformer: ABL6TS25G (250 VA, 400/230V → 220V)
Compliance & Industry Standards
- IEC/EN 60947-4-1 – Low-voltage switchgear and controlgear
- IEC/EN 60947-1 – General rules for LV switchgear
- UL 508 – Industrial control equipment (USA)
- CSA C22.2 No. 14 – Industrial control equipment (Canada)
- GB 14048.4 – Chinese national standard for contactors
- CE Marking – EU Machinery & Low-Voltage Directives
- CCC Certification – China Compulsory Certification
- RoHS Compliant – Restriction of Hazardous Substances
Quality Assurance & Sourcing
Konmask.com sources the LC1D12M7C exclusively from authorized Schneider Electric distribution channels. Every unit is:
- Verified against Schneider Electric’s authentic product database
- Inspected for original factory packaging, holographic labels, and date codes
- Tested for coil continuity and contact resistance before dispatch
- Shipped with original documentation and CE/CCC certificates on request
We maintain stock in our Xiamen warehouse with same-day dispatch for in-stock orders placed before 15:00 CST.
How to Source This Part
- Request a Quote: Email [email protected] with quantity and delivery requirements
- WhatsApp / WeChat: +0086 19859288691 for fast response
- Bulk Orders: Volume pricing available for orders of 10+ units
- Lead Time: In-stock items ship within 1 business day; ex-factory lead time 3–5 weeks for large volumes
- Export Documentation: Commercial invoice, packing list, CO, and FORM E available for cross-border shipments
Application-Specific FAQ
Q: Can the LC1D12M7C be used for star-delta starting?
A: Yes. Use three LC1D12M7C units with LAD9R3 mechanical interlocks and an LT3SA00 star-delta timer module for a complete soft-start solution.
Q: What overload relay pairs with this contactor?
A: The LRD16C (9–13A) is the standard pairing for 5.5 kW motors. For higher FLA motors, use LRD21C (12–18A).
Q: Is the LC1D12M7C suitable for capacitor bank switching?
A: No — capacitor switching requires AC-6b rated contactors. Contact us for the correct model.
Q: Can I replace a legacy LC1D12 with LC1D12M7C?
A: Yes. The LC1D12M7C is the current catalog replacement for legacy LC1D12 variants with 220V AC coils. Mounting and wiring are identical.
Q: What is the difference between LC1D09M7C and LC1D12M7C?
A: The LC1D09 is rated 9A / 4 kW; the LC1D12 is rated 12A / 5.5 kW. Both share the same TeSys D frame and accessories.
