Genuine Schneider Electric BMH1002P22A2A Servo Motor | Lexium BMH Series – Verified Source

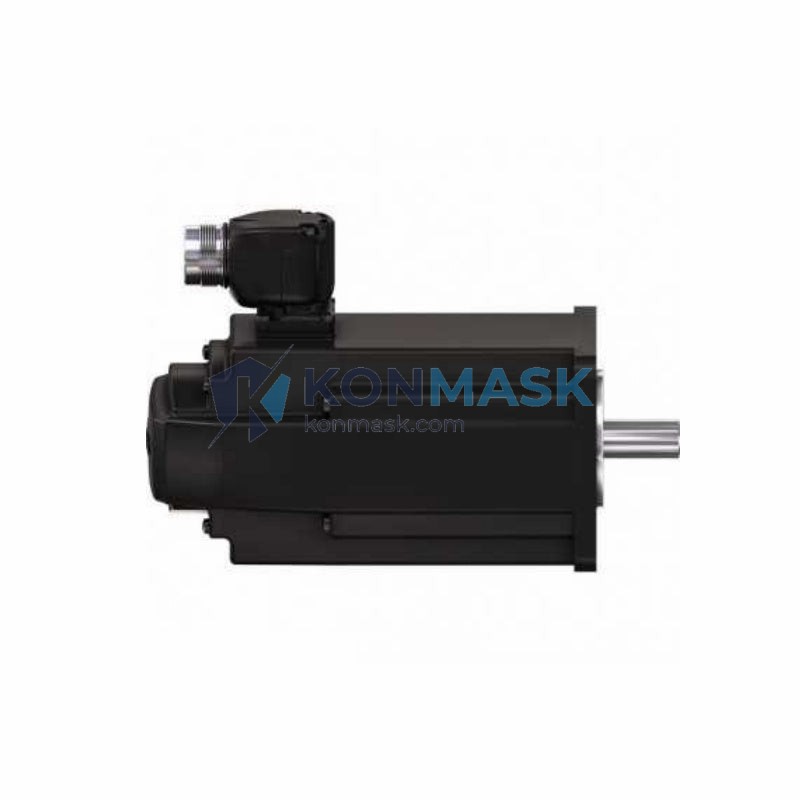

The Schneider Electric BMH1002P22A2A is a high-performance AC servo motor from the Lexium BMH series, engineered for precision motion control in demanding industrial environments. At Konmask.com, every unit is sourced through verified supply channels and undergoes multi-point inspection before shipment — giving B2B buyers the confidence they need when specifying critical automation components.
Technical Specifications
| Part Number | BMH1002P22A2A |
| Brand | Schneider Electric |
| Series | Lexium BMH |
| Motor Type | AC Brushless Servo Motor |
| Rated Power | 1.0 kW |
| Rated Speed | 3000 RPM |
| Rated Torque | 3.18 N·m |
| Peak Torque | 9.55 N·m |
| Voltage | 230 / 400 V AC |
| Encoder | Incremental / Absolute (multi-turn) |
| Shaft | Smooth shaft, no key |
| Brake | Without brake |
| Protection Rating | IP65 |
| Insulation Class | Class F |
| Mounting | Flange mount (IEC 72-1) |
| Weight | 4.92 kg |
| Country of Origin | China (CN) |
Our 4-Step Quality Verification Process
Every BMH1002P22A2A unit shipped from Konmask.com passes through our rigorous 4-step verification protocol:
- Step 1 — Source Authentication: Units are procured exclusively from authorized distributors or verified OEM surplus channels. Counterfeit-risk suppliers are blacklisted.
- Step 2 — Physical Inspection: Nameplate data, serial number format, housing finish, connector type, and shaft dimensions are cross-checked against Schneider Electric’s official product documentation.
- Step 3 — Functional Pre-check: Where applicable, encoder signal integrity and winding resistance are tested prior to packaging.
- Step 4 — Secure Packaging & Documentation: Each unit ships with original or equivalent technical documentation, and packaging is sealed to prevent transit damage.
Key Features & Benefits
- High dynamic response — ideal for high-cycle, precision positioning tasks
- Compact flange-mount design reduces machine footprint
- IP65 protection — suitable for wash-down and dusty environments
- Wide voltage compatibility (230 V / 400 V) for global deployment
- Seamless integration with Lexium 32 and Lexium 62 servo drives
- Low cogging torque for smooth low-speed operation
- Available with absolute multi-turn encoder for safe restart without homing
Typical Applications
- CNC machine tool axes and spindle positioning
- Packaging machinery — filling, sealing, and labeling lines
- Textile and printing machine web tension control
- Semiconductor and electronics assembly equipment
- Conveyor indexing and pick-and-place systems
- Injection molding clamping and ejection axes
Compatible System Components
| Servo Drive | Lexium 32A / 32M / 62 series |
| Motion Controller | Modicon M262, LMC058, PacDrive 3 |
| Power Cable | VW3M5101Rxx (BMH flange size 1) |
| Encoder Cable | VW3M8102Rxx (incremental) / VW3M8112Rxx (absolute) |
| Brake Resistor | VW3A7601 / VW3A7605 (drive-side) |
Global Sourcing & Shipping Capabilities
Konmask.com operates as a cross-border industrial component supplier serving customers across Asia, Europe, the Middle East, and the Americas. Key logistics capabilities include:
- Lead Time: In-stock units ship within 1–3 business days; sourced units typically 7–15 business days
- Shipping Methods: DHL Express, FedEx International Priority, sea freight (LCL/FCL) for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin, and customs HS code (8501.52) provided
- Minimum Order: 1 unit (no MOQ for standard orders)
- Bulk Pricing: Volume discounts available — contact us for project-based quotations
Certifications & Compliance Statement
- CE Marked — compliant with EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU
- UL Listed (where applicable to specific variants)
- RoHS compliant — no restricted hazardous substances
- Manufactured under ISO 9001:2015 quality management system
- All units supplied by Konmask.com are genuine OEM parts; we do not sell rebranded or refurbished units without explicit disclosure
How to Order
- Confirm your part number: Verify BMH1002P22A2A matches your drive and mechanical interface requirements using the selection guide below or your existing system BOM.
- Request a quote: Email support@konmask.com or use the contact form with your quantity, delivery address, and required lead time.
- Receive proforma invoice: We issue a proforma within 1 business day including unit price, shipping cost, and estimated delivery date.
- Confirm payment & ship: We accept T/T bank transfer, PayPal, and major credit cards. Shipment tracking is provided upon dispatch.
Authenticity & Trust FAQ
Q: Are these units genuine Schneider Electric products?
A: Yes. All BMH1002P22A2A units are genuine OEM parts sourced from authorized or verified surplus channels. We do not sell clones or replicas.
Q: Can you provide a certificate of authenticity?
A: We provide all available original documentation. For projects requiring formal COA, please contact us before ordering.
Q: What is your return policy for defective units?
A: Units confirmed defective on arrival (DOA) are eligible for replacement or full refund within 30 days of receipt, subject to inspection.
Q: Do you offer warranty?
A: We offer a 12-month limited warranty against manufacturing defects on all new units. Warranty terms are provided with each shipment.
Q: Can you source other Lexium BMH variants not listed on the site?
A: Yes. Contact us with your full part number and we will confirm availability and pricing within 24 hours.
