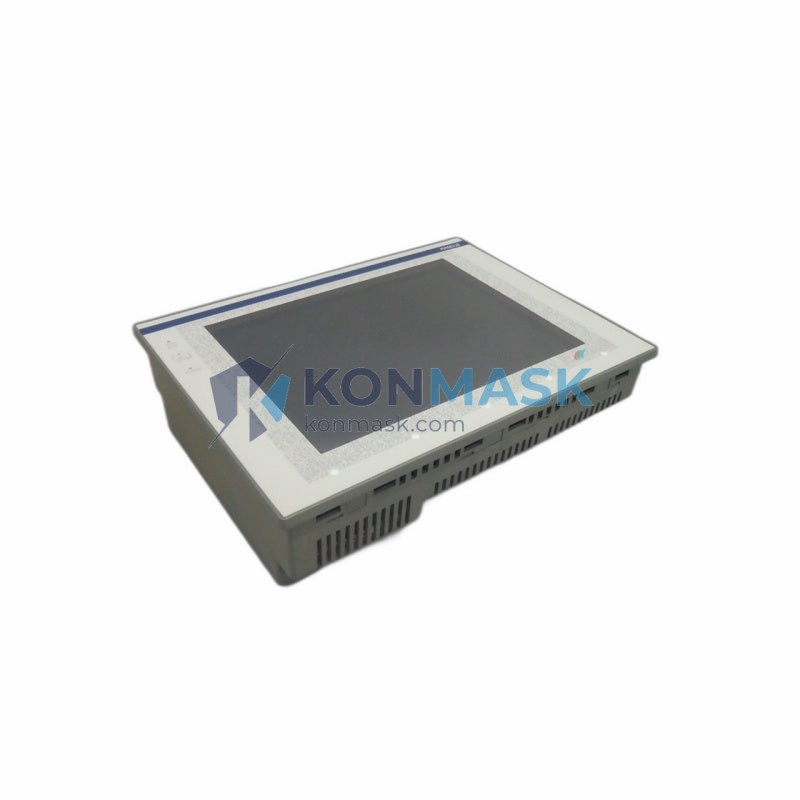

Schneider Electric XBTFC044610 – Magelis HMI Color Touch Screen Panel | Magelis XBTFC Series
Engineering Background: The Schneider Electric Magelis XBTFC series represents a purpose-built human-machine interface platform engineered for demanding industrial automation environments. Designed to integrate seamlessly with Modicon PLCs, Altivar drives, and third-party controllers via open communication protocols, the XBTFC044610 delivers reliable real-time visualization and operator control in a compact, panel-mount form factor.
Product Positioning: The XBTFC044610 is the preferred HMI choice for OEM machine builders, system integrators, and plant engineers who require a cost-effective, field-proven touch panel with robust connectivity, intuitive configuration via Vijeo Designer, and a long product lifecycle backed by Schneider Electric’s global support network.
Complete Technical Specifications
- Part Number / SKU: XBTFC044610
- Brand: Schneider Electric
- Series / Platform: Magelis XBTFC
- Display Type: 4.3″ TFT Color LCD Touch Screen
- Resolution: 480 × 272 pixels (WQVGA)
- Touch Technology: Resistive analog touch panel
- Processor: ARM Cortex-A8, 400 MHz
- Memory: 128 MB RAM / 256 MB Flash
- Operating System: Embedded Linux
- Communication Ports: 1 × RS-232/485 (COM1), 1 × USB Host, 1 × USB Device, 1 × Ethernet RJ45 (10/100 Mbps)
- Supported Protocols: Modbus RTU, Modbus TCP/IP, EtherNet/IP, CANopen, Uni-Telway
- Configuration Software: Vijeo Designer (v6.2 and above)
- Power Supply: 24 V DC (±20%), max 8 W
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: -20 °C to +70 °C
- Humidity: 10% to 90% RH (non-condensing)
- Protection Rating: IP65 (front panel)
- Mounting: Panel cut-out, rear mount
- Dimensions (W × H × D): 148 × 100 × 46 mm (approx.)
- Weight: 750 g
- Certifications: CE, UL, cUL, RoHS
- Country of Origin: France / China (varies by production batch)
Proven Application Environments
- Discrete manufacturing: assembly lines, conveyor control, robotic cell HMI
- Process industries: water treatment, HVAC, chemical dosing systems
- Energy & utilities: substation monitoring, generator control panels
- OEM machinery: packaging machines, injection molding, textile equipment
- Building automation: BMS operator terminals, access control panels
Engineering Advantages
- Open Protocol Support: Native Modbus TCP/IP and EtherNet/IP eliminate the need for protocol converters in mixed-brand installations.
- Vijeo Designer Integration: Drag-and-drop screen design with built-in symbol libraries, alarm management, trending, and recipe management — reducing engineering hours.
- IP65 Front Panel: Sealed against dust and water jets, suitable for wash-down and harsh factory floor environments.
- Compact Footprint: 4.3″ form factor fits standard DIN-rail enclosures and space-constrained machine panels.
- Long Lifecycle: Schneider Electric’s extended product lifecycle policy ensures spare part availability and firmware support for 10+ years.
- Dual USB Ports: Simplify firmware updates, project uploads, and data logging via USB flash drive — no laptop required on-site.
System Architecture & Signal Flow
The XBTFC044610 operates as the operator interface layer within a typical three-tier automation architecture:
- Field Level: Sensors, actuators, and drives communicate via I/O modules or fieldbus (CANopen, Modbus RTU).
- Control Level: Modicon M221/M241/M251 PLCs or third-party controllers exchange data with the HMI via Ethernet (Modbus TCP/IP or EtherNet/IP) or serial RS-485.
- HMI Level: XBTFC044610 reads PLC registers, displays real-time process values, and writes operator setpoints back to the controller — all within a configurable scan cycle.
Vijeo Designer’s built-in I/O scanner and tag database ensure deterministic data refresh rates suitable for process visualization and alarm response.
Sourcing & Quality Verification
- Source: Konmask.com sources XBTFC044610 units from authorized Schneider Electric distributors and verified secondary-market channels with full traceability documentation.
- Inspection: Each unit undergoes visual inspection, power-on functional test, and communication port verification prior to shipment.
- Authenticity: Serial numbers are cross-referenced against Schneider Electric’s product database. Counterfeit units are rejected at intake.
- Packaging: Ships in original or equivalent ESD-safe packaging with protective foam inserts.
- Warranty: 12-month replacement warranty against manufacturing defects.
Procurement Process
- Step 1 — Inquiry: Submit your RFQ via the product page or email [email protected] with quantity, delivery timeline, and destination.
- Step 2 — Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Step 3 — Order Confirmation: Confirm PO and payment terms (T/T, PayPal, or credit card accepted).
- Step 4 — Shipment: Units are dispatched via DHL / FedEx / UPS with full tracking. Export documentation (commercial invoice, packing list, COO) provided.
- Step 5 — After-Sales: Technical support available via email and WhatsApp. Replacement arranged within warranty period upon defect confirmation.
Technical FAQ
Q: Is the XBTFC044610 compatible with non-Schneider PLCs?
A: Yes. Via Modbus TCP/IP or Modbus RTU, the panel communicates with Siemens, Mitsubishi, Omron, and other third-party controllers. Custom drivers can be developed in Vijeo Designer.
Q: What software version is required for configuration?
A: Vijeo Designer v6.2 or later. The software is available as a free download from Schneider Electric’s website. A license key is required for full functionality.
Q: Can the display brightness be adjusted?
A: Yes. Backlight brightness is adjustable via software (0–100%) and can be set to dim automatically after a configurable idle period to extend backlight lifespan.
Q: What is the typical lead time for in-stock units?
A: In-stock units ship within 1–3 business days. For bulk orders (>10 units), please contact us for lead time confirmation.
Q: Is the unit RoHS compliant?
A: Yes. The XBTFC044610 carries CE and RoHS compliance markings, meeting EU Directive 2011/65/EU requirements for restriction of hazardous substances.
