Genuine Schneider Electric BMXDDO1602 16-Channel Discrete Output Module | Modicon M340 – Verified Source

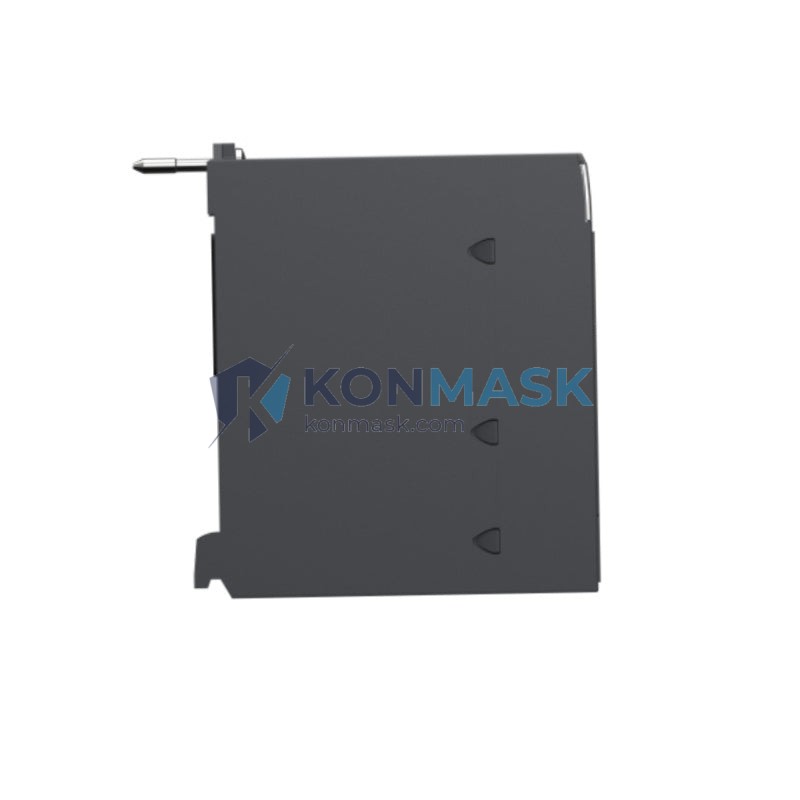

The Schneider Electric BMXDDO1602 is a 16-channel discrete (digital) output module designed for the Modicon M340 programmable logic controller platform. At Konmask.com, every unit we supply is sourced through verified industrial channels and undergoes a documented quality inspection before shipment — giving B2B buyers the confidence they need when sourcing critical automation components.
Technical Specifications
- Part Number / SKU: BMXDDO1602
- Brand: Schneider Electric
- Series: Modicon M340
- Module Type: Discrete (Digital) Output Module
- Number of Output Channels: 16
- Output Type: Transistor (solid-state) outputs
- Rated Output Voltage: 24 V DC
- Output Current per Channel: 0.1 A
- Total Output Current: 1.6 A
- Protection: Short-circuit and overload protection per channel
- Backplane Bus: Modicon M340 X Bus
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −25 °C to +70 °C
- Degree of Protection: IP20
- Standards: IEC 61131-2, CE, UL, cUL
- Country of Origin: China (CN)
- Weight: ~500 g
Our 4-Step Quality Verification Process
- Step 1 – Source Verification: All units are procured from authorized distributors or certified secondary-market suppliers with full traceability documentation.
- Step 2 – Visual & Physical Inspection: Each module is inspected for label integrity, housing condition, connector pin alignment, and absence of counterfeit markings.
- Step 3 – Functional Bench Test: Where applicable, modules are powered and tested for basic I/O response prior to packaging.
- Step 4 – Secure Packaging: Units are packed in anti-static bags with foam cushioning and shipped with a Konmask inspection record card.
Key Features & Benefits
- 16 independent solid-state transistor output channels — ideal for high-cycle switching applications
- Per-channel short-circuit protection reduces system downtime risk
- Direct plug-in compatibility with Modicon M340 racks — no additional adapters required
- Compact form factor maximizes rack density in space-constrained control panels
- LED status indicators on each channel for rapid field diagnostics
- Fully compliant with IEC 61131-2 for international project acceptance
Typical Applications
- Machine tool and CNC control systems
- Conveyor and material handling automation
- Packaging line control and sequencing
- Water treatment and utility plant automation
- Building management and HVAC control
- Oil & gas process control panels
Compatible System Components
- Racks: BMX XBP 0400 / 0600 / 0800 / 1200 (Modicon M340 backplane racks)
- CPUs: BMXP341000 / BMXP342000 / BMXP3420302 and other M340 processors
- Power Supplies: BMXCPS2000 / BMXCPS3500 series
- Discrete Input Modules: BMXDDI1602 / BMXDDI3202K (complementary I/O)
- Programming Software: Unity Pro / EcoStruxure Control Expert
Global Sourcing & Shipping Capabilities
Konmask.com ships the BMXDDO1602 worldwide from our warehouse in China. We support the following logistics options:
- Express (DHL / FedEx / UPS): 3–7 business days to most destinations
- Economy Air Freight: 7–15 business days
- Sea Freight (LCL/FCL): Available for bulk orders upon request
- Export Documentation: Commercial invoice, packing list, and certificate of origin provided as standard
- Customs HS Code: 8537.10 (Boards, panels, consoles for electric control)
Certifications & Compliance Statement
The Schneider Electric BMXDDO1602 carries the following certifications as issued by the original manufacturer:
- CE Marking (EU Low Voltage Directive & EMC Directive)
- UL Listed / cUL (North American market)
- IEC 61131-2 compliant (programmable controller I/O modules)
- RoHS compliant
Konmask.com does not modify, re-label, or alter any manufacturer certifications. All compliance documentation reflects the original Schneider Electric product specification.
How to Order
- Add the BMXDDO1602 to your cart and proceed to checkout, or
- Contact us directly for bulk pricing, lead time confirmation, or custom documentation requirements.
- For urgent requirements, email [email protected] with your project details and required quantity.
- We accept T/T bank transfer, PayPal, and major credit cards. Net-30 terms available for qualified accounts.
Authenticity & Trust FAQ
Q: Are these genuine Schneider Electric products?
A: Yes. We source exclusively from verified supply chains. Each unit includes original manufacturer labeling and is cross-referenced against Schneider Electric’s published part specifications.
Q: Can you provide a certificate of conformance or test report?
A: Yes, upon request. Contact us before placing your order if specific documentation is required for your project or QA process.
Q: What is your return policy for defective units?
A: We offer a 30-day return window for units that are DOA (dead on arrival) or do not match the published specification. Please contact support within 7 days of receipt.
Q: Do you offer volume discounts?
A: Yes. Tiered pricing is available for orders of 5+ units. Contact us for a formal quotation.
Q: What if I need a different Modicon M340 module?
A: We stock a wide range of M340 I/O, power supply, and CPU modules. Browse our catalog or contact us with your BOM for a complete quote.
