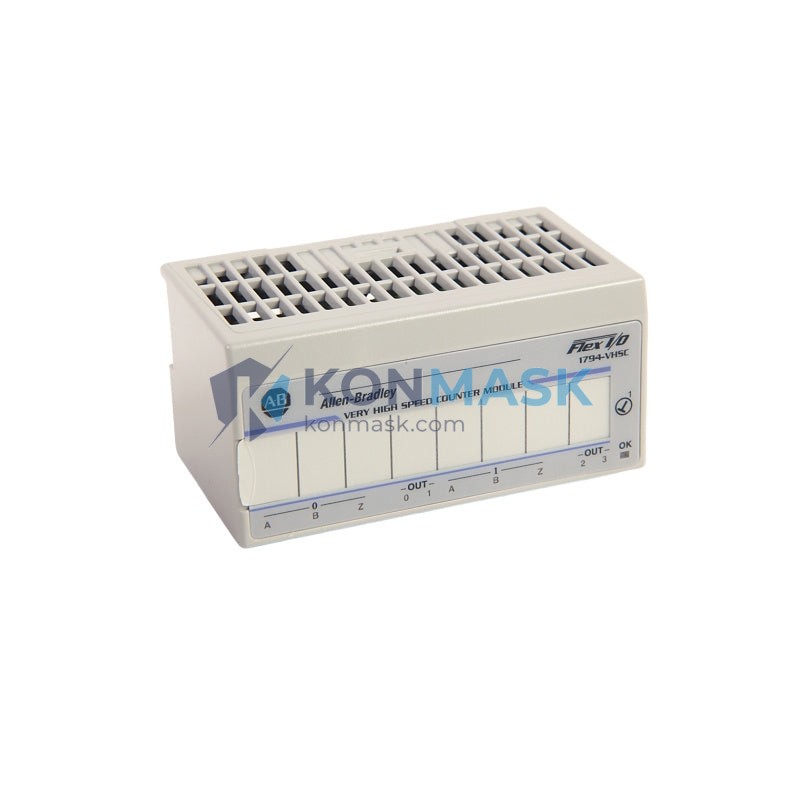

Allen-Bradley 1794-VHSC Flex 2-Point High-Speed Counter Module | FLEX I/O

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

Category: Allen-Bradley Tags: 1794-VHSC, Allen-Bradley, FLEX I/O, Industrial Automation, PLC I/O Module

Description

Allen-Bradley 1794-VHSC High-Speed Counter Module – FLEX I/O Series

In high-speed manufacturing and motion control environments, a missed pulse or miscounted encoder signal can cascade into costly downtime, rejected product batches, or even equipment damage. The Allen-Bradley 1794-VHSC is the precision counting backbone that keeps your FLEX I/O system synchronized with the real world — capturing high-frequency digital pulse trains that standard discrete input modules simply cannot handle.

Within Rockwell Automation’s FLEX I/O platform, the 1794-VHSC occupies a specialized niche: it bridges the gap between high-speed field devices (encoders, proximity sensors, flow meters) and the ControlLogix or CompactLogix controller ecosystem. Trusted by OEMs and system integrators across packaging, material handling, and precision machining industries worldwide, this module remains a cornerstone of Allen-Bradley’s distributed I/O strategy.

Technical Specifications

Model: 1794-VHSC
Series: FLEX I/O
Manufacturer: Allen-Bradley / Rockwell Automation
Module Type: 2-Point High-Speed Counter Module
Counter Inputs: 2 independent high-speed counter channels
Input Signal Types: Single-ended, differential (RS-422), quadrature encoder
Communication: Via FLEX I/O adapter (DeviceNet, ControlNet, EtherNet/IP compatible)
Backplane Interface: FLEX I/O backplane
Operating Temperature: 0 °C to 55 °C (32 °F to 131 °F)
Storage Temperature: -40 °C to 85 °C
Relative Humidity: 5% to 95% non-condensing
Dimensions: Standard FLEX I/O module form factor
Certifications: UL, CE, cUL

Note: Full electrical specifications are available in Rockwell Automation Publication 1794-UM006. Contact us for the datasheet.

Key Features & Benefits

Dual Independent Channels: Count two separate encoder or pulse sources simultaneously without cross-interference.
Quadrature Encoder Support: Natively decodes A/B/Z quadrature signals for precise position and velocity feedback.
High-Frequency Counting: Handles pulse rates that exceed the capability of standard digital input modules, eliminating missed counts.
Flexible Input Compatibility: Accepts single-ended and differential (RS-422) signal types, maximizing sensor compatibility.
FLEX I/O Ecosystem Integration: Slots directly into any standard FLEX I/O terminal base — no special wiring infrastructure required.
Distributed Architecture: Deploy close to the field device to minimize signal degradation over long cable runs.
Rockwell Software Integration: Fully supported in Studio 5000 Logix Designer with pre-built Add-On Instructions (AOIs).

Industry & Equipment Applications

Packaging Machinery: Tracking product counts, registration marks, and conveyor position.
Material Handling: Encoder feedback for sorters, palletizers, and automated storage systems.
Precision Machining & CNC: Spindle speed monitoring and axis position verification.
Flow Measurement: Pulse-output flow meter integration for liquid and gas metering.
Printing & Converting: Web tension control and registration via encoder feedback.
Automotive Assembly: Part counting and torque tool verification on assembly lines.
Water & Wastewater: Pump revolution counting and flow totalization.

System Integration & Compatible Parts

The 1794-VHSC is designed to operate within the broader Allen-Bradley FLEX I/O ecosystem. Commonly paired components include:

Terminal Bases: 1794-TB3, 1794-TB3S, 1794-TB32 (wiring base required for installation)
FLEX I/O Adapters: 1794-ADN (DeviceNet), 1794-ACN15 (ControlNet), 1794-AENT (EtherNet/IP)
Controllers: ControlLogix (1756 series), CompactLogix (1769 series), FlexLogix (1794-L34)
Programming Software: Studio 5000 Logix Designer, RSLogix 5000
Encoders: Compatible with standard incremental encoders (5V differential or 12–24V single-ended)

Contact our technical team if you need assistance selecting the correct terminal base or adapter for your application.
