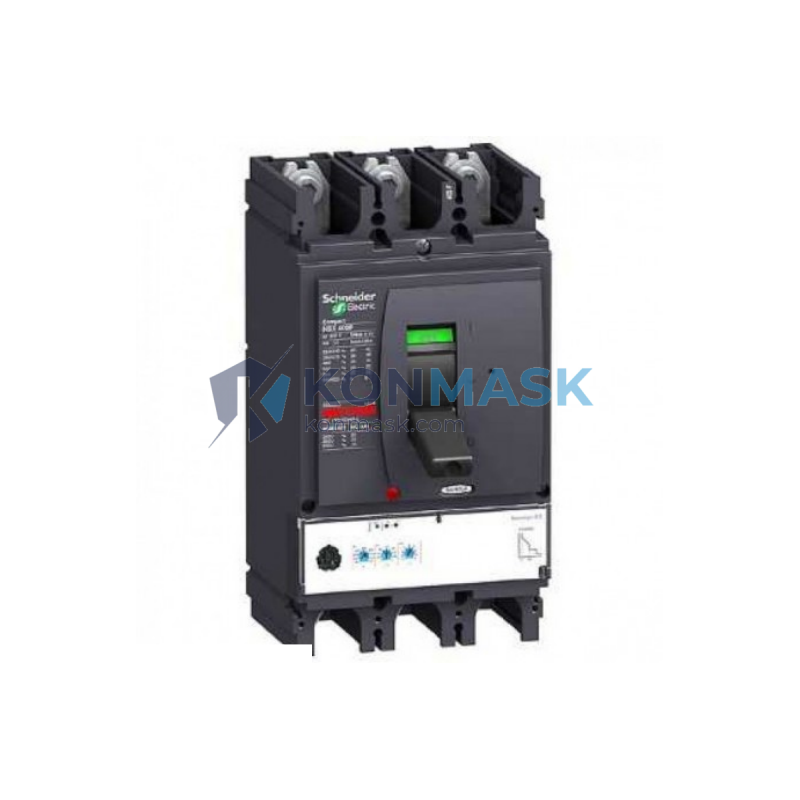

Schneider Electric LV432693 Molded Case Circuit Breaker – ComPact NSX Series
When a molded case circuit breaker fails or goes missing on a live production line, the consequences are immediate and severe: uncontrolled overcurrent surges through motor control centers, switchboards, and distribution panels, triggering cascading trips, equipment damage, and unplanned downtime that can cost thousands of dollars per hour. In facilities running continuous processes — chemical plants, data centers, water treatment stations, or automotive assembly lines — the absence of a reliable MCCB like the Schneider Electric LV432693 is not a theoretical risk; it is a production emergency waiting to happen.
The LV432693 belongs to Schneider Electric’s globally recognized ComPact NSX series, a benchmark product line in the low-voltage circuit protection market. Engineered for demanding industrial environments, the ComPact NSX range is deployed across more than 100 countries and is trusted by OEMs, panel builders, and end-users who require consistent, standards-compliant overcurrent protection. The LV432693 occupies a key position within this series, offering the precise combination of breaking capacity, frame size, and accessory compatibility that makes it a preferred choice for industrial distribution and motor protection applications worldwide.
Technical Specifications
- Brand: Schneider Electric
- Part Number / SKU: LV432693
- Product Family: ComPact NSX Series
- Product Type: Molded Case Circuit Breaker (MCCB)
- Standards Compliance: IEC 60947-2 / UL 489 (verify with official datasheet)
- Application: Industrial power distribution, motor circuit protection, switchboard integration
- Weight: 600 g (approx.)
Note: All specifications above are based on publicly available product family data. Always verify against the official Schneider Electric datasheet before engineering or procurement decisions.
Key Features & Benefits
- High Breaking Capacity: ComPact NSX MCCBs are designed to interrupt high fault currents safely, protecting downstream equipment from damage.
- Compact Footprint: The NSX series delivers high performance in a space-optimized enclosure, reducing panel size requirements.
- Wide Accessory Ecosystem: Compatible with a broad range of Schneider Electric accessories including auxiliary contacts, shunt trips, undervoltage releases, and rotary handles.
- Thermal-Magnetic or Electronic Trip Units: Available with multiple trip unit options to match application-specific protection curves.
- IEC & UL Dual Certification: Supports both international and North American project requirements.
- Long Service Life: Robust molded case construction ensures reliable operation across thousands of switching cycles in harsh industrial environments.
- Easy Maintenance: Front-accessible terminals and clear status indicators simplify inspection and servicing.
Industry & Equipment Applications
- Power Distribution Panels & Switchboards: Main and branch circuit protection in MV/LV substations and distribution boards.
- Motor Control Centers (MCC): Feeder and motor branch circuit protection for pumps, compressors, conveyors, and fans.
- Oil & Gas Facilities: Reliable protection in upstream and downstream process environments.
- Water & Wastewater Treatment Plants: Continuous-duty protection for critical pumping and aeration systems.
- Manufacturing & Assembly Lines: Overcurrent protection for CNC machines, robotic cells, and production equipment.
- Data Centers & Critical Infrastructure: Reliable branch circuit protection where uptime is non-negotiable.
- Building Automation & Commercial HVAC: Protection for large HVAC units, chillers, and BMS-integrated systems.
System Integration & Compatible Parts
The Schneider Electric LV432693 is designed for seamless integration within Schneider Electric’s ComPact NSX ecosystem. Compatible components and accessories typically include:
- Rotary handle mechanisms (direct and extended)
- Auxiliary and alarm contacts (OF, SD, SDE)
- Shunt trip coils (MX) and undervoltage releases (MN)
- Motor mechanisms for remote operation
- Busbar adapters and terminal shields
- Micrologic electronic trip units (for applicable frames)
Contact our team at support@konmask.com to confirm exact accessory compatibility for your project requirements.
Our Quality Assurance Process
- Authentic Sourcing: All Schneider Electric products are sourced through verified supply channels. We do not deal in counterfeit or grey-market components.
- Pre-Shipment Inspection: Each unit undergoes visual and packaging integrity checks before dispatch.
- Traceability: Batch and lot traceability is maintained for all stocked items to support your quality management system.
- Documentation Support: We can provide certificates of conformity, test reports, and country-of-origin documentation upon request.
- Secure Packaging: Anti-static and shock-resistant packaging protects sensitive components during international transit.
How to Order
- Submit your inquiry via the “Request a Quote” button or email support@konmask.com.
- Provide your required quantity, delivery destination, and any project-specific documentation needs.
- Our team will respond within 1 business day with pricing, lead time, and availability confirmation.
- Upon agreement, we issue a proforma invoice and arrange secure payment and shipment.
- Tracking information and shipping documents (commercial invoice, packing list, COO) are provided upon dispatch.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC modules, DCS components, and industrial control hardware — this is our core expertise, not a side category.
- Global B2B Supply: We serve engineering firms, system integrators, and procurement teams across Asia, Europe, the Middle East, and beyond.
- Fast Response: Dedicated account managers respond to all technical and commercial inquiries within 24 hours.
- Competitive Pricing: Direct sourcing relationships allow us to offer competitive pricing on both spot and long-term supply contracts.
- Reliable Logistics: Partnerships with DHL, FedEx, and freight forwarders ensure safe, on-time delivery worldwide.
- After-Sales Support: We assist with warranty claims, returns, and technical documentation throughout the product lifecycle.
Frequently Asked Questions
Q: Is the Schneider Electric LV432693 an original / genuine product?
A: Yes. Konmask.com sources all Schneider Electric products through verified supply channels. We provide documentation to confirm authenticity upon request.
Q: What is the lead time for the LV432693?
A: Lead time depends on current stock levels and your delivery location. Please submit an inquiry for a real-time availability and lead time quote.
Q: Can you supply the LV432693 with accessories such as shunt trips or auxiliary contacts?
A: Yes. We can supply compatible Schneider Electric accessories alongside the LV432693. Please specify your requirements when submitting your inquiry.
Q: Do you provide export documentation for international orders?
A: Yes. We provide commercial invoices, packing lists, certificates of origin, and other export documents as required by your customs authority.
Q: What is the minimum order quantity (MOQ)?
A: We accommodate both single-unit and bulk orders. There is no strict MOQ — contact us to discuss your project volume.
Q: Can I get a sample or inspection report before placing a large order?
A: Yes. We can arrange pre-shipment inspection and provide test/inspection reports for bulk procurement. Contact our team to discuss arrangements.
