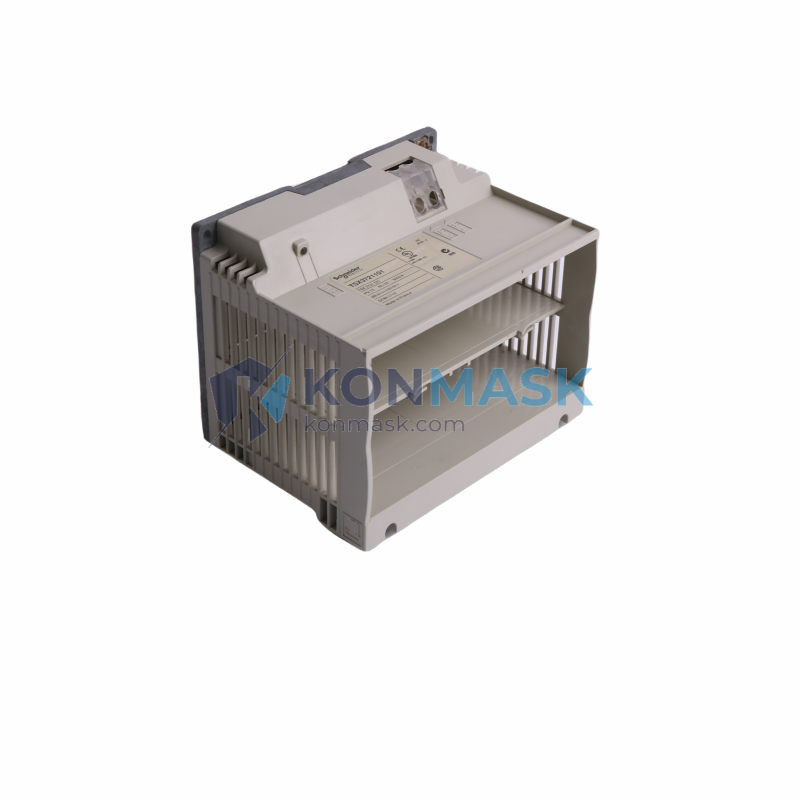

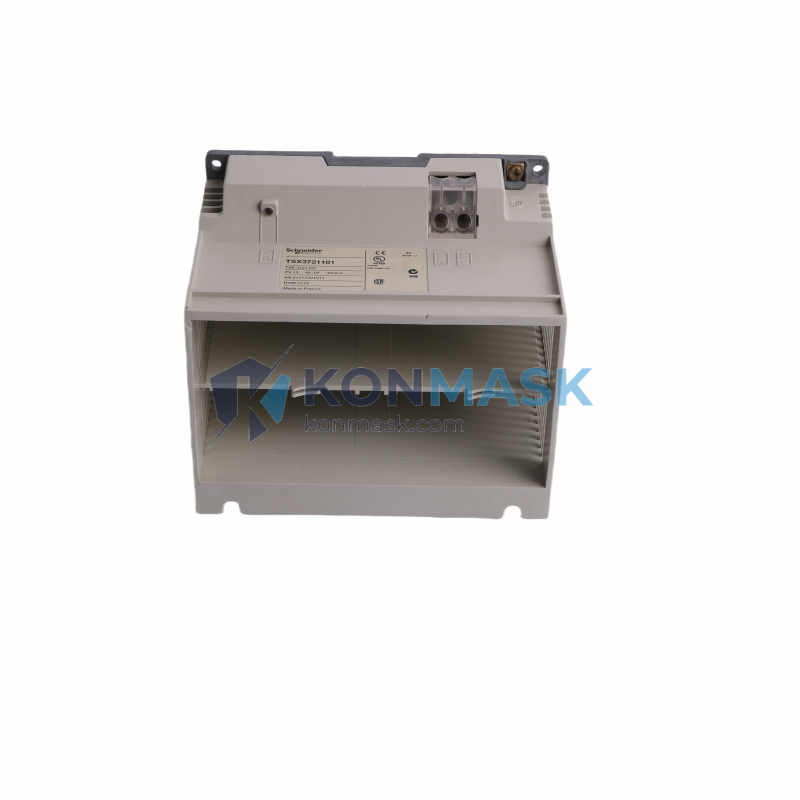

Machine Automation Solution – Schneider Electric TSX3721101 | Modicon TSX Micro Series
Where This Product Is Used
The Schneider Electric TSX3721101 is a compact base unit from the Modicon TSX Micro series, engineered for discrete and mixed automation tasks across a wide range of industrial environments:
- Packaging Machinery – Sequencing, conveyor control, and reject logic on high-speed lines
- Machine Tool Control – Coordinating spindle, axis, and coolant logic in CNC-adjacent applications
- Material Handling – Pallet transfer, sortation, and accumulation conveyor systems
- Building Automation – HVAC sequencing, pump control, and energy monitoring panels
- Water & Wastewater – Pump station control, level monitoring, and alarm management
- OEM Panel Builders – Space-constrained DIN-rail panels requiring a proven, cost-effective controller
Technical Specifications
| Part Number | TSX3721101 |
| Brand | Schneider Electric |
| Series | Modicon TSX Micro |
| Form Factor | Compact base unit, DIN-rail mountable |
| Supply Voltage | 24 VDC |
| Discrete Inputs | 12 × 24 VDC sink/source |
| Discrete Outputs | 8 × transistor (24 VDC, 0.5 A each) |
| Analog I/O | None onboard (expandable via extension modules) |
| Communication Port | 1 × terminal port (programming / Uni-Telway) |
| Programming Software | PL7 Micro / PL7 Pro (IEC 61131-3 compliant) |
| Memory | Integrated RAM + EEPROM backup |
| Operating Temperature | 0 °C to +60 °C |
| Protection Rating | IP20 |
| Weight | 640 g |
| Certifications | CE, UL, cUL |
Why Engineers Specify This Model
- Proven TSX Micro Platform – Millions of units deployed globally; extensive field documentation and community support
- Compact Footprint – Fits tight DIN-rail panels without sacrificing I/O density
- Transistor Outputs – Fast switching for stepper/servo pulse trains and high-cycle solenoid valves
- Uni-Telway Bus – Native peer-to-peer and master/slave networking without additional gateways
- IEC 61131-3 Compliance – Ladder, Instruction List, and Grafcet (SFC) programming in PL7
- Expandable Architecture – Add analog, specialty, or communication modules as application grows
Complete System Bill of Materials
For a fully operational TSX Micro control system, engineers typically specify:
- TSX3721101 – This base unit (CPU + I/O)
- TSX PSY 2600 – 24 VDC power supply (if not panel-supplied)
- TSX DMZ 28DTK – Discrete expansion module (28 I/O, transistor)
- TSX AEY 414 – 4-channel analog input module
- TSX PCX 1031 – USB-to-serial programming cable
- TSXMRPC001M – PCMCIA memory card for program backup
- Zelio Relay / TeSys D – Downstream motor starters and contactors
Compliance & Industry Standards
- CE Marking – EU Low Voltage and EMC Directives
- UL 508 / cUL – Industrial Control Equipment (North America)
- IEC 61131-3 – Programmable Controller Programming Languages
- IEC 61000-4 – EMC Immunity (ESD, EFT, Surge, Conducted RF)
- RoHS Compliant
Quality Assurance & Sourcing
Every TSX3721101 unit offered through Konmask.com is:
- Sourced from verified industrial distributors and authorized supply chains
- Inspected for original factory labels, date codes, and seal integrity
- Tested for power-on functionality prior to dispatch where applicable
- Shipped with anti-static packaging and full traceability documentation
How to Source This Part
- Add TSX3721101 to cart and proceed to checkout
- For bulk orders (>5 units) or project BOM pricing, email support@konmask.com
- Lead time: typically 3–7 business days for in-stock units; expedited options available
- Export documentation (CO, packing list, commercial invoice) provided on request
Application-Specific FAQ
Q: Can the TSX3721101 communicate with SCADA systems via Modbus?
A: Yes. With the addition of a TSX SCM 2161 or compatible communication module, Modbus RTU/ASCII over RS-485 is supported natively.
Q: Is PL7 Pro software still available for programming?
A: PL7 Pro is available from Schneider Electric’s software portal. Konmask can advise on compatible cable and driver setup for modern Windows environments.
Q: What is the maximum number of I/O points this base can support with expansion?
A: The TSX Micro platform supports up to 3 extension modules, allowing up to ~104 discrete I/O points depending on module selection.
Q: Can this unit replace a TSX3710001 or TSX3720101?
A: The TSX3721101 is the 24 VDC transistor-output variant. Verify output type and supply voltage compatibility before substitution; program migration is generally straightforward within the TSX Micro family.
Q: Do you provide a warranty?
A: Yes. All units carry a 12-month warranty against manufacturing defects. Contact support@konmask.com for claims.
