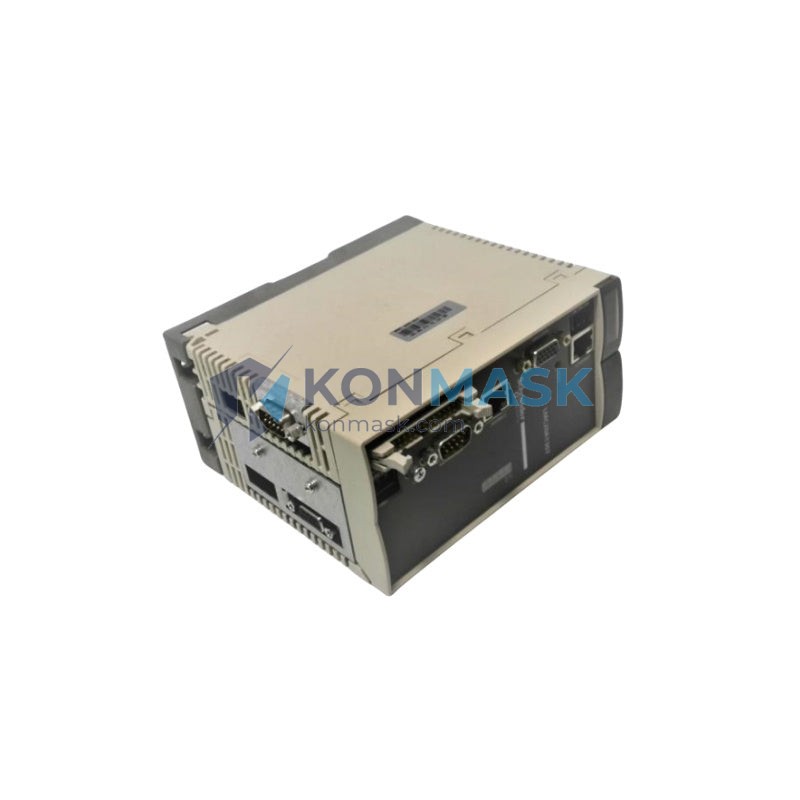

Schneider Electric LMC20A1307 – Multi-Axis Lexium Motion Controller | Lexium Motion Platform
Engineering Background: The LMC20A1307 is part of Schneider Electric’s Lexium Motion Controller family, engineered for high-performance, multi-axis coordinated motion in demanding industrial automation environments. Built on the proven Lexium platform, it integrates seamlessly with Schneider’s SoMachine Motion software environment and IEC 61131-3 programming standards.
Product Positioning: Designed for OEM machine builders and system integrators requiring deterministic real-time motion control, the LMC20A1307 delivers synchronized multi-axis servo coordination with embedded safety and fieldbus connectivity. It is the preferred choice for packaging, material handling, printing, and precision assembly applications.
Complete Technical Specifications
- Part Number / SKU: LMC20A1307
- Brand: Schneider Electric
- Series / Platform: Lexium Motion Controller (LMC20)
- Controller Type: Multi-Axis Servo Motion Controller / PLC
- Programming Standard: IEC 61131-3 (LD, FBD, SFC, ST, IL)
- Software Environment: SoMachine Motion
- Communication Interfaces: EtherCAT, CANopen, Ethernet (Modbus TCP)
- Axis Count: Up to 16 coordinated axes (hardware-dependent)
- Cycle Time: ≥ 250 µs (EtherCAT real-time bus)
- Power Supply: 24 VDC nominal
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Protection Rating: IP20
- Weight: 1,140 g (approx.)
- Country of Origin: France
- Certifications: CE, UL, cUL
- Mounting: DIN rail / panel mount
Proven Application Environments
- Packaging machinery (form-fill-seal, cartoning, palletizing)
- Printing and converting lines requiring precise registration control
- Material handling and conveyor synchronization
- Precision assembly and pick-and-place robotics
- Textile and winding machines with tension control
- Semiconductor and electronics manufacturing equipment
Engineering Advantages
- Real-Time EtherCAT Bus: Deterministic ≥ 250 µs cycle ensures tight multi-axis synchronization without jitter.
- Unified SoMachine Motion Environment: Single software platform for PLC logic, motion programming, HMI, and drive configuration reduces engineering overhead.
- Embedded Safety Functions: Supports STO (Safe Torque Off) and other PLCopen Safety function blocks for integrated machine safety without external relays.
- Scalable Architecture: Modular I/O expansion via CANopen or EtherCAT slaves allows flexible machine configurations.
- Compact Form Factor: DIN-rail mountable design minimizes control cabinet footprint.
System Architecture & Signal Flow
The LMC20A1307 operates as the central motion coordinator in a Lexium drive network. The controller executes IEC 61131-3 motion programs and distributes real-time setpoints to Lexium 32 or Lexium 62 servo drives via EtherCAT. Encoder feedback is processed at the drive level and reported back to the LMC20 for closed-loop position, velocity, and torque control. Higher-level SCADA or MES systems communicate via Modbus TCP over standard Ethernet. Digital and analog I/O modules expand via the integrated CANopen bus.
Sourcing & Quality Verification
- Origin: Genuine Schneider Electric OEM hardware, sourced through authorized industrial distribution channels.
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on testing prior to shipment.
- Packaging: Ships in original or equivalent ESD-safe protective packaging.
- Traceability: Serial number and date code recorded for full supply chain traceability.
- Warranty: 12-month replacement warranty against manufacturing defects.
Procurement Process
- Submit your inquiry or place order directly on Konmask.com.
- Receive order confirmation and lead-time estimate within 1 business day.
- Unit inspected, documented, and packed for shipment.
- Tracking number provided upon dispatch; DHL / FedEx / UPS express available.
- Post-delivery technical support available via email or phone.
Technical FAQ
Q: Is the LMC20A1307 compatible with Lexium 32 drives?
A: Yes. The LMC20 series natively supports Lexium 32 and Lexium 62 servo drives via EtherCAT, as well as third-party EtherCAT-compliant drives.
Q: What programming software is required?
A: SoMachine Motion (now integrated into EcoStruxure Machine Expert – Motion) is required for configuration and programming.
Q: Can the LMC20A1307 replace an older LMC20 variant?
A: Compatibility depends on firmware version and hardware revision. Contact our technical team with your existing configuration for a compatibility assessment.
Q: Is global shipping available?
A: Yes. We ship worldwide via DHL, FedEx, and UPS Express. Export documentation and customs support provided for cross-border orders.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Contact us for availability confirmation before ordering.
