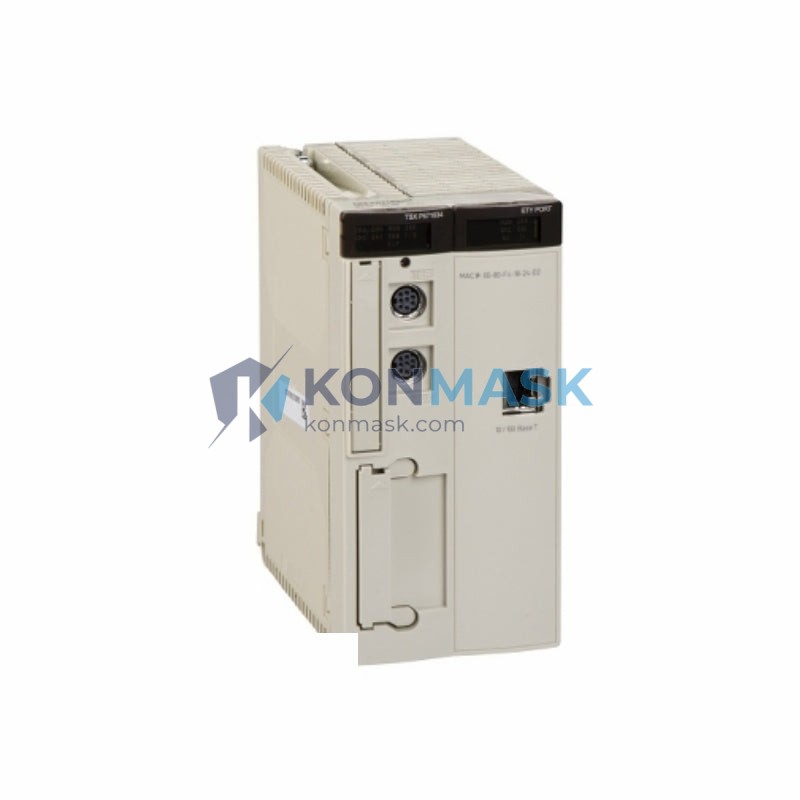

Schneider Electric TSXP57204M – High-Performance PLC Processor Module | Premium Unity Pro Platform
Engineering Background: The Schneider Electric Premium automation platform has been the backbone of mission-critical industrial control systems across process, discrete, and hybrid manufacturing environments for over two decades. Engineered in France to IEC 61131-3 standards, the Premium series delivers deterministic scan times, robust I/O handling, and seamless integration with Schneider’s Unity Pro programming environment — making it the preferred choice for demanding OEM and end-user applications worldwide.
Product Positioning: The TSXP57204M is a mid-to-high range processor module within the Premium TSX P57 family, designed for complex automation tasks requiring substantial memory capacity, multi-task execution, and extensive communication capability. It is the ideal upgrade or replacement processor for existing Premium rack installations and new panel builds requiring proven, long-lifecycle PLC technology.
Complete Technical Specifications
- Part Number / SKU: TSXP57204M
- Manufacturer: Schneider Electric (formerly Telemecanique)
- Series / Platform: Modicon Premium — TSX P57 Processor Family
- Programming Software: Unity Pro (all versions)
- User Memory: 2048 KB application memory
- Data Memory: 512 KB
- Max I/O Points: Up to 1,024 discrete I/O; up to 256 analog channels
- Communication Ports: 1× Modbus/Uni-Telway terminal port (RJ45); 1× Ethernet TCP/IP port (RJ45, 10/100 Mbps)
- Fieldbus Support: Fipio, Modbus, Uni-Telway, CANopen (via expansion)
- Max Rack Slots: Supports up to 8 racks (local + remote)
- Scan Time: < 1 ms/1000 instructions (Boolean)
- Task Types: MAST, FAST, AUX, Event tasks
- Supply Voltage: 24 VDC (via rack power supply)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −25 °C to +70 °C
- Humidity: 10% to 95% RH (non-condensing)
- Protection Rating: IP20
- Certifications: CE, UL, cUL, CSA, IEC 61131-2
- Dimensions (H × W × D): 130 × 47 × 220 mm (standard Premium rack format)
- Weight: Approx. 1.6 kg
- Country of Origin: France
Proven Application Environments
- Process Industries: Chemical, pharmaceutical, water/wastewater treatment, oil & gas upstream/downstream
- Discrete Manufacturing: Automotive assembly lines, packaging machinery, press & stamping control
- Building Automation: HVAC control, energy management, access control integration
- Infrastructure: Pumping stations, conveyor systems, crane & hoist control
- OEM Machine Builders: Textile machinery, printing presses, food & beverage processing lines
- Utility & Power: Substation automation, generator control, load management
Engineering Advantages
- Deterministic Performance: Sub-millisecond Boolean scan ensures real-time response for high-speed process control loops
- Dual-Port Connectivity: Simultaneous Ethernet TCP/IP and serial Modbus/Uni-Telway communication eliminates the need for additional communication modules in most topologies
- Unity Pro Ecosystem: Full IEC 61131-3 multi-language programming (LD, FBD, SFC, ST, IL) with structured library management, simulation, and online modification
- Scalable Architecture: Expand from a single local rack to 8 distributed racks without changing the processor — protecting your panel investment
- Long Product Lifecycle: Schneider Electric’s Premium platform has an extended support commitment, ensuring spare parts and firmware availability for installed base maintenance
- Hot-Swap Compatible Racks: Supports TSX RKY rack family for modular, maintainable panel design
System Architecture & Signal Flow
The TSXP57204M installs into slot 00 of a TSX RKY Premium rack. The processor communicates with local I/O modules via the internal X-Bus backplane at high speed. Remote racks connect via Fipio fieldbus (up to 127 nodes, 15 m to 1 km depending on topology) or via Ethernet remote I/O drops. The integrated Ethernet port supports Modbus TCP, I/O Scanning, Global Data, and Web server diagnostics simultaneously. The terminal port (RJ45) provides Modbus RTU/ASCII and Uni-Telway master/slave for legacy device integration and HMI connectivity. Program execution follows a cyclic MAST task with optional periodic FAST task (min. 1 ms) and up to 64 event tasks for interrupt-driven I/O response.
Sourcing & Quality Verification
- Source: Sourced from authorized Schneider Electric distribution channels and verified OEM surplus inventory
- Inspection: Each unit undergoes visual inspection, label verification (Schneider hologram & date code), and functional power-on test prior to shipment
- Authenticity: Firmware version and hardware revision verified against Schneider Electric’s official product database
- Packaging: Ships in anti-static ESD bag with original or equivalent protective packaging; includes firmware version documentation
- Warranty: 12-month Konmask operational warranty covering manufacturing defects and functional failure
Procurement Process
- Step 1 — Inquiry: Submit your RFQ via the product page or email support@konmask.com with quantity and required delivery timeline
- Step 2 — Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options
- Step 3 — Order Confirmation: Confirm PO; payment accepted via T/T bank transfer, PayPal, or credit card
- Step 4 — Shipment: Units dispatched within 2–5 business days via DHL / FedEx / UPS with full tracking; express options available
- Step 5 — After-Sales: Technical support available post-delivery for installation, commissioning, and Unity Pro configuration queries
Technical FAQ
Q: Is the TSXP57204M compatible with Unity Pro XL / L / S?
A: Yes. The TSXP57204M is fully compatible with all Unity Pro editions (S, L, XL, XLS) and supports online program modification without stopping the PLC.
Q: Can this processor replace a TSXP57203M in an existing rack?
A: Yes, the TSXP57204M is a direct form-fit-function upgrade from the TSXP57203M, offering larger memory. The existing rack, power supply, and I/O modules remain unchanged.
Q: Does the TSXP57204M support Modbus TCP natively?
A: Yes. The integrated Ethernet port supports Modbus TCP client/server without any additional communication module.
Q: What is the maximum number of I/O modules supported?
A: Up to 1,024 discrete I/O points and 256 analog channels across local and remote racks.
Q: Is a battery required for program retention?
A: Yes. The TSXP57204M uses a lithium backup battery (TSX BATM 03) to retain the application program and data during power loss. Battery life is typically 5 years.
Q: Can I get a test report or inspection certificate?
A: Yes. A functional test report is available upon request. Certificate of conformity can be provided for orders of 5+ units.
