Schneider Electric TSXMFPP004M – Compact Touch Panel HMI | Magelis XBT Series
Engineering Background

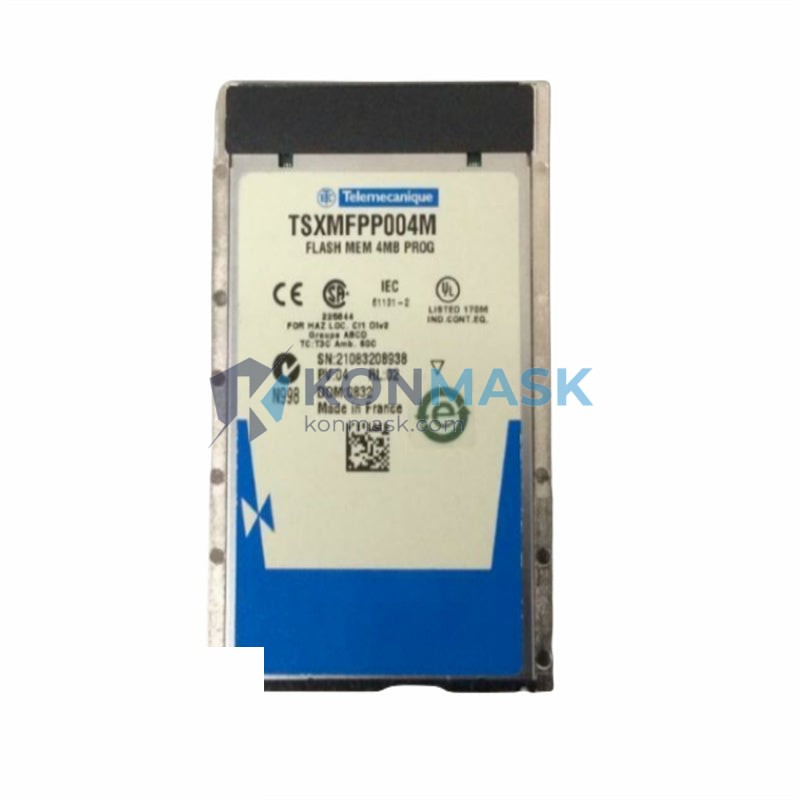

The TSXMFPP004M is a compact flash memory expansion module designed for use with Schneider Electric’s Magelis XBT touch panel HMI family. As part of the proven Magelis XBT platform, it enables engineers to extend onboard application storage capacity — a critical requirement in complex SCADA, process visualization, and machine control environments where large graphic libraries, multilingual interfaces, and extensive alarm logs must reside locally on the HMI device.
Product Positioning
Targeted at OEM machine builders, system integrators, and plant automation engineers operating Schneider Electric Modicon/Premium PLC ecosystems, the TSXMFPP004M delivers a straightforward, plug-and-compatible storage upgrade path without requiring hardware replacement or software reconfiguration. Konmask.com supplies this module as a verified, traceable component for both new installations and field-replacement scenarios.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | TSXMFPP004M |
| Manufacturer | Schneider Electric |
| Product Family | Magelis XBT Touch Panel Series |
| Module Type | Flash Memory Expansion Card |
| Memory Capacity | 4 MB Flash |
| Interface | Proprietary Magelis XBT slot |
| Compatible HMI Platforms | Magelis XBT-F, XBT-N, XBT-GT series panels |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -25 °C to +70 °C |
| Protection Rating | IP20 (module); host panel rating applies at front face |
| Power Supply | Powered via host HMI panel (no external supply required) |
| Dimensions | Per Magelis XBT memory card form factor |
| Weight | Approx. 10 g |
| Certifications | CE, UL (per host panel compliance) |
| Country of Origin | France / EU (Schneider Electric manufacturing) |
| RoHS Compliance | Yes |
Proven Application Environments
- Discrete Manufacturing: Automotive assembly lines, CNC machine tool HMI stations requiring large recipe and parameter storage
- Process Industries: Chemical, pharmaceutical, and food & beverage plants running Modicon Premium/Quantum PLC architectures with Magelis HMI visualization
- Building Automation & Utilities: HVAC control panels, water treatment facilities, and energy management systems with multilingual operator interfaces
- OEM Machine Builders: Packaging machinery, printing presses, and textile equipment requiring extended HMI application storage for complex motion sequences
- Field Retrofit & Maintenance: Direct replacement for failed or full memory cards in existing Magelis XBT installations, minimizing downtime
Engineering Advantages
- Plug-and-Play Compatibility: Designed exclusively for the Magelis XBT platform — no driver installation, firmware flashing, or configuration required beyond standard XBT Designer software workflow
- Extended Application Capacity: 4 MB flash storage accommodates large graphic bitmaps, extensive alarm/event logs, multilingual text tables, and complex recipe databases simultaneously
- Non-Volatile Retention: Flash memory architecture ensures application data integrity through power cycles, voltage dips, and emergency shutdowns without battery backup dependency
- Industrial-Grade Reliability: Rated for continuous operation across the full industrial temperature range; vibration and shock resistant per Schneider Electric IEC 61131-2 compliance standards
- Minimal Footprint: Compact card form factor installs directly into the HMI panel without additional panel cutout, wiring, or mounting hardware
System Architecture & Signal Flow
The TSXMFPP004M inserts into the dedicated memory expansion slot on compatible Magelis XBT panels. The host HMI processor accesses the flash module via the internal memory bus, treating it as an extension of onboard application storage. XBT Designer software (PC-side engineering tool) manages application download, memory allocation, and project partitioning between internal RAM and the TSXMFPP004M flash card. No additional communication wiring is required; the module is fully transparent to the PLC communication layer (Uni-Telway, Modbus, Ethernet/IP, or Fipio depending on host panel variant).
Typical Integration Path:
- Power down the Magelis XBT panel
- Insert TSXMFPP004M into the memory card slot (keyed connector prevents incorrect orientation)
- Power up the panel — XBT firmware auto-detects the expanded memory
- In XBT Designer, reassign application storage targets to include the flash card
- Download updated application; verify memory map in XBT Designer diagnostics
Sourcing & Quality Verification
Konmask.com sources the TSXMFPP004M through authorized industrial distribution channels and verified secondary-market suppliers with full traceability documentation. Every unit undergoes the following pre-shipment checks:
- Visual inspection for label authenticity, connector condition, and housing integrity
- Part number and date code verification against Schneider Electric product records
- Functional read/write test where test equipment is available
- Anti-static packaging with humidity indicator card for transit protection
Certificates of conformity and traceability documentation are available upon request for regulated industries (pharmaceutical GMP, automotive IATF 16949, etc.).
Procurement Process
- Confirm Compatibility: Verify your Magelis XBT panel model accepts the TSXMFPP004M memory card (refer to your panel’s hardware manual or contact our technical team)
- Request Quote / Place Order: Add to cart or contact support@konmask.com for volume pricing, lead time confirmation, and documentation requirements
- Order Processing: Orders confirmed within 1 business day; stock availability verified before invoice issuance
- Shipping: Dispatched via tracked courier (DHL / FedEx / SF Express) with ESD-safe packaging; export documentation provided for international shipments
- After-Sales Support: Technical assistance available for installation queries; warranty claims handled directly by Konmask.com
Technical FAQ
Q: Is the TSXMFPP004M compatible with all Magelis XBT panels?
A: It is compatible with the Magelis XBT-F, XBT-N, and XBT-GT series panels that feature a memory expansion slot. Confirm your specific panel reference in the Schneider Electric hardware compatibility matrix or contact our team.
Q: Can the application be transferred from an old TSXMFPP004M to a new one?
A: Yes. Use XBT Designer to upload the existing application from the old card to your PC, then download it to the new TSXMFPP004M. Ensure XBT Designer version compatibility with your application file.
Q: Does the TSXMFPP004M replace internal RAM or supplement it?
A: It supplements internal RAM. The flash card provides additional non-volatile storage for application data; the panel’s internal RAM continues to handle runtime execution.
Q: What is the warranty on this module?
A: Konmask.com provides a 90-day functional warranty on all modules. Extended warranty and exchange programs are available — contact support@konmask.com for details.
Q: Can you provide an export declaration / commercial invoice for customs?
A: Yes. Full export documentation including commercial invoice, packing list, and certificate of origin is provided for all international orders.
