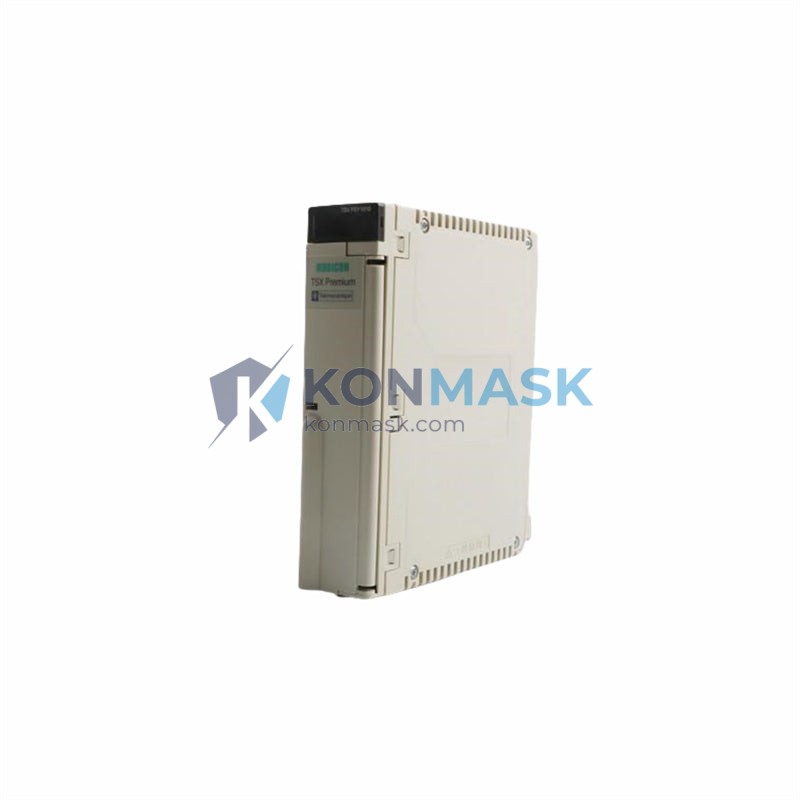

Schneider Electric TSXPSY1610 – 16A 24VDC Power Supply Module | TSX Premium PLC Platform
Engineering Background: The TSXPSY1610 is a dedicated rack-mount power supply module engineered for Schneider Electric’s TSX Premium programmable logic controller (PLC) platform. Designed to deliver stable, regulated 24VDC bus power to Premium racks, it serves as the backbone of mission-critical automation architectures across process, discrete, and hybrid manufacturing environments.
Product Positioning: As a first-tier OEM component sourced through verified industrial distribution channels, the TSXPSY1610 is the preferred choice for procurement engineers requiring drop-in replacement reliability, full firmware compatibility, and traceable quality documentation. Konmask.com stocks this module to support MRO (Maintenance, Repair & Operations) and capital project procurement globally.
Complete Technical Specifications
| Part Number / SKU | TSXPSY1610 |
| Brand / Manufacturer | Schneider Electric (formerly Telemecanique) |
| Product Series | TSX Premium PLC |
| Module Type | Rack Power Supply Module |
| Output Voltage | 24 VDC (regulated) |
| Output Current | 16 A (continuous) |
| Output Power | 384 W (nominal) |
| Input Voltage Range | 100–240 VAC, 50/60 Hz (auto-ranging) |
| Input Current | ≤ 6 A @ 120 VAC / ≤ 3 A @ 240 VAC |
| Inrush Current | < 30 A peak (cold start) |
| Power Factor | ≥ 0.95 (active PFC) |
| Efficiency | ≥ 88% at full load |
| Ripple & Noise | ≤ 100 mV p-p |
| Hold-up Time | ≥ 20 ms @ full load |
| Protection | OVP, OCP, OTP, Short-circuit (auto-recovery) |
| Compatible Racks | TSX RKY 4EX, 6EX, 8EX, 12EX |
| Mounting | DIN rail / rack slot (leftmost position) |
| Cooling | Forced air (internal fan) |
| Operating Temperature | 0°C to +60°C (IEC 60068-2-1/2) |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | IEC 60068-2-6: 10–150 Hz, 1 g |
| Shock Resistance | IEC 60068-2-27: 15 g, 11 ms |
| EMC Compliance | EN 61000-4 series; EN 55011 Class A |
| Safety Certifications | CE, UL 508, cUL, CSA |
| IP Rating | IP20 (panel-mounted) |
| HS Code | 8537.10 |
| Country of Origin | France |
| Weight | 4.46 kg |
| Dimensions (W×H×D) | Approx. 80 × 290 × 195 mm |
Proven Application Environments
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and press automation requiring 24/7 uptime with zero tolerance for power instability.
- Water & Wastewater Treatment: SCADA-integrated pump station control, dosing systems, and filtration process automation in harsh, humid environments.
- Oil & Gas Upstream/Midstream: Wellhead control panels, pipeline SCADA RTUs, and compressor station automation where CE + UL dual certification is mandatory.
- Food & Beverage Processing: CIP (Clean-in-Place) cycle control, filling line PLCs, and cold-chain conveyor systems requiring IP20 panel-mount reliability.
- Pharmaceutical & Life Sciences: Validated batch process control systems (21 CFR Part 11 environments) where OEM traceability is a GMP requirement.
- Building Automation & HVAC: Central chiller plant control, AHU sequencing, and BMS integration via TSX Premium Ethernet modules.
Engineering Advantages
- Active Power Factor Correction (PFC ≥ 0.95): Reduces harmonic distortion on facility power distribution, protecting sensitive instrumentation on shared circuits.
- Wide-Range AC Input (100–240 VAC): Single SKU supports global deployment without transformer adapters — critical for multinational OEM machine builders.
- Comprehensive Protection Suite: OVP + OCP + OTP + short-circuit with auto-recovery eliminates manual reset requirements during transient fault events.
- ≥ 20 ms Hold-up Time: Bridges micro-interruptions and voltage sags without triggering PLC CPU fault — essential for continuous process applications.
- OEM Drop-in Compatibility: Plug-and-play replacement for all TSX Premium rack configurations; no firmware update or parameter reconfiguration required.
- Dual Certification (CE + UL/cUL): Satisfies both European (Machinery Directive 2006/42/EC) and North American (NFPA 79) panel-building standards from a single part number.
System Architecture & Signal Flow
The TSXPSY1610 occupies the leftmost slot of any TSX Premium rack (TSXRKY4EX through TSXRKY12EX). AC mains enter via the integrated terminal block; the active PFC front-end conditions the input before the DC-DC conversion stage delivers regulated 24 VDC to the rack backplane bus. The backplane distributes power to all installed I/O, communication, and CPU modules. A dedicated +5 VDC logic rail (derived internally) powers backplane logic independently of the 24 VDC process rail, ensuring CPU integrity during I/O load transients.
Typical Rack Power Budget Example (TSXRKY8EX):
- TSXP57454M CPU: 4.5 W
- 8× TSXDEY16D2 Digital Input: 8 × 1.2 W = 9.6 W
- 4× TSXDSY16T2 Digital Output: 4 × 2.8 W = 11.2 W
- 2× TSXAEY414 Analog Input: 2 × 3.5 W = 7.0 W
- Total: ~32.3 W — well within 384 W capacity, leaving >90% headroom for expansion.
Sourcing & Quality Verification
- Traceability: All units supplied with original Schneider Electric manufacturer labels, date codes, and batch traceability documentation upon request.
- Inspection Protocol: Each module undergoes incoming inspection including visual examination, label verification, and functional power-on test before dispatch.
- Authenticity Guarantee: Konmask.com sources exclusively through authorized industrial distribution channels. Counterfeit-free guarantee backed by return policy.
- Condition: New-in-box (NIB) OEM units. Refurbished or surplus stock clearly labeled separately — this listing is NIB only.
- Documentation Available: CE Declaration of Conformity, UL file reference, and Schneider Electric product datasheet provided on request.
Procurement Process
- Verify Compatibility: Confirm your rack model (TSXRKY4/6/8/12EX) and existing power budget before ordering.
- Request Quote: Contact support@konmask.com for volume pricing (>3 units), lead time confirmation, and freight options.
- Place Order: Add to cart and complete checkout. Accepted: T/T bank transfer, PayPal, credit card. Net-30 available for approved accounts.
- Shipping: DHL Express / FedEx International Priority standard. EXW Xiamen, China. Typical transit: 3–7 business days worldwide.
- Customs & Documentation: Commercial invoice, packing list, and HS Code 8537.10 declaration provided. Import duty responsibility of buyer.
- Warranty: 12-month warranty against manufacturing defects. DOA replacement within 7 days of receipt.
Technical FAQ
Q: Can the TSXPSY1610 replace a TSXPSY2600 in the same rack?
A: No. The PSY2600 provides 26A output. Substituting with the PSY1610 (16A) requires a full rack power budget audit to confirm adequacy. Contact our engineers for assessment.
Q: Is this module compatible with TSX Micro or Modicon M340 racks?
A: No. The TSXPSY1610 is exclusively designed for TSX Premium racks. TSX Micro uses integrated PSU; M340 uses BMX CPS series power supplies.
Q: What happens if the output is overloaded?
A: The module activates OCP (Over-Current Protection) and enters hiccup mode — cycling off/on until the overload is cleared. No manual reset required. Sustained overload triggers OTP shutdown.
Q: Can two TSXPSY1610 modules be paralleled for redundancy?
A: The TSX Premium platform does not natively support N+1 PSU redundancy within a single rack. For redundant power, use an external 24VDC UPS feeding the AC input.
Q: What is the typical MTBF?
A: Schneider Electric rates TSX Premium power supplies at >100,000 hours MTBF at 25°C, 50% load (per MIL-HDBK-217F methodology).
Q: Do you provide a test report before shipment?
A: Yes. A functional test report (power-on, output voltage measurement, fan operation) is available for orders ≥ 2 units. Request at time of order.
