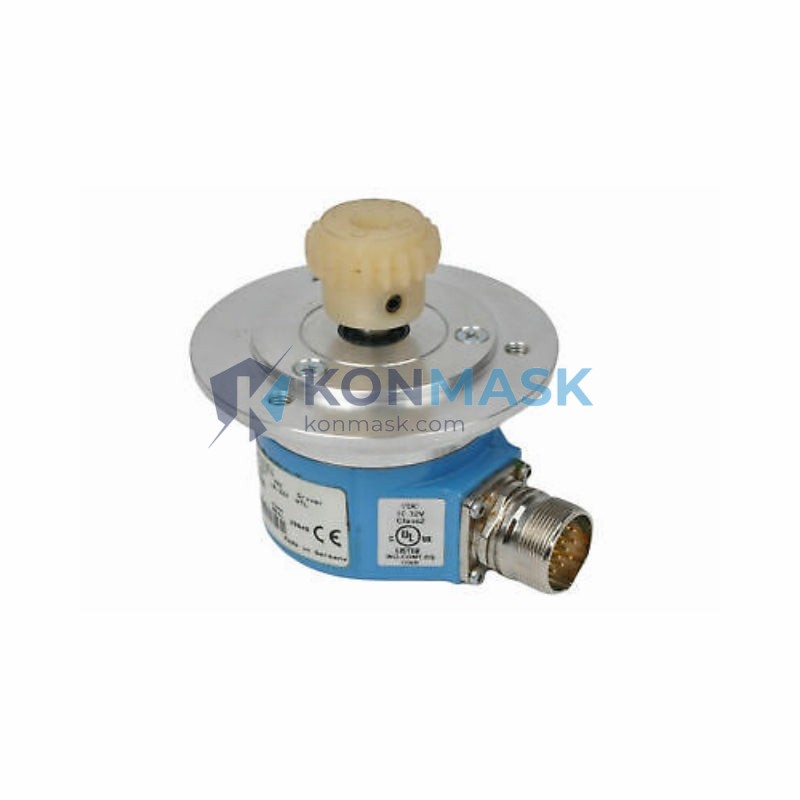

Motor Feedback & Motion Control Solution – SICK DRS60-E4M01024 | DRS60 Series Incremental Rotary Encoder
Where This Product Is Used
The SICK DRS60-E4M01024 is a high-resolution incremental rotary encoder engineered for demanding industrial motion control and position feedback applications. Engineers and system integrators specify this model across a wide range of automation environments:
- CNC Machine Tools – Provides precise spindle speed and axis position feedback for milling, turning, and grinding machines.
- Servo Motor Feedback Systems – Closes the velocity and position loop in servo drives from Siemens, ABB, Yaskawa, and Mitsubishi.
- Conveyor & Material Handling – Monitors belt speed and product positioning in logistics sortation and assembly lines.
- Packaging Machinery – Synchronizes film feed, cutting, and sealing cycles in VFFS and flow-wrap machines.
- Printing & Paper Converting – Maintains web tension and register accuracy in high-speed printing presses.
- Elevator & Hoist Systems – Delivers reliable speed and direction signals for safe lift control.
- Robotics & Collaborative Arms – Feeds joint angle data to robot controllers for repeatable path execution.
- Wind Turbine Pitch Control – Monitors blade pitch angle in renewable energy installations.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | DRS60-E4M01024 |
| Series | DRS60 |
| Manufacturer | SICK AG |
| Encoder Type | Incremental Rotary Encoder |
| Resolution (PPR) | 1024 Pulses per Revolution |
| Output Signal | Push-Pull (HTL) |
| Supply Voltage | 10 – 30 V DC |
| Shaft Type | Solid Shaft (6 mm) |
| Housing Diameter | 60 mm |
| Protection Rating | IP65 |
| Operating Temperature | -20 °C to +85 °C |
| Max. Shaft Speed | 6000 RPM |
| Connection | Radial Cable / M12 Connector |
| Weight | approx. 300 g |
Why Engineers Specify This Model
- 1024 PPR Resolution – Delivers 4096 counts/rev in quadrature mode, sufficient for most servo and CNC feedback loops without over-engineering cost.
- Push-Pull HTL Output – Long-line drive capability up to 100 m cable runs without signal degradation, eliminating the need for external line drivers.
- IP65 Sealed Housing – Withstands coolant splash, dust ingress, and wash-down environments common in metalworking and food processing.
- 60 mm Industry-Standard Body – Drop-in compatible with most servo motor encoder mounting flanges; reduces retrofit engineering time.
- Wide Supply Voltage Range (10–30 V DC) – Operates directly from 24 V DC PLC I/O power rails without additional regulation.
- SICK DRS60 Platform Reliability – Proven in millions of installations globally; SICK’s encoder division holds ISO 9001 certification and extensive CE/UL approvals.
Complete System Bill of Materials
For a complete motor feedback or position control system using the DRS60-E4M01024, engineers typically source the following complementary components:
- Servo Drive / Frequency Inverter (e.g., Siemens SINAMICS, ABB ACS880)
- PLC High-Speed Counter Module (e.g., Siemens 6ES7 338, Mitsubishi QD62)
- M12 4-pin/8-pin Shielded Encoder Cable (5 m / 10 m)
- Encoder Coupling / Flexible Bellows Coupling (6 mm bore)
- DIN Rail 24 V DC Power Supply (SICK or Phoenix Contact)
- Cable Gland / EMC Shielding Clamp
Contact [email protected] for bundled sourcing of the above components.
Compliance & Industry Standards
- CE Marking – EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- RoHS Compliant – Directive 2011/65/EU
- IP65 per IEC 60529
- Shock resistance: 100 g / 6 ms (IEC 60068-2-27)
- Vibration resistance: 20 g / 10–2000 Hz (IEC 60068-2-6)
- SICK AG ISO 9001:2015 Certified Manufacturing
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components for B2B buyers, system integrators, and MRO procurement teams. Every unit of the SICK DRS60-E4M01024 we supply is:
- Sourced from authorized SICK distributors or verified surplus channels
- Inspected for physical integrity, label authenticity, and packaging condition prior to dispatch
- Shipped with original manufacturer documentation where available
- Backed by our 30-day return policy for DOA (Dead on Arrival) units
How to Source This Part
- Add to Cart – Click “Add to Cart” and proceed to checkout for immediate online purchase.
- Request a Quote – For quantities ≥ 5 units or project-based procurement, email [email protected] for volume pricing.
- Lead Time – In-stock units ship within 1–3 business days. Out-of-stock items: 7–21 business days depending on origin.
- Export & Cross-Border – We support international shipping with commercial invoice and packing list documentation for customs clearance.
Application-Specific FAQ
Q: Is the DRS60-E4M01024 compatible with Siemens S7-1200/1500 high-speed counter inputs?
A: Yes. The push-pull HTL output is directly compatible with Siemens HSC modules operating at 24 V DC logic levels. No signal converter is required.
Q: Can this encoder replace a HEIDENHAIN ERN 420 1024-line encoder?
A: Electrically compatible in most cases (HTL, 1024 PPR, A/B/Z channels). Mechanical shaft and flange dimensions must be verified against your motor’s encoder interface drawing.
Q: What is the maximum cable length for reliable signal transmission?
A: With shielded twisted-pair cable and push-pull output, reliable transmission is achievable up to 100 m at frequencies below 100 kHz. For longer runs, consider RS-422 differential output variants.
Q: Does this encoder provide a zero/index pulse (Z channel)?
A: Yes. The DRS60-E4M01024 outputs A, /A, B, /B, Z, /Z channels, enabling homing and reference position routines in servo systems.
Q: Is this suitable for ATEX / hazardous area installations?
A: The standard DRS60-E4M01024 is not ATEX rated. For hazardous area applications, consult SICK’s DFS60 Ex series or contact us for alternatives.
