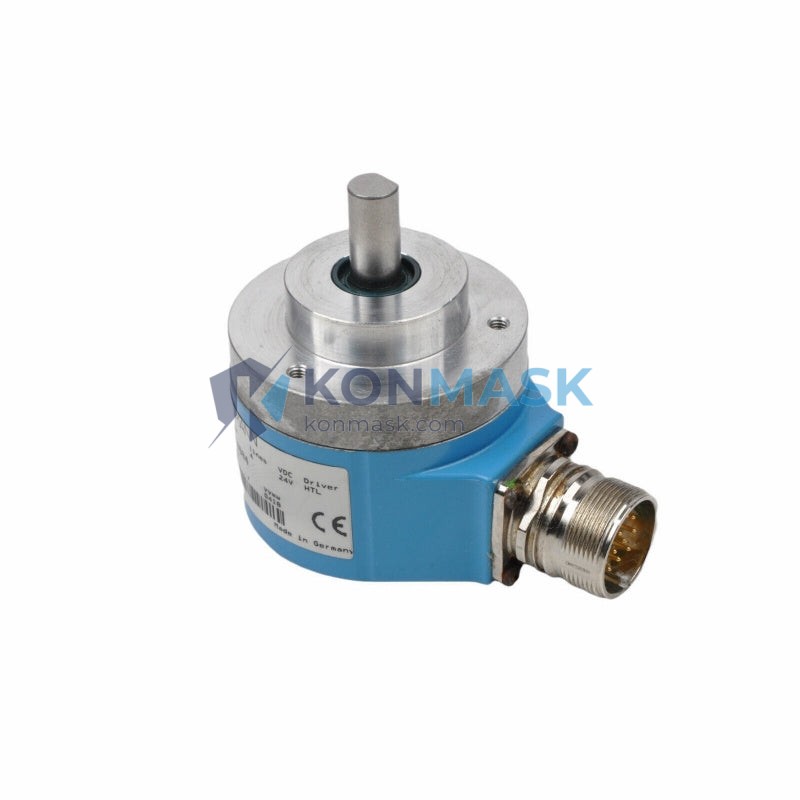

SICK DRS60-E4M02048 Absolute Encoder – DRS60 Series
When a rotary encoder fails on a production line, the consequences are immediate and costly: servo drives lose position feedback, CNC axes go blind, and automated assembly systems halt without warning. Downtime accumulates by the minute while engineers scramble to identify the fault. The SICK DRS60-E4M02048 is the precision absolute encoder that keeps these scenarios from becoming reality — delivering reliable, high-resolution position data that industrial motion control systems depend on around the clock.
Within SICK’s renowned DRS60 series, the DRS60-E4M02048 occupies a high-resolution tier with its 2048 pulses per revolution (PPR) output, making it a preferred choice for applications demanding fine angular resolution and repeatable accuracy. SICK encoders are trusted across automotive, packaging, semiconductor, and heavy industry sectors worldwide, and the DRS60 family represents decades of German engineering excellence in rotary feedback technology.
Technical Specifications
- Manufacturer: SICK AG
- Part Number / SKU: DRS60-E4M02048
- Series: DRS60
- Encoder Type: Absolute Rotary Encoder
- Resolution: 2048 PPR (Pulses Per Revolution)
- Output Interface: E4 (SSI / Synchronous Serial Interface)
- Shaft Type: Solid shaft, 6 mm diameter (M suffix)
- Housing Diameter: 60 mm
- Protection Rating: IP65 (dust-tight, water jet resistant)
- Operating Temperature: -20°C to +85°C
- Supply Voltage: 10–30 V DC
- Weight: Approx. 300 g
- Certifications: CE, UL (refer to SICK datasheet for full compliance list)
Note: Specifications above are based on published SICK DRS60 series documentation. Always verify against the official SICK datasheet for your specific application requirements.
Key Features & Benefits
- High-Resolution Absolute Feedback: 2048 PPR ensures precise angular position data without requiring homing cycles after power-up — critical for safety-sensitive and high-throughput applications.
- SSI Interface (E4): Synchronous Serial Interface output enables noise-immune, long-distance data transmission to PLCs, drives, and motion controllers.
- Robust 60 mm Housing: Compact yet rugged die-cast housing withstands vibration, shock, and harsh industrial environments.
- IP65 Protection: Sealed against dust ingress and water jets, suitable for washdown-adjacent and outdoor-adjacent installations.
- Wide Supply Voltage Range: 10–30 V DC accommodates diverse control cabinet power supplies without additional regulation.
- Long Service Life: SICK’s precision bearing design and quality materials deliver extended MTBF in continuous-duty applications.
- Drop-in Replacement Compatibility: Standard 60 mm flange and shaft dimensions simplify retrofitting into existing encoder mounts.
Industry & Equipment Applications
- Automotive Manufacturing: Robotic welding arms, transfer lines, and press feed systems requiring absolute position tracking.
- Packaging Machinery: Servo-driven filling, capping, and labeling machines where precise angular indexing is essential.
- CNC Machine Tools: Spindle and axis feedback on milling centers, lathes, and grinding machines.
- Crane & Hoist Systems: Absolute position monitoring for safe load positioning and anti-collision control.
- Semiconductor Equipment: Wafer handling and precision stage positioning in cleanroom environments.
- Printing & Converting: Web tension control and register mark synchronization on high-speed presses.
- Wind Energy: Pitch and yaw control systems on wind turbine nacelles.
System Integration & Compatible Parts
The DRS60-E4M02048 integrates directly with SSI-capable servo drives and PLCs from leading manufacturers including Siemens, Beckhoff, Bosch Rexroth, and Mitsubishi Electric. Compatible accessories and related SICK components include:
- SICK DRS60 series mating connectors and pre-assembled cables
- SICK encoder mounting flanges and couplings (synchro flange / clamping flange variants)
- SICK DFS60 series (incremental) as an alternative for applications not requiring absolute position
- SICK AFS/AFM60 series for multi-turn absolute requirements
Contact our technical team at support@konmask.com to confirm compatibility with your specific drive or controller model.
Our Quality Assurance Process
At Konmask.com, every SICK DRS60-E4M02048 unit we supply undergoes a structured sourcing and verification process:
- Authorized & Verified Supply Chain: Units are sourced from authorized distributors and verified OEM channels to ensure authenticity.
- Visual & Packaging Inspection: Each unit is inspected for physical integrity, correct labeling, and original packaging before dispatch.
- Documentation Provided: Original manufacturer documentation, certificates of conformity, and test reports available upon request.
- Traceability: Full lot and serial number traceability maintained for every shipment.
- Warranty: 12-month warranty against manufacturing defects, with responsive after-sales support.
How to Order
- Submit an Inquiry: Use the contact form on this page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our team responds within 1 business day with pricing, lead time, and shipping options.
- Confirm & Pay: Approve the proforma invoice and complete payment via T/T, PayPal, or other agreed methods.
- Shipment & Tracking: Units are dispatched with full tracking information and export documentation (commercial invoice, packing list, COO).
- After-Sales Support: Our engineers remain available post-delivery for integration questions or warranty claims.
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists: Focused exclusively on PLC, DCS, servo, and encoder components — not a generalist marketplace.
- ✅ Global Shipping: Export experience to 50+ countries with DHL, FedEx, and freight forwarding options.
- ✅ Fast Response: Dedicated B2B inquiry team with <24-hour quote turnaround.
- ✅ Competitive Pricing: Direct sourcing relationships enable competitive pricing on both single units and bulk orders.
- ✅ Technical Expertise: Our team includes qualified automation engineers who can advise on compatibility and alternatives.
- ✅ Trusted by Industry: Serving OEMs, system integrators, and MRO procurement teams worldwide since 2015.
Frequently Asked Questions
Q: Is the SICK DRS60-E4M02048 an incremental or absolute encoder?
A: It is an absolute rotary encoder. It retains position data after power loss, eliminating the need for homing routines on restart.
Q: What does the “E4” in the part number signify?
A: “E4” denotes the SSI (Synchronous Serial Interface) output type within the DRS60 series coding scheme. This enables direct connection to SSI-capable drives and controllers.
Q: What does “M02048” mean in the part number?
A: “M” indicates a solid shaft (6 mm) configuration, and “02048” specifies the resolution of 2048 pulses per revolution.
Q: Can this encoder replace other DRS60 variants?
A: Mechanically, DRS60 series encoders share the same 60 mm housing and standard shaft/flange dimensions. However, electrical compatibility depends on the output interface and resolution matching your controller’s requirements. Please consult our team before substituting.
Q: What is the lead time for the DRS60-E4M02048?
A: Lead time varies by stock availability. Submit an inquiry and we will confirm availability and estimated delivery within 1 business day.
Q: Do you provide a certificate of origin or other export documents?
A: Yes. We provide commercial invoice, packing list, certificate of origin, and can arrange additional documentation (e.g., Form E for ASEAN, EUR.1 for EU) upon request.
