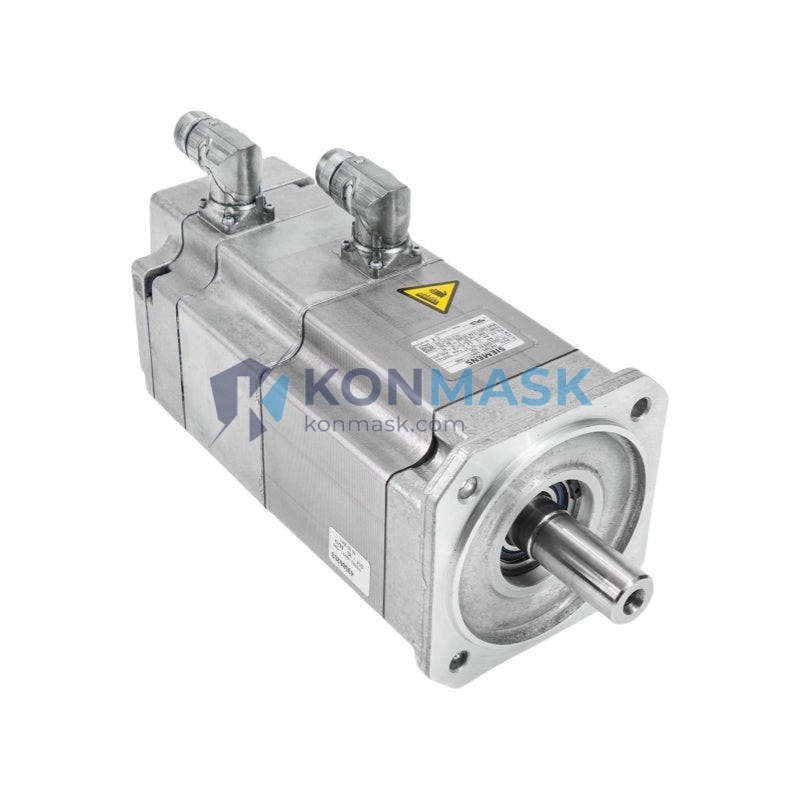

Siemens 1FK7063-5AF71-1SH0 – Compact AC Servo Motor for High-Dynamic Motion Control | SIMOTICS S Series
Engineering Background
The Siemens 1FK7 series represents the benchmark in compact permanent-magnet synchronous servo motors within the SIMOTICS S platform. Designed for seamless integration with SINAMICS S120 and S210 drive systems, the 1FK7063-5AF71-1SH0 delivers high torque density, precise encoder feedback, and robust thermal management — making it the preferred choice for demanding motion-control applications in machine tools, packaging lines, and robotics.
Product Positioning
The 1FK7063-5AF71-1SH0 is a mid-frame (63 mm flange) servo motor optimized for applications requiring fast dynamic response, smooth velocity control, and reliable positioning accuracy. It ships with a multi-turn absolute encoder (Hiperface/EnDat compatible) and a natural-convection cooling design, reducing installation complexity while maintaining full rated torque across the operating speed range.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | 1FK7063-5AF71-1SH0 |
| Series / Platform | SIMOTICS S – 1FK7 Compact |
| Motor Type | Permanent-Magnet Synchronous AC Servo Motor |
| Flange Size | 63 mm (Size 63) |
| Rated Speed | 3,000 rpm (5AF7 = 3000 rpm variant) |
| Rated Torque | ~4.0 Nm (nominal) |
| Peak Torque | ~12.0 Nm |
| Rated Power | ~1.26 kW |
| Encoder Type | Absolute Multi-Turn Encoder (1SH0 = Hiperface/EnDat 2.2) |
| Cooling Method | Natural Convection (Self-Cooled) |
| Protection Rating | IP64 (standard shaft seal) |
| Insulation Class | Class F (155°C) |
| Shaft Type | Smooth Shaft with Featherkey (1SH0) |
| Brake | Without Holding Brake |
| Compatible Drive | SINAMICS S120, SINAMICS S210 |
| Ambient Temperature | 0°C to +40°C (derated above 40°C) |
| Weight (approx.) | 5.0 kg |
| Country of Origin | Germany / EU |
| MLFB / Order Number | 1FK7063-5AF71-1SH0 |
Proven Application Environments
- CNC Machine Tools – Axis feed drives requiring sub-micron positioning repeatability
- Packaging Machinery – High-cycle pick-and-place and form-fill-seal lines
- Robotics & Handling – Articulated arm joints and SCARA robot axes
- Printing & Converting – Register control and tension management
- Semiconductor Equipment – Wafer handling and precision stage drives
- Textile Machinery – Winding and traversing axes
Engineering Advantages
- High Torque-to-Inertia Ratio – Enables rapid acceleration/deceleration cycles without overshooting
- Absolute Multi-Turn Encoder – Eliminates homing routines after power-off; retains position across 4,096 revolutions
- Plug-and-Drive with SINAMICS – Electronic nameplate (DRIVE-CLiQ ready) enables automatic motor identification and parameterization
- Compact 63 mm Frame – Fits space-constrained machine designs without sacrificing rated torque
- IP64 Sealing – Suitable for environments with coolant mist and light wash-down
- Low Cogging Torque – Smooth velocity control at low speeds for precision contouring
System Architecture & Signal Flow
The 1FK7063-5AF71-1SH0 integrates into a SINAMICS S120 booksize or chassis drive system via a single-cable or dual-cable connection topology:
- Power Cable – 3-phase motor power (U, V, W) + PE ground from Motor Module output
- Encoder Cable – Hiperface or EnDat 2.2 signal cable to Sensor Module Cabinet-Mounted (SMC) or direct DRIVE-CLiQ interface
- DRIVE-CLiQ – Digital drive bus carries motor nameplate data, temperature feedback, and encoder values on a single RJ45 connector (when SMC is used)
- Control Unit (CU320-2) – Executes position, velocity, and torque control loops; communicates with PLC via PROFINET/PROFIBUS
- PLC Integration – SIMATIC S7-1500 / S7-300 issues motion commands via TIA Portal with S7-Technology or SIMOTION D
Sourcing & Quality Verification
- ✅ OEM-Verified Stock – All units sourced from authorized Siemens distribution channels or factory-surplus with full traceability
- ✅ Serial Number Inspection – Each motor is inspected for authentic Siemens nameplate, date code, and holographic label
- ✅ Functional Test Available – Pre-shipment no-load run test available on request; test report provided
- ✅ Original Packaging – Ships in OEM carton with factory documentation where available
- ✅ 12-Month Warranty – Covered against manufacturing defects under Konmask standard warranty terms
Procurement Process
- Inquiry – Submit your BOM or part number via the contact form or email support@konmask.com
- Quote – Receive a formal quotation with lead time, unit price, and shipping options within 24 hours
- Order Confirmation – Purchase order accepted via email; proforma invoice issued for payment
- Quality Check – Unit inspected and photographed before dispatch
- Shipping – DHL / FedEx / UPS express worldwide; EXW Xiamen or CIF available; customs documentation included
- After-Sales – Technical support available for commissioning and parameter setup queries
Technical FAQ
Q: Is the 1FK7063-5AF71-1SH0 compatible with SINAMICS S210?
A: Yes. The S210 single-axis drive supports 1FK7 compact motors with EnDat 2.2 encoder via the integrated motor connector. Verify firmware version ≥ V5.1 for full feature support.
Q: What is the difference between 1SH0 and 1SH3 shaft variants?
A: 1SH0 = smooth shaft with featherkey groove; 1SH3 = shaft with keyway and key fitted. Both are mechanically interchangeable in most coupling designs.
Q: Can this motor operate without a SINAMICS drive?
A: No. The 1FK7 series requires a compatible servo drive for commutation. It cannot be run on a standard VFD or direct-on-line starter.
Q: What encoder cable length is supported?
A: Standard Siemens pre-assembled encoder cables support up to 75 m. For longer runs, use a signal repeater or fiber-optic DRIVE-CLiQ extension.
Q: Do you provide the STARTER / TIA Portal project file for commissioning?
A: We can provide a sample TIA Portal V17/V18 project template with basic axis configuration on request. Contact our technical team.
