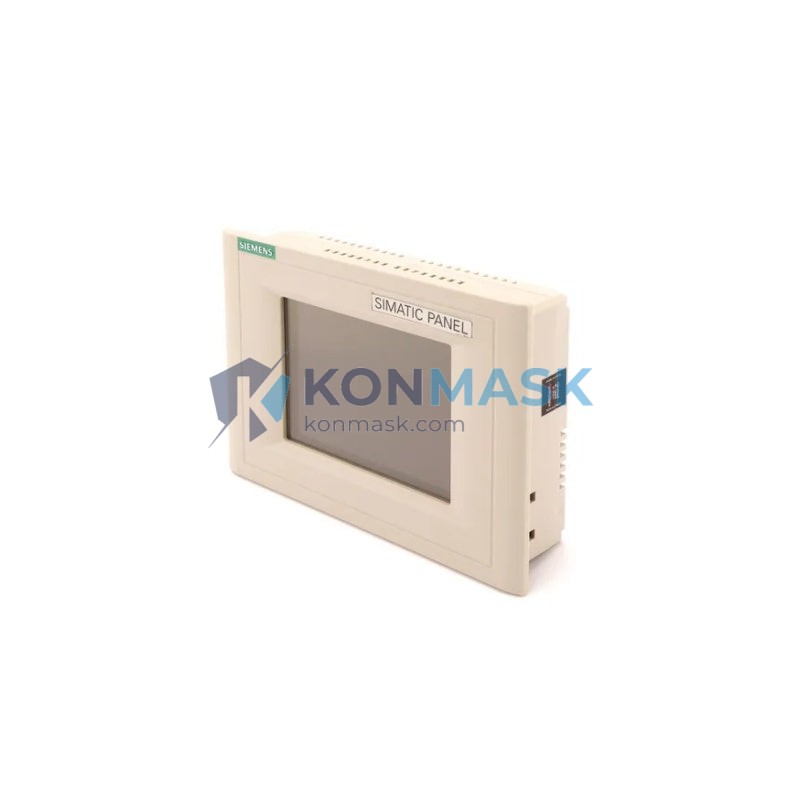

SIEMENS 6AV6 545-0BC15-2AX0 – SIMATIC OP15C Operator Panel | SIMATIC HMI Platform
Engineering Background
The SIEMENS 6AV6 545-0BC15-2AX0 is a member of the SIMATIC OP (Operator Panel) series, part of Siemens’ industry-proven SIMATIC HMI product family. Designed for demanding industrial environments, the OP15C provides a robust human-machine interface solution for process visualization, machine control, and status monitoring in discrete and process manufacturing applications.
Product Positioning
Targeted at automation engineers and system integrators requiring a reliable, compact HMI panel with seamless integration into SIMATIC S7 PLC architectures. The 6AV6 545-0BC15-2AX0 bridges operator interaction and controller logic with high-speed communication and a durable front panel rated for industrial enclosure mounting.
Complete Technical Specifications
- Part Number: 6AV6 545-0BC15-2AX0 (MLFB: 6AV65450BC152AX0)
- Product Family: SIMATIC HMI OP Series — OP15C
- Display Type: STN LCD, monochrome
- Display Size: 5.7-inch diagonal
- Resolution: 320 × 240 pixels (QVGA)
- Backlight: CCFL
- Input Method: Touch screen + membrane keypad
- Operating Voltage: 24 V DC (SELV)
- Power Consumption: Approx. 12 W
- Communication Interfaces: MPI / PROFIBUS DP, RS-422/485
- Configuration Software: SIMATIC ProTool / WinCC flexible
- Memory: Internal flash memory for project storage
- Protection Rating: IP65 (front panel)
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: −20 °C to +60 °C
- Humidity: 10–90% RH (non-condensing)
- Mounting: Panel cut-out, flush mounting
- Dimensions (W × H × D): Approx. 248 × 186 × 55 mm
- Weight: Approx. 1.6 kg
- Certifications: CE, UL, cULus
- Country of Origin: Germany
Proven Application Environments
- Discrete manufacturing lines with SIMATIC S7-300 / S7-400 PLC systems
- Process plant control rooms requiring compact panel-mount HMI solutions
- Machine tool builders integrating SIMATIC automation platforms
- Water treatment and utilities SCADA edge nodes
- Packaging machinery with multi-recipe management requirements
- Automotive assembly line operator stations
- Building automation and HVAC control panels
Engineering Advantages
- Seamless SIMATIC Integration: Native MPI/PROFIBUS DP communication eliminates gateway hardware and reduces latency.
- IP65 Front Protection: Suitable for wash-down and dusty environments without additional enclosure modification.
- ProTool / WinCC Flexible Compatibility: Leverages existing engineering tool investments; project migration supported.
- Compact Footprint: Optimized for space-constrained control cabinet doors and machine panels.
- Long Service Life: Siemens industrial-grade components rated for continuous 24/7 operation.
- Dual Input Modality: Combined touch + membrane keys reduce operator error in gloved-hand environments.
System Architecture & Signal Flow
The 6AV6 545-0BC15-2AX0 connects to the SIMATIC S7 controller via MPI or PROFIBUS DP. The panel runs a ProTool/WinCC Flexible runtime that polls process variables from the PLC data blocks at configurable scan rates. Operator inputs (touch events, key presses) are translated into PLC write commands over the same bus. Alarm management, recipe handling, and trend logging are executed locally on the panel’s flash memory, reducing PLC load. Power is supplied via a 24 V DC SELV source, typically from the control cabinet’s regulated PSU rail.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels.
- Each unit undergoes incoming inspection: visual check, label verification (MLFB cross-reference), and power-on functional test.
- Original Siemens firmware and hardware — no third-party modifications.
- Packaging integrity checked; original Siemens ESD-safe packaging preferred where available.
- Traceability documentation available upon request for regulated industries.
Procurement Process
- Submit your inquiry via the product page or email support@konmask.com.
- Receive a formal quotation with lead time and stock confirmation within 1 business day.
- Confirm purchase order; payment via T/T, PayPal, or agreed terms.
- Unit ships with commercial invoice, packing list, and test report.
- DHL / FedEx express delivery available worldwide; sea freight for bulk orders.
- Post-delivery technical support available via email and WhatsApp.
Technical FAQ
Q: Is the 6AV6 545-0BC15-2AX0 compatible with SIMATIC S7-1200 or S7-1500?
A: The OP15C communicates via MPI/PROFIBUS DP. S7-1200/1500 natively use PROFINET; an MPI/PROFIBUS communication module (e.g., CM 1241) or a PROFIBUS DP master module is required for direct connection.
Q: Which configuration software is required?
A: SIMATIC ProTool v6.x or WinCC Flexible 2008 (or later with legacy support). WinCC Flexible projects can be migrated from ProTool.
Q: Can the display backlight be replaced?
A: The CCFL backlight is a field-replaceable component. Siemens spare part numbers are available; contact us for sourcing assistance.
Q: What is the warranty on this unit?
A: Konmask.com provides a 90-day functional warranty on all verified units. Extended warranty options available — contact us for details.
Q: Do you provide a certificate of conformity?
A: Yes. CE declaration and test reports are available upon request for quality-audited procurement processes.
