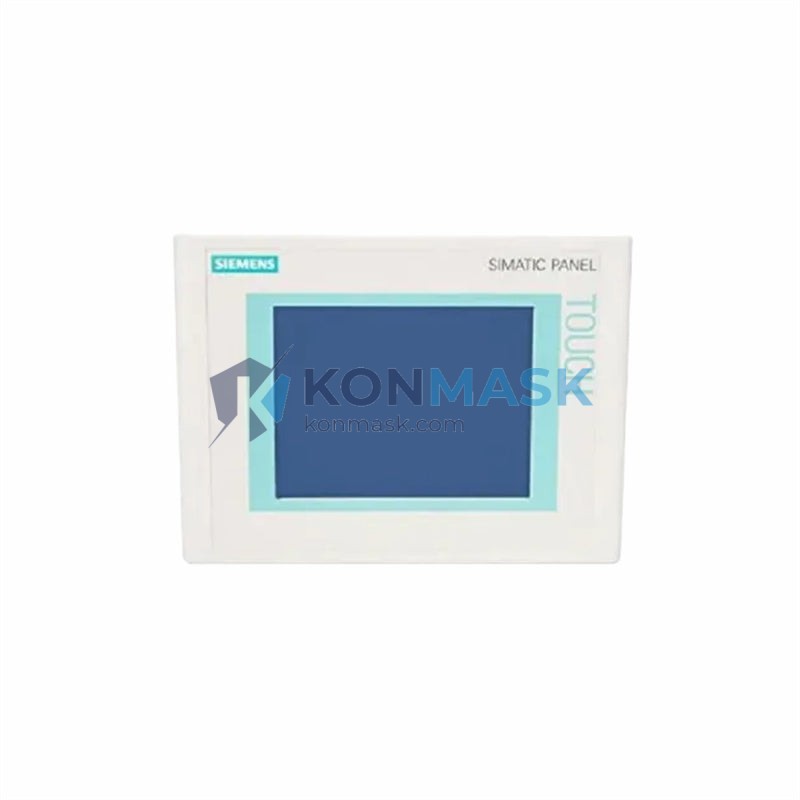

Genuine Siemens 6AV6 642-0AA11-0AX1 HMI Touch Panel | SIMATIC TP177A Series – Verified Source
The Siemens 6AV6 642-0AA11-0AX1 is a 5.7-inch STN monochrome touch panel from the SIMATIC TP177A series, designed for operator control and monitoring in industrial automation environments. As a trusted B2B supplier, Konmask.com provides this unit with full traceability and quality verification — ready for integration into your SIMATIC S7 or WinCC Flexible system.
Technical Specifications
- Part Number: 6AV6 642-0AA11-0AX1
- Series: SIMATIC TP177A
- Display: 5.7″ STN monochrome LCD
- Resolution: 320 × 240 px (QVGA)
- Touch Type: Resistive touch screen
- Interface: MPI / PROFIBUS DP, RS-422/485
- Configuration Software: WinCC Flexible 2005 or higher
- Operating Voltage: 24 V DC
- Protection Rating: IP65 (front panel)
- Operating Temperature: 0 °C to +50 °C
- Weight: Approx. 0.9 kg
- Dimensions (W × H × D): 196 × 141 × 52 mm
- Memory: 512 KB user memory
- Certifications: CE, UL, cULus
Our 4-Step Quality Verification Process
- Source Authentication: Every unit is sourced from verified Siemens-authorized distributors or OEM surplus channels with documented supply chain records.
- Visual & Physical Inspection: Our engineers inspect each unit for label integrity, housing condition, connector pins, and serial number consistency against Siemens databases.
- Functional Power-On Test: Units are powered on and tested for display output, touch response, and communication port functionality before dispatch.
- Packaging & Documentation: Each unit is securely packed with anti-static protection and accompanied by a quality inspection report upon request.
Key Features & Benefits
- IP65-rated front panel — suitable for dusty and wet industrial environments
- Resistive touch screen operable with gloves — ideal for factory floor use
- Native MPI/PROFIBUS DP interface — plug-and-play with SIMATIC S7-200/300/400 PLCs
- WinCC Flexible compatible — fast project migration from legacy HMI systems
- Compact panel-mount design — fits standard 192 × 137 mm cutout
- Low power consumption — 24 V DC operation with minimal heat generation
Typical Applications
- Machine tool operator panels and CNC control interfaces
- Conveyor and material handling system monitoring
- Water treatment and pump station control
- Packaging line HMI replacement and upgrade
- Building automation and HVAC control panels
- Food & beverage processing equipment
Compatible System Components
- PLCs: Siemens SIMATIC S7-200, S7-300, S7-400
- Communication: MPI cable 6ES7901-0BF00-0AA0, PROFIBUS connector 6ES7972-0BB52-0XA0
- Power Supply: Siemens SITOP PSU100S 24 V / 6EP1334-2BA20
- Configuration Software: WinCC Flexible 2005 / 2007 / 2008
- Panel Mounting: Standard 192 × 137 mm cutout, M4 mounting clamps included
Global Sourcing & Shipping Capabilities
Konmask.com ships the Siemens 6AV6 642-0AA11-0AX1 worldwide from our warehouse in China. We support express courier (DHL, FedEx, UPS), sea freight consolidation, and air cargo for bulk orders. Lead time is typically 3–7 business days for in-stock units. For urgent requirements, same-day dispatch is available upon confirmed payment before 14:00 CST.
- Export documentation: commercial invoice, packing list, certificate of origin available
- Minimum order quantity: 1 unit
- Bulk pricing available for orders of 5+ units — contact us for a quote
Certifications & Compliance Statement
The Siemens 6AV6 642-0AA11-0AX1 carries CE marking and UL/cULus certification as issued by Siemens AG. Konmask.com does not modify, remanufacture, or relabel any products. All units are supplied in their original Siemens configuration. We comply with RoHS Directive 2011/65/EU for hazardous substance restrictions.
How to Order
- Submit your inquiry via the Contact Us form or email support@konmask.com
- Provide your required quantity, delivery destination, and any urgency requirements
- Receive a formal quotation within 24 business hours
- Confirm order with purchase order or advance payment
- Receive shipping confirmation and tracking number within 1–2 business days
📞 WhatsApp / WeChat: +0086 19859288691
Authenticity & Trust FAQ
- Q: Is the 6AV6 642-0AA11-0AX1 you supply genuine Siemens?
- A: Yes. All units are sourced from authorized channels or verified OEM surplus. We provide supply chain documentation upon request.
- Q: Can you provide a test report before shipment?
- A: Yes. We offer pre-shipment functional test reports and photos for orders of 1 unit or more upon request.
- Q: What warranty do you offer?
- A: We offer a 90-day warranty against manufacturing defects. DOA (Dead on Arrival) units are replaced or refunded within 7 days of receipt.
- Q: Do you accept returns?
- A: Yes, within 30 days for unused, unopened units in original packaging. Please contact support@konmask.com to initiate a return.
- Q: Can you source other Siemens SIMATIC HMI models?
- A: Absolutely. We specialize in the full SIMATIC HMI range including TP177B, TP277, MP277, MP377, and Comfort Panel series. Send us your part number for availability.
