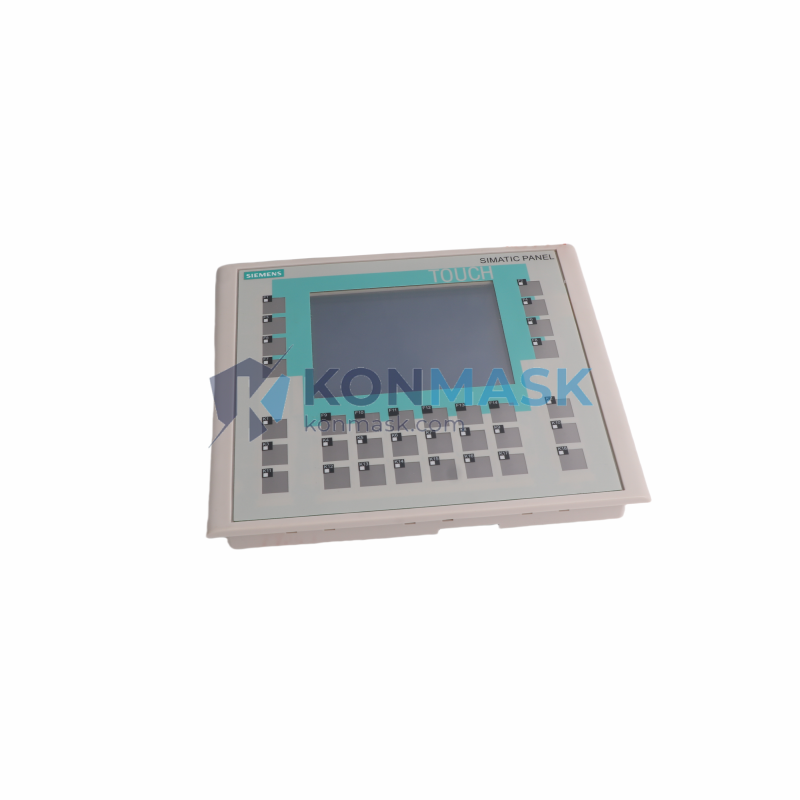

SIEMENS 6AV6642-0DC01-1AX0 TP177B 6-Inch Touch Panel HMI Operator Interface – SIMATIC HMI Series
When a critical HMI operator panel fails on the production floor, the consequences are immediate and severe: operators lose real-time visibility into process parameters, alarms go unacknowledged, and entire production lines grind to a halt. In process-intensive industries—from automotive assembly to chemical processing—every minute of unplanned downtime translates directly into lost revenue and compromised safety. The SIEMENS 6AV6642-0DC01-1AX0 TP177B is engineered to eliminate this vulnerability, delivering a robust, reliable human-machine interface that keeps operators in command of their processes around the clock.
Within the SIMATIC HMI product family, the TP177B occupies a pivotal mid-range position—offering a compelling balance of display quality, connectivity, and processing power that makes it the preferred choice for machine-level visualization across global manufacturing facilities. Backed by Siemens’ decades of automation expertise, the 6AV6642-0DC01-1AX0 variant with its 6-inch TFT display and dual MPI/PROFIBUS-DP interface has been deployed in tens of thousands of installations worldwide, from European automotive plants to Asian electronics factories.
Technical Specifications
- Part Number: 6AV6642-0DC01-1AX0
- Series: SIMATIC HMI TP177B
- Display Type: 6-inch TFT Color LCD
- Resolution: 320 × 240 pixels (QVGA)
- Colors: 256-color display
- Touch Screen: Analog resistive touch panel
- Processor: 32-bit RISC processor
- User Memory: 512 KB configuration memory
- Communication Interfaces: MPI / PROFIBUS-DP (RS-485), RS-232
- Operating System: Windows CE 5.0
- Configuration Software: WinCC flexible 2005 or higher / TIA Portal WinCC
- Supply Voltage: 24 V DC (20.4–28.8 V)
- Power Consumption: Approx. 7 W
- Operating Temperature: 0°C to +50°C (horizontal), 0°C to +40°C (vertical)
- Storage Temperature: -20°C to +60°C
- Protection Rating: IP65 (front panel), IP20 (rear)
- Dimensions (W × H × D): 196 × 146 × 52 mm
- Weight: Approx. 900 g
- Certifications: CE, UL, cULus, FM
Key Features & Benefits
- High-Visibility 6″ TFT Display: 256-color rendering ensures clear process visualization even in demanding industrial lighting conditions, reducing operator error.
- Dual MPI/PROFIBUS-DP Interface: Seamlessly integrates with SIMATIC S7-200, S7-300, and S7-400 PLCs without additional hardware gateways, simplifying system architecture.
- IP65 Front Protection: Fully sealed against dust and water jets, making it suitable for washdown environments in food & beverage and pharmaceutical applications.
- WinCC Flexible / TIA Portal Compatible: Leverages Siemens’ industry-standard engineering software for rapid project development, simulation, and commissioning.
- Compact Panel-Mount Design: Standard cutout dimensions allow direct replacement of legacy OP/TP panels with minimal mechanical modification.
- Alarm Management: Supports up to 500 alarm messages with acknowledgment logging, enabling effective fault diagnosis and compliance documentation.
- Recipe Management: Stores and transfers production recipes directly to the PLC, reducing changeover time and human error in multi-product manufacturing.
- Long Product Lifecycle: Part of Siemens’ long-term supply commitment, with spare parts and support available for extended operational periods.
Industry & Equipment Applications
- Automotive Manufacturing: Body welding lines, paint shop conveyors, engine assembly test benches
- Food & Beverage: Filling and packaging machines, pasteurization systems, CIP (Clean-In-Place) stations
- Pharmaceutical: Tablet press machines, blister packaging lines, cleanroom HVAC control
- Chemical Processing: Reactor temperature/pressure monitoring, batch control systems
- Water & Wastewater: Pump station control, filtration system monitoring
- Plastics & Rubber: Injection molding machines, extruder control panels
- Textile Machinery: Weaving machine control, dyeing process management
- Building Automation: HVAC control panels, energy management systems
System Integration & Compatible Parts
The 6AV6642-0DC01-1AX0 is designed for seamless integration within the Siemens SIMATIC ecosystem. Compatible and commonly paired components include:
- PLCs: SIMATIC S7-200 (CPU 224, CPU 226), S7-300 (CPU 314, CPU 315-2 DP), S7-400 series
- Communication Cables: 6XV1830-0EH10 (MPI cable), 6ES7901-0BF00-0AA0 (PC/MPI adapter)
- Power Supply: SITOP PSU100S 24V / 6EP1334-2BA20
- Configuration Software: WinCC flexible 2008 SP3 (6AV6613-0AA51-3CA5), TIA Portal V13/V14/V15
- Mounting Accessories: Panel mounting clamps included; optional VESA adapter available
- Replacement Touch Screen: Available as spare part for field repair
Our Quality Assurance Process
At Konmask.com, every SIEMENS 6AV6642-0DC01-1AX0 unit undergoes a rigorous multi-stage inspection before shipment:
- Authenticity Verification: Serial number cross-referenced against Siemens’ authorized supply chain records to confirm genuine origin.
- Visual Inspection: Full exterior examination for screen integrity, connector condition, housing damage, and label authenticity.
- Functional Power-On Test: Unit powered at rated 24 VDC; display, touch response, and communication ports verified.
- Communication Interface Test: MPI/PROFIBUS-DP port tested with live PLC connection to confirm data exchange integrity.
- Anti-Static Packaging: Shipped in ESD-safe bags with foam cushioning and moisture-barrier outer carton.
- Documentation: Each unit ships with inspection report and traceability record.
How to Order
- Submit your inquiry via the “Get a Quote” button or email support@konmask.com
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and best pricing within 24 business hours.
- Upon agreement, we issue a proforma invoice; payment via T/T bank transfer or other agreed terms.
- Units are inspected, packed, and shipped with full tracking and export documentation.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: 100% focus on PLC, DCS, HMI, and drive components from leading global brands.
- ✅ Genuine Parts Guaranteed: Every unit traceable to authorized supply channels with full inspection documentation.
- ✅ Global Export Experience: Serving customers in 50+ countries with compliant export documentation and reliable logistics partners.
- ✅ Technical Support: Our engineers can assist with compatibility verification, wiring guidance, and configuration advice.
- ✅ Fast Response: Inquiry-to-quote within 24 hours; urgent orders prioritized.
- ✅ Flexible MOQ: Single-unit orders accepted — no minimum order quantity requirement.
Frequently Asked Questions
Q: Is the SIEMENS 6AV6642-0DC01-1AX0 compatible with TIA Portal?
A: Yes. While originally designed for WinCC flexible, the TP177B is supported in TIA Portal via the WinCC flexible migration tool, allowing projects to be migrated and extended within the TIA Portal environment.
Q: What is the difference between 6AV6642-0DC01-1AX0 and 6AV6642-0DA01-1AX0?
A: The 6AV6642-0DC01-1AX0 features a 6-inch color TFT display (256 colors), while the 6AV6642-0DA01-1AX0 is the monochrome STN variant. The color version offers superior readability for complex process graphics and alarm differentiation.
Q: Can this HMI connect directly to a SIMATIC S7-1200 or S7-1500 PLC?
A: The TP177B communicates via MPI/PROFIBUS-DP. S7-1200 and S7-1500 PLCs support PROFIBUS-DP via CM 1242-5 communication module, enabling connectivity. For Ethernet-based integration, consider upgrading to the SIMATIC HMI KTP series.
Q: Do you provide a warranty on this product?
A: Yes. All units sold through Konmask.com carry a 12-month warranty against manufacturing defects. Our QA inspection process ensures every unit is functional before shipment.
Q: What is the typical lead time for the 6AV6642-0DC01-1AX0?
A: For in-stock units, we typically ship within 3–5 business days after payment confirmation. For larger quantities or special requirements, lead time will be confirmed at the time of inquiry.
Q: Can you provide export documentation for customs clearance?
A: Yes. We provide commercial invoice, packing list, and certificate of origin as standard. Additional documentation (e.g., EUR.1, Form A) can be arranged upon request.
© 2026 Konmask.com. All rights reserved.
Original Source: https://Konmask.com
Contact: support@konmask.com | +0086 19859288691
{
