Genuine SIEMENS 6AV6643-0CD01-1AX1 HMI Operator Panel | SIMATIC OP 177B – Verified Source

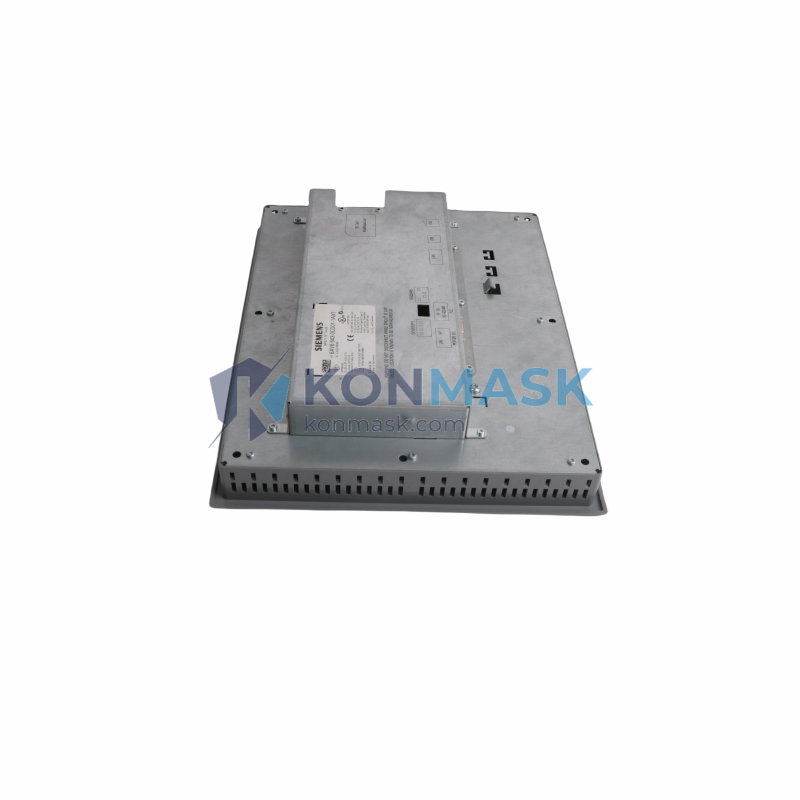

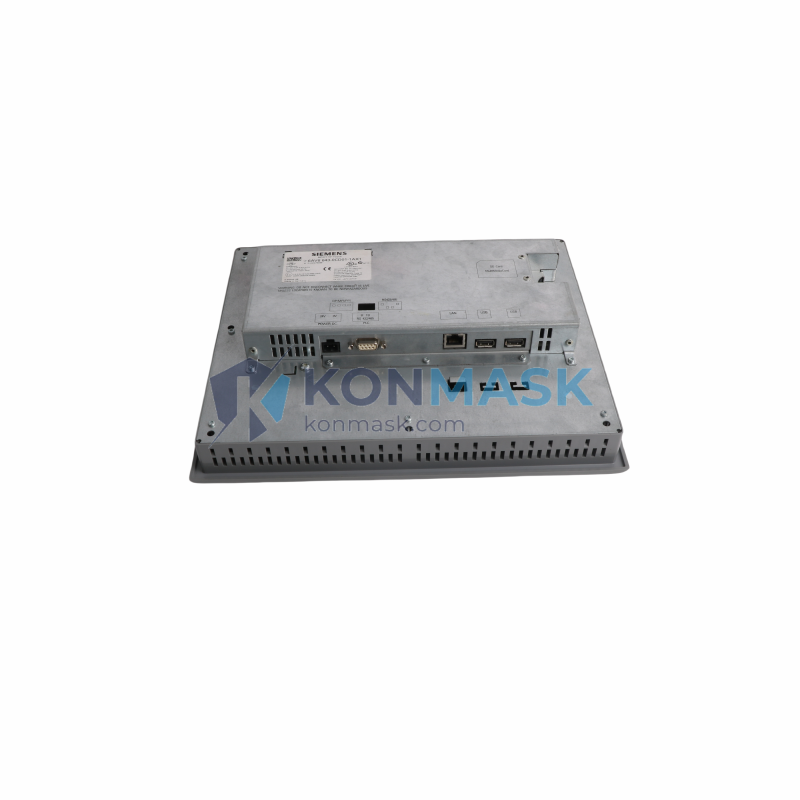

The SIEMENS 6AV6643-0CD01-1AX1 is a SIMATIC OP 177B operator panel featuring a high-resolution color touch display, designed for demanding industrial HMI applications. Sourced directly through verified supply channels, every unit sold by Konmask.com undergoes a rigorous 4-step authenticity and quality check before dispatch.
Technical Specifications
- Part Number / SKU: 6AV6643-0CD01-1AX1
- Series: SIMATIC HMI OP 177B
- Display: 5.7″ STN color touch screen
- Resolution: 320 × 240 px (QVGA)
- Interface: MPI / PROFIBUS DP / RS-422/485
- Memory: 512 KB user memory
- Operating Voltage: 24 V DC
- Protection Rating: IP65 (front panel)
- Operating Temperature: 0 °C to +50 °C
- Weight: approx. 2.52 kg
- Manufacturer: Siemens AG, Germany
Our 4-Step Quality Verification Process
- Step 1 – Source Validation: All units are procured from authorized distributors or verified OEM surplus channels only.
- Step 2 – Physical Inspection: Housing, labels, serial numbers, and firmware version are cross-checked against Siemens factory records.
- Step 3 – Functional Test: Power-on test, display calibration, and communication port verification are performed before packaging.
- Step 4 – Documentation Review: CE declaration, datasheet, and traceability records are archived and available upon request.
Key Features & Benefits
- Genuine Siemens SIMATIC HMI — not a clone or third-party replacement
- Color touch display for intuitive operator interaction on the shop floor
- Multi-protocol support: MPI, PROFIBUS DP, RS-422/485 for broad PLC compatibility
- IP65 front-panel protection — suitable for dusty and wet industrial environments
- Compact panel-mount design minimizes cabinet footprint
- Compatible with SIMATIC WinCC flexible and TIA Portal engineering software
Typical Applications
- Machine tool and CNC control visualization
- Conveyor and material handling system HMI
- Packaging line operator stations
- Water treatment and HVAC plant monitoring
- Food & beverage processing control panels
- Automotive assembly line operator interfaces
Compatible System Components
- SIMATIC S7-300 / S7-400 PLC series
- SIMATIC S7-1200 / S7-1500 (via PROFIBUS adapter)
- SIMATIC ET 200 distributed I/O
- SINUMERIK CNC controllers
- Third-party PLCs with RS-422/485 or PROFIBUS DP support
Global Sourcing & Shipping Capabilities
Konmask.com ships the SIEMENS 6AV6643-0CD01-1AX1 worldwide from our warehouse in China. Standard lead time is 3–7 business days for in-stock units. Express DHL / FedEx options are available. All export documentation, including commercial invoice and packing list, is provided. We support B2B bulk orders — contact us for volume pricing and consolidated shipment arrangements.
Certifications & Compliance Statement
- CE Marking: Compliant with EU Machinery Directive 2006/42/EC
- UL Listed: Recognized component for North American markets
- RoHS Compliant: Meets EU Directive 2011/65/EU on hazardous substances
- REACH: Substance of Very High Concern (SVHC) declaration available on request
- Country of Origin: Germany (Siemens AG manufacturing)
How to Order
- Click Add to Cart or Buy Now to place your order online.
- For B2B purchase orders, email support@konmask.com with your PO and required quantity.
- Request a formal quotation or proforma invoice via email or WhatsApp: +0086 19859288691.
- Payment methods: T/T bank transfer, PayPal, credit card (Visa / Mastercard).
- Lead time confirmation and tracking number provided within 24 hours of payment.
Authenticity & Trust FAQ
Q: How do I know this is a genuine Siemens product?
A: Every unit passes our 4-step verification process. We provide serial number traceability and can supply the original Siemens datasheet and CE declaration upon request.
Q: Do you offer a warranty?
A: Yes. We offer a 12-month warranty against manufacturing defects. DOA (Dead on Arrival) units are replaced at no cost within 7 days of receipt.
Q: Can I return the product if it doesn’t fit my application?
A: We accept returns within 30 days for unused, unopened items in original packaging. Please contact support@konmask.com to initiate a return.
Q: Do you supply to system integrators and OEMs?
A: Absolutely. We specialize in B2B supply for system integrators, panel builders, and OEM manufacturers. Volume discounts are available from 5 units.
Q: Is export documentation provided?
A: Yes. Commercial invoice, packing list, and certificate of origin are standard. Additional customs documents available on request.
