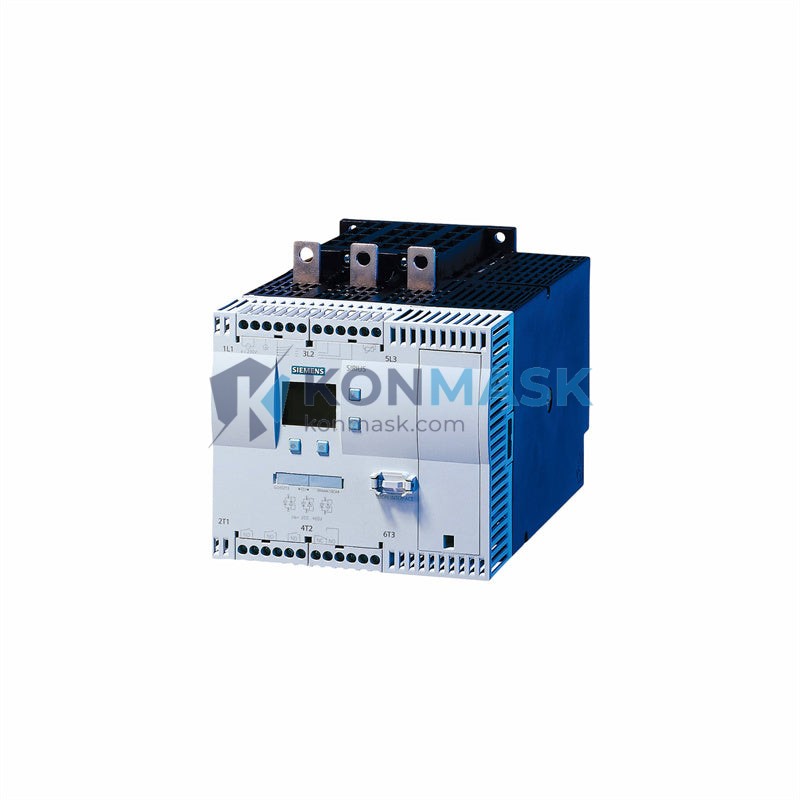

Siemens 3RW4434-6BC44 – SIRIUS Soft Starter for Heavy-Duty Motor Control | SIRIUS 3RW44 Platform
Engineering Background: The Siemens SIRIUS 3RW44 series represents the pinnacle of Siemens’ motor soft-starting technology, engineered for demanding industrial environments where direct-on-line starting causes mechanical stress, voltage dips, and excessive inrush current. The 3RW4434-6BC44 is purpose-built for three-phase asynchronous motors up to 132 kW at 400 V, integrating an electronic bypass contactor to eliminate heat dissipation during steady-state operation.
Product Positioning: Targeted at procurement engineers and system integrators in heavy industry, water treatment, mining, HVAC, and process automation sectors. The 3RW4434-6BC44 delivers controlled ramp-up/ramp-down, current limiting, and motor protection in a single compact DIN-rail or panel-mount unit — reducing BOM complexity and commissioning time versus discrete starter assemblies.
Complete Technical Specifications
- Part Number / SKU: 3RW4434-6BC44
- Manufacturer: Siemens AG
- Series / Platform: SIRIUS 3RW44
- Motor Power (400 V, 3-phase): Up to 132 kW
- Supply Voltage: 400 V AC (3-phase, 50/60 Hz)
- Control Voltage: 110–230 V AC (6BC44 suffix)
- Rated Operational Current (Ie): 250 A
- Starting Current Limitation: Adjustable, up to 5× Ie
- Ramp-Up Time: 1–20 s (adjustable)
- Ramp-Down Time: 0–20 s (adjustable)
- Integrated Bypass Contactor: Yes (electronic, zero heat loss in run mode)
- Motor Protection: Thermistor input (PTC), overload, phase failure, phase imbalance
- Communication Interface: Optional PROFIBUS DP / AS-Interface (via expansion module)
- Degree of Protection: IP00 (panel mounting); IP20 with cover
- Ambient Temperature: -25 °C to +60 °C (operating)
- Mounting: DIN rail / screw mounting
- Weight: Approx. 2.5 kg
- HS Code: 8536.49
- Country of Origin: Germany
- Certifications: CE, UL, cUL, IEC 60947-4-2
Proven Application Environments
- Water & Wastewater: Pump soft-start to eliminate water hammer and pipe stress
- Mining & Quarrying: Conveyor belt and crusher motor control under heavy load
- HVAC Systems: Large fan and compressor starting in commercial buildings
- Process Industry: Agitators, mixers, and centrifuges requiring smooth acceleration
- Marine & Offshore: Deck machinery and pump drives with limited generator capacity
- Power Generation: Auxiliary motor starting in turbine and generator plants
Engineering Advantages
- Integrated Bypass: Eliminates thyristor heat loss during normal operation — no external bypass contactor required, reducing panel space by up to 30%
- Precise Current Limiting: Prevents voltage dips on weak grids; protects upstream transformers and switchgear
- Dual Ramp Control: Independent ramp-up and ramp-down settings for process-optimized starting and stopping
- Comprehensive Motor Protection: PTC thermistor input, electronic overload, phase-loss detection — replaces separate protection relay in many applications
- Siemens TIA Portal Compatible: Seamless integration into Siemens automation ecosystems via optional PROFIBUS/AS-i modules
- Compact Footprint: High power density reduces panel real estate versus equivalent contactor-based starters
System Architecture & Signal Flow
The 3RW4434-6BC44 operates as a three-phase series element between the supply bus and motor terminals. On start command, the internal SCR (thyristor) pairs progressively increase firing angle, ramping motor voltage from the set initial voltage to full supply voltage over the configured ramp time. Once the motor reaches rated speed, the integrated bypass contactor closes, short-circuiting the thyristors and eliminating conduction losses. On stop command, the bypass opens and the thyristors execute a controlled voltage ramp-down before disconnecting. The PTC thermistor input continuously monitors winding temperature; a trip signal opens the control circuit and logs a fault event.
Sourcing & Quality Verification
- All units sourced through verified Siemens authorized distribution channels or certified industrial surplus with full traceability
- Each unit inspected for: intact nameplate data, firmware/hardware revision consistency, terminal integrity, and seal condition
- Batch documentation available: CE Declaration of Conformity, test reports on request
- Counterfeit risk mitigation: holographic labels, serial number verification against Siemens product database
- Packaging: original Siemens carton or equivalent ESD-safe packaging with desiccant
Procurement Process
- Step 1: Confirm part number 3RW4434-6BC44 matches your motor rating and control voltage requirement (110–230 V AC)
- Step 2: Submit RFQ via Konmask.com product page or email support@konmask.com with quantity and delivery timeline
- Step 3: Receive quotation with lead time, unit price, and shipping options (DHL Express / sea freight)
- Step 4: Confirm order — payment via T/T, PayPal, or trade credit (approved accounts)
- Step 5: Dispatch with tracking number; typical lead time 3–7 business days for in-stock units
Technical FAQ
Q: Can the 3RW4434-6BC44 be used with motors larger than 132 kW?
A: No. The rated operational current is 250 A at 400 V, corresponding to 132 kW. For larger motors, refer to the 3RW4436 or 3RW4437 variants.
Q: Is an external bypass contactor required?
A: No. The 3RW4434-6BC44 incorporates an integrated electronic bypass contactor, eliminating the need for an external bypass assembly.
Q: What control voltage does the -6BC44 suffix indicate?
A: The 6BC44 suffix designates a control supply voltage of 110–230 V AC, 50/60 Hz. Verify your control circuit voltage before ordering.
Q: Is PROFIBUS communication built in?
A: PROFIBUS DP and AS-Interface communication are available via optional plug-in expansion modules; they are not included as standard.
Q: What is the warranty?
A: Konmask.com provides a 12-month warranty against manufacturing defects. Extended warranty and on-site support available on request.
