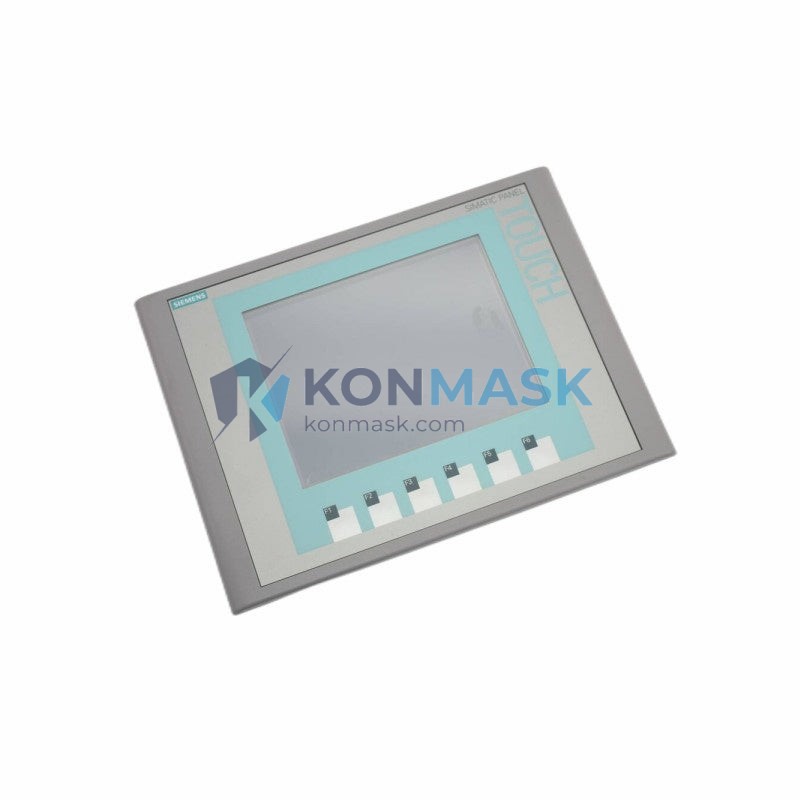

Siemens 6AV6648-0BC11-3AX0 – 10″ KTP1000 Basic Touch Panel | SIMATIC SMART Panel Platform
Engineering Background
The Siemens SIMATIC SMART Panel series represents Siemens’ cost-optimized HMI platform engineered for machine-level visualization in discrete manufacturing, process automation, and OEM equipment. The 6AV6648-0BC11-3AX0 (KTP1000 Basic) delivers a 10.1″ widescreen TFT touch interface with integrated PROFINET connectivity, fully configurable via TIA Portal — making it the preferred choice for engineers seeking a balance of performance, integration depth, and total cost of ownership.
Product Positioning
Positioned between entry-level operator panels and full-featured comfort panels, the KTP1000 Basic targets applications requiring intuitive touch operation, reliable network integration, and seamless PLC coupling — without the overhead of advanced scripting or multi-client architectures. It is widely deployed in packaging lines, conveyor systems, pump stations, and modular machine cells.
Complete Technical Specifications
| Order Number | 6AV6648-0BC11-3AX0 |
| Series | SIMATIC SMART Panel / KTP1000 Basic |
| Display Size | 10.1″ (257 mm) Widescreen TFT |
| Resolution | 1280 × 800 px (WXGA) |
| Color Depth | 16 million colors (24-bit) |
| Touch Type | Resistive single-touch |
| Function Keys | 8 configurable function keys |
| Processor | ARM Cortex-A8, 600 MHz |
| RAM | 128 MB |
| Flash Memory | 256 MB internal |
| Operating System | Windows CE 6.0 |
| Communication Interface | PROFINET (RJ45 × 1), RS-422/485 (DB9) |
| USB | USB 2.0 Type-A (host) |
| Configuration Software | TIA Portal WinCC Basic / Comfort V13+ |
| Supply Voltage | 24 V DC (20.4–28.8 V) |
| Power Consumption | Approx. 18 W |
| Protection Rating | IP65 (front panel) / IP20 (rear) |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +60 °C |
| Relative Humidity | 10–90% RH (non-condensing) |
| Mounting | Panel cutout, portrait or landscape |
| Dimensions (W×H×D) | Approx. 290 × 196 × 46 mm |
| Weight | Approx. 1.2 kg |
| Certifications | CE, UL, cULus, RCM, KC |
| MTTF | > 50,000 hours at 40 °C |
Proven Application Environments
- Discrete Manufacturing: Machine tool HMI, assembly line operator stations, robotic cell interfaces
- Packaging & Material Handling: Conveyor control panels, palletizer HMI, labeling machine interfaces
- Water & Wastewater: Pump station monitoring, dosing system control, filtration plant visualization
- Building Automation: HVAC control, energy monitoring dashboards, access control integration
- OEM Machine Builders: Standardized HMI platform for multi-model machine families
- Food & Beverage: Washdown-compatible (IP65 front) process visualization
Engineering Advantages
- TIA Portal Native Integration: Single engineering framework for PLC + HMI configuration, reducing commissioning time by up to 40%
- PROFINET IRT Support: Deterministic real-time communication with S7-1200/1500 PLCs, cycle times < 1 ms
- Scalable HMI Architecture: Seamless migration path from KTP1000 Basic to Comfort/Unified panels without re-engineering project structure
- IP65 Front Protection: Suitable for direct panel mounting in dusty or splash-prone industrial environments
- Wide Voltage Tolerance: 20.4–28.8 V DC input accommodates unstable industrial power supplies
- Extensive Tag Capacity: Up to 500 process tags (Basic), expandable via Comfort license upgrade
- Multilingual Display: Supports up to 32 project languages with runtime switching
System Architecture & Signal Flow
The 6AV6648-0BC11-3AX0 operates as a PROFINET IO controller client, connecting directly to Siemens S7-1200 or S7-1500 PLCs via standard Ethernet infrastructure. Configuration is performed offline in TIA Portal, compiled, and downloaded via PROFINET or USB. At runtime, the panel polls PLC data blocks and I/O tags at configurable update cycles (default 100 ms), rendering process values, alarms, and trends on the TFT display. Function keys generate discrete digital signals mapped to PLC inputs. The RS-422/485 port supports legacy MPI/PPI or third-party device integration via Modbus RTU or custom ASCII protocols.
Typical Signal Flow: Field Sensors → PLC I/O Modules → S7-1×00 CPU → PROFINET Ethernet → KTP1000 HMI → Operator Input → PLC Control Logic
Sourcing & Quality Verification
- Origin: Genuine Siemens product, sourced through authorized industrial distribution channels
- Condition: New-in-box (NIB) or factory-refurbished units available — condition specified at order confirmation
- Verification: Each unit inspected for firmware version, display integrity, connector condition, and label authenticity prior to shipment
- Documentation: CE Declaration of Conformity and Siemens product datasheet available upon request
- Warranty: 12-month Konmask operational warranty; Siemens factory warranty terms apply to NIB units
- Counterfeit Prevention: All units verified against Siemens MLFB (order number) database; holographic labels inspected
Procurement Process
- Inquiry & Quotation: Submit your BOM or part number to support@konmask.com — quotation within 4 business hours
- Order Confirmation: Pro-forma invoice issued with unit condition, firmware version, and lead time confirmed
- Payment: T/T bank transfer, PayPal, or Shopify secure checkout (HKD / USD / CNY accepted)
- Quality Inspection: Pre-shipment inspection report issued for orders ≥ 3 units
- Shipping: DHL Express / FedEx International Priority — typical transit 3–7 business days; EXW Xiamen available
- After-Sales: Technical support via email or WhatsApp; DOA replacement within 7 days of receipt
Technical FAQ
Q: Is the 6AV6648-0BC11-3AX0 compatible with S7-300/400 PLCs?
A: Direct PROFINET connection requires S7-1200/1500. S7-300/400 integration is possible via PROFINET-capable CP modules (e.g., CP 343-1) or MPI/DP adapters using the RS-485 port.
Q: What TIA Portal version is required?
A: TIA Portal V13 SP1 or higher. V16+ recommended for full feature support and latest firmware compatibility.
Q: Can the panel run without a PLC connection?
A: Yes. The panel boots independently and can display static screens or simulate tag values in offline mode — useful for FAT (Factory Acceptance Testing).
Q: Is the firmware upgradeable in the field?
A: Yes. Firmware updates are applied via USB drive or PROFINET using the ProSave utility or TIA Portal device maintenance function.
Q: What is the panel cutout dimension?
A: Refer to Siemens installation manual 6AV6648-0BC11-3AX0 — standard cutout is approximately 264 × 170 mm. Always verify against the latest Siemens dimensional drawing before fabrication.
Q: Do you provide programming or configuration services?
A: Basic TIA Portal project templates are available upon request. Custom configuration services can be quoted separately.
