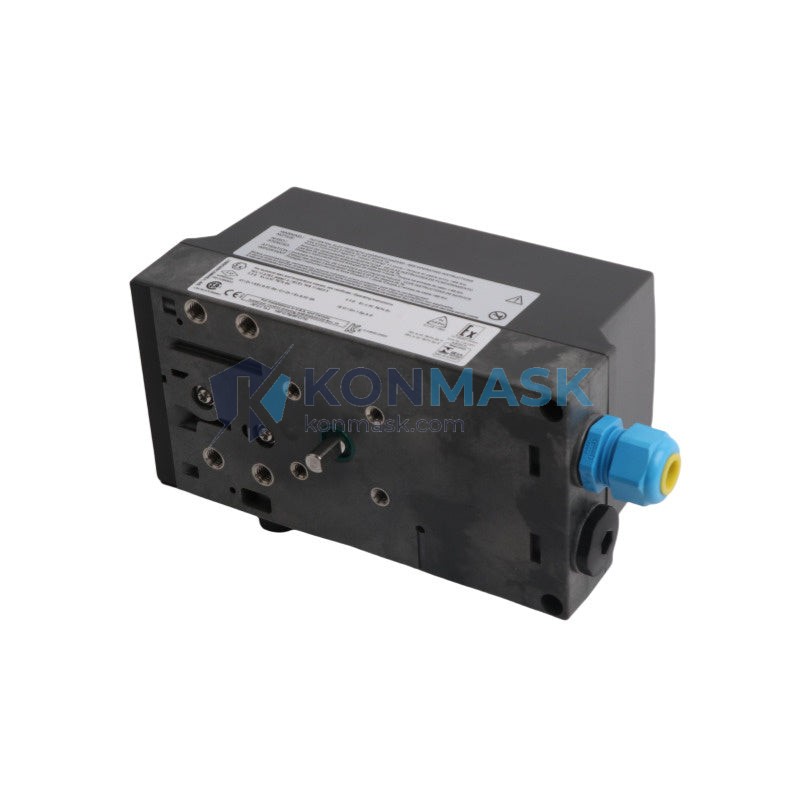

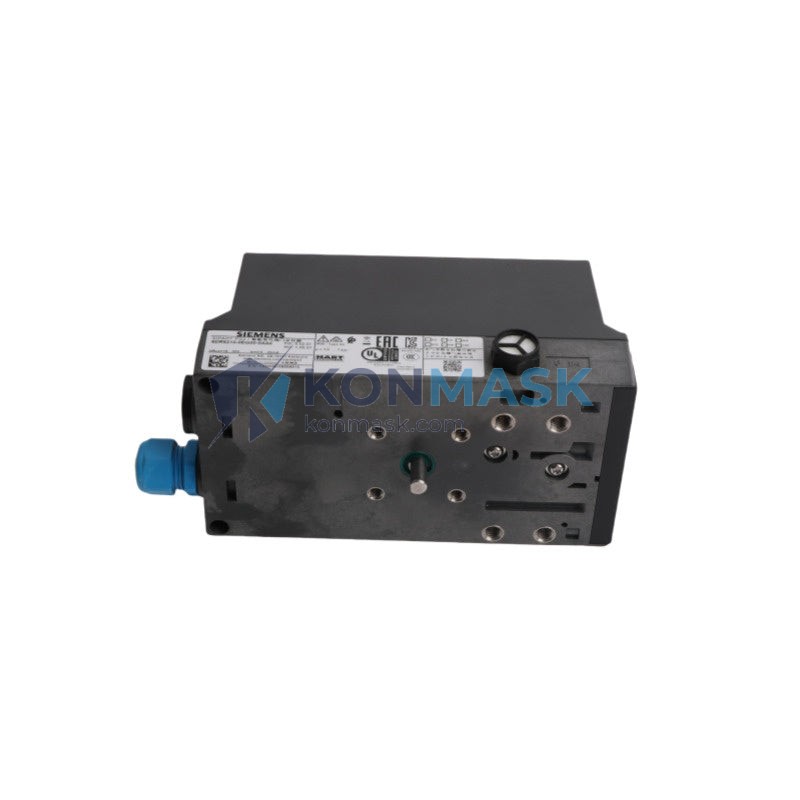

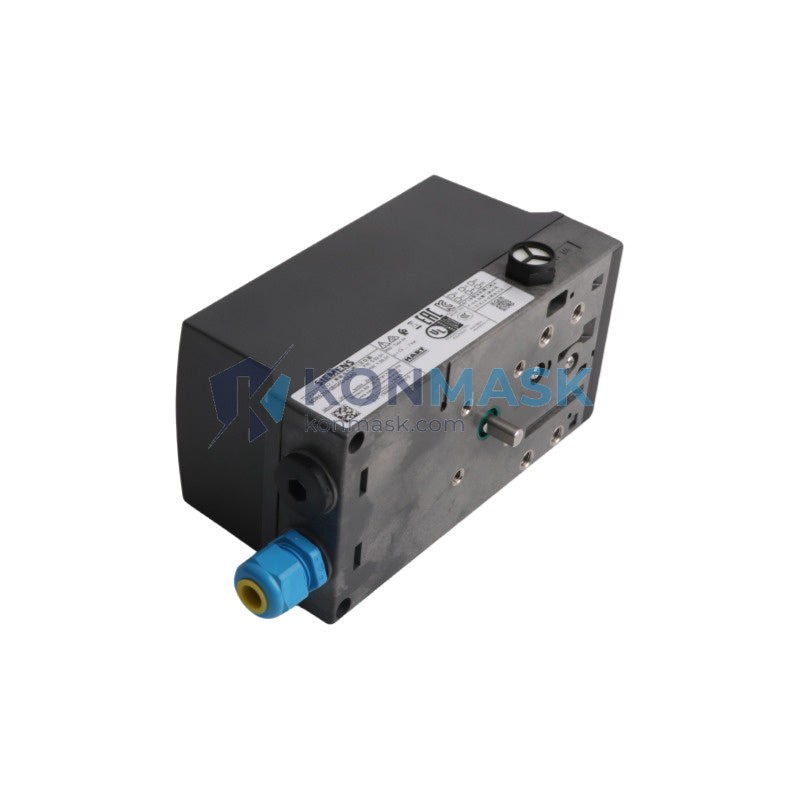

Siemens 6DR5210-0EG00-0AA0 – Smart Electropneumatic Positioner | SIPART PS2 Platform
Engineering Background
The SIPART PS2 series represents Siemens’ flagship intelligent positioner platform, engineered for demanding process automation environments across oil & gas, chemical, power generation, and water treatment industries. The 6DR5210-0EG00-0AA0 is the single-acting variant with HART communication, designed to deliver precise valve positioning with minimal air consumption and maximum diagnostic transparency.
Product Positioning
Targeted at procurement engineers and control system integrators who require a certified, field-proven positioner compatible with DCS/PLC architectures. This unit replaces legacy pneumatic positioners with a fully digital, self-calibrating solution that reduces commissioning time by up to 75% compared to conventional devices.
Complete Technical Specifications
| Part Number | 6DR5210-0EG00-0AA0 |
| Series / Platform | SIPART PS2 |
| Manufacturer | Siemens AG |
| Action Type | Single-acting (spring-return) |
| Input Signal | 4–20 mA (2-wire) |
| Communication Protocol | HART (Highway Addressable Remote Transducer) |
| Supply Pressure | 1.4 – 7 bar (20 – 101 psi) |
| Air Consumption (steady state) | < 0.5 Nl/min |
| Positioning Resolution | 0.1% |
| Travel Range (linear) | 3 – 130 mm |
| Rotation Range (rotary) | 30° – 100° |
| Enclosure Protection | IP66 / NEMA 4X |
| Ambient Temperature | -30°C to +80°C (-22°F to +176°F) |
| Explosion Protection | Non-Ex (standard version) |
| Housing Material | Aluminum alloy, powder-coated |
| Display | 5-digit LCD with backlight |
| Self-Calibration | Automatic (INIT routine) |
| Mounting Standard | IEC 60534-6 (NAMUR), VDI/VDE 3845 |
| Weight | Approx. 980 g |
| Country of Origin | Germany |
| Siemens Order No. | 6DR5210-0EG00-0AA0 |
Proven Application Environments
- Oil & Gas: Wellhead control valves, pipeline pressure regulation, separator level control
- Chemical & Petrochemical: Reactor feed valves, distillation column control, heat exchanger bypass
- Power Generation: Turbine bypass valves, boiler feedwater control, steam conditioning
- Water & Wastewater: Flow control gates, dosing valves, pump bypass regulation
- Pharmaceutical: Clean-in-place (CIP) valve automation, sterile process control
- Pulp & Paper: Digester pressure control, bleaching stage flow regulation
Engineering Advantages
- Automatic Self-Calibration (INIT): Detects valve travel limits, friction, and actuator characteristics automatically — eliminates manual span/zero adjustment
- Minimal Air Consumption: Piezo-electric pilot valve technology reduces steady-state air consumption to <0.5 Nl/min, lowering operating costs
- HART Diagnostics: Full HART 5/6/7 support enables remote valve diagnostics, partial stroke testing (PST), and predictive maintenance integration
- Robust IP66 Enclosure: Sealed against dust ingress and high-pressure water jets — suitable for outdoor and washdown environments
- Wide Temperature Range: Operates reliably from -30°C to +80°C without auxiliary heating or cooling
- Modular Design: Field-upgradeable with optional modules: position feedback, solenoid valve, limit switches, and Ex-rated variants
- DCS/PLC Compatible: Standard 4–20 mA + HART interface integrates directly with Siemens PCS 7, S7-300/400/1500, ABB, Honeywell, Emerson DeltaV, and Yokogawa systems
System Architecture & Signal Flow
The 6DR5210-0EG00-0AA0 operates on a closed-loop position control architecture:
- Setpoint Input: 4–20 mA analog signal received from DCS/PLC output card
- Position Feedback: Internal contactless position sensor (Hall effect) reads actual valve stem position
- Microprocessor Control: Onboard CPU compares setpoint vs. actual position, calculates error, and drives piezo pilot valve
- Pneumatic Output: Pilot valve modulates supply air to actuator — single-acting output to spring-return actuator
- HART Overlay: Digital HART signal superimposed on 4–20 mA loop for bidirectional communication with asset management systems (e.g., Siemens PDM, AMS Device Manager)
Sourcing & Quality Verification
- All units sourced from authorized Siemens distribution channels or verified industrial surplus with full traceability
- Each unit inspected for: physical integrity, nameplate legibility, firmware version, and functional pneumatic response prior to dispatch
- Original Siemens packaging preserved where available; repackaged units include inspection report
- Certificates of conformity and EU Declaration of Conformity available upon request
- Siemens product authenticity verifiable via Siemens Industry Online Support (SIOS) using the exact part number 6DR5210-0EG00-0AA0
Procurement Process
- Confirm Compatibility: Verify actuator type (single-acting), supply pressure range, and communication protocol (HART) match your application
- Request Quote: Contact us at support@konmask.com or +0086 19859288691 for volume pricing and lead time
- Order Placement: Purchase directly via Konmask.com — secure checkout, multiple payment methods accepted
- Shipping: Global shipping available; DDP/DAP Incoterms supported for international B2B orders
- Documentation: Commercial invoice, packing list, and optional test report provided with every shipment
Technical FAQ
Q: Is the 6DR5210-0EG00-0AA0 suitable for double-acting actuators?
A: No. This variant is single-acting (spring-return). For double-acting actuators, specify 6DR5220-0EG00-0AA0.
Q: Does this unit support PROFIBUS PA or Foundation Fieldbus?
A: No. This variant uses HART protocol. For PROFIBUS PA, specify 6DR5210-0PN00-0AA0; for FF, specify 6DR5210-0FF00-0AA0.
Q: Can it be used in hazardous (Ex) areas?
A: This standard version (0AA0 suffix) is non-Ex rated. For ATEX/IECEx zones, specify the appropriate Ex variant (suffix 0AA3 or 0AA4).
Q: What is the minimum supply pressure required?
A: Minimum 1.4 bar (20 psi). Ensure instrument air quality meets ISA 7.0.01 (dew point ≥10°C below ambient, oil-free, particle-free).
Q: How long does auto-calibration (INIT) take?
A: Typically 3–8 minutes depending on valve travel and actuator speed. No manual adjustment required after INIT completes.
Q: Is a position transmitter (4–20 mA feedback output) included?
A: Not in the base version. An optional position feedback module can be added in the field without returning the unit to the factory.
